Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

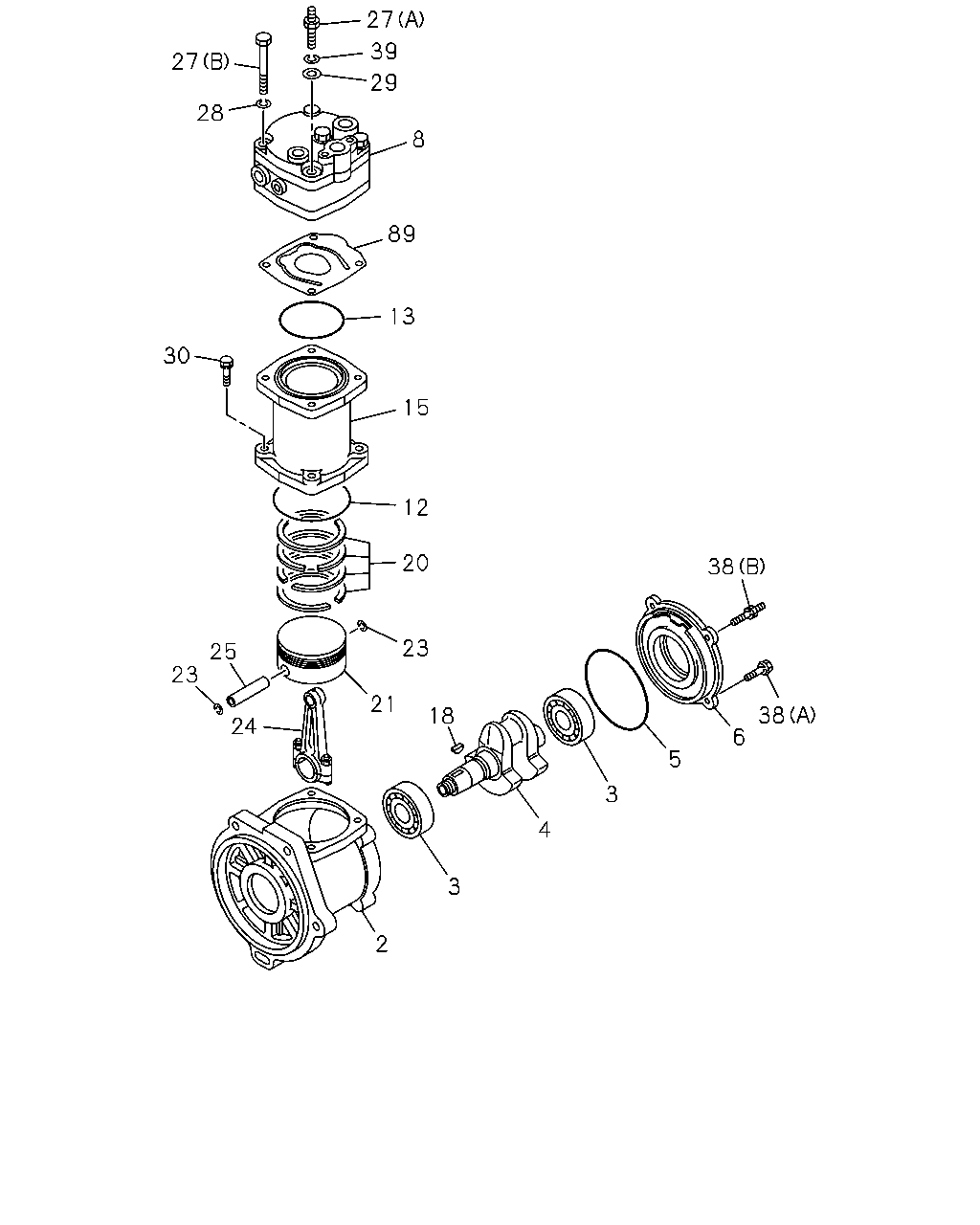

0-39 — AIR COMPRESSOR; BRAKE
(#121833) — 24 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
27
28
27
39
29
8
89
13
30
15
12
20
23
25
23
24
21
18
38
38
6
5
3
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
8-97614-060-0
01
1
1304-
●
●
3
BEARING; AIR CMPR
1-09800-268-0
02
1
1304-
●
●
4
CRANKSHAFT; AIR CMPR
8-97614-059-1
01
1
1304-
●
●
5
GASKET; AIR CMPR
8-98192-463-0
01
1
1304-
●
●
6
COVER ASM; BRG,AIR CMPR
8-97614-058-0
01
1
1304-
●
●
8
HEAD ASM; CYL,AIR CMPR
8-98167-013-0
01
1
1304-
●
●
12
GASKET; AIR CMPR
8-98048-641-0
01
1
1304-
●
●
13
GASKET; AIR CMPR
8-98048-640-0
01
1
1304-
●
●
15
CYLINDER; AIR CMPR
8-97614-056-0
01
1
1304-
●
●
18
KEY; AIR CMPR
9-08055-516-0
01
1
1304-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1304-
●
●
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1304-
●
●
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1304-
●
●
24
ROD ASM; CONN,AIR CMPR
8-97614-057-0
01
1
1304-
●
●
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1304-
●
●
27
BOLT; HD
(A)
8-97614-054-0
01
1
1304-
●
●
27
BOLT; HD
(B) M10X75
8-98167-018-0
03
1
1304-
●
●
28
WASHER; LK,HD BOLT
8-97613-694-0
01
1
1304-
●
●
29
WASHER; PL,HD BOLT
8-97613-686-0
01
1
1304-
●
●
30
BOLT; CYL TO CRANKCASE
8-97613-704-0
04
1
1304-
●
●
38
BOLT; COVER FIX
(A)
8-97613-704-0
02
1
1304-
●
●
38
BOLT; COVER FIX
(B)
8-97617-310-0
02
1
1304-
●
●
39
WASHER; LK,COVER FIX
8-97613-694-0
02
1
1304-
●
●
89
VALVE; SUCTION
1-19119-045-0
01
1
1304-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
