Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#121817) — 16 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[013A] OIL LEVEL GAUGE AND GUIDE TUBE (9 parça)

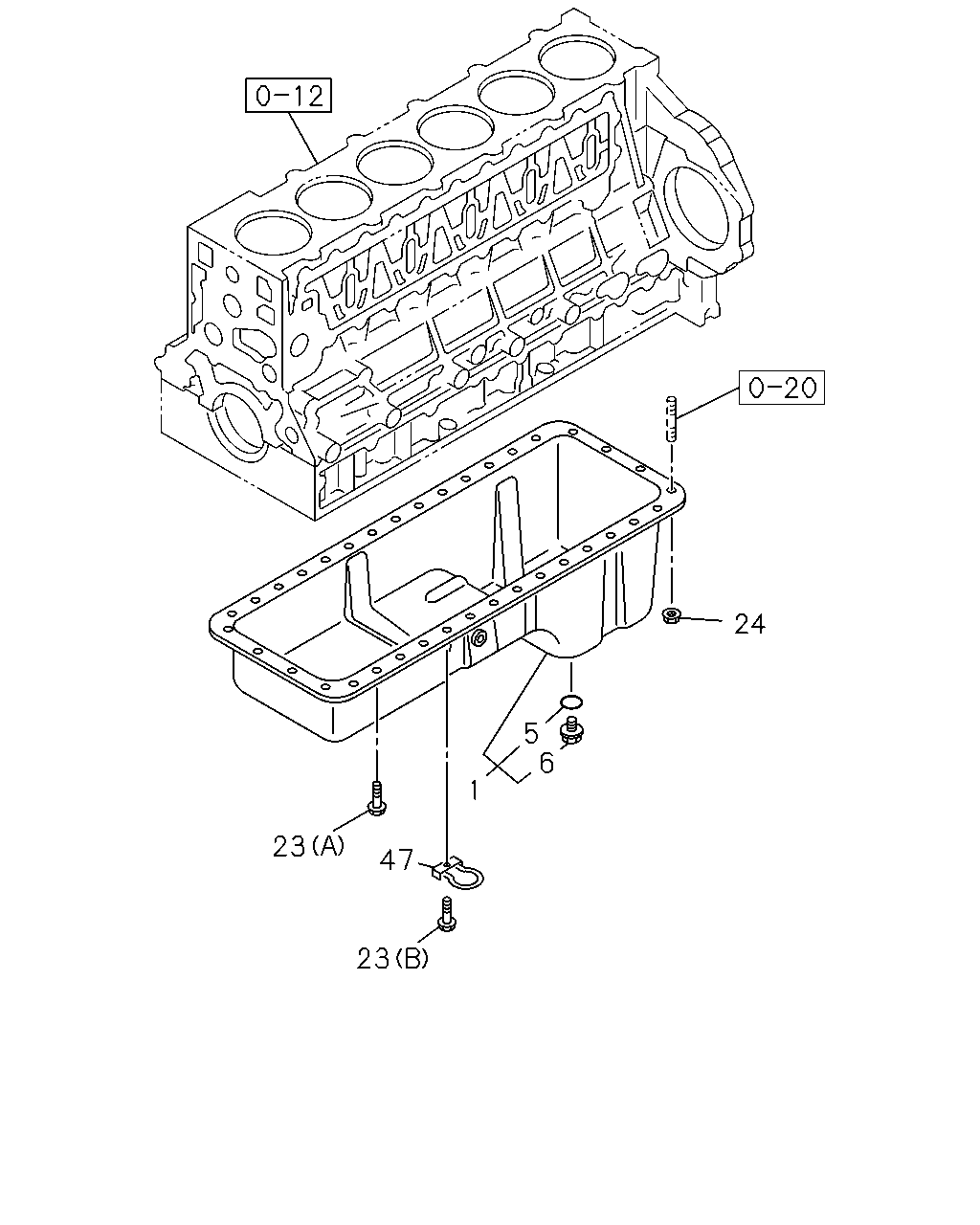

[013A] OIL PAN (7 parça)
▶
8
9
9
193
192
193
49
10
2
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1304-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1304-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98084-773-0
01
1
1304-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1304-
●
●
10
BOLT; GUIDE TUBE
(B) M10X35 FLANGE
0-28151-035-0
01
1
1304-
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE THA
0-91180-108-0
01
1
1304-
●
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1304-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1304-
●
●
5
6
1
24
23
23
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
8-98179-005-0
01
1
1304-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1304-
●
●
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
1304-
●
●
23
BOLT; OIL PAN
(A) M8X18 FLANGE
0-28080-818-0
28
1
1304-
●
●
23
BOLT; OIL PAN
(B) M8X28 FLANGE
8-97329-626-0
02
1
1304-
●
●
24
NUT; OIL PAN
M8 FLANGE THA
0-91180-108-0
04
1
1304-
●
●
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
1304-
●
●
