Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#121803) — 29 parça
◀

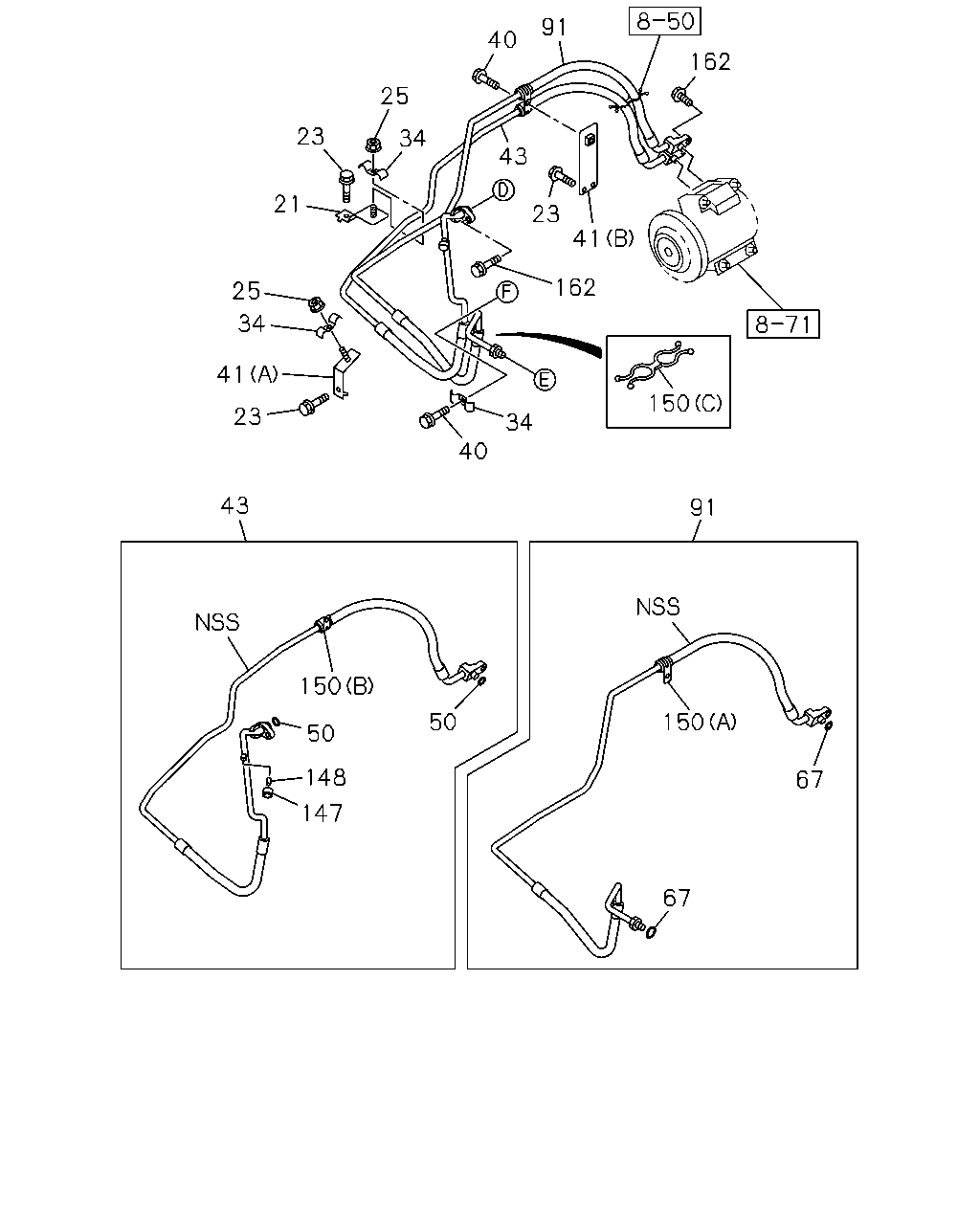

[852A] FRAME SIDE (17 parça)
[852A] CAB SIDE (12 parça)
▶
91
40
34
25
23
21
25
41
34
23
43
40
34
162
41
23
43
162
150
91
150
67
67
50
50
148
150
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98010-187-0
01
1
1304-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
02
1
1304-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98043-673-0
03
1
1304-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-98010-188-1
01
1
1304-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98032-049-0
01
1
1304-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98052-989-2
01
1
1304-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA
8-97095-908-0
02
1
1304-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA
8-97095-907-0
02
1
1304-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98052-990-2
01
1
1304-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA
1-83539-331-0
01
1
1304-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97095-909-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
1-83574-249-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
1-83574-264-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C)
8-94423-042-0
01
1
1304-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE
0-28050-625-0
03
1
1304-
174
116
158
27
158
116
12
33
33
27
27
158
116
156
171
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98041-329-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1304-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA
8-97095-906-0
02
1
1304-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA
8-97095-907-0
01
1
1304-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98151-702-0
01
1
1304-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE
0-28050-625-0
03
1
1304-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA
8-97095-911-0
01
1
1304-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98041-331-0
01
1
1304-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
1-83564-391-0
01
1
1304-
