4-30 — STEERING WHEEL AND COWL (#12180) — 28 parça

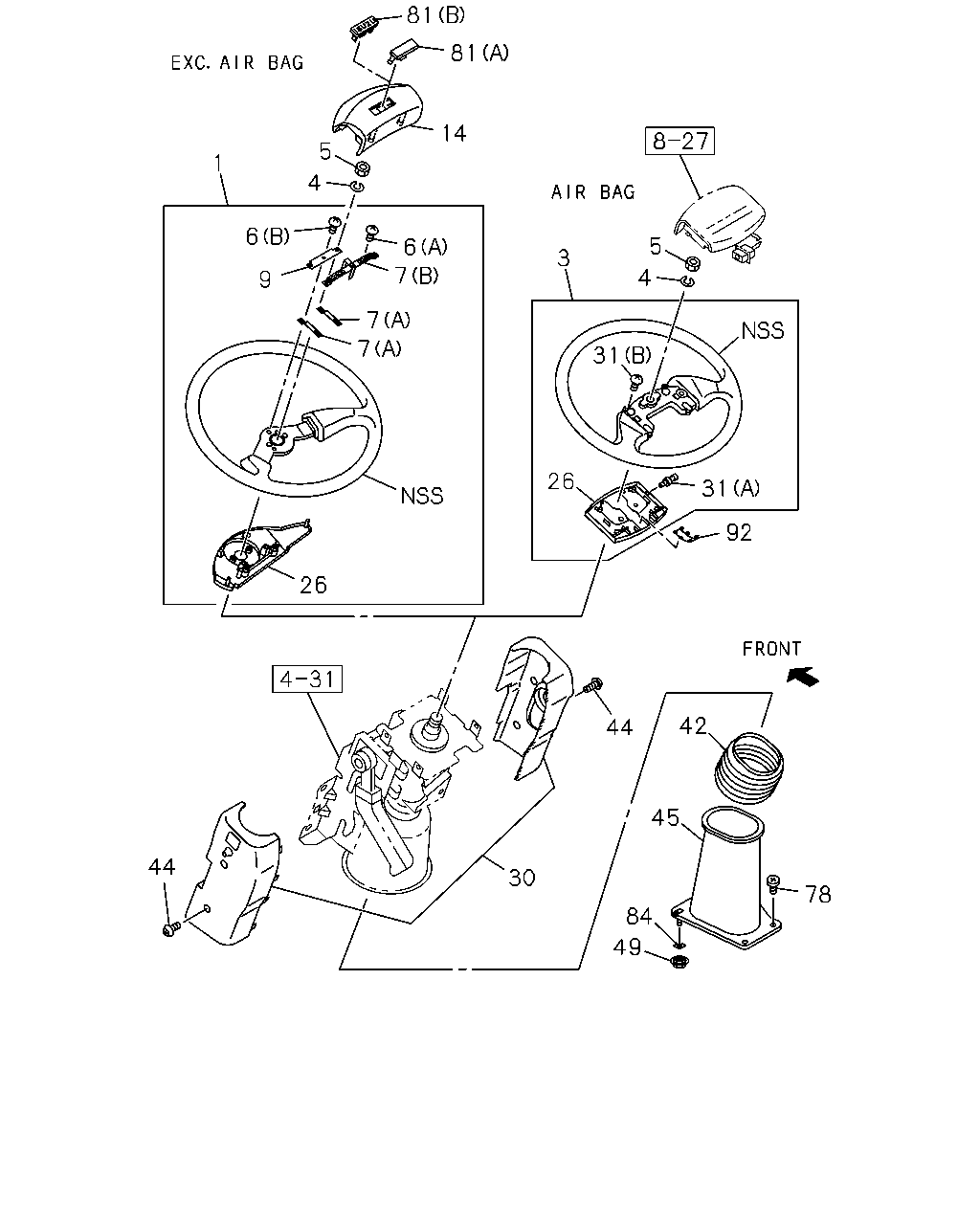

çizim 138852
81 81 14 5 1 4 6 5 6 3 7 4 9 7 7 31 26 31 92 26 42 44 45 44 30 78 84 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
EXC. AIR BAG(TFQ) 		1-44110-159-1 01 1 0105-
3 WHEEL; STRG
AIR BAG(TFQ) 		1-44110-166-2 01 1 0105-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0105-0603
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604-
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 0105-0512
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601-
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (B) M4X10 		1-44129-034-0 01 1 0105-
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (A) M4X16 		1-44129-036-0 04 1 0105-
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (A) 		1-44129-033-0 02 1 0105-
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (B) 		1-44129-037-0 01 1 0105-
9 PLATE; HORN CONTACT
EXC. AIR BAG(TFQ) 		1-44129-038-0 01 1 0105-
14 BUTTON; HORN,STRG WHEEL
EXC. AIR BAG(TFQ) 		1-44120-045-2 01 1 0105-
26 COVER; STRG WHEEL,LWR
AIR BAG(TFQ) 		1-44129-057-1 01 1 0105-
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG(TFQ) 		1-44129-039-1 01 1 0105-
30 COWL; STEERING 1-79997-342-3 01 1 0105-
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (A) 		1-09169-005-0 02 1 0105-
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (B) M4X14 TAPPING 		9-07066-414-0 04 1 0105-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0105-
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 0105-0302
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0105-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0105-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0105-
81 EMBLEM; STRG WHEEL
CHEV BRAND PACKAGE<PS2> EXC. AIR BAG(TFQ) (A) 		1-76210-666-0 01 1 0105-
81 EMBLEM; STRG WHEEL
EXC. CHEV BRAND PACKAGE<PS2>,AIR BAG(TFQ) (B) 		1-76210-638-1 01 1 0105-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0105-1205
92 LID; WHEEL COVER
AIR BAG(TFQ) 		1-44119-001-1 01 1 0105-
