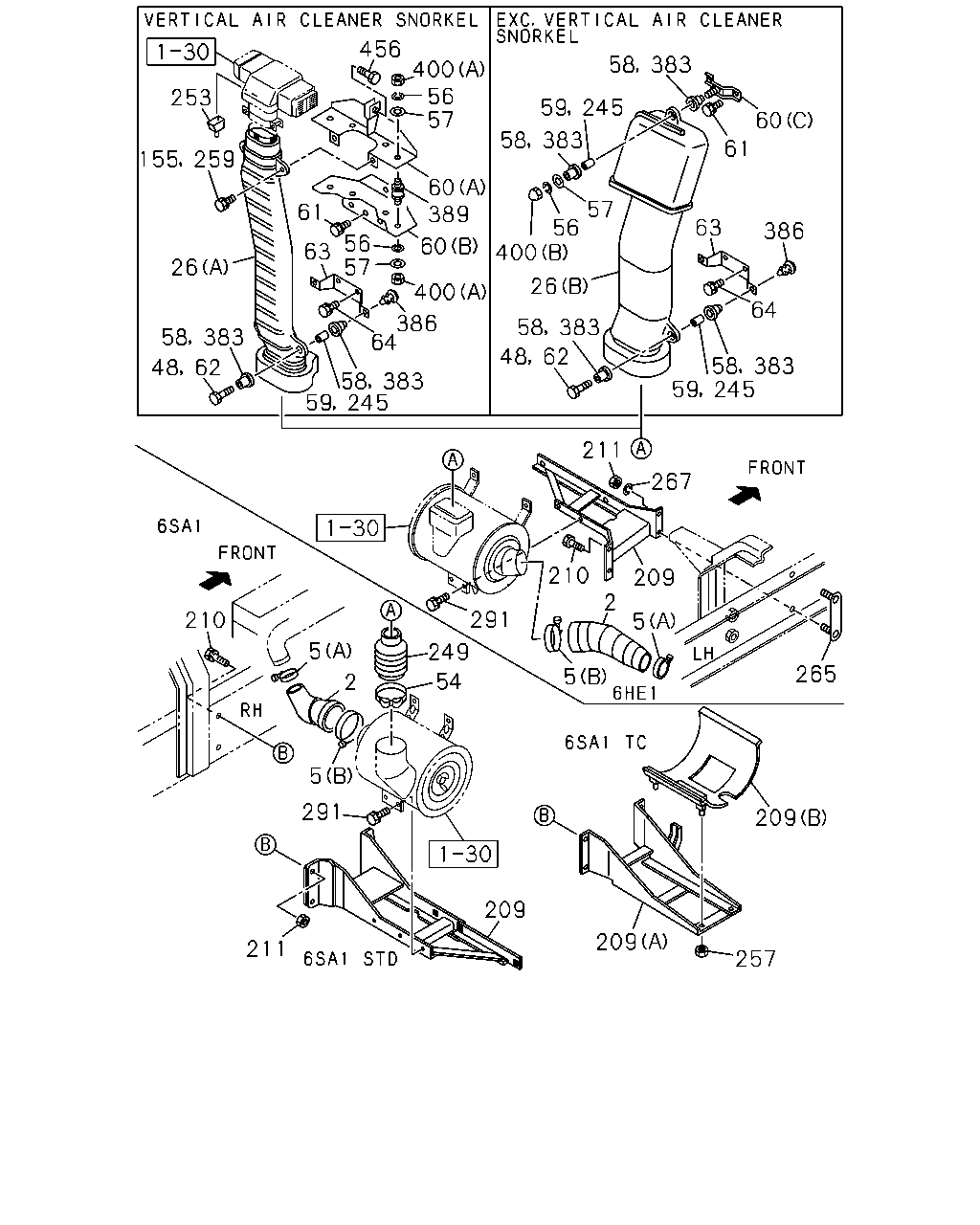

1-31 — AIR DUCT (#1218) — 68 parça

456 58 383 400 56 57 253 59 245 60 58 383 61 155 259 60 389 57 56 400 61 56 57 63 386 60 63 26 26 400 64 386 64 58 383 58 383 48 62 383 245 62 48 383 245 59 59 211 267 210 209 2 291 210 5 5 249 265 5 54 2 5 291 209 209 209 211 257 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-566-1	01	1	9202-	●
2	HOSE; ACL	1-14231-809-0	01	1	9202-		●
2	HOSE; ACL	1-14231-509-0	01	1	9305-			●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9202-	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9202-	●	●
5	CLIP; AIR DUCT (A)(B) ID=104-142	1-09707-155-0	02	1	9305-			●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-102-0	01	1	9202-	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-077-5	01	1	9202-9406	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-130-0	01	1	9407-	●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-110-0	01	1	9202-9501		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-143-0	01	1	9502-		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-676-0	01	1	9202-9501		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-141-0	01	1	9502-		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-103-0	01	1	9305-			●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-076-6	01	1	9305-9406			●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-131-0	01	1	9407-			●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9202-		●
54	CLIP; GASKET,AIR DUCT ID=137	1-09707-113-0	01	1	9202-	●
54	CLIP; GASKET,AIR DUCT	1-09707-121-0	01	1	9305-			●
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10	1-09985-180-0	08	1	9202-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=18.4 M10	1-09500-046-0	01	1	9202-	●	●	●
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18	1-09985-173-0	08	1	9202-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9202-	●	●	●
58	SUPPORT; AIR INL DUCT VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	04	1	9202-		●
58	SUPPORT; AIR INL DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	06	1	9202-		●
59	TUBE; DIST,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9202-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9202-	●		●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9202-	●	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9202-	●		●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-554-1	01	1	9202-	●		●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-665-0	01	1	9202-		●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-571-2	01	1	9202-		●
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9202-	●	●	●
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●	●
62	BOLT; AIR INT DUCT M10X26	1-09030-044-1	02	1	9203-	●		●
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9202-	●		●
63	BRACKET; AIR DUCT,LWR	1-79998-572-2	01	1	9202-		●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9202-	●	●	●
155	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9203-		●
209	BRACKET; ACL	1-53497-320-1	01	1	9202-	●
209	BRACKET; ACL	1-53497-398-0	01	1	9202-		●
209	BRACKET; ACL (B)	1-53497-206-2	01	1	9306-			●
209	BRACKET; ACL (A)	1-53497-391-0	01	1	9306-9310			●
209	BRACKET; ACL (A)	1-53497-205-3	01	1	9311-			●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	04	1	9202-9307	●		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	04	1	9308-9503	●		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	04	1	9504-	●		●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	02	1	9202-9307		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	02	1	9308-9503		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9504-		●
211	NUT; BRKT M12	9-99110-512-0	02	1	9202-	●	●
245	PIECE; DIST,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9202-		●
245	PIECE; DIST,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9202-		●
249	GASKET; RUBBER,BELLOWS	1-14230-073-4	01	1	9202-	●
249	GASKET; RUBBER,BELLOWS	1-14230-118-0	01	1	9305-			●
253	VALVE; VACUATER VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17>	1-14219-192-0	02	1	9202-	●	●
257	NUT; BRKT M10 FLANGE	5-09440-006-0	04	1	9306-			●
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9203-	●	●	●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	9202-		●
267	WASHER; LK,ACL ID=12.2	9-09150-512-0	02	1	9202-		●
291	BOLT; ACL M8X25 FLANGE	0-28080-825-0	04	1	9202-	●	●
383	RUBBER; SUPPORT,AIR INT,LWR VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	04	1	9203-	●		●
383	RUBBER; SUPPORT,AIR INT,LWR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	06	1	9203-	●		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3>	1-14119-189-0	04	1	9202-	●	●	●
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A) M10	1-09984-121-0	08	1	9202-	●	●	●
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B) M10	1-09984-145-0	01	1	9202-	●	●	●
456	BOLT; AIR INL HOOD VERTICAL AIR CLEANER SNORKEL<PP3> M8X25	1-09980-511-0	01	1	9202-	●	●	●
