8-15 — FIXING PARTS; WIRING HARNESS (#121796) — 193 parça
çizim 357127
304 304 304 304 304 377 38 386 139 139 139 139 139 239 38 242 313 313 313 150 38 184 524 219 294 525 294 127 139 150
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1304-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1304-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1304-
139 BOLT; BRKT
(D) M10X30 FLANGE THA 		0-28651-030-0 01 1 1304-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1304-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1403-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 1304-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1304-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 1304-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 1304-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1304-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
313 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 1304-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1304-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1304-

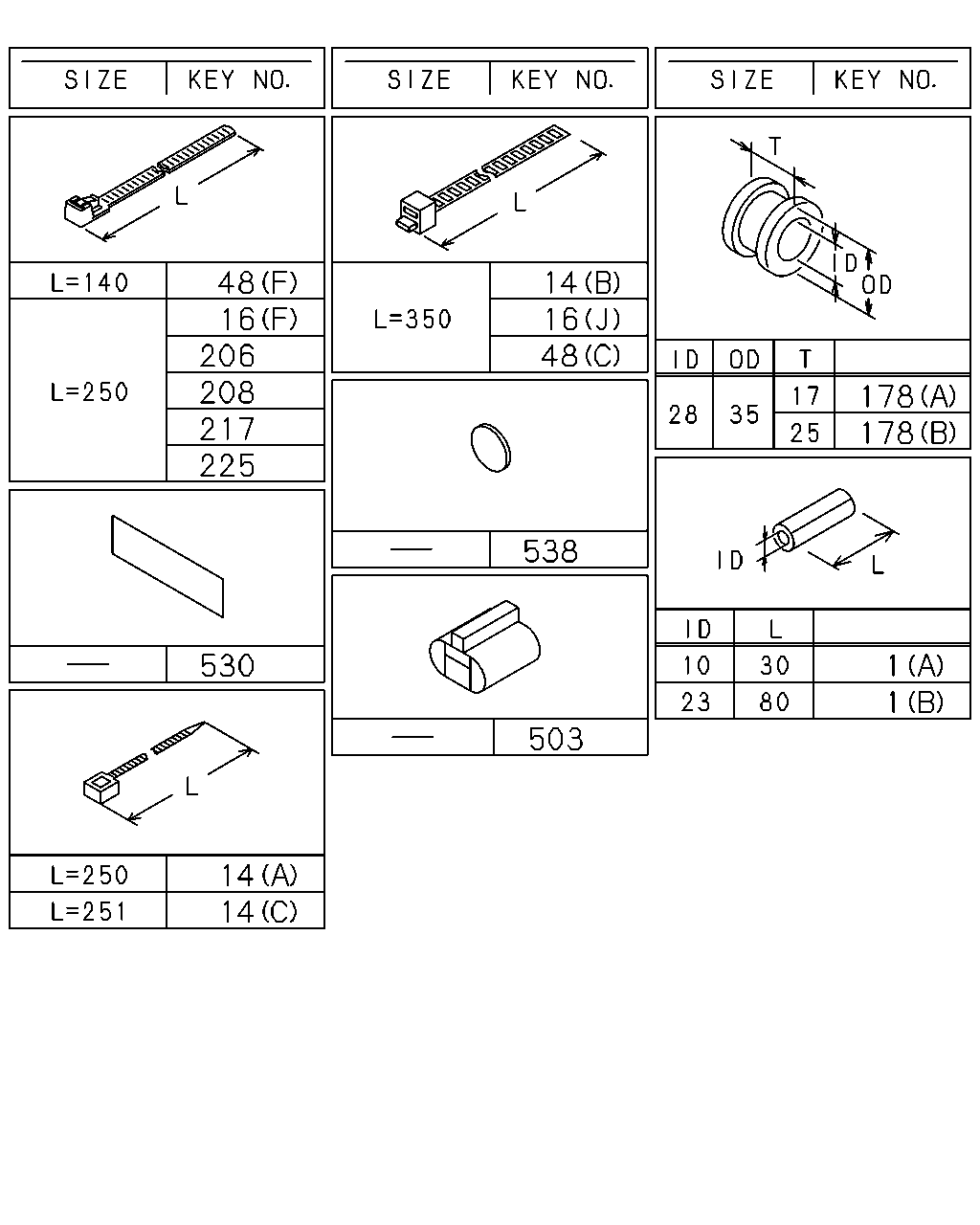

çizim 357159
48 206 16 225 217 530 14 14 503 538 48 16 14 178 1 178 1 208
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1304-1402
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 05 1 1403-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1304-1406
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 1407-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 1304-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 14 1 1304-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (L) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 02 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 04 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1304-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM<36W> (G) ID=15 L=65 		1-09700-466-0 03 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM<36W> (G) ID=15 L=65 		1-09700-466-0 05 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (A) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (G) ID=15 L=65 		1-09700-466-0 11 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W> (G) ID=15 L=65 		1-09700-466-0 15 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W> (G) ID=15 L=65 		1-09700-466-0 19 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-
178 GROMMET; HARNESS
WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 05 1 1304-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 		5-09707-030-1 01 1 1304-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1304-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1304-
503 CONNECTOR 1-82690-668-0 01 1 1304-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-1309
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1310-
530 SEAL; HARNESS
180X40 		1-72498-019-1 19 1 1304-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-1309
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1304-

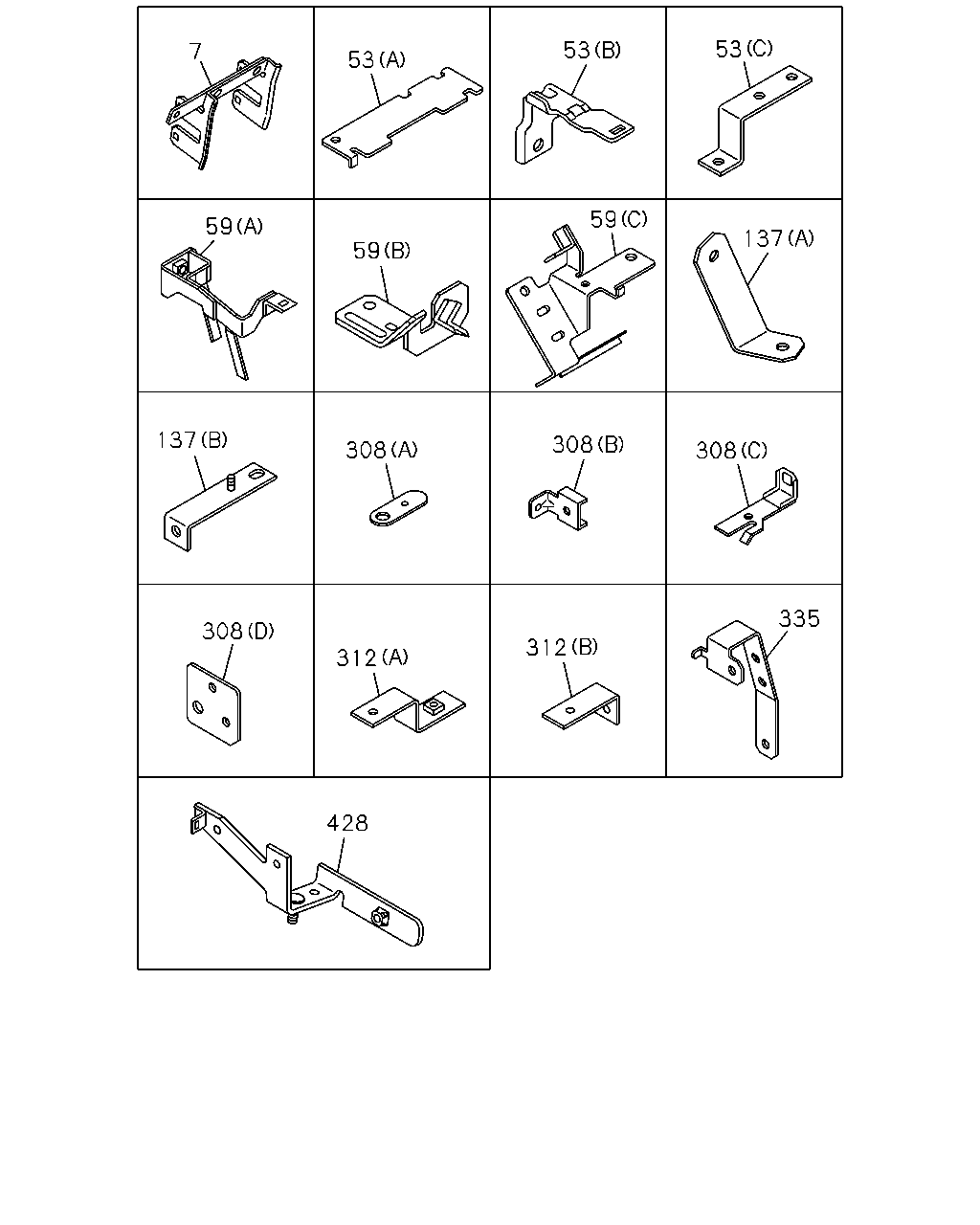

çizim 357274
53 53 53 7 59 59 59 137 308 308 308 137 308 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1304-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1304-
53 BRACKET; HARNESS
(A) 		8-98127-093-0 01 1 1304-
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98124-778-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1304-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1304-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1304-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1304-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1304-
428 BRACKET 8-98212-082-1 01 1 1304-

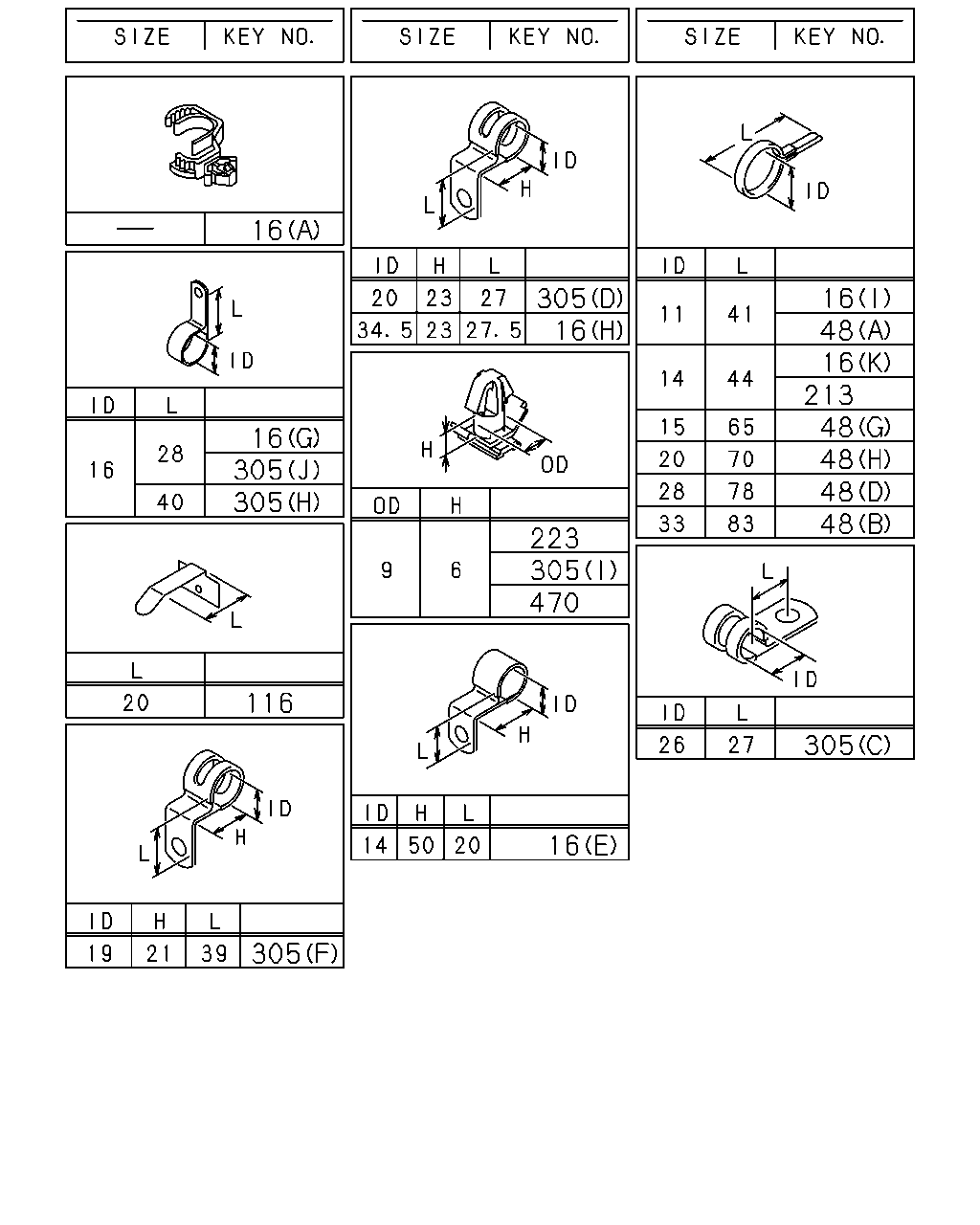

çizim 357394
305 48 48 48 48 213 16 48 16 305 16 223 470 305 16 305 116 305 305 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (L) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 02 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 04 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1304-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM<36W> (G) ID=15 L=65 		1-09700-466-0 03 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM<36W> (G) ID=15 L=65 		1-09700-466-0 05 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (A) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (G) ID=15 L=65 		1-09700-466-0 11 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W> (G) ID=15 L=65 		1-09700-466-0 15 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W> (G) ID=15 L=65 		1-09700-466-0 19 1 1304-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 1304-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1304-
223 CLIP; AIR TANK HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1304-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 		1-09701-006-0 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1304-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1304-
çizim 357971
16 16 16 305 306 305 48 306 305 16 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (L) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 1304-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 02 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 04 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1304-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM<36W> (G) ID=15 L=65 		1-09700-466-0 03 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM<36W> (G) ID=15 L=65 		1-09700-466-0 05 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (A) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (G) ID=15 L=65 		1-09700-466-0 11 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W> (G) ID=15 L=65 		1-09700-466-0 15 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W> (G) ID=15 L=65 		1-09700-466-0 19 1 1304-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1304-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 		1-09701-006-0 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1304-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
