Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#121795) — 82 parça
◀
[810A] OTHER HARNESS NO.2 (9 parça)
[810A] CAB HARNESS (21 parça)
[810A] FRAME HARNESS NO.1 (22 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] AIR TANK HARNESS (6 parça)
[810A] ENGINE HARNESS (4 parça)
[810A] TRANSMISSION HARNESS (3 parça)
[810A] FRAME HARNESS NO.2 (6 parça)
[810A] OTHER HARNESS NO.1 (9 parça)
▶

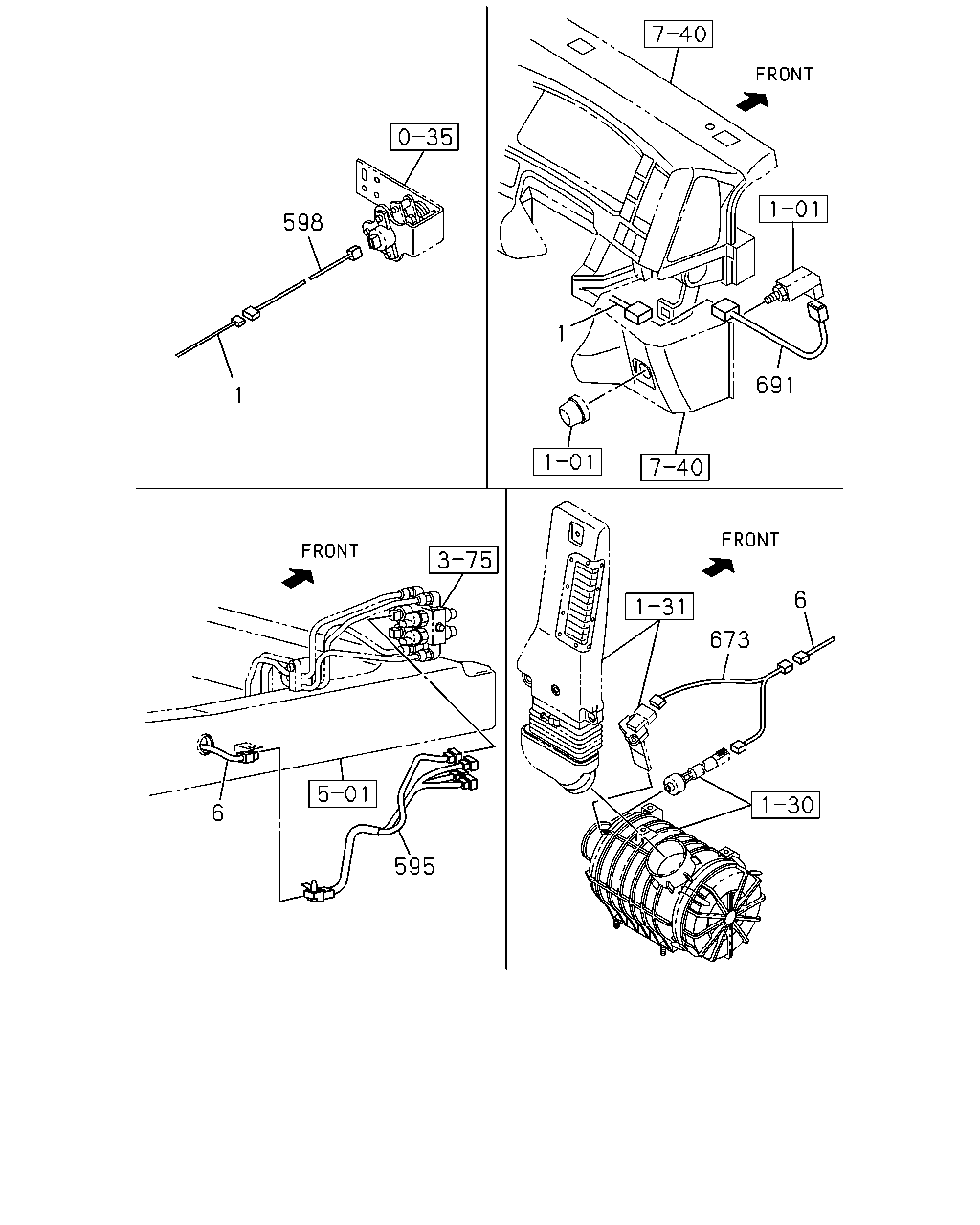

598
1
1
691
673
6
595
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-453-0
01
1
1304-
6
HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-249-1
01
1
1304-
6
HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-250-1
01
1
1304-
595
HARNESS; WARNING,BRK
THA
8-97924-875-0
01
1
1304-
598
HARNESS; EXT,PTO
PTO CONTROL<SV6>
1-82675-898-0
01
1
1304-
673
HARNESS; EXT,SENSOR
8-98069-172-0
01
1
1304-1306
673
HARNESS; EXT,SENSOR
THA
8-97948-234-0
01
1
1307-
691
HARNESS; IDLE CONT
8-98049-014-2
01
1
1304-1306
691
HARNESS; IDLE CONT
THA
8-97948-238-0
01
1
1307-

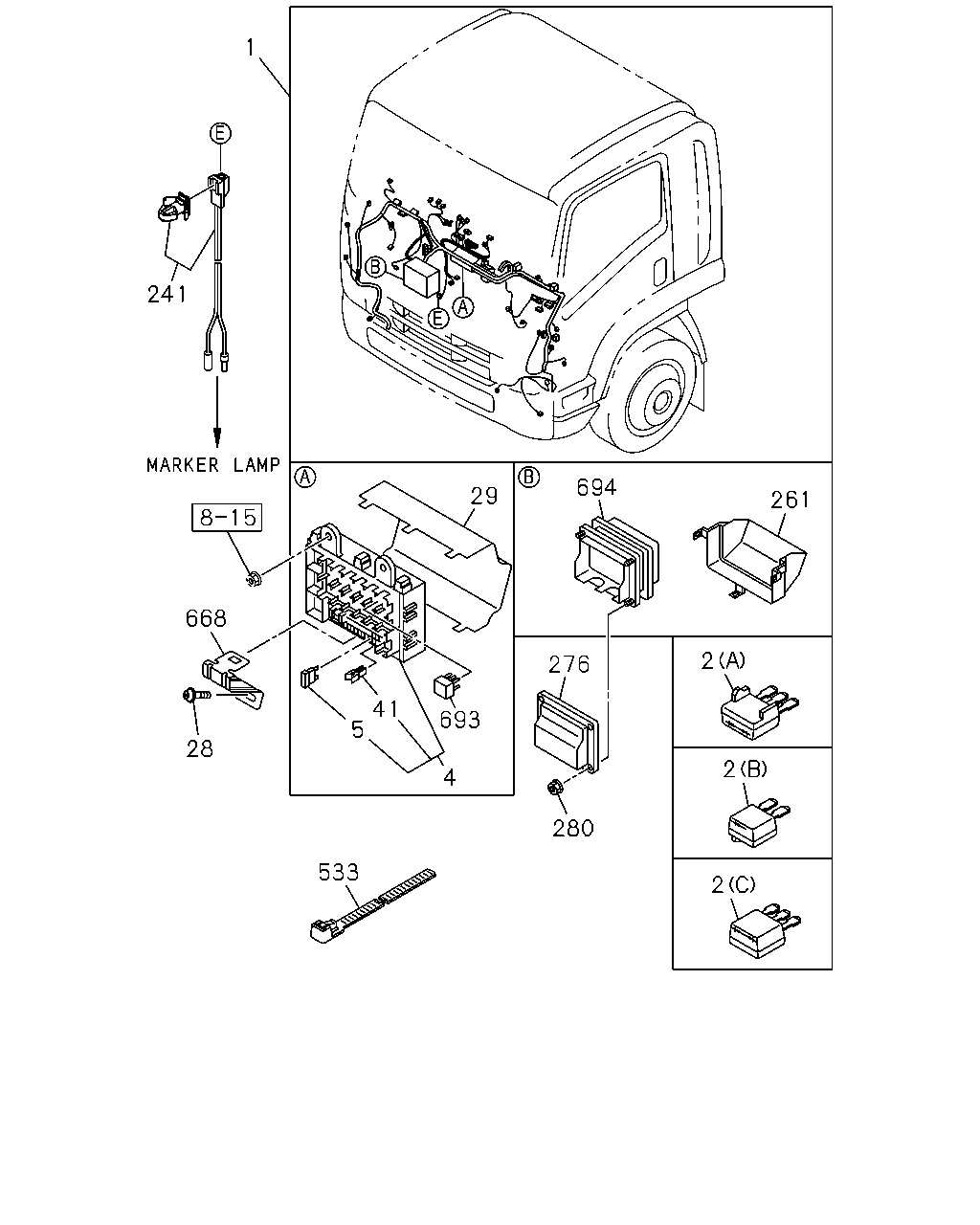

1
241
668
28
4
5
533
41
693
280
276
2
261
2
2
694
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-453-0
01
1
1304-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) BLACK 3P-1.5A THA
8-94416-438-1
01
1
1304-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) BLACK 2P-1.5A THA
8-94422-639-1
03
1
1304-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) BLACK 3P-1.5A THA
8-94422-640-1
01
1
1304-
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 10A RED THA
8-98054-257-0
AR
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 15A BLUE THA
8-98054-258-0
AR
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 20A YELLOW THA
8-98054-259-0
AR
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 25A WHITE THA
8-98062-982-0
02
1
1304-
28
SCREW; FUSE BOX
M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
29
COVER; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98056-968-0
01
1
1304-
41
PULLER; FUSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98054-260-0
01
1
1304-
241
HARNESS; MARKER LAMP
THA
8-97924-671-0
01
1
1304-
261
COVER; CONNECTOR BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-986-1
01
1
1304-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1304-
280
NUT; BOX ASM FIX
M6 FLANGE THA
0-91180-106-0
04
1
1304-
533
CLIP
L=180
1-09707-162-1
01
1
1304-
533
CLIP
POOR QUALITY DIESEL FUEL<KF0> L=250
5-09707-030-1
01
1
1304-
668
BRACKET; HARNESS
8-98095-653-2
01
1
1304-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A MATSUSHITA
8-97173-035-1
AR
1
1304-
694
BOX ASM; CONNECTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98057-771-0
01
1
1304-

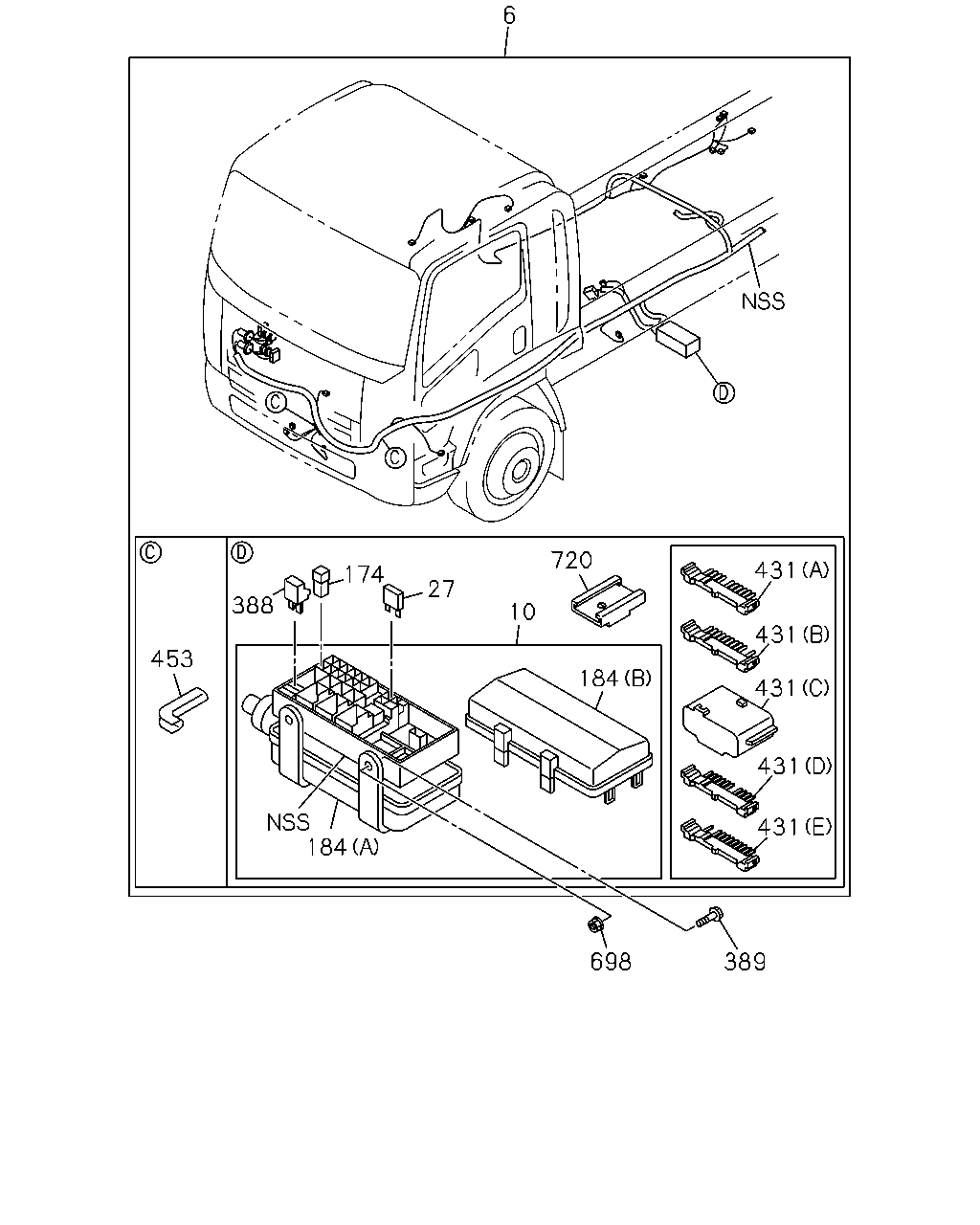

6
720
184
10
27
174
388
453
184
698
389
431
431
431
431
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-249-1
01
1
1304-
6
HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-250-1
01
1
1304-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
1304-
27
FUSE UNIT
10A RED THA
8-98054-257-0
01
1
1304-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
02
1
1304-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1304-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1304-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
01
1
1304-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
01
1
1304-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
03
1
1304-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98030-766-0
01
1
1304-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98030-767-1
01
1
1304-
388
DIODE; RELAY BOX
BLACK 2P-1.5A THA
8-94422-639-1
01
1
1304-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1304-
431
CONNECTOR; JOINT
(B) 10P GREEN THA
1-82698-579-0
02
1
1304-
431
CONNECTOR; JOINT
(A) 10P BLUE THA
1-82699-598-0
05
1
1304-
431
CONNECTOR; JOINT
(D) 10P GREEN THA
1-82699-599-0
04
1
1304-
431
CONNECTOR; JOINT
(E) 10P BROWN THA
1-82699-601-0
01
1
1304-
431
CONNECTOR; JOINT
(C) 6P BLACK THA
8-97616-194-0
01
1
1304-
453
PROTECTOR; HARNESS
THA
1-82699-709-0
01
1
1304-
698
NUT; COVER,RELAY BOX
M8 FLANGE THA
0-91180-108-0
02
1
1304-
720
ATTACHMENT; CONNECTOR
THA
1-82699-688-0
03
1
1304-

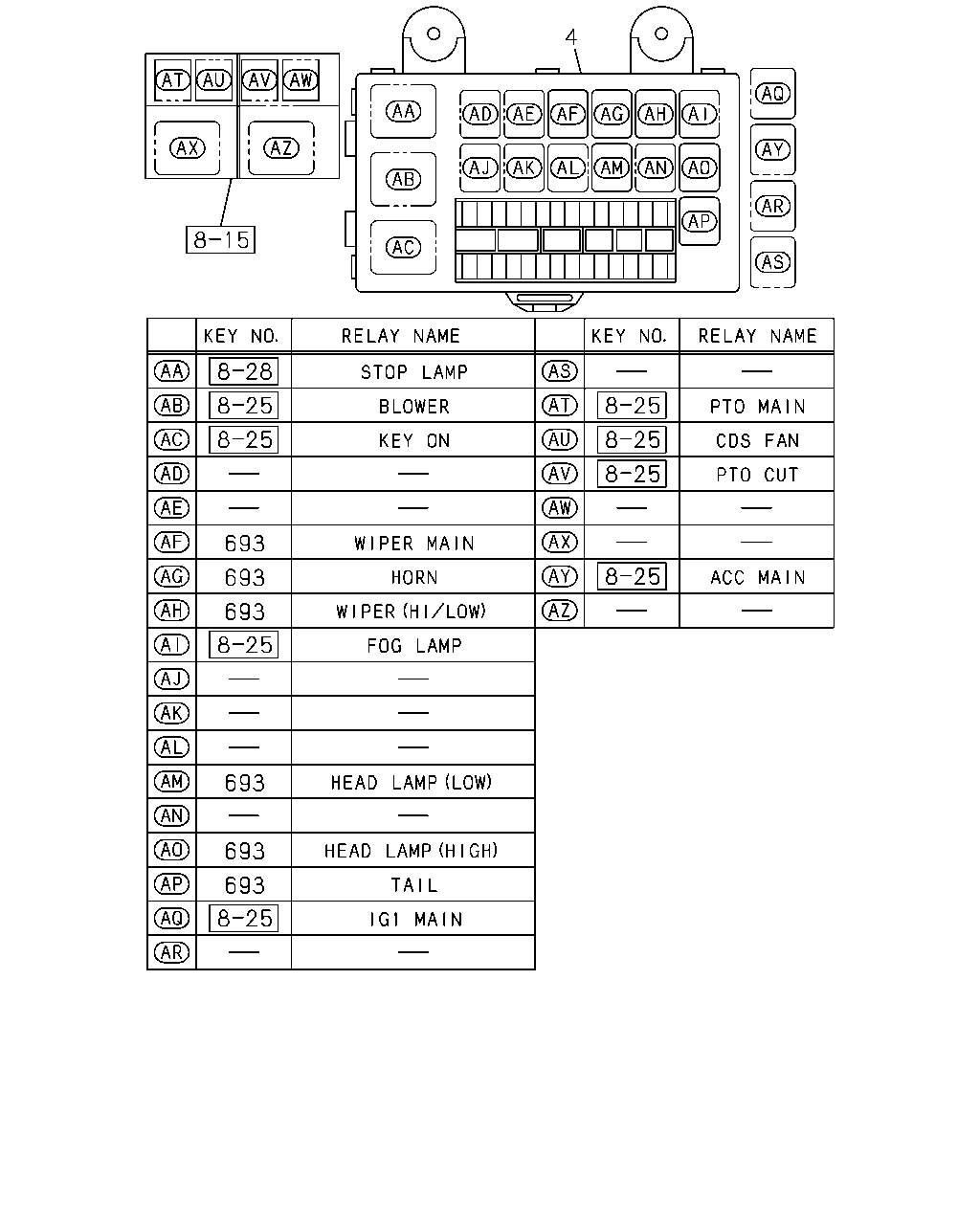

693
693
693
693
693
4
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1304-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A MATSUSHITA
8-97173-035-1
AR
1
1304-

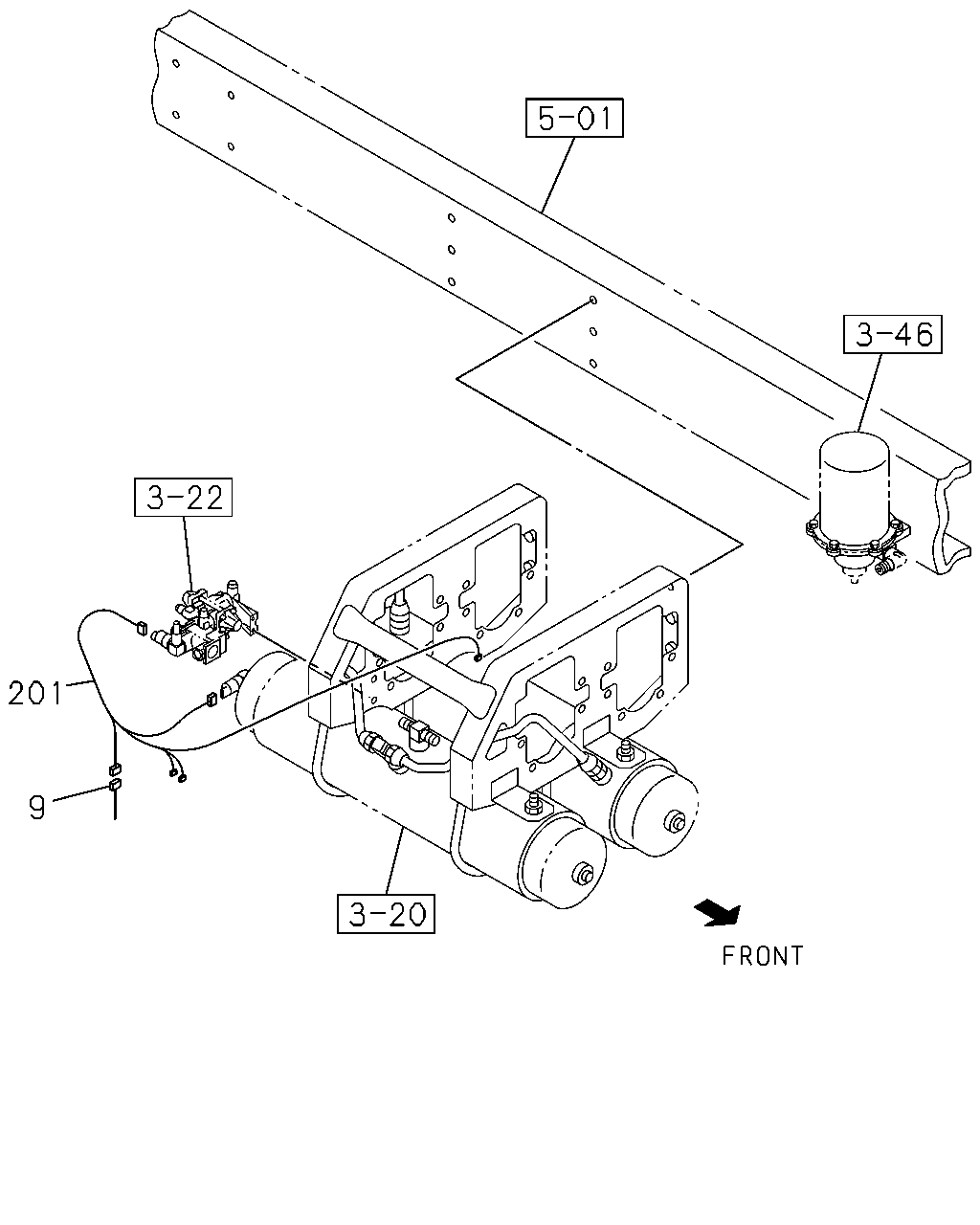

9
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
HARNESS; FRAME,RR
WHEEL BASE 3600MM<36W> THA
8-97926-420-0
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM<42W> THA
8-97926-421-0
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 5000MM<50W> THA
8-97926-422-0
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA
8-97926-423-0
01
1
1304-
201
HARNESS; AIR TANK
8-98178-658-2
01
1
1304-1304
201
HARNESS; AIR TANK
THA
8-98244-216-0
01
1
1305-

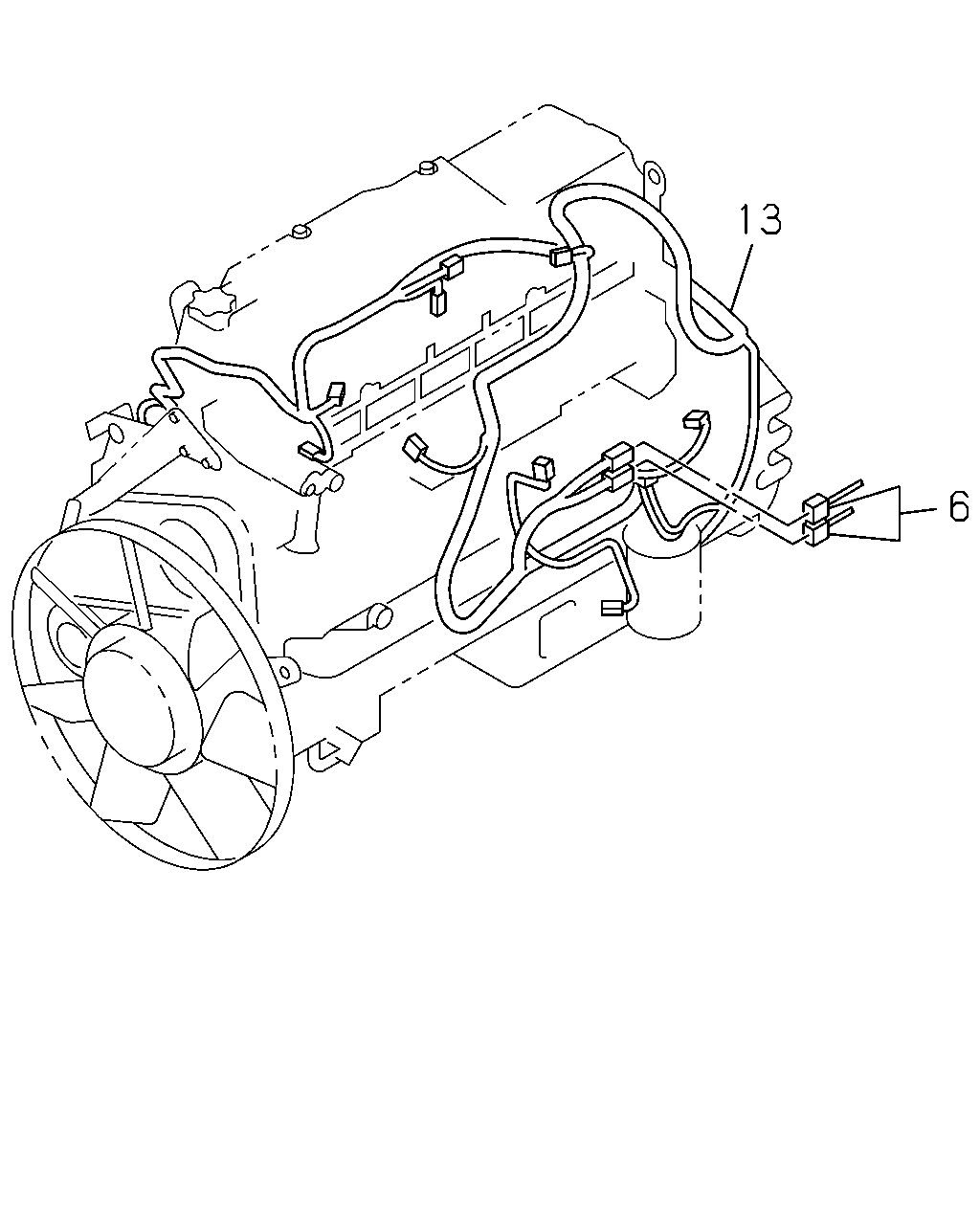

13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-249-1
01
1
1304-
6
HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-250-1
01
1
1304-
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-98171-593-0
01
1
1304-
13
HARNESS; ENG
GENERATOR 24V60A<KG2>
8-98171-594-0
01
1
1304-

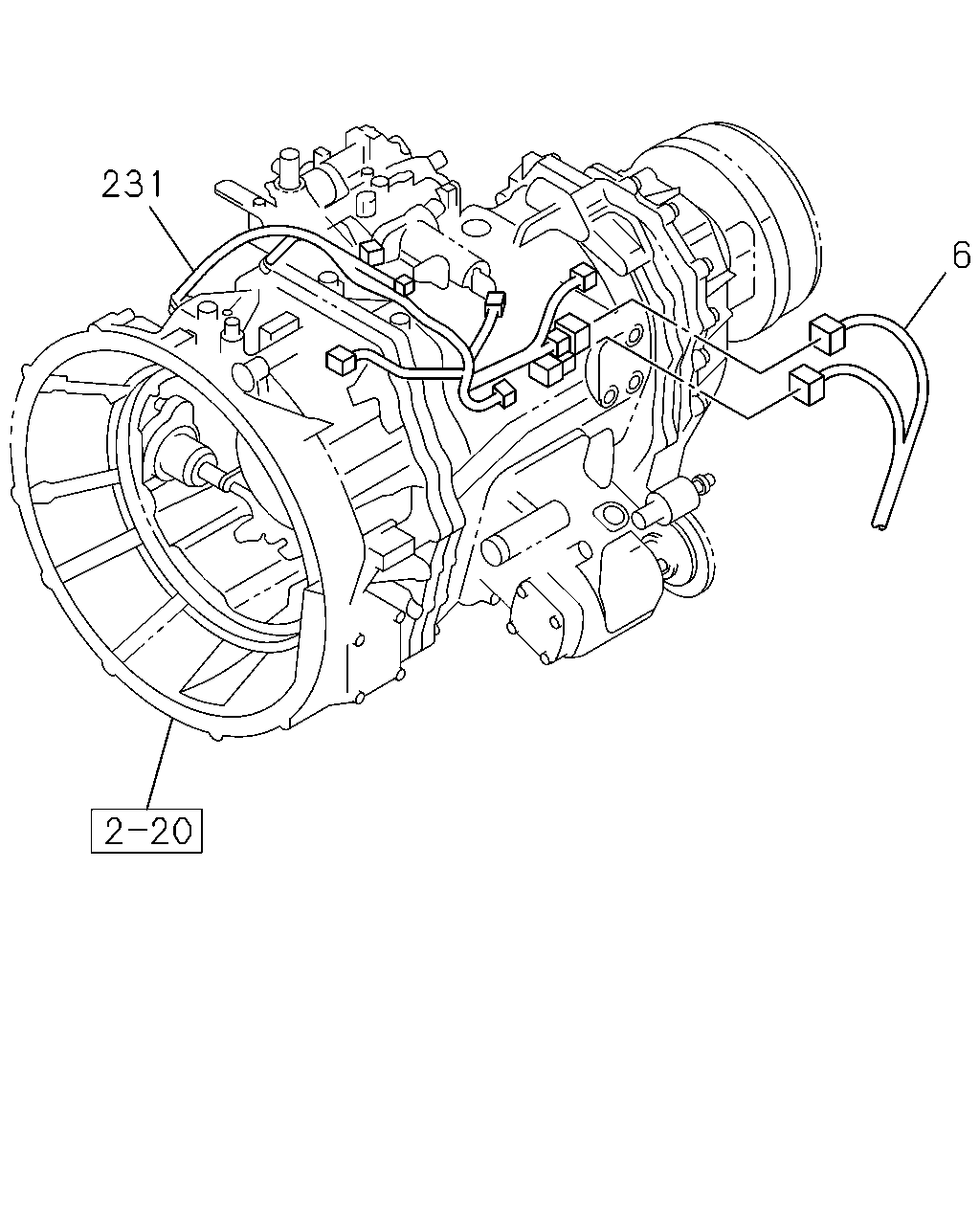

231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-249-1
01
1
1304-
6
HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-250-1
01
1
1304-
231
HARNESS; TRANS
THA
8-97924-273-0
01
1
1304-
6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-249-1
01
1
1304-
6
HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98218-250-1
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 3600MM<36W> THA
8-97926-420-0
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM<42W> THA
8-97926-421-0
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 5000MM<50W> THA
8-97926-422-0
01
1
1304-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA
8-97926-423-0
01
1
1304-

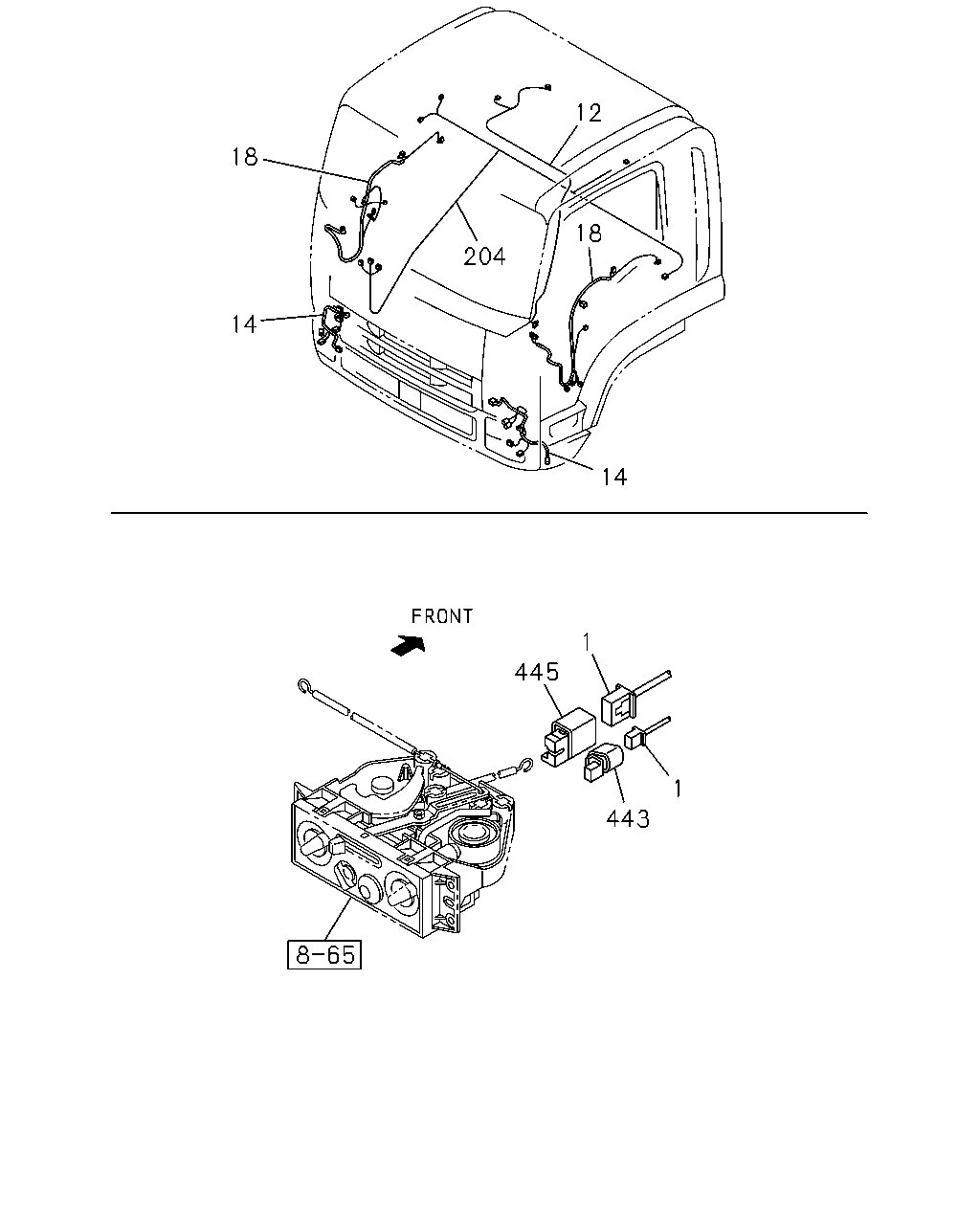

14
18
204
18
12
14
445
1
443
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-453-0
01
1
1304-
12
HARNESS; ROOF
THA
8-97924-274-0
01
1
1304-
14
HARNESS; HEADLAMP
8-98069-166-0
02
1
1304-1306
14
HARNESS; HEADLAMP
THA
8-94270-986-0
02
1
1307-
18
HARNESS; DOOR
THA
8-98076-305-3
01
1
1304-
18
HARNESS; DOOR
THA
8-98076-304-3
01
1
1304-
204
HARNESS; CABLE,FLOOR
THA
8-98081-205-2
01
1
1304-
443
HARNESS; EXT,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-582-0
01
1
1304-
445
HARNESS; EXT,BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-581-0
01
1
1304-
