◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#12178) — 122 parça

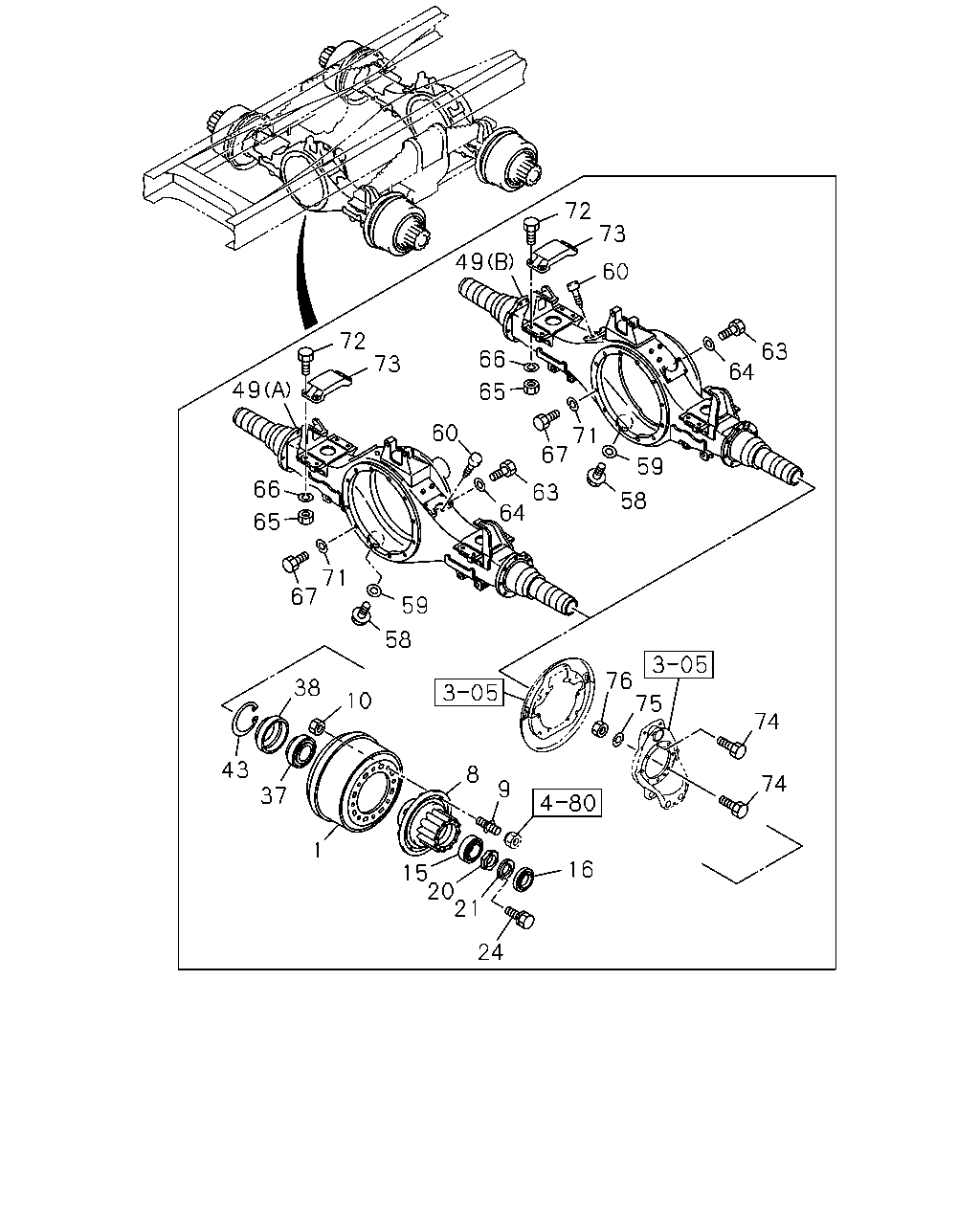

çizim 138856
72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 76 75 38 10 74 43 8 74 9 37 1 16 15 20 21 24
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
8 HUB; RR AXLE 1-42311-085-0 02 1 0105-
8 HUB; RR AXLE 1-42311-085-0 02 1 0105-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-070-1 20 1 0209-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-070-1 20 1 0209-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0209-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0209-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0105-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0105-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0105-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0105-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0105-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-42160-938-2 01 1 0307-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> CHINA GB VAR1<JAC> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-933-1 01 1 0212-0306
49 CASE; RR AXLE
REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-933-2 01 1 0307-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42160-979-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-939-1 01 1 0105-0306
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-42160-939-2 01 1 0307-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-934-1 01 1 0105-0211
49 CASE; RR AXLE
REAR AXLE RT210<C2A> EXC. CHINA GB VAR1<JAC>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC> (A) 		1-42160-934-1 01 1 0212-0306
49 CASE; RR AXLE
REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-934-2 01 1 0307-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (B) 		1-42160-978-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-940-2 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-935-2 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0105-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
65 NUT
M14 		9-99110-514-0 08 1 0105-0512
65 NUT
M14 		9-99110-514-0 08 1 0105-0512
65 NUT
M14 		0-91110-514-0 08 1 0601-
65 NUT
M14 		0-91110-514-0 08 1 0601-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-0603
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-0603
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0105-0306
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0105-0306
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0307-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0307-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0105-0306
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0105-0306
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0307-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0307-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-0805
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-0805
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0105-1209
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-0512
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-0512
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-

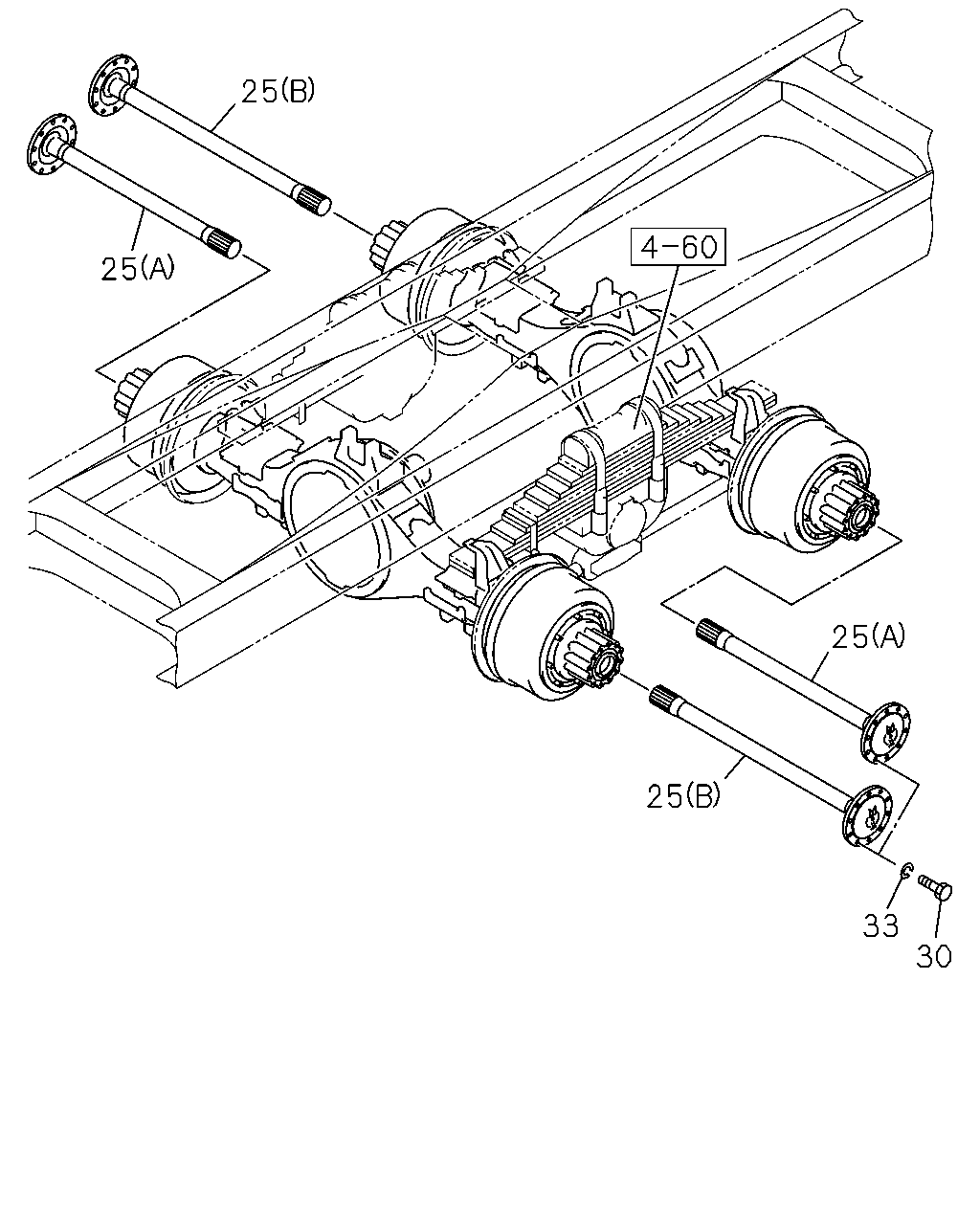

çizim 138859
25 25 25 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-0910
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-0910
25 SHAFT; AXLE,RR
(A) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-0910
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-0910
25 SHAFT; AXLE,RR
(B) L=1110 		8-98146-167-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=1110 		8-98146-167-0 01 1 0911-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-0603
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-0603
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
