6-05 — FRONT PANEL (#121762) — 160 parça

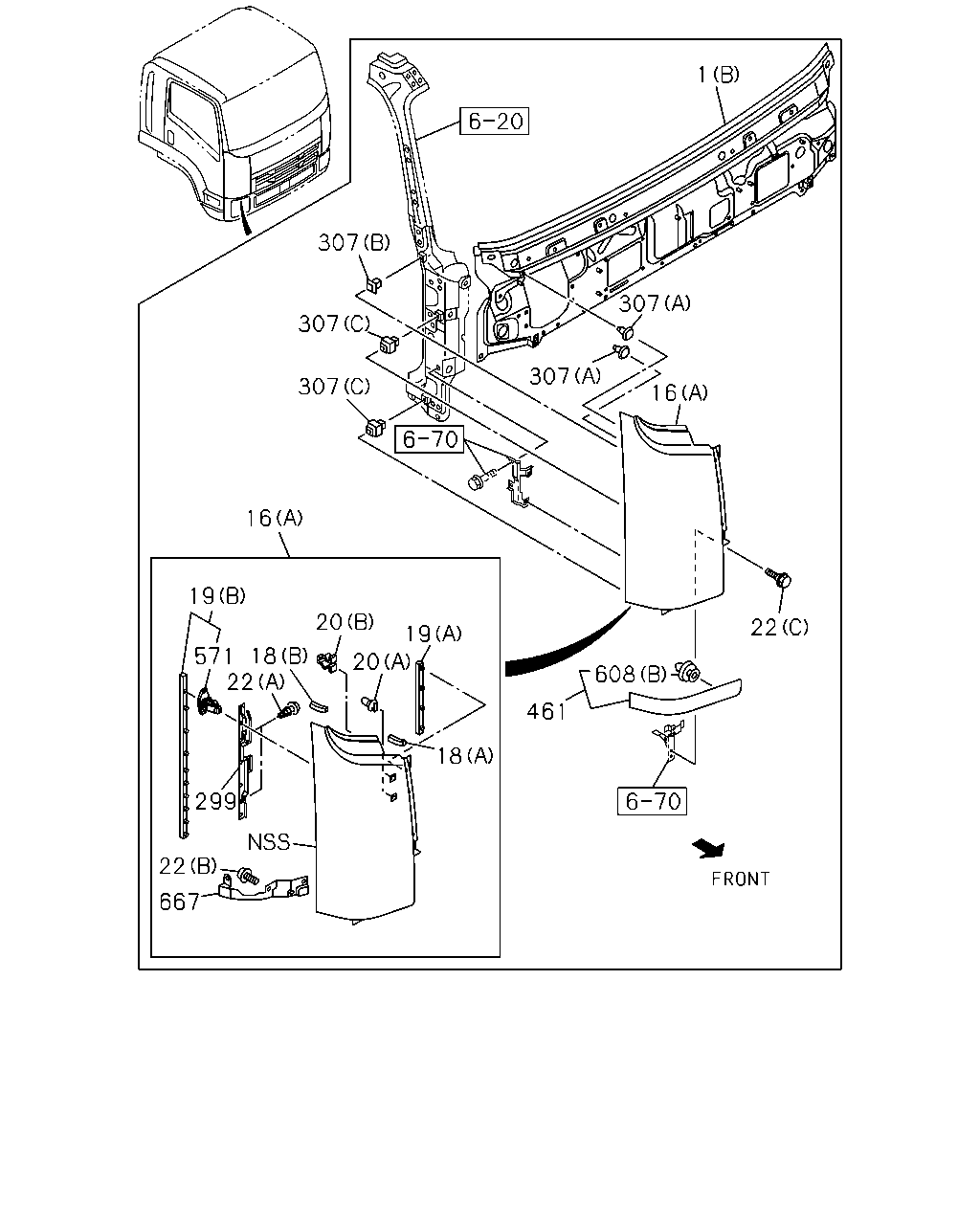

çizim 356646
1 307 307 307 16 307 307 16 22 608 461 19 20 19 20 18 299 18 22 571 22 667
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304-
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-168-5 01 1 1304-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-421-4 01 1 1304-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1304-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1304-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1304-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1304-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1304-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1304-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1304-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1304-
22 SCREW; FRT PANEL SIDE
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1304-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1304-
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE 		8-98061-108-0 06 1 1304-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1304-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1304-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1304-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1304-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1304-
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 1304-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1304-
461 PANEL; FRT SIDE 8-98058-164-2 01 1 1304-
461 PANEL; FRT SIDE 8-98058-163-2 01 1 1304-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1304-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1304-
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1304-
608 CLIP
(B) 		8-98282-490-0 02 1 1408-
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1304-
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 1304-
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1304-

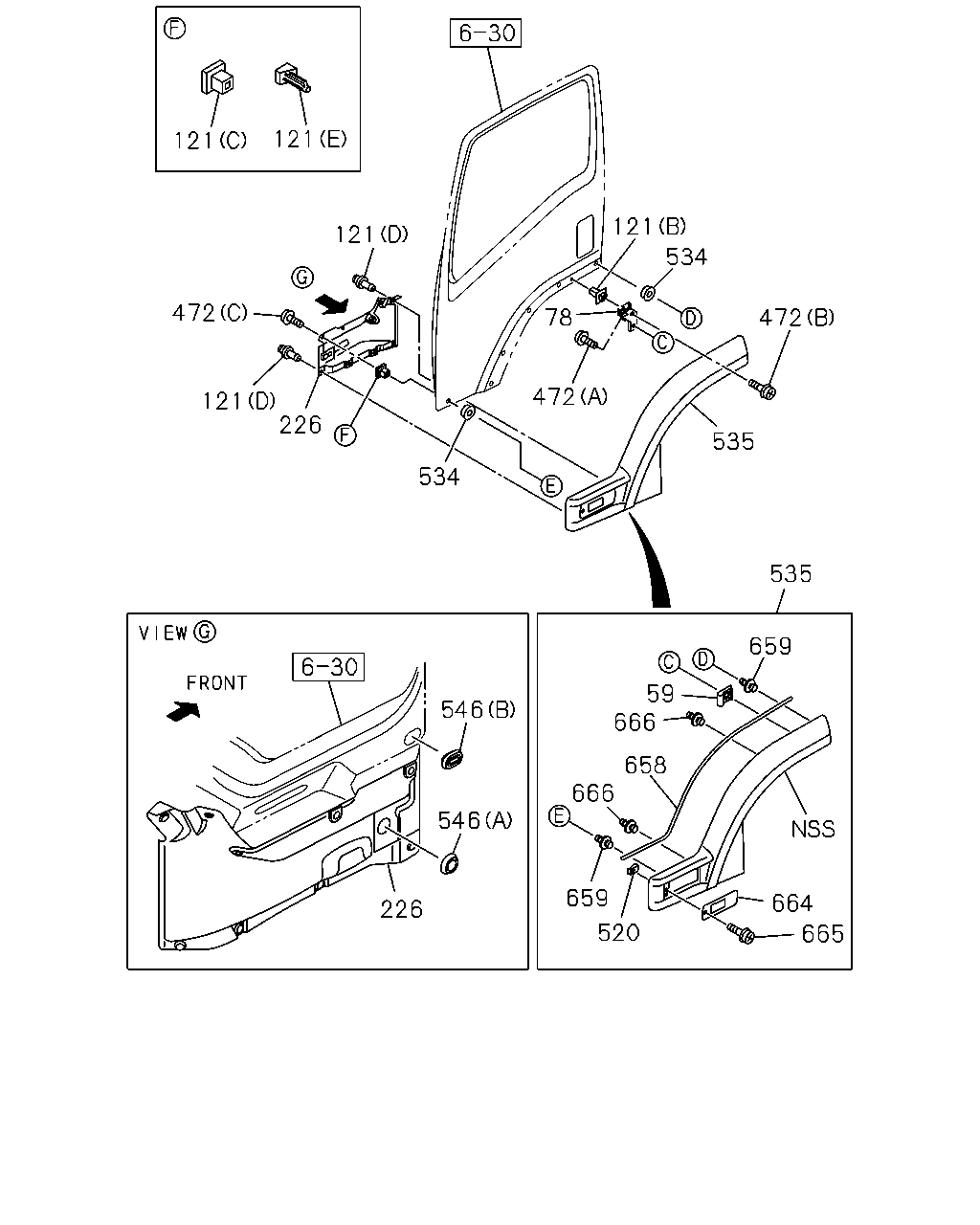

çizim 356755
121 534 472 535 78 472 535 659 664 665 59 666 658 666 659 520 226 546 546 534 226 121 472 121 121 121
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 06 1 1304-
59 GROMMET; SCREW 8-94279-723-0 02 1 1304-
78 BRACKET; FENDER 8-98041-166-1 01 1 1304-
78 BRACKET; FENDER 8-98041-165-1 01 1 1304-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1304-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1304-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1304-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1304-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1304-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1304-
226 PROTECTOR; FRT 8-98037-715-2 01 1 1304-
226 PROTECTOR; FRT 8-98037-714-2 01 1 1304-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1304-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1304-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1304-
520 NUT; FENDER 8-94279-501-0 02 1 1304-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1304-
535 FENDER; BLISTER
WHITE THA 		8-97415-386-1 01 1 1304-
535 FENDER; BLISTER
WHITE THA 		8-97415-366-1 01 1 1304-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1304-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1304-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1304-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1304-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1304-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-557-0 01 1 1304-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-529-0 01 1 1304-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1304-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1304-

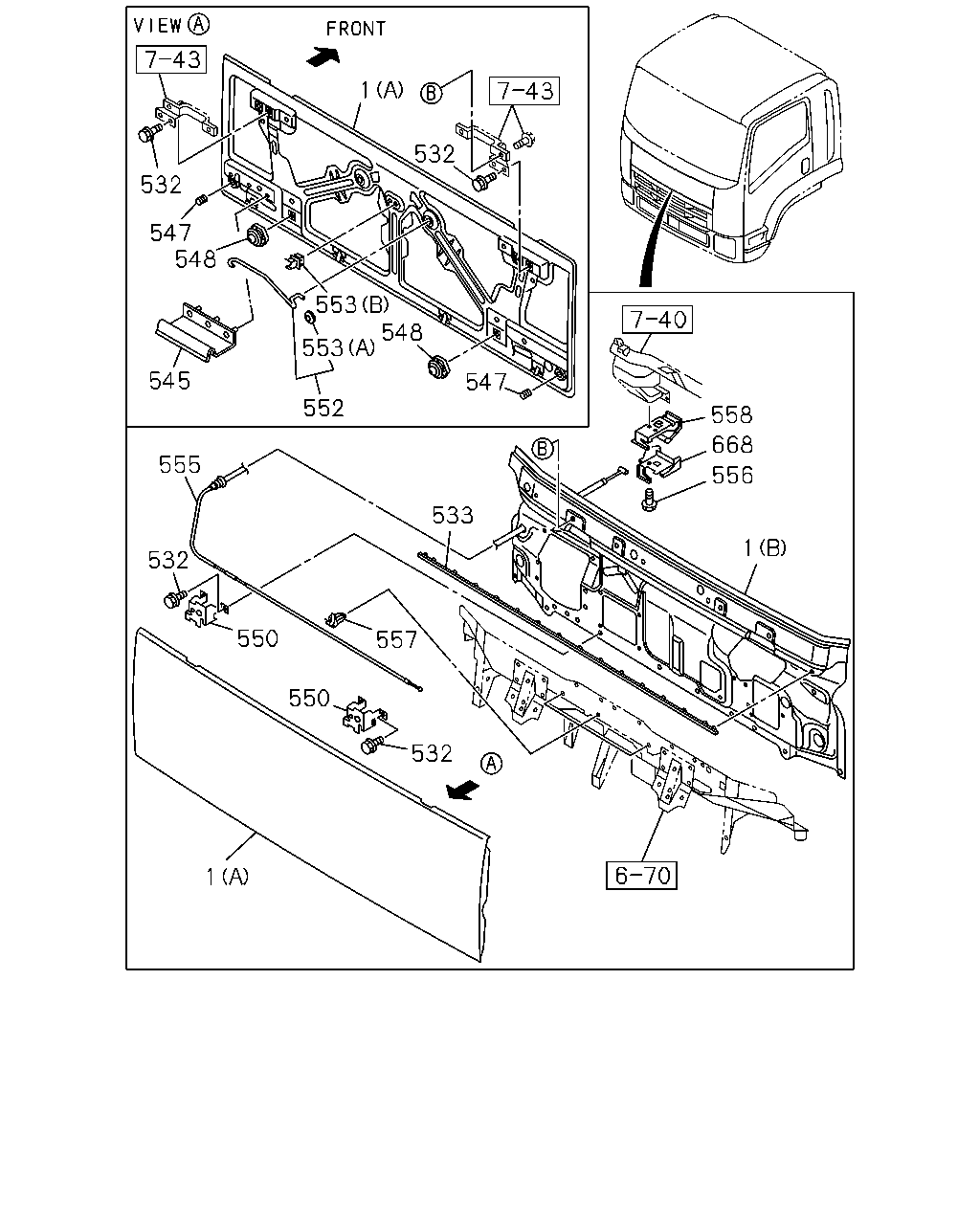

çizim 356776
1 550 532 557 533 556 668 558 1 550 552 553 547 548 553 545 555 532 532 1 548 547 532
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304-
532 BOLT; FRT PANEL
M8X20 FLANGE THA 		0-28650-820-0 08 1 1304-
533 SEAL; FRT PANEL
THA 		8-97926-493-0 01 1 1304-
545 SEAL; FRT LID
THA 		8-97926-489-0 01 1 1304-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1304-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1304-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1304-
552 STAY; FRT LID 8-98089-838-0 01 1 1304-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1304-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1304-
555 CABLE; FRT LID 8-98036-574-1 01 1 1304-
556 BOLT; CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1304-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1304-
558 LEVER; FRT LID 1-79338-007-0 01 1 1304-
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 1304-

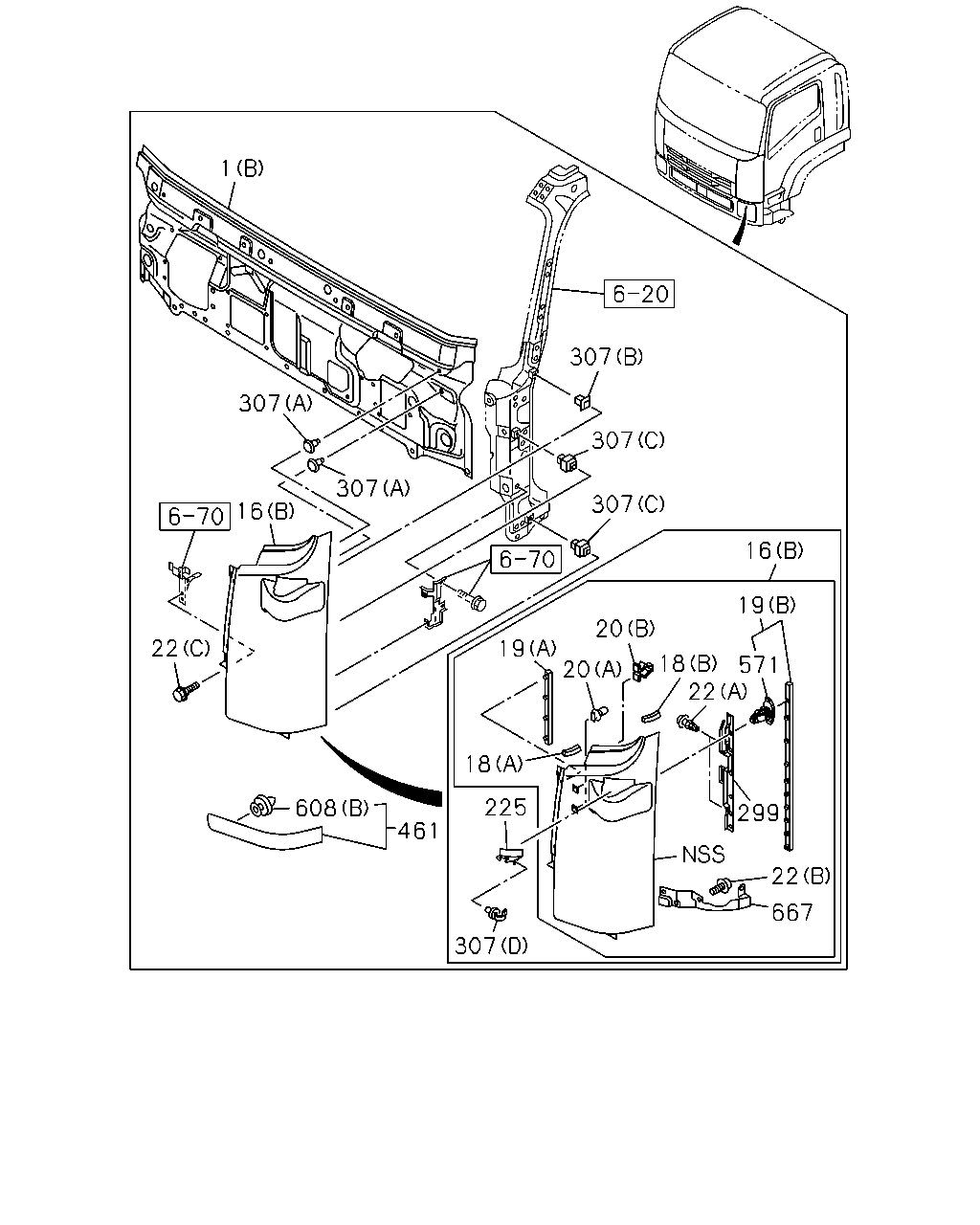

çizim 356778
307 667 225 22 22 18 20 18 19 19 571 20 16 461 608 22 16 307 307 307 307 307 1 299
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304-
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-168-5 01 1 1304-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-421-4 01 1 1304-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1304-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1304-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1304-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1304-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1304-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1304-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1304-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1304-
22 SCREW; FRT PANEL SIDE
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1304-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1304-
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE 		8-98061-108-0 06 1 1304-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1304-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1304-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1304-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1304-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1304-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1304-
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 1304-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1304-
461 PANEL; FRT SIDE 8-98058-164-2 01 1 1304-
461 PANEL; FRT SIDE 8-98058-163-2 01 1 1304-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1304-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1304-
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1304-
608 CLIP
(B) 		8-98282-490-0 02 1 1408-
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1304-
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 1304-
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1304-

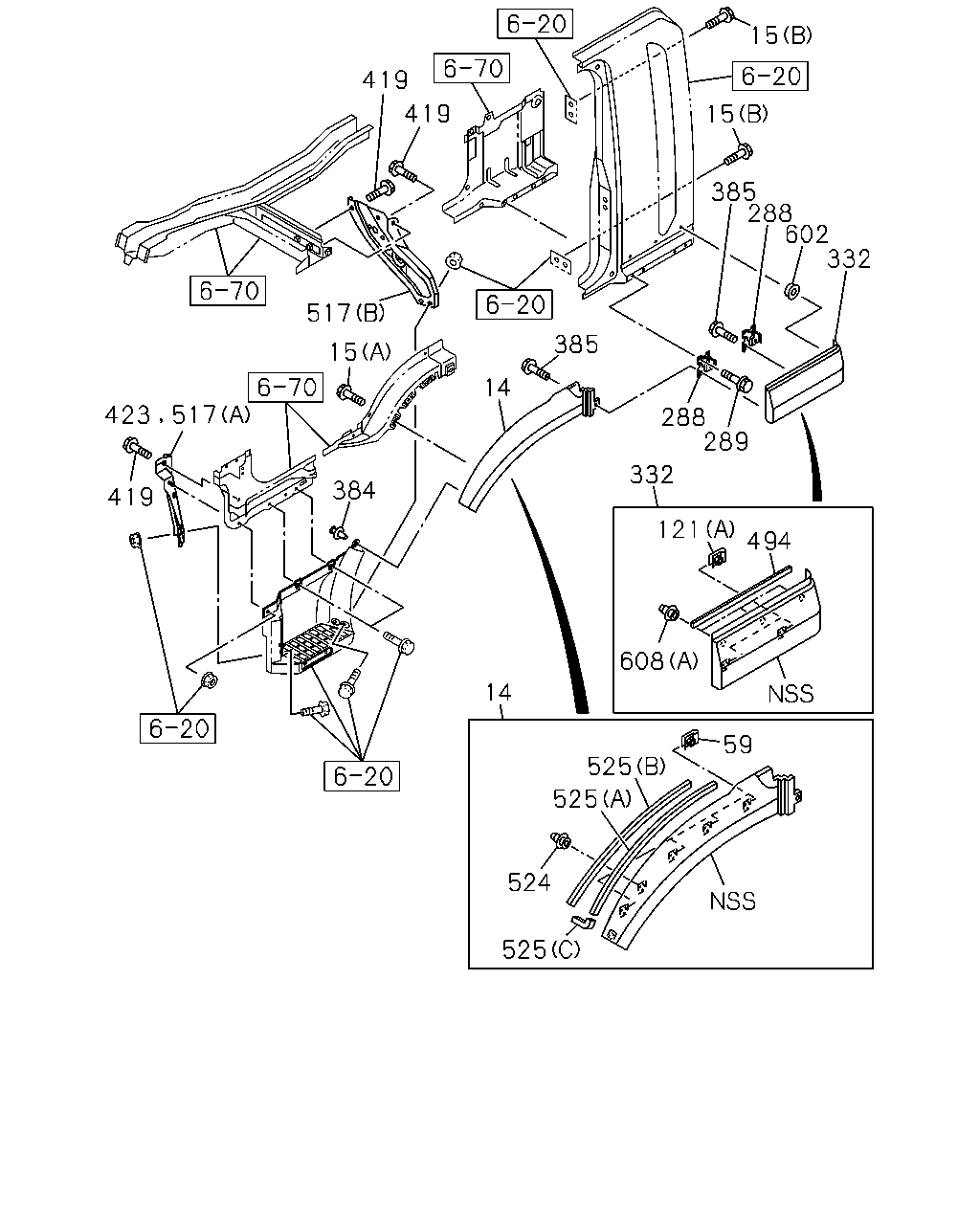

çizim 356978
419 419 15 15 385 288 602 332 517 15 423 517 419 384 14 385 288 289 332 121 494 608 14 525 59 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
THA 		8-98132-740-0 01 1 1304-
14 FENDER; FRT
THA 		8-98132-739-0 01 1 1304-
15 BOLT; FENDER
(A) M6X20 W/PL WASHER 		8-98059-504-0 06 1 1304-
15 BOLT; FENDER
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 1304-
59 GROMMET; SCREW 8-94279-723-0 06 1 1304-
59 GROMMET; SCREW 8-94279-723-0 02 1 1304-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1304-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1304-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1304-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1304-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1304-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1304-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1304-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE THA 		0-28650-616-0 08 1 1304-
332 FENDER; RR
WHITE THA 		8-97413-424-2 01 1 1304-
332 FENDER; RR
WHITE THA 		8-97413-423-2 01 1 1304-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1304-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1304-
419 BOLT; STEP
M8X20 FLANGE THA 		0-28650-820-0 08 1 1304-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-
494 FINISHER; FENDER 8-98041-172-1 01 1 1304-
494 FINISHER; FENDER 8-98072-723-0 01 1 1304-
494 FINISHER; FENDER 8-98072-723-0 01 1 1304-
494 FINISHER; FENDER 8-98041-172-1 01 1 1304-
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1304-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1304-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1304-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1304-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1304-
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1304-
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1304-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1304-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1304-
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1304-
608 CLIP
(B) 		8-98282-490-0 02 1 1408-

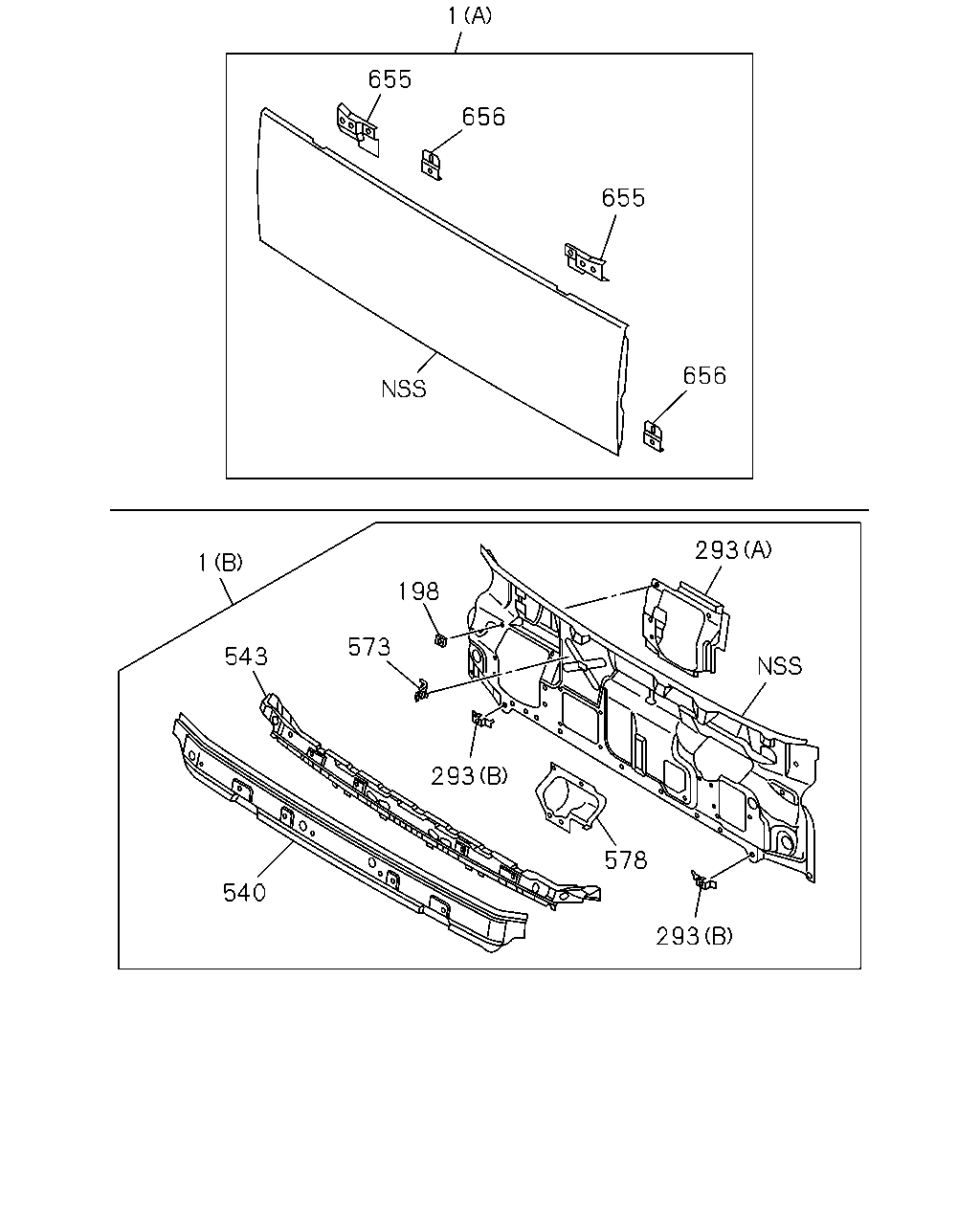

çizim 357008
1 655 656 655 656 293 198 1 543 573 293 578 293 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304-
198 NUT; PANEL
M6 THA 		9-09114-086-0 02 1 1304-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1304-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1304-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1304-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1304-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1304-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1304-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1304-
655 PATCH; HINGE 8-98031-263-0 01 1 1304-
655 PATCH; HINGE 8-98031-264-0 01 1 1304-
656 PATCH; STRIKER 8-98031-265-0 02 1 1304-
