◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#12176) — 118 parça

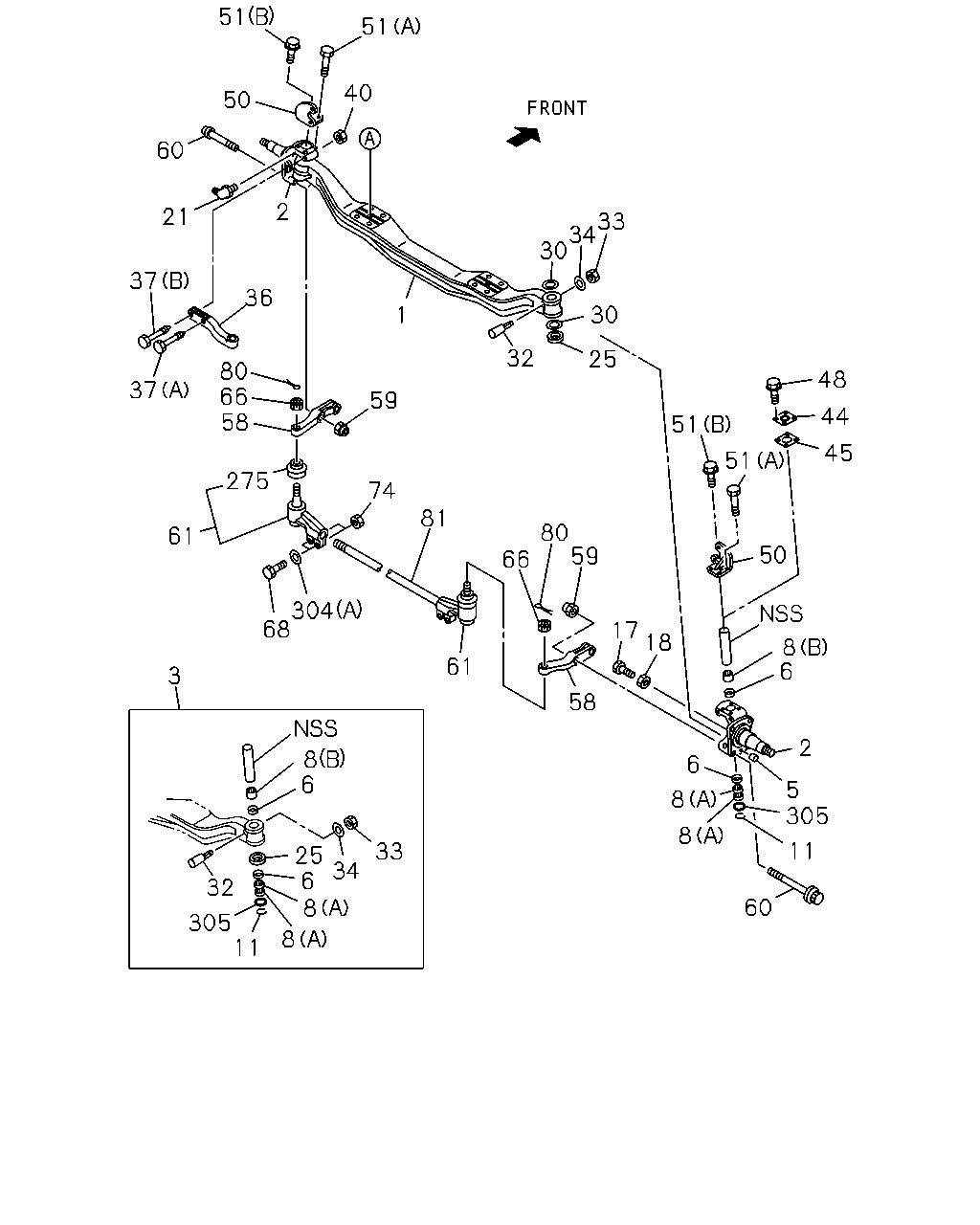

çizim 138826
51 51 40 50 60 2 21 33 34 30 37 36 30 1 32 25 80 66 58 48 37 59 44 51 45 51 275 74 81 80 59 61 50 66 304 68 17 18 8 6 61 3 58 2 8 6 6 5 305 8 8 11 33 25 34 6 8 32 60 305 11 8
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-107-9 01 1 0105-
2 KNUCKLE; FRT AXLE 1-43132-079-1 01 1 0105-
2 KNUCKLE; FRT AXLE 1-43131-079-1 01 1 0105-
3 KING PIN SET 1-87830-738-5 02 1 0105-
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 0105-
6 SEAL; KING PIN 9-09926-024-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0105-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 0105-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0105-0705
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 0706-
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 0105-0512
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 0601-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0105-0512
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0601-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0105-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0105-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 0105-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0105-0512
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0105-0603
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604-
36 ARM; KNUCKLE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-43133-066-3 01 1 0105-
36 ARM; KNUCKLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-43133-063-3 01 1 0105-
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 0105-0704
37 BOLT; KNUCKLE ARM
(A) M22X179 		8-98052-380-1 01 1 0705-
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 0105-0704
37 BOLT; KNUCKLE ARM
(B) M22X167 		8-98052-381-1 01 1 0705-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0105-0704
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0705-
44 COVER; KING PIN
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-43175-014-1 02 1 0105-
45 GASKET; KING PIN COVER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-42319-044-0 02 1 0105-
48 BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR) M12X16 FLANGE 		0-28081-216-0 08 1 0105-0512
48 BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR) M12X16 FLANGE 		0-28051-216-0 08 1 0601-
50 BRACKET; POWER CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-43145-010-3 01 1 0105-
50 BRACKET; POWER CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-43145-009-3 01 1 0105-
51 BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) M12X60 FLANGE 		0-28081-260-0 02 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0601-
51 BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M12X25 FLANGE 		0-28681-225-0 06 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M12X25 FLANGE 		0-28651-225-0 06 1 0601-
58 ARM; TIE ROD 1-43135-042-3 01 1 0105-
58 ARM; TIE ROD 1-43134-042-3 01 1 0105-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0105-0704
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0705-
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 04 1 0105-0704
60 BOLT; TIE ROD ARM
M22X193 		8-98052-379-1 04 1 0705-
61 ROD END; TIE ROD 1-43150-802-0 01 1 0105-
61 ROD END; TIE ROD 1-43150-801-0 01 1 0105-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0105-0805
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0105-0709
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 0710-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0105-0512
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0105-0606
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0607-
81 ROD; TIE 1-43151-118-0 01 1 0105-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0105-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0105-0709
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0105-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-
305 COVER; KNUCKLE 1-43175-021-0 02 1 0105-0704
305 COVER; KNUCKLE 8-98052-291-0 02 1 0705-

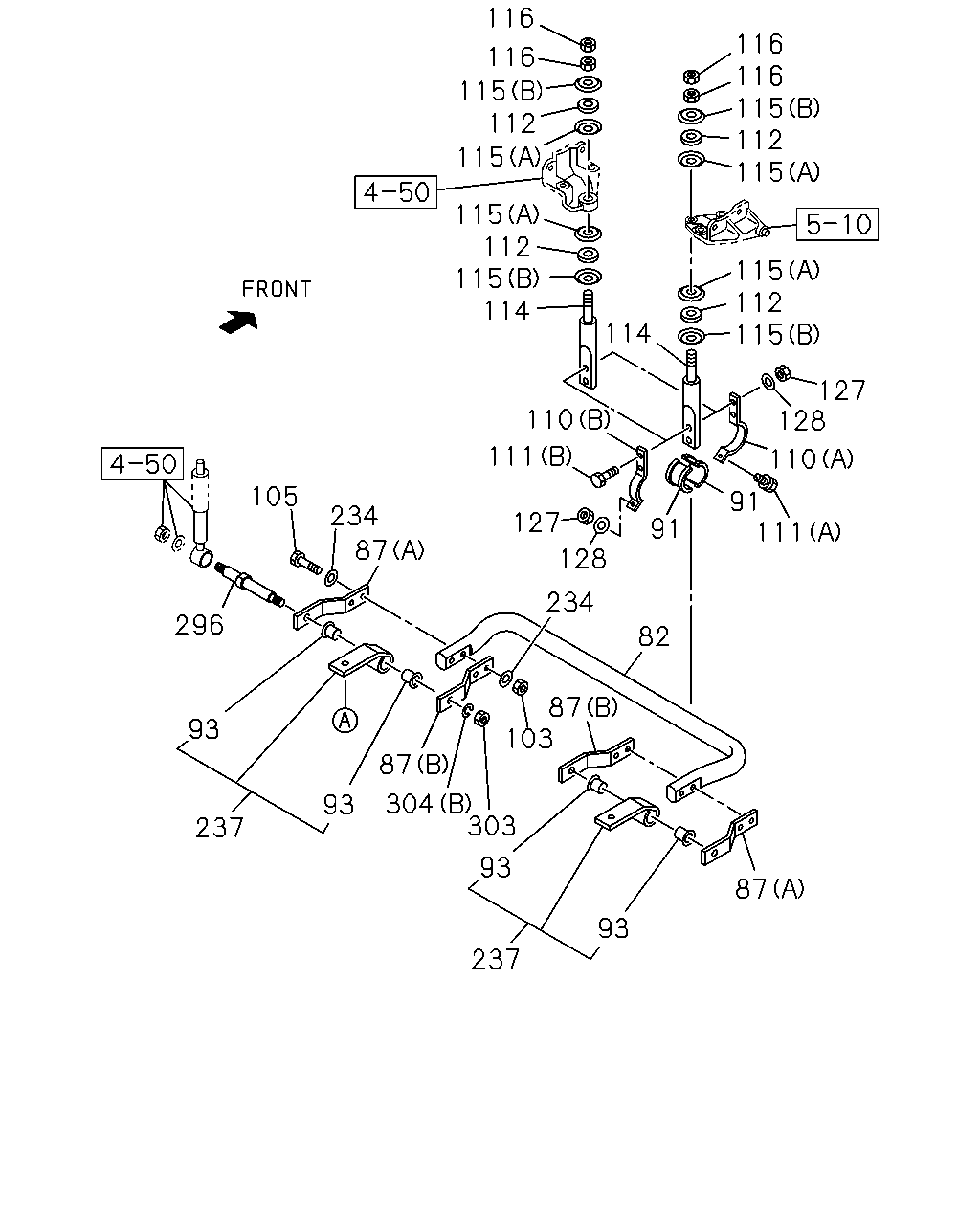

çizim 138970
116 116 116 115 112 115 116 115 112 115 112 115 114 115 115 112 115 114 127 128 110 111 110 105 91 111 128 234 127 91 87 234 296 82 87 103 93 87 304 303 93 237 93 87 93 237
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-134-1 01 1 0105-
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0105-0912
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1001-
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0105-0912
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1001-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 0105-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 0105-
103 NUT; BRKT FIX
M14 		9-99110-514-0 04 1 0105-0512
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0601-
105 BOLT; BRKT FIX
M14X70 		9-91061-470-0 04 1 0105-0206
105 BOLT; BRKT FIX
M14X70 		9-91066-470-0 04 1 0207-0910
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 0911-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0105-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0105-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0105-0910
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 0911-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0105-0910
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 0911-
112 BUSHING; ROD 9-51631-039-0 04 1 0105-
114 ROD; STAB BAR 1-51773-072-2 02 1 0105-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 0105-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 0105-
116 NUT; LK,STAB TO FRAME
M14 		9-99111-414-0 04 1 0105-0512
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 0601-
127 NUT; CLAMP
M12 		9-99110-412-0 06 1 0105-0512
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 0601-
128 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0105-0603
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0604-0912
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1001-
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0105-0910
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 0911-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 0105-
296 PIN; STAB 1-51682-145-2 02 1 0105-0907
296 PIN; STAB 8-98022-874-1 02 1 0908-
303 NUT; PIN
M20 		9-99110-520-0 02 1 0105-0512
303 NUT; PIN
M20 		0-91110-520-0 02 1 0601-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0105-0709
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0105-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-
