5-01 — FRAME AND OTHER PARTS (#121755) — 105 parça

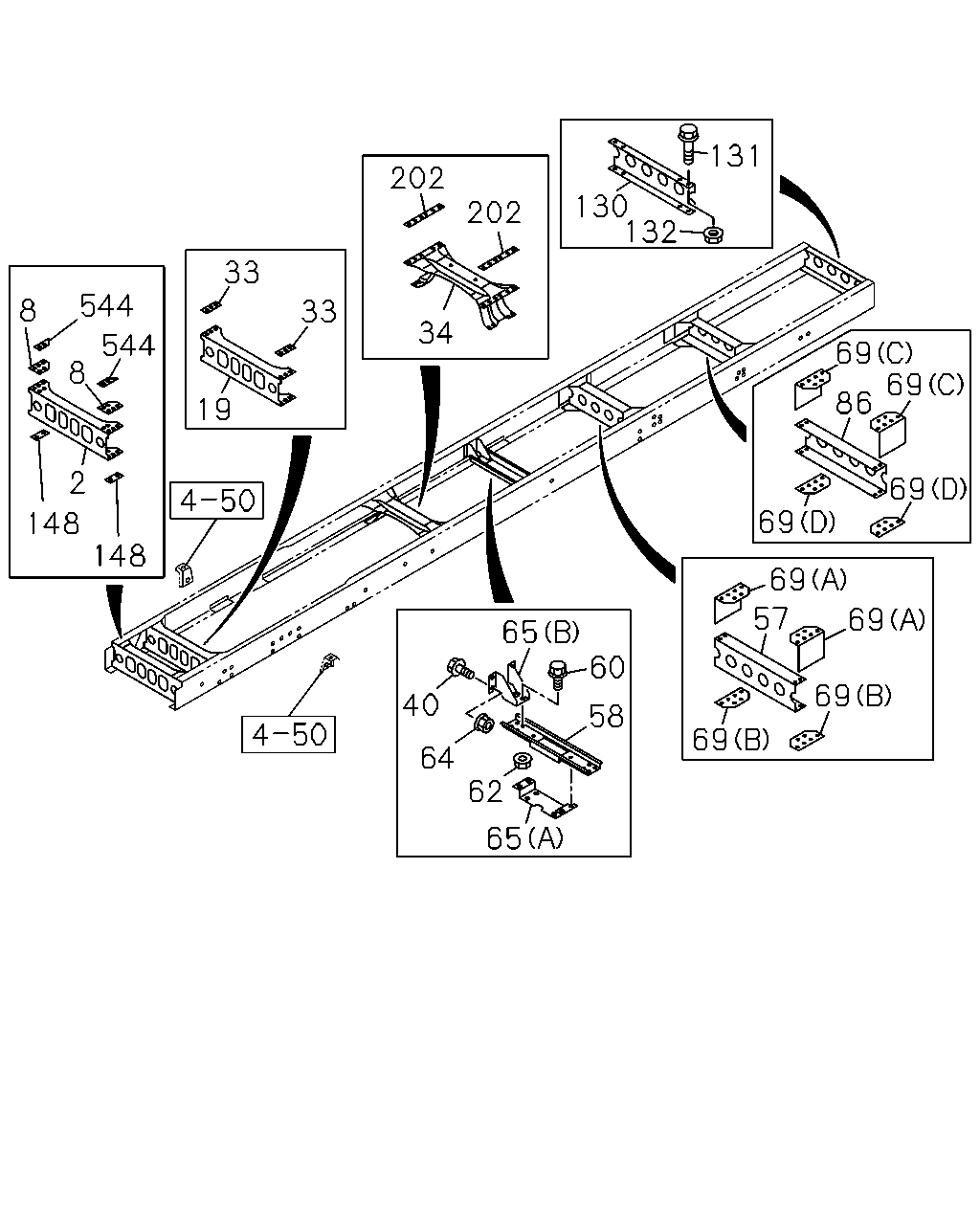

çizim 357413
544 544 8 8 2 148 148 19 33 33 202 202 34 130 132 131 69 86 69 69 69 69 69 69 57 69 58 60 65 40 64 62 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1304-1307 ● ● ● ●
2 MEMBER; CROSS,1ST
THA 		8-97948-166-0 01 1 1308- ● ● ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97611-027-0 02 1 1304-1307 ● ● ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97948-167-0 02 1 1308- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 1304-1307 ● ● ● ●
19 MEMBER; CROSS,2ND
THA 		8-97948-169-0 01 1 1308- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1304-1307 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
THA 		8-97948-140-0 02 1 1308- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1304-1307 ● ● ● ●
34 MEMBER; CROSS,3RD
THA 		8-97948-172-0 01 1 1308- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X40 FLANGE THA 		0-28651-040-0 08 1 1304- ●
57 MEMBER; CROSS,RR SUSP FRT
THA 		8-97924-678-0 01 1 1304- ● ● ● ●
58 MEMBER; CENTER BRG
THA 		8-97621-933-0 01 1 1304- ●
60 BOLT; MBR
M10X25 FLANGE THA 		0-28651-025-0 08 1 1304- ●
62 NUT; MBR
M10 FLANGE THA 		0-91180-210-0 08 1 1304- ●
64 NUT; BRKT TO FRAME
M10 FLANGE THA 		0-91180-210-0 08 1 1304- ●
65 BRACKET; CENTER BRG
(A) THA 		8-97621-931-0 01 1 1304- ●
65 BRACKET; CENTER BRG
(B) THA 		8-97621-932-0 02 1 1304- ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) THA 		8-97948-178-0 02 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) THA 		8-97948-179-0 02 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) THA 		8-97948-176-0 01 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) THA 		8-97948-177-0 01 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-714-0 01 1 1304- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-715-0 01 1 1304- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
THA 		8-97924-678-0 01 1 1304- ● ● ● ●
130 MEMBER; CROSS,END
THA 		8-97916-031-0 01 1 1304- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER THA 		0-50541-230-0 04 1 1304- ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1304- ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1304-1307 ● ● ● ●
148 SPACER; C/MBR
THA 		8-97948-168-0 02 1 1308- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1304-1307 ● ● ● ●
202 SPACER; 3RD C/MBR
THA 		8-97948-174-0 02 1 1308- ● ● ● ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1304- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1304- ●

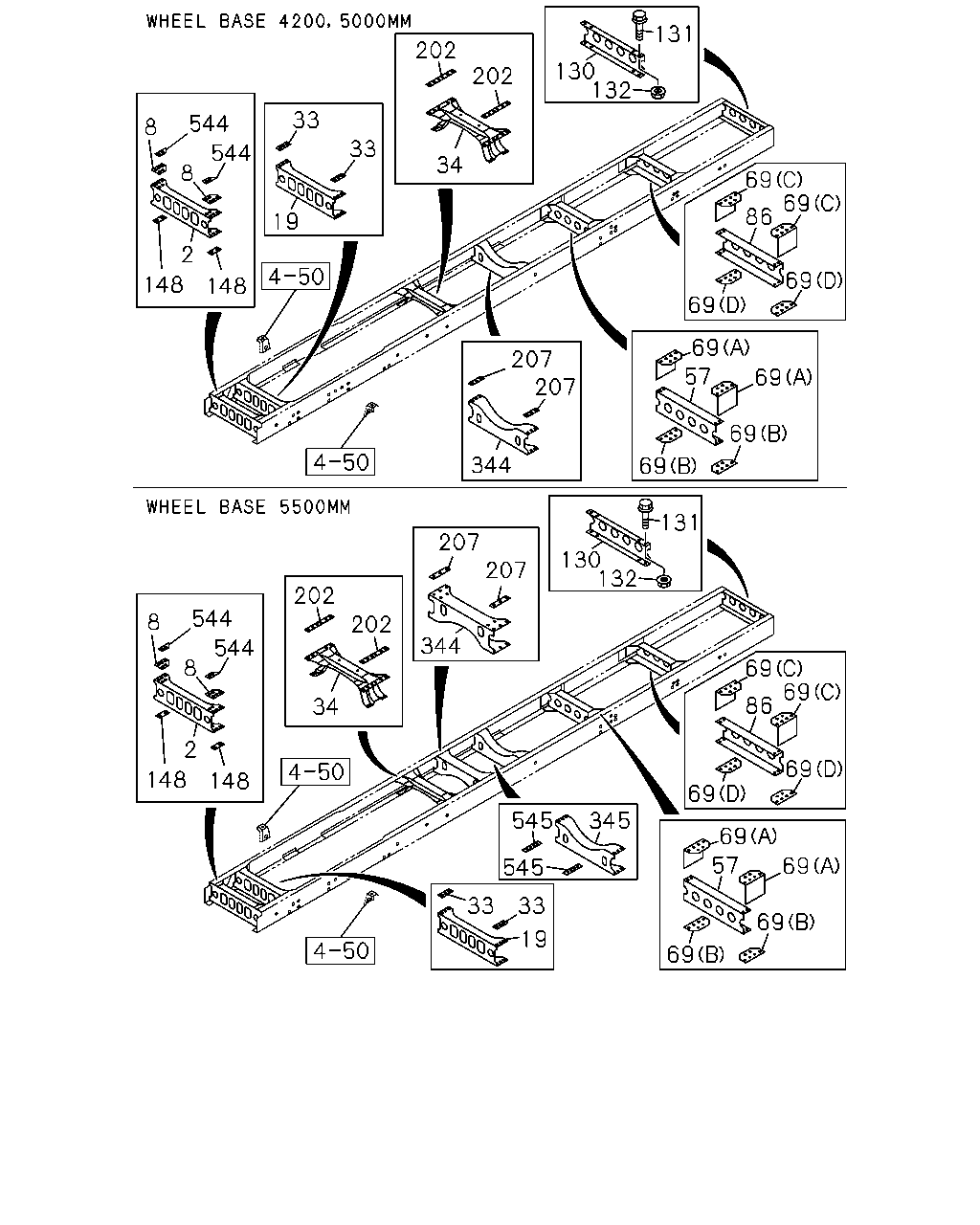

çizim 357759
544 544 8 8 2 148 148 19 33 33 202 202 34 130 132 131 344 207 207 69 86 69 69 69 69 69 57 69 69 131 132 130 207 207 344 202 202 34 8 544 544 8 2 148 148 69 69 86 69 69 69 69 57 69 345 545 545 33 19 33 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1304-1307 ● ● ● ●
2 MEMBER; CROSS,1ST
THA 		8-97948-166-0 01 1 1308- ● ● ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97611-027-0 02 1 1304-1307 ● ● ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97948-167-0 02 1 1308- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 1304-1307 ● ● ● ●
19 MEMBER; CROSS,2ND
THA 		8-97948-169-0 01 1 1308- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1304-1307 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
THA 		8-97948-140-0 02 1 1308- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1304-1307 ● ● ● ●
34 MEMBER; CROSS,3RD
THA 		8-97948-172-0 01 1 1308- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
THA 		8-97924-678-0 01 1 1304- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) THA 		8-97948-178-0 02 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) THA 		8-97948-179-0 02 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) THA 		8-97948-176-0 01 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1304-1307 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) THA 		8-97948-177-0 01 1 1308- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-714-0 01 1 1304- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) THA 		8-97924-715-0 01 1 1304- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
THA 		8-97924-678-0 01 1 1304- ● ● ● ●
130 MEMBER; CROSS,END
THA 		8-97916-031-0 01 1 1304- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER THA 		0-50541-230-0 04 1 1304- ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1304- ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1304-1307 ● ● ● ●
148 SPACER; C/MBR
THA 		8-97948-168-0 02 1 1308- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1304-1307 ● ● ● ●
202 SPACER; 3RD C/MBR
THA 		8-97948-174-0 02 1 1308- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97611-245-0 02 1 1304-1307 ● ●
207 SPACER; 4TH C/MBR
THA 		8-97948-181-0 02 1 1308- ● ●
207 SPACER; 4TH C/MBR 8-97611-244-0 02 1 1304-1307 ●
207 SPACER; 4TH C/MBR
THA 		8-97948-175-0 02 1 1308- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1304-1307 ● ● ●
344 MEMBER; CROSS,4TH
THA 		8-97948-180-0 01 1 1308- ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1304-1307 ●
345 MEMBER; CROSS,5TH
THA 		8-97948-180-0 01 1 1308- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1304- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1304- ●
545 SPACER; 5TH C/MBR 8-97611-245-0 02 1 1304-1307 ●

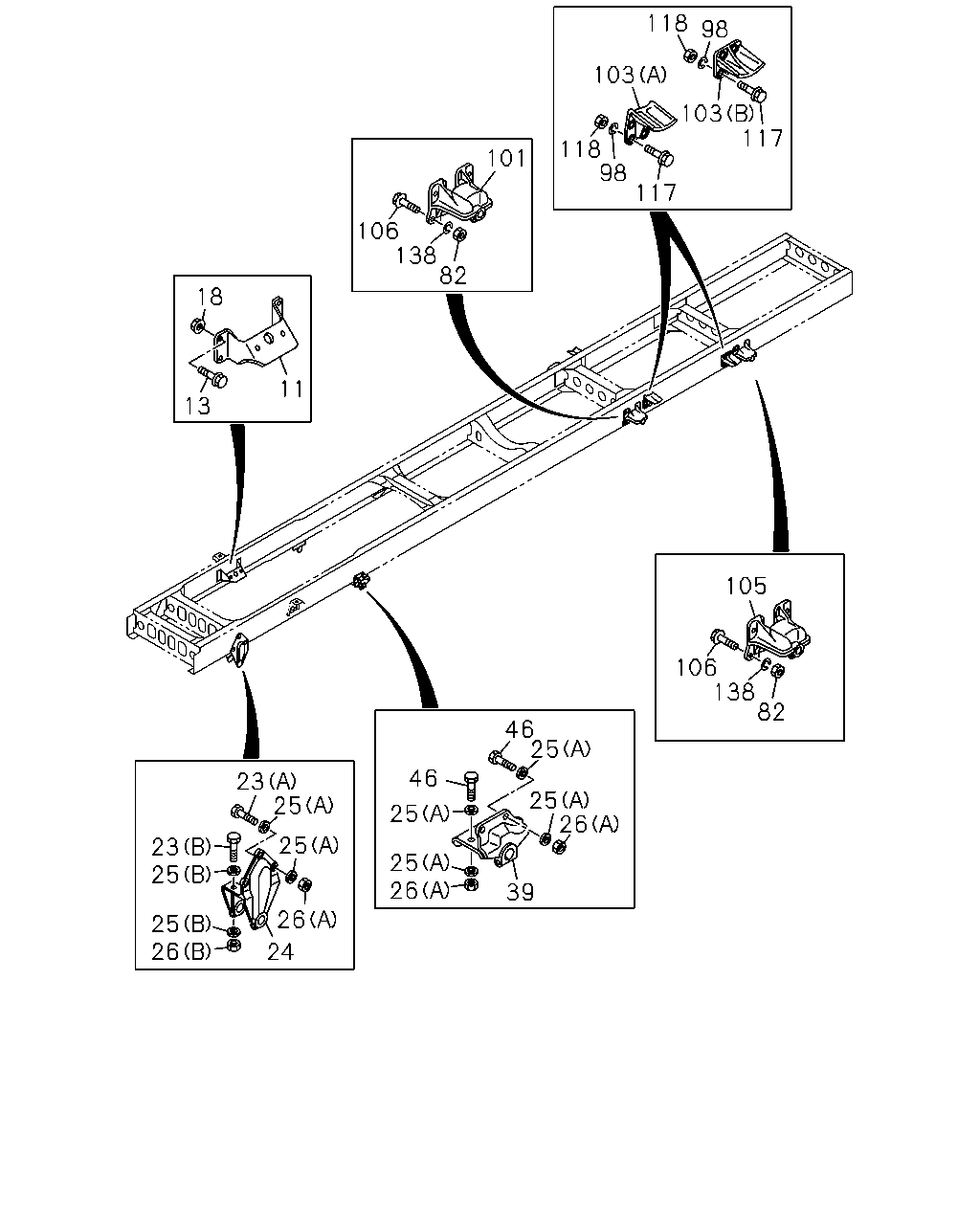

çizim 358249
98 118 103 118 98 117 117 103 101 106 138 82 18 13 11 23 23 25 25 26 25 25 26 24 46 25 25 26 39 26 25 25 46 105 106 138 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
THA 		8-97619-549-0 02 1 1304-1307 ● ● ● ●
11 BRACKET; ENG MTG
THA 		8-97948-165-0 02 1 1308- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1304- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE THA 		0-91180-212-0 08 1 1304- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1304- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1304- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1304-1307 ● ● ● ●
24 BRACKET; FRT SPR,FRT
THA 		8-97948-158-0 01 1 1308- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1304-1307 ● ● ● ●
24 BRACKET; FRT SPR,FRT
THA 		8-97948-160-0 01 1 1308- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1304- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1304- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 THA 		0-91110-514-0 14 1 1304- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 THA 		0-91110-516-0 04 1 1304- ● ● ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-625-0 01 1 1304- ● ● ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-626-0 01 1 1304- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1304- ● ● ● ●
82 NUT; BRKT
M14 THA 		0-91110-514-0 20 1 1304- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1304- ● ● ● ●
101 BRACKET; RR SPR,FRT
THA 		8-97916-134-0 02 1 1304- ● ● ● ●
103 STOPPER; SUB SPR
(A) THA 		8-97916-135-0 02 1 1304- ● ● ● ●
103 STOPPER; SUB SPR
(B) THA 		8-97916-136-0 02 1 1304- ● ● ● ●
105 BRACKET; RR SPR,RR
THA 		8-97916-134-0 02 1 1304- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1304- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1304- ● ● ● ●
118 NUT; STOPPER
M14 THA 		0-91110-514-0 16 1 1304- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1304- ● ● ● ●
