Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

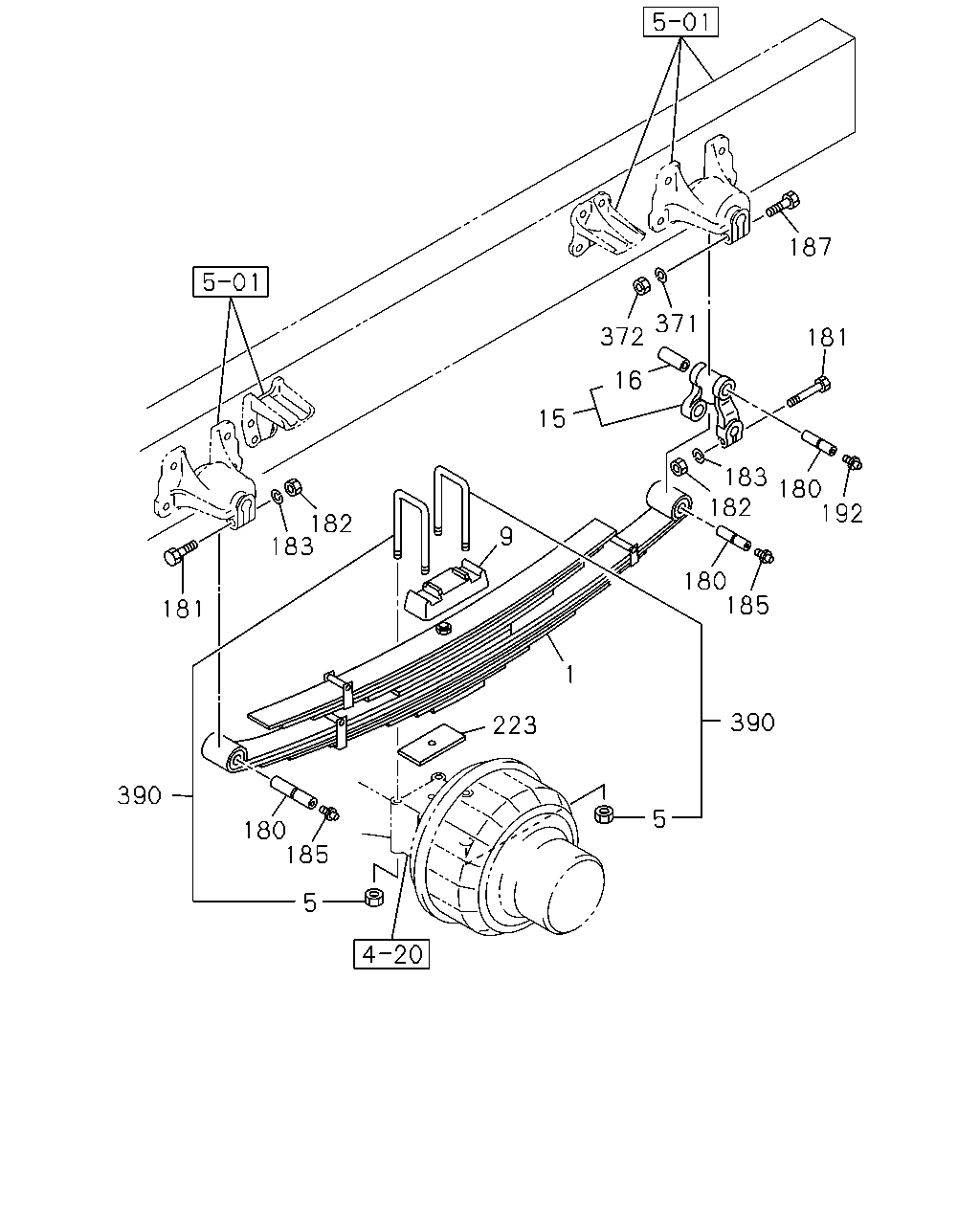

4-60 — REAR SUSPENSION
(#121752) — 21 parça
15
16
372
371
187
181
183
180
192
180
185
390
5
223
9
5
185
180
390
181
183
182
182
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-564-0
02
1
1304-1307
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA
8-97948-198-0
02
1
1308-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1304-
9
PAD; U BOLT,RR SPR
THA
8-97916-138-0
02
1
1304-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
1304-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1304-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
06
1
1304-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1304-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1304-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1304-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1304-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1304-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1304-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1304-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
1304-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
02
1
1304-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3600MM<36W>
8-98083-789-0
02
1
1304-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W>
1-51377-166-0
02
1
1304-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
02
1
1304-
372
NUT; SHACKLE
M14 THA
0-91110-514-0
02
1
1304-
390
U-BOLT SET; RR SPRING
L=455
1-87870-268-1
04
1
1304-
