4-01 — PROPELLER SHAFT (#12175) — 64 parça

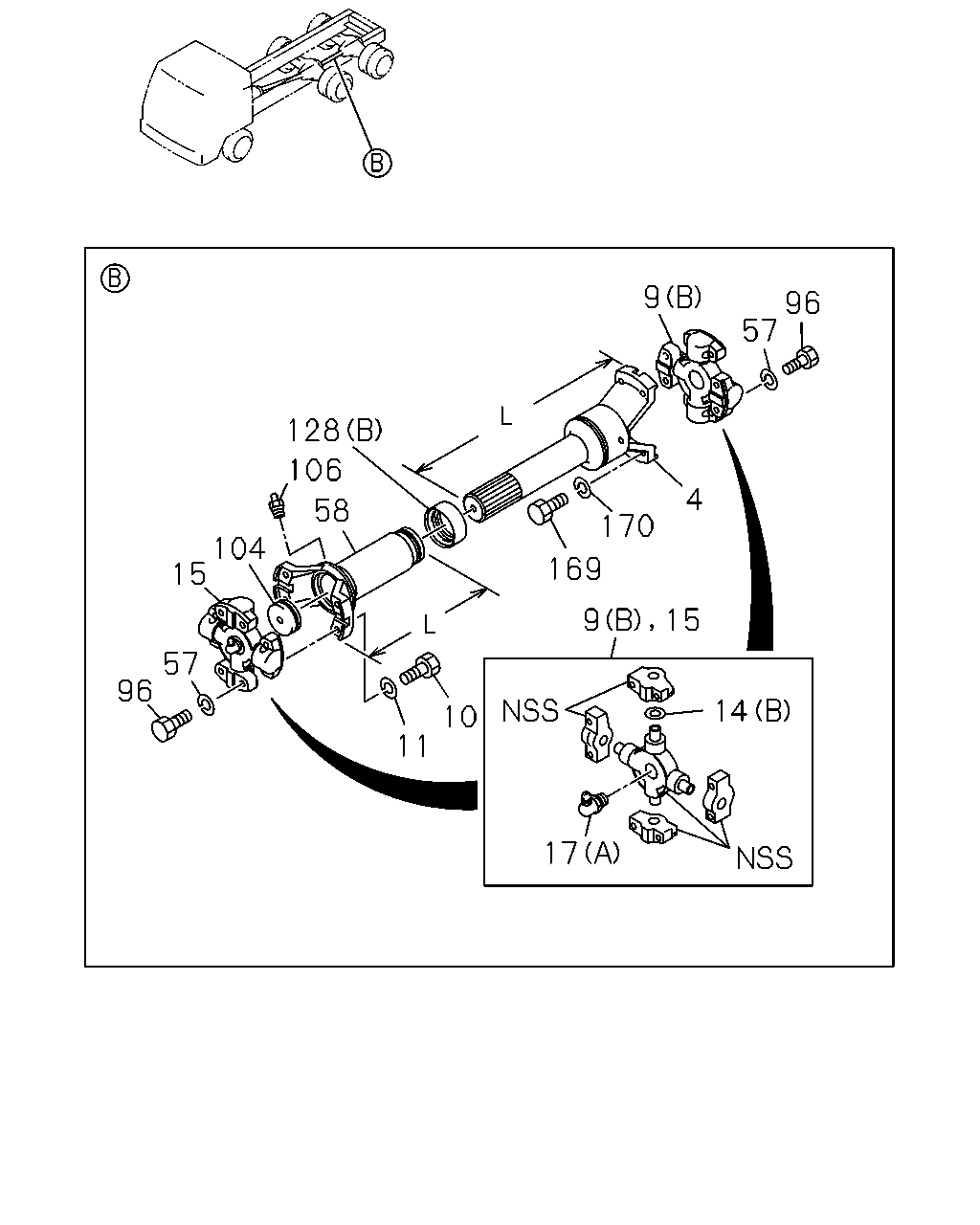

çizim 138782
9 96 57 128 106 4 58 170 104 15 169 9 15 57 96 14 10 11 17
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0105-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (C) 		1-37300-118-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-112-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0105-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0105-0805
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-0603
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0105-0603
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0105-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0105-0805
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0105-0805
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0105-0603
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604-

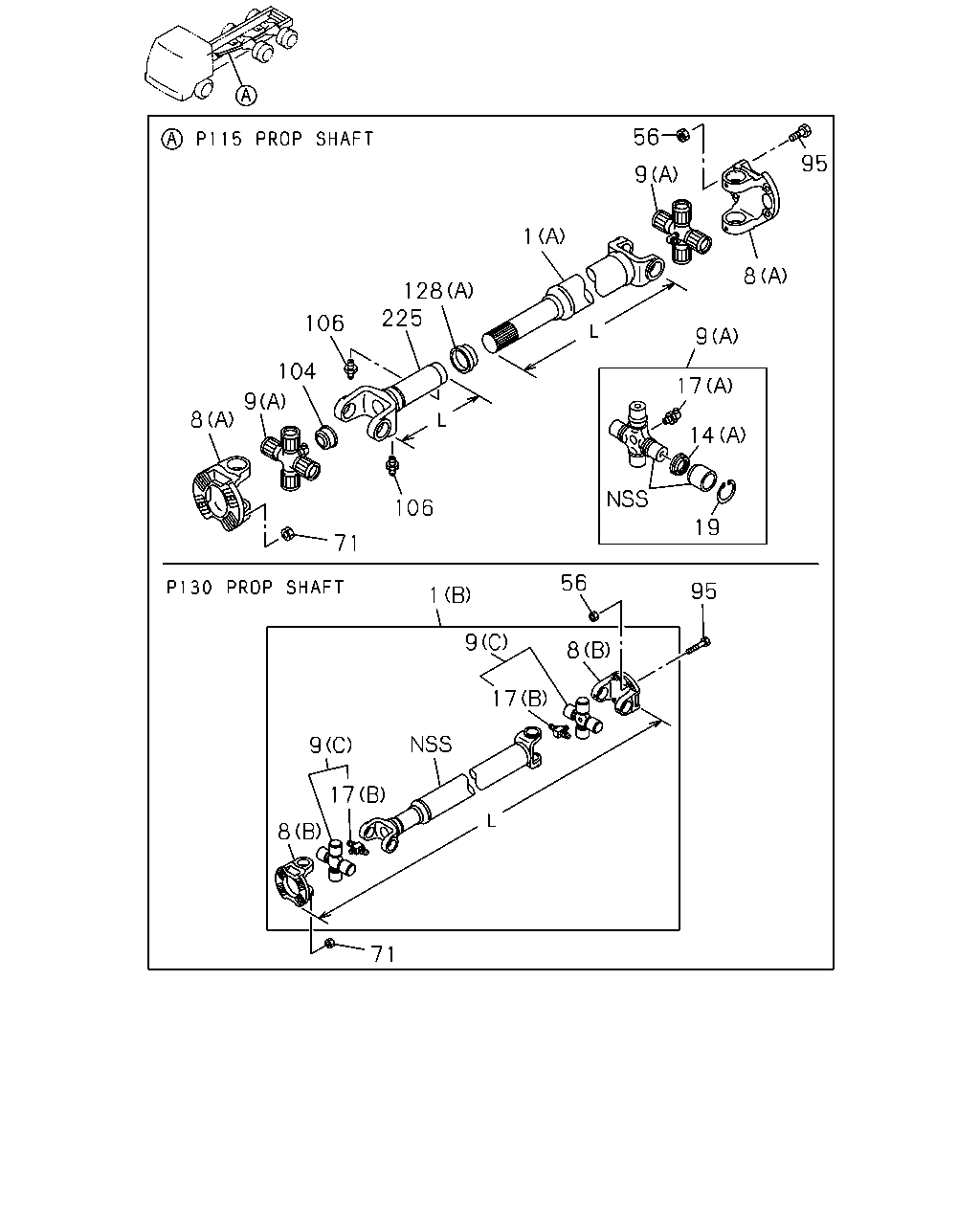

çizim 138820
56 95 1 8 128 225 106 9 104 17 8 14 106 19 71 56 95 1 9 8 17 9 17 8 71 9 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
MJX16P M/T(Y3Z) P115 PROP SHAFT<C5X> (A) L=570 		1-37124-642-1 01 1 0107-
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (B) L=915 		1-37124-592-1 01 1 0105-0210
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (B) L=900 		1-37125-171-0 01 1 0211-
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=650 		1-37124-824-1 01 1 0105-0311
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) P115 PROP SHAFT<C5X> (A) L=650 		1-37124-824-1 01 1 0312-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37211-083-0 02 1 0105-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-077-1 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (C) 		1-37300-118-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-112-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0105-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> T=2.2 		1-09587-103-1 AR 1 0105-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> T=2.17 		1-09587-107-0 AR 1 0105-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0105-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=339 		1-37241-140-0 01 1 0105-
