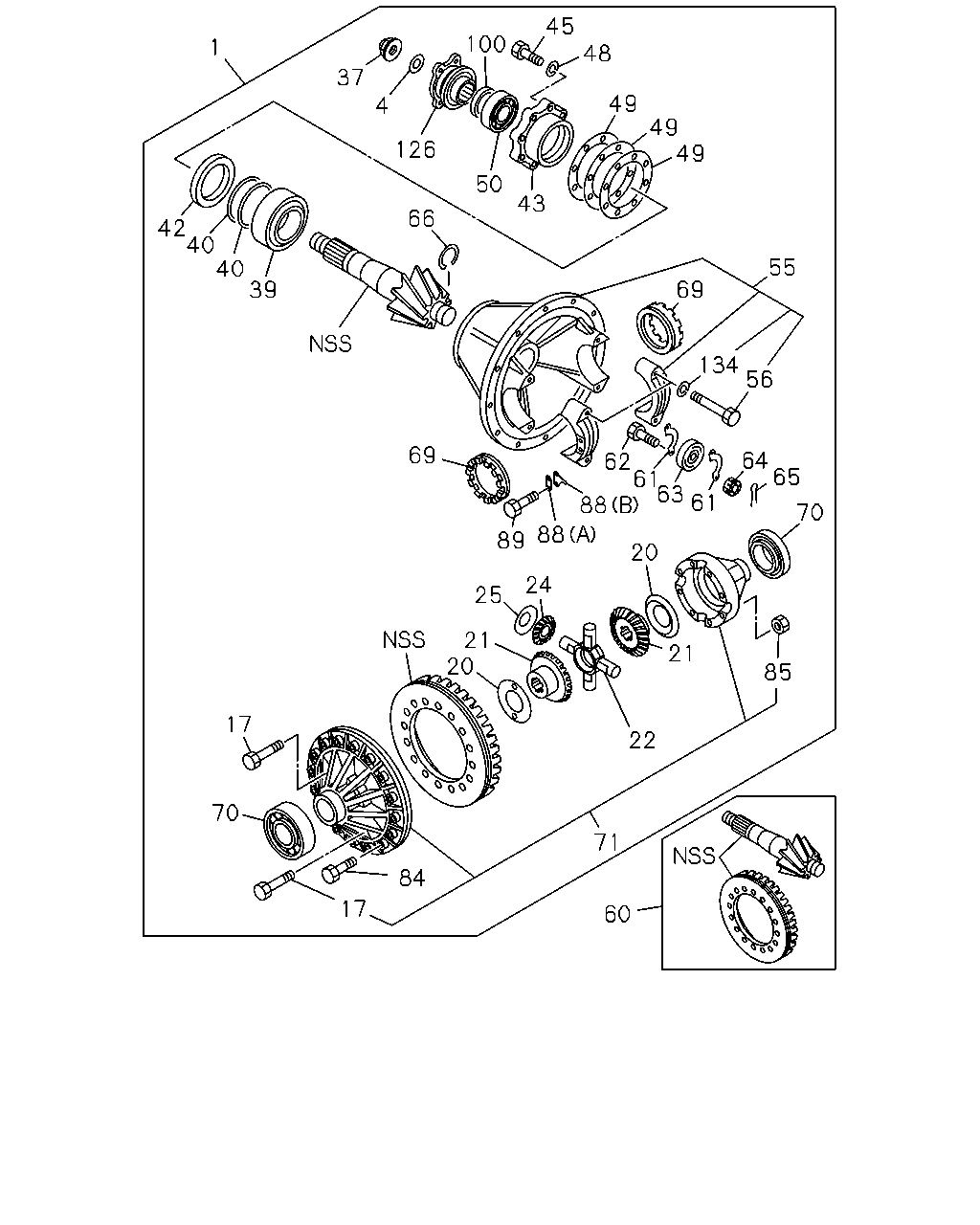

4-25 — REAR FINAL DRIVE (#121742) — 74 parça

85 21 22 71 60 84 17 70 17 20 21 25 24 89 88 20 88 63 61 65 70 64 61 62 56 134 55 69 49 49 49 48 45 100 50 43 66 126 4 37 1 42 40 40 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 39/7	1-41001-257-0	01	1	1304-	●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-352-0	01	1	1304-		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1304-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	1304-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-159-1	02	1	1304-	●	●
22	SPIDER; DIFF PINION	1-41521-061-0	01	1	1304-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-051-0	04	1	1304-	●	●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	1304-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1304-	●	●
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	1304-	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1304-	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1304-	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1304-	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1304-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1304-	●	●
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	1304-	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1304-	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1304-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1304-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1304-	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1304-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	1304-	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1304-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1304-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1304-	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1304-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1304-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1304-	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1304-	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1304-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1304-	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1304-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1304-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1304-	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1304-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1304-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1304-	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1304-	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1304-	●	●
