3-78 — FIXING PARTS; AIR PIPING (#121736) — 53 parça

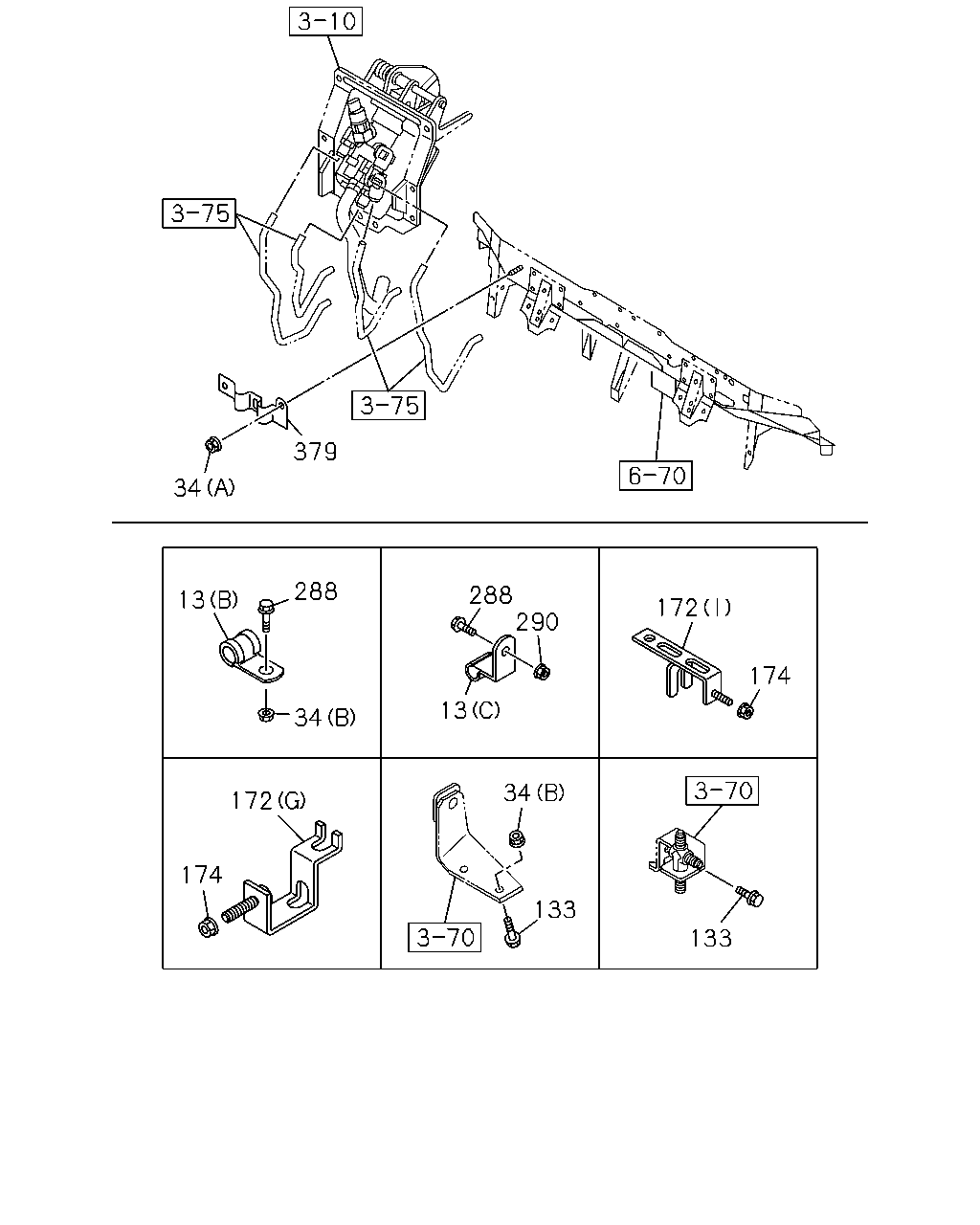

172 174 133 133 34 13 290 288 288 13 34 172 174 34 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (B) ID=7 L=16	0-95234-625-0	01	1	1304-
13	CLIP; AIR PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	1304-
13	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1304-
13	CLIP; AIR PIPE (A) ID=6.35 & 15	1-09709-276-1	01	1	1304-
34	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	02	1	1304-
34	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	02	1	1304-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1304-
172	BRACKET; TUBE CLIP (F)	1-47477-514-3	01	1	1304-
172	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	01	1	1304-
172	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1304-
172	BRACKET; TUBE CLIP (C) L=225	1-47477-646-3	01	1	1304-
172	BRACKET; TUBE CLIP (E) L=60 H=30	1-47477-716-1	03	1	1304-
172	BRACKET; TUBE CLIP (B)	1-47479-693-0	02	1	1304-
172	BRACKET; TUBE CLIP (D)	8-98031-420-2	01	1	1304-
172	BRACKET; TUBE CLIP (H)	8-98047-730-0	02	1	1304-
172	BRACKET; TUBE CLIP (G)	8-98169-222-0	01	1	1304-
172	BRACKET; TUBE CLIP (I)	8-98177-873-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (J)	8-98139-764-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (K)	8-98182-764-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 5500MM<55W> (I) THA	8-98139-765-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 5500MM<55W> (K)	8-98182-760-0	01	1	1304-
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	15	1	1304-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
290	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	01	1	1304-
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1304-

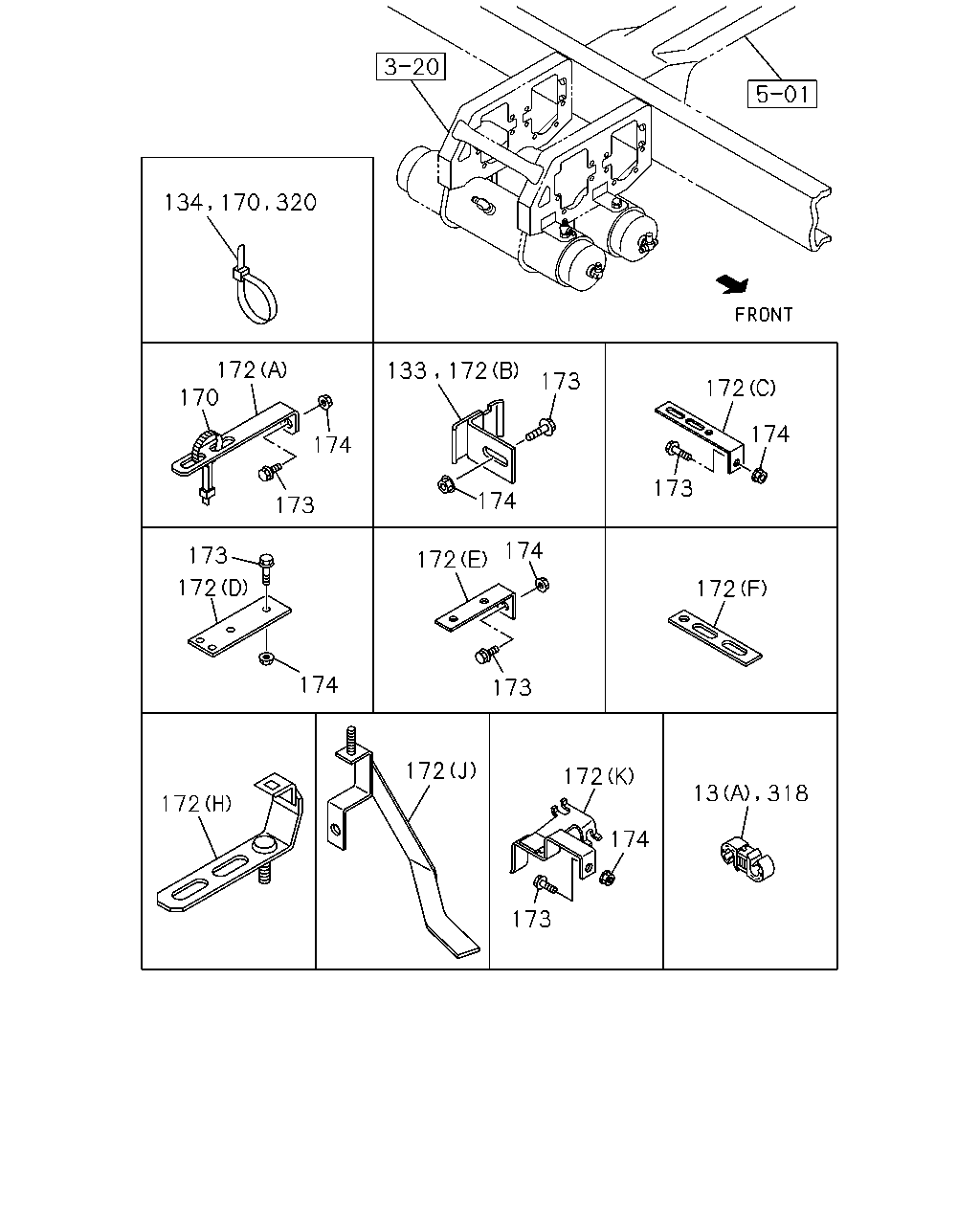

134 170 320 172 170 174 173 173 172 174 133 172 173 174 173 172 174 172 173 174 172 172 172 172 174 173 13 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (B) ID=7 L=16	0-95234-625-0	01	1	1304-
13	CLIP; AIR PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	1304-
13	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1304-
13	CLIP; AIR PIPE (A) ID=6.35 & 15	1-09709-276-1	01	1	1304-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1304-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1304-
170	CLIP; NYLON TUBE L=350	1-09707-183-0	26	1	1304-
172	BRACKET; TUBE CLIP (F)	1-47477-514-3	01	1	1304-
172	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	01	1	1304-
172	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1304-
172	BRACKET; TUBE CLIP (C) L=225	1-47477-646-3	01	1	1304-
172	BRACKET; TUBE CLIP (E) L=60 H=30	1-47477-716-1	03	1	1304-
172	BRACKET; TUBE CLIP (B)	1-47479-693-0	02	1	1304-
172	BRACKET; TUBE CLIP (D)	8-98031-420-2	01	1	1304-
172	BRACKET; TUBE CLIP (H)	8-98047-730-0	02	1	1304-
172	BRACKET; TUBE CLIP (G)	8-98169-222-0	01	1	1304-
172	BRACKET; TUBE CLIP (I)	8-98177-873-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (J)	8-98139-764-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (K)	8-98182-764-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 5500MM<55W> (I) THA	8-98139-765-0	01	1	1304-
172	BRACKET; TUBE CLIP WHEEL BASE 5500MM<55W> (K)	8-98182-760-0	01	1	1304-
173	BOLT; CLIP BRKT M8X20 FLANGE THA	0-28650-820-0	05	1	1304-
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	06	1	1304-
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	15	1	1304-
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	04	1	1304-
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	1304-
