◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#12172) — 223 parça

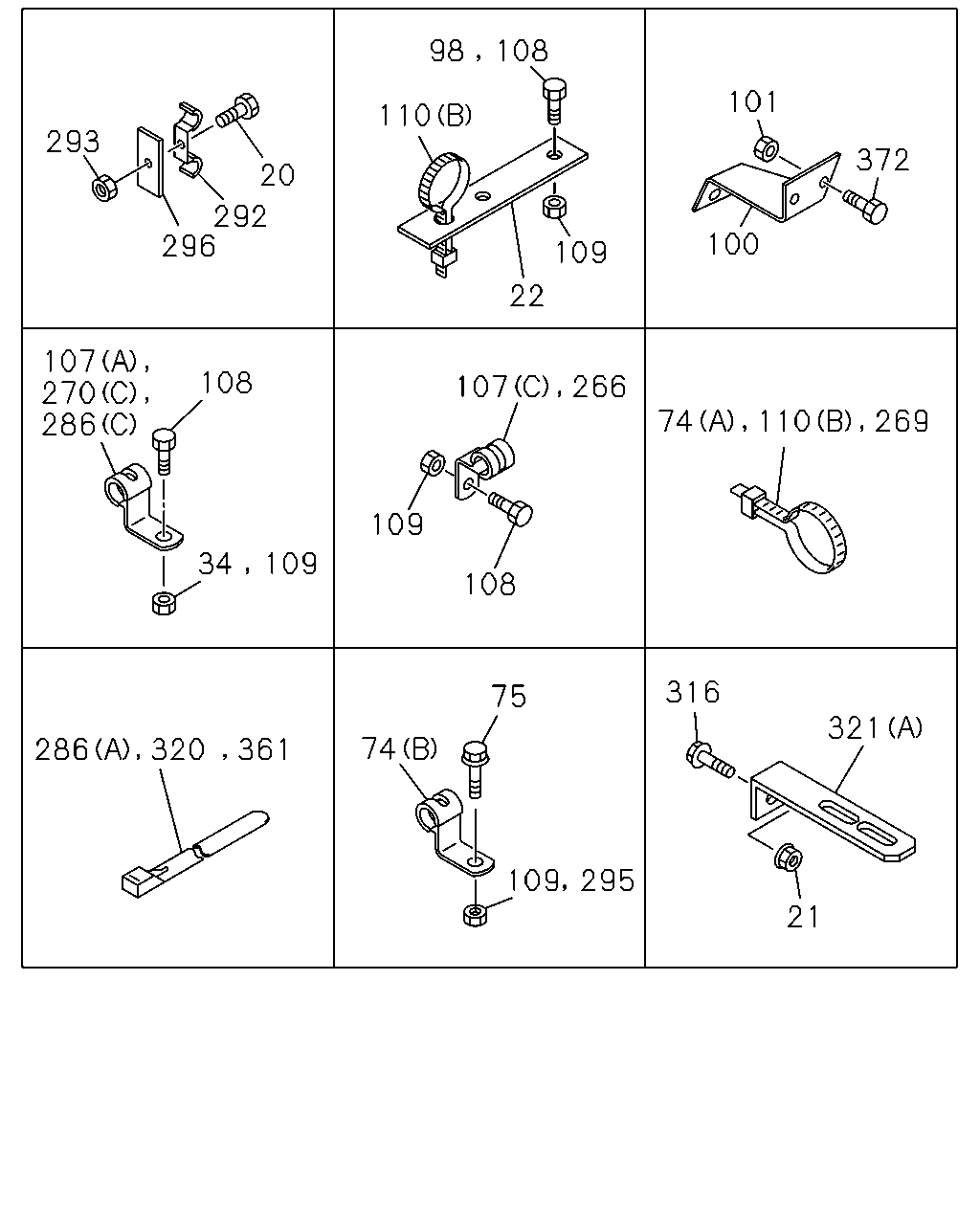

çizim 138801
98 108 101 110 293 372 20 292 296 100 109 22 107 270 286 108 74 109 34 109 108 316 75 321 74 286 320 361 21 107 266 110 269 109 295
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
22 BRACKET; CLIP
L=100 		1-47477-620-1 01 1 0105-
22 BRACKET; CLIP
L=125 		1-47477-975-1 02 1 0105-
34 NUT; BRKT
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0107-0602
34 NUT; BRKT
ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0603-
74 CLIP; NYLON TUBE
EXC. CHINA GB VAR1<JAC> (A) L=250 		1-09707-126-0 04 1 0310-0401
74 CLIP; NYLON TUBE
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) L=250 		1-09707-126-0 04 1 0402-
74 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0105-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 03 1 0105-0309
74 CLIP; NYLON TUBE
CHINA GB VAR1<JAC> (A) L=250 		1-09707-126-0 03 1 0310-0401
74 CLIP; NYLON TUBE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) L=250 		1-09707-126-0 03 1 0402-
74 CLIP; NYLON TUBE
(C) ID=6.35 & 12 		1-09709-275-1 01 1 0105-0105
74 CLIP; NYLON TUBE
(C) ID=12 & 12 		1-09709-280-1 01 1 0105-0105
74 CLIP; NYLON TUBE
AIR DRYER<PS7> (D) ID=12 & 15 		1-09709-281-1 01 1 0105-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
100 BRACKET; PIPE CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47477-452-0 01 1 0105-
100 BRACKET; PIPE CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47477-481-0 01 1 0105-
100 BRACKET; PIPE CLIP
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47477-770-0 01 1 0105-
100 BRACKET; PIPE CLIP
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47477-365-0 01 1 0105-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0312-
107 CLIP; NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 01 1 0108-
107 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 03 1 0105-0106
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-0311
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0312-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0312-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
(C) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0105-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0105-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28050-825-0 04 1 0601-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
109 NUT; TUBE CLIP
ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0107-0602
109 NUT; TUBE CLIP
ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 01 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
110 CLIP; BAND,NYLON TUBE
(B) L=700 		1-09707-190-0 01 1 0302-
110 CLIP; BAND,NYLON TUBE
MJX16P M/T(Y3Z) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 42 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 44 1 0106-0112
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 46 1 0201-
266 CLIP; NYLON TUBE
ID=18 H=23 L=28 		1-09700-860-0 01 1 0105-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 15 1 0105-0105
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 16 1 0106-
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (C) ID=35 H=45 L=33 		1-09701-047-0 01 1 0309-
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 03 1 0105-0308
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 02 1 0309-
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=26 L=26 		1-09701-236-0 01 1 0105-
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-0106
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0107-
286 CLIP; NYLON TUBE
EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0106-0106
286 CLIP; NYLON TUBE
ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 05 1 0105-0106
286 CLIP; NYLON TUBE
ZF M/T<X9E> (A) L=250 		1-09707-126-0 05 1 0107-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (B) ID=15 L=28 		1-09701-216-0 01 1 0107-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
293 NUT; CLIP
CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
293 NUT; CLIP
EXC. CAUTIONS PORTUGUESE<NAT>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>,CAUTIONS CHINESE<SL7>,CAUTIONS AR ABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
296 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 0105-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
320 CLIP; BAND,FLEX FIX
L=140 		5-09707-031-1 01 1 0105-0105
321 BRACKET; CLIP
(B) 		1-47477-472-1 01 1 0105-
321 BRACKET; CLIP
(A) 		1-47477-746-0 01 1 0105-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0105-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0105-0512
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
çizim 138809
376 367 322 375 357
BalonParca AdiParca NoAdetTipApplied Date
322 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0105-
322 BRACKET; CLIP
ISUZU M/T<X9A> (B) L=112 		1-47475-694-1 01 1 0107-
357 BOLT; CLIP FIX
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
357 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
367 BRACKET ASM 1-42119-080-0 01 1 0105-
375 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
375 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0105-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512
376 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0904
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28650-825-0 01 1 0601-

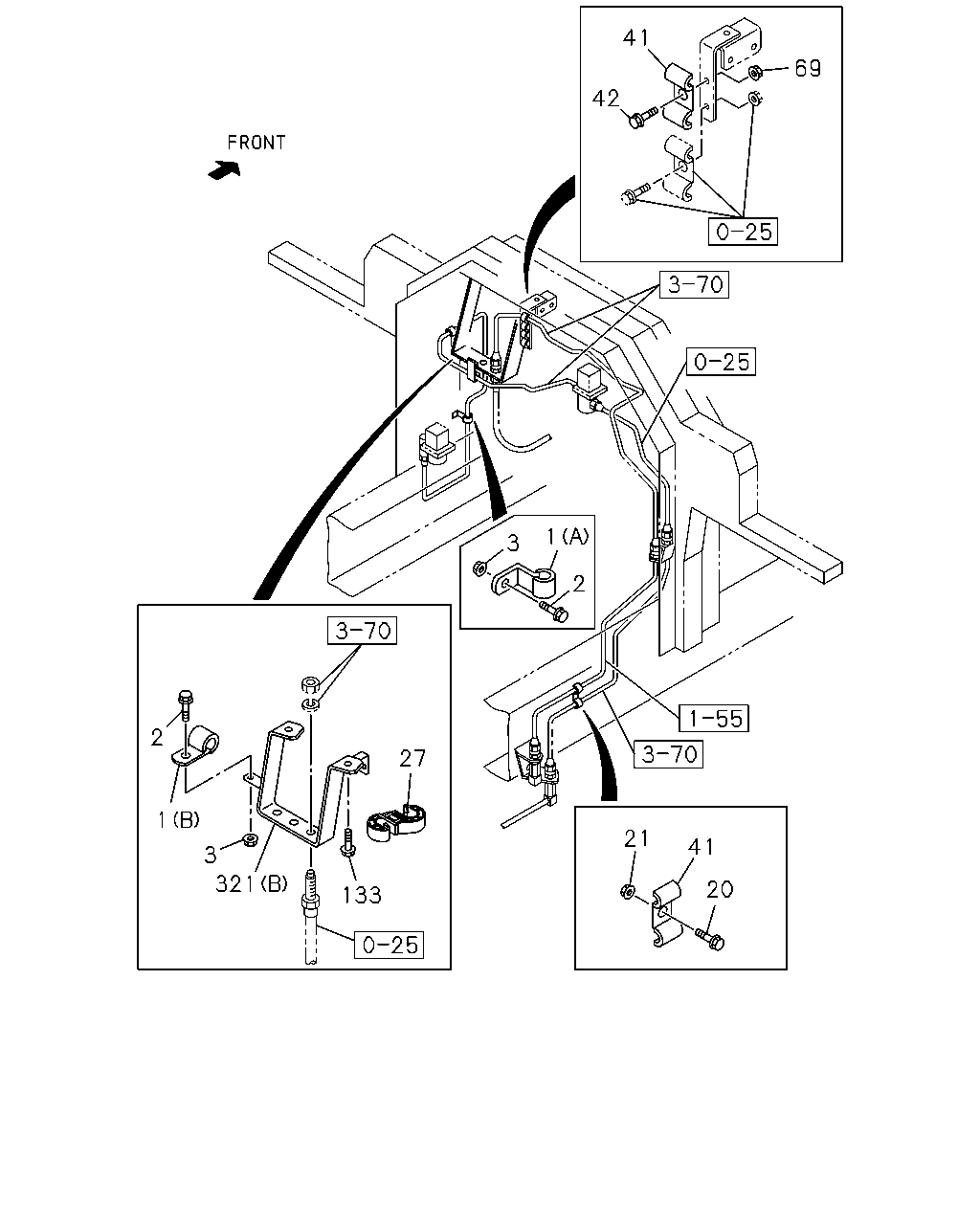

çizim 138812
41 69 42 1 3 2 2 27 1 21 41 3 321 20 133
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
1 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 01 1 0105-0606
1 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
27 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0105-
41 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0204
133 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0205-0512
133 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
321 BRACKET; CLIP
(B) 		1-47477-472-1 01 1 0105-
321 BRACKET; CLIP
(A) 		1-47477-746-0 01 1 0105-
çizim 138818
76 111 63 107 110 39 21 76 298 375 299 107 322 27 286 353 74 74 306 364
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
27 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0105-
39 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0105-0302
39 CLIP; AIR PIPE
D=15 L=45 		5-09700-076-0 01 1 0303-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
74 CLIP; NYLON TUBE
EXC. CHINA GB VAR1<JAC> (A) L=250 		1-09707-126-0 04 1 0310-0401
74 CLIP; NYLON TUBE
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) L=250 		1-09707-126-0 04 1 0402-
74 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0105-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 03 1 0105-0309
74 CLIP; NYLON TUBE
CHINA GB VAR1<JAC> (A) L=250 		1-09707-126-0 03 1 0310-0401
74 CLIP; NYLON TUBE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) L=250 		1-09707-126-0 03 1 0402-
74 CLIP; NYLON TUBE
(C) ID=6.35 & 12 		1-09709-275-1 01 1 0105-0105
74 CLIP; NYLON TUBE
(C) ID=12 & 12 		1-09709-280-1 01 1 0105-0105
74 CLIP; NYLON TUBE
AIR DRYER<PS7> (D) ID=12 & 15 		1-09709-281-1 01 1 0105-
76 CLIP; NYLON TUBE
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0106-
76 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0105-0105
76 CLIP; NYLON TUBE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0106-
76 CLIP; NYLON TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0105-0112
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0312-
107 CLIP; NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 01 1 0108-
107 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 03 1 0105-0106
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-0311
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0312-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0312-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
(C) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0105-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=700 		1-09707-190-0 01 1 0302-
110 CLIP; BAND,NYLON TUBE
MJX16P M/T(Y3Z) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 42 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 44 1 0106-0112
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 46 1 0201-
111 CLIP; AIR PIPE
ID=25 L=50 		1-09701-019-0 01 1 0105-
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-0106
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0107-
286 CLIP; NYLON TUBE
EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0106-0106
286 CLIP; NYLON TUBE
ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 05 1 0105-0106
286 CLIP; NYLON TUBE
ZF M/T<X9E> (A) L=250 		1-09707-126-0 05 1 0107-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (B) ID=15 L=28 		1-09701-216-0 01 1 0107-
298 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
298 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
306 CLIP; NYLON TUBE
ID=12 & 12 		1-09709-280-1 01 1 0106-
322 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0105-
322 BRACKET; CLIP
ISUZU M/T<X9A> (B) L=112 		1-47475-694-1 01 1 0107-
353 CLIP; AIR PIPE
ID=9 L=16 		9-09524-822-0 01 1 0105-0606
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 0607-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 0105-
375 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
375 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0105-

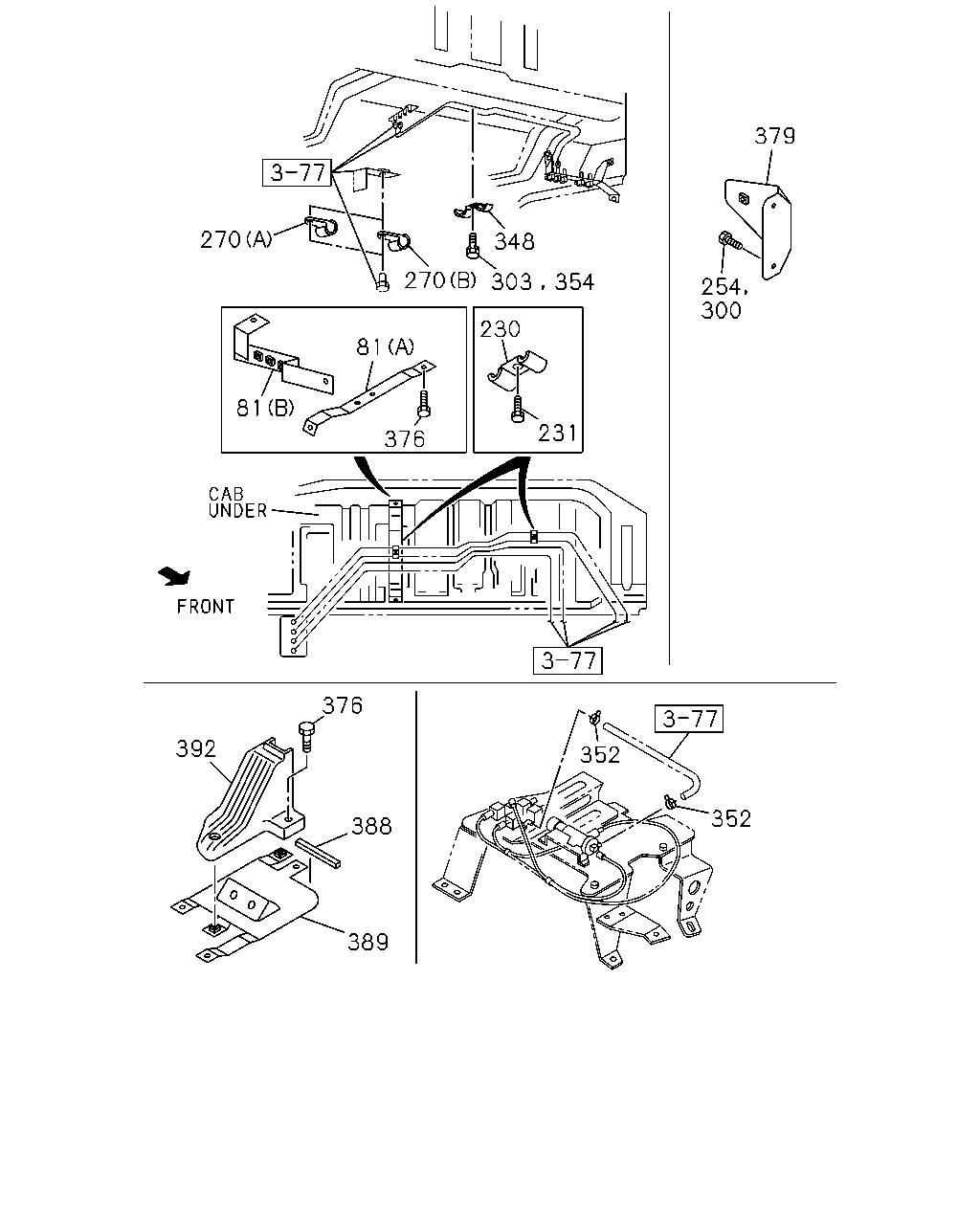

çizim 138819
379 270 348 270 254 300 230 81 81 231 376 376 392 352 352 388 389 303 354
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0105-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0105-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 0105-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (C) ID=35 H=45 L=33 		1-09701-047-0 01 1 0309-
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 03 1 0105-0308
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 02 1 0309-
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=26 L=26 		1-09701-236-0 01 1 0105-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 0105-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0105-
354 BOLT; PIPE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512
376 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0904
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0105-
388 SEAL
L=215 		1-79738-794-1 01 1 0105-
389 BRACKET; UNION 1-79738-790-1 01 1 0105-
392 COVER; BRKT 1-73996-264-1 01 1 0105-

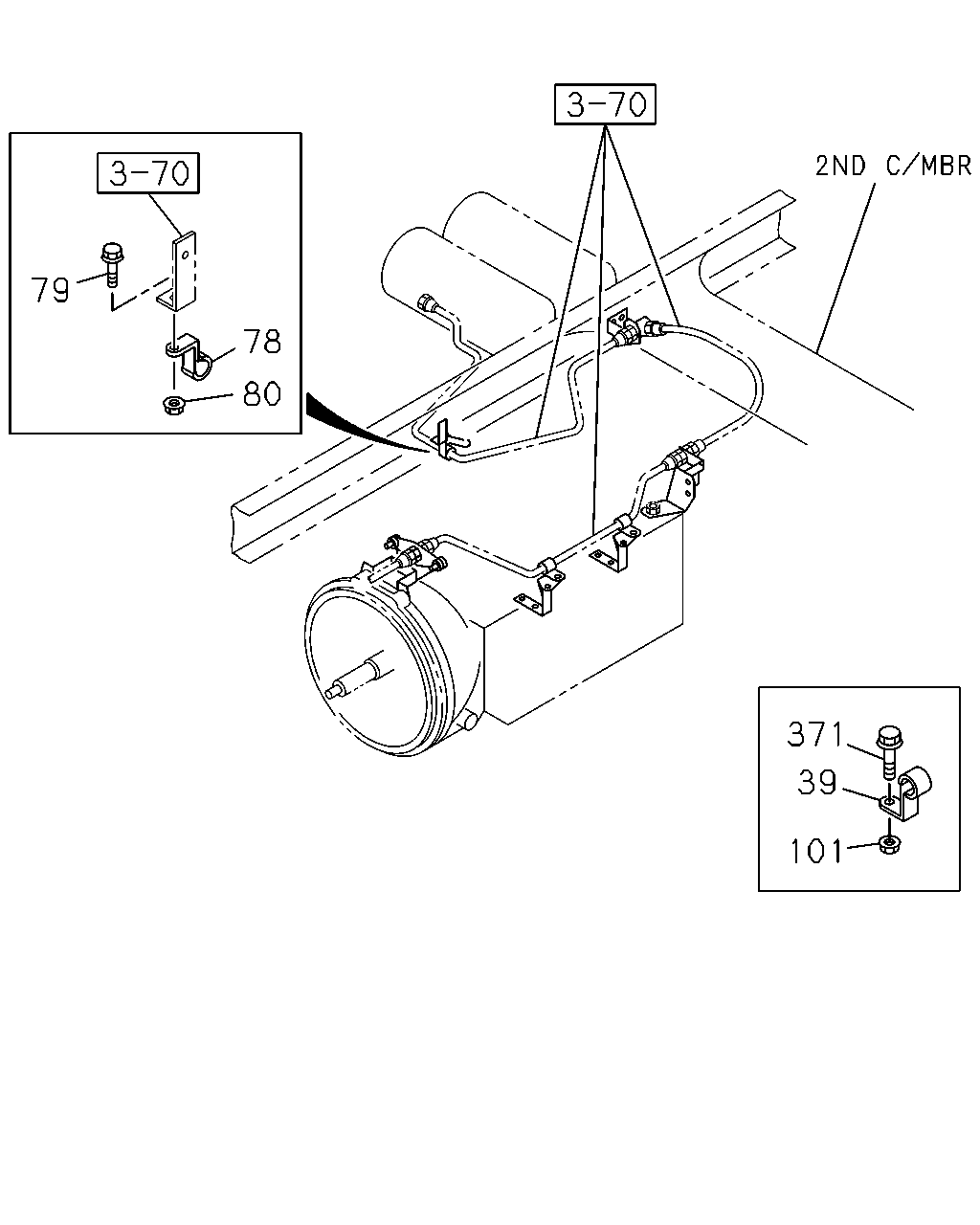

çizim 138822
79 78 80 371 39 101
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0105-0302
39 CLIP; AIR PIPE
D=15 L=45 		5-09700-076-0 01 1 0303-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0105-
79 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
79 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
371 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0304
371 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0305-0512
371 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
