◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#12171) — 220 parça

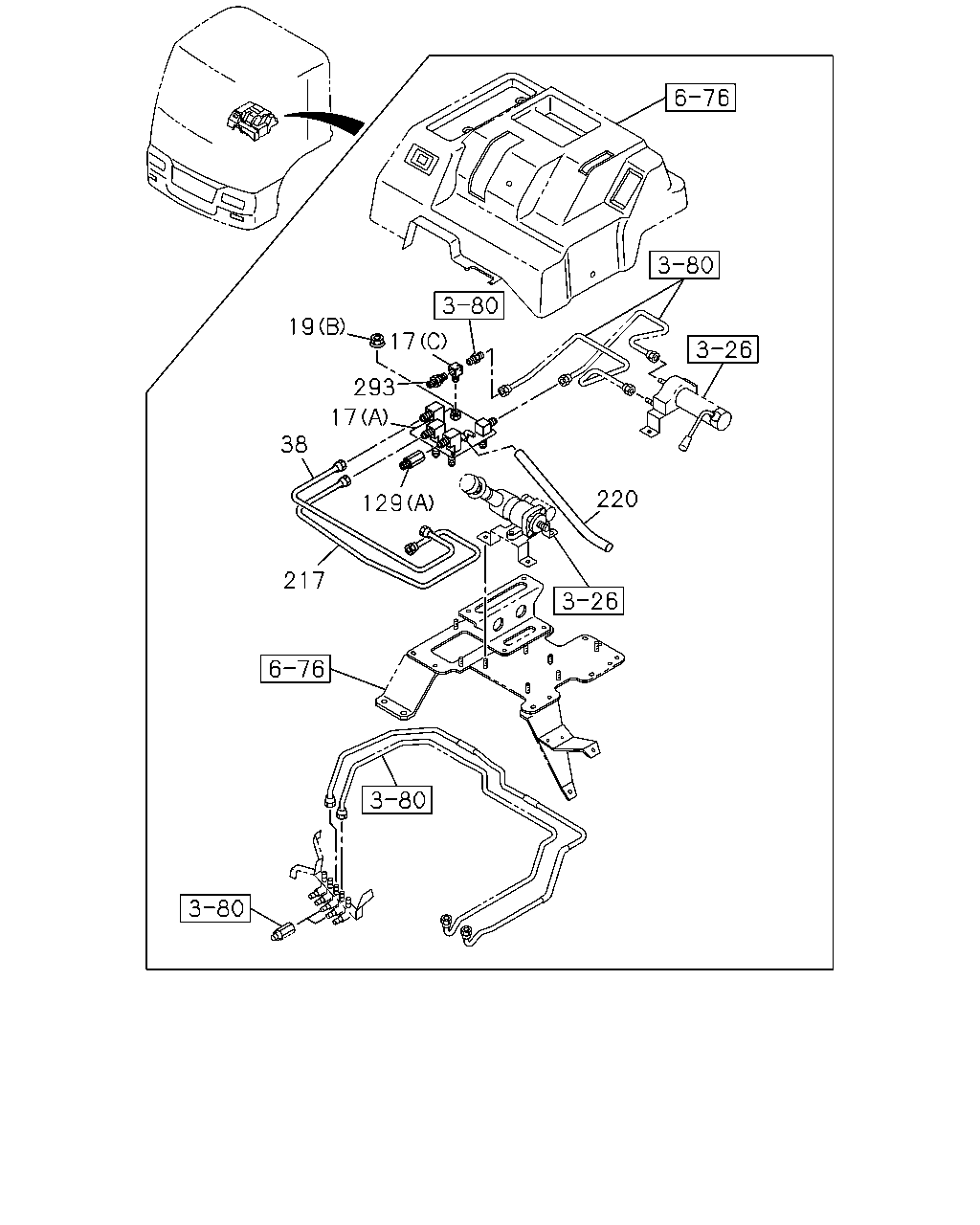

çizim 138769
19 17 293 17 38 220 129 217
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(C) 		1-09656-708-0 01 1 0105-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-655-0 01 1 0105-0111
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-47470-656-0 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-655-0 01 1 0112-
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(A) M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0112-
38 PIPE; AIR,UNION TO MAG VLV 1-49122-879-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-0210
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0211-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49122-880-0 01 1 0105-0105
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 0106-
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0105
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> L=240 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0203
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0204-
293 VALVE; CHECK 1-48410-479-1 01 1 0105-

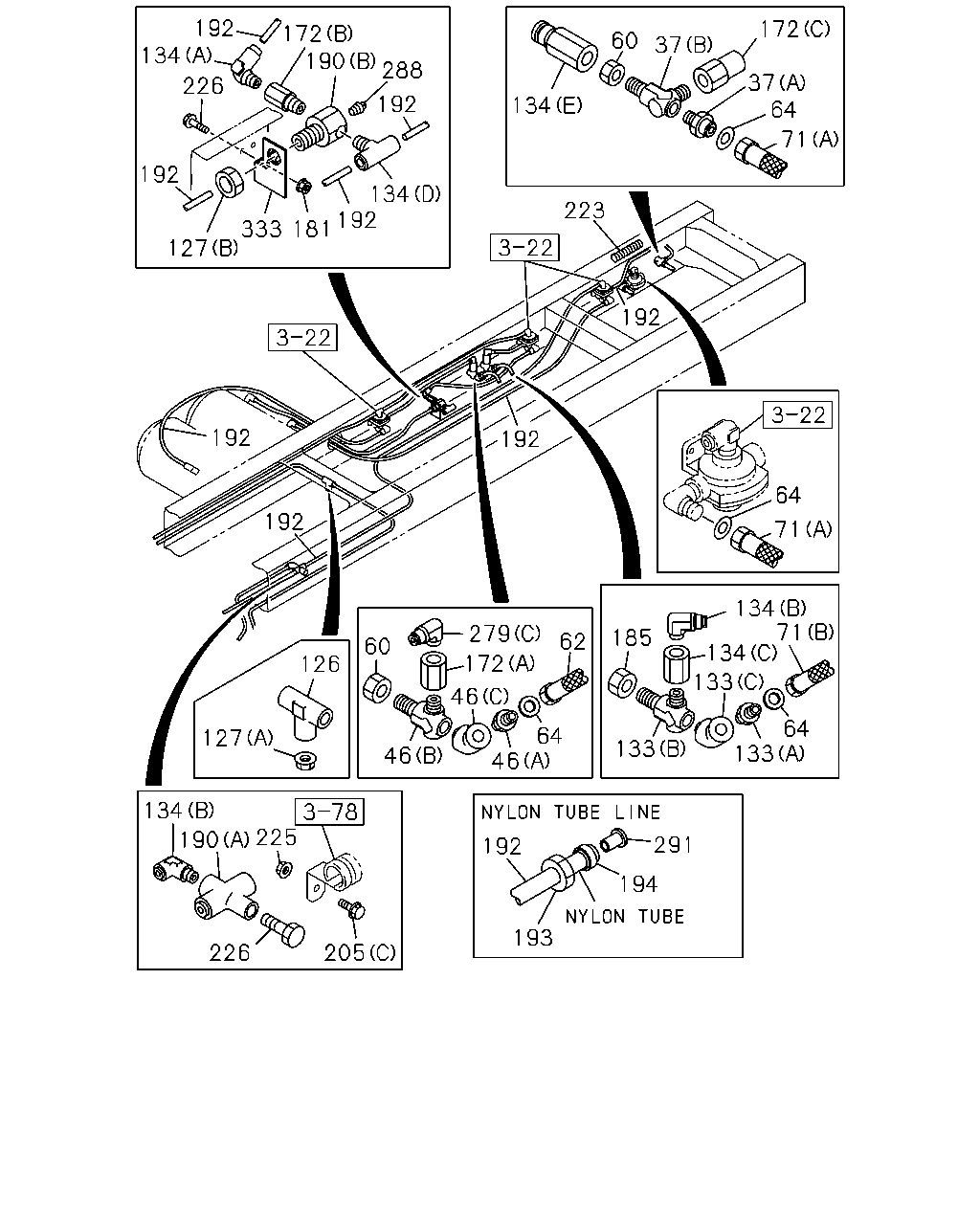

çizim 138772
192 134 172 172 190 288 60 37 37 64 226 192 134 71 192 134 192 223 333 127 181 192 192 192 64 192 71 134 71 134 279 185 62 60 172 126 133 46 64 133 64 46 127 133 46 134 225 190 291 192 194 193 226 205
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
46 NIPPLE; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
46 NIPPLE; AIR PIPE
(C) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 0105-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 04 1 0105-0512
60 NUT; NIPPLE,AIR PIPE
M20 		0-91111-520-0 04 1 0601-
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0105-0607
62 HOSE; FLEX,FWD RR
L=630 		0-57909-630-0 01 1 0608-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 06 1 0105-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 01 1 0608-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 01 1 0608-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(B) L=630 		0-57909-630-0 01 1 0608-
126 UNION; NYLON TUBE
DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0105-
127 NUT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
127 NUT; UNION
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
127 NUT; UNION
(B) M22 		9-09111-422-0 01 1 0105-0512
127 NUT; UNION
(B) M22 		0-91111-522-0 01 1 0601-
133 UNION; NIPPLE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
133 UNION; NIPPLE
(B) 		1-09650-251-1 01 1 0105-
133 UNION; NIPPLE
(C) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 0105-
134 CONNECTOR
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0105-
134 CONNECTOR
(D) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0105-
172 ADAPTER; UNION
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
172 ADAPTER; UNION
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
172 ADAPTER; UNION
(B) PT3/8 		1-48319-058-0 01 1 0105-
181 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
181 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0603-
185 NUT; NIPPLE
M20 		9-99111-420-0 01 1 0105-0512
185 NUT; NIPPLE
M20 		0-91111-520-0 01 1 0601-
190 UNION; 3 WAY
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
190 UNION; 3 WAY
(B) 		1-09661-064-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0612
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0212-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0701-
193 NUT; SLEEVE
M18 		1-09660-213-0 01 1 0105-0105
194 SLEEVE; TUBE
ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0105-0105
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
205 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
205 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
205 BOLT; TUBE CLIP
(B) M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-0501
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-0612
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0212-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0701-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-0904
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
226 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
226 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
279 UNION; AIR PIPE
(A) M14X35 		1-09650-272-2 01 1 0105-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0105-
279 UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
288 PLUG
PT1/4 		9-99204-513-0 01 1 0105-
291 INSERT
ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0105-0105
333 BRACKET; CONNECTOR 1-47478-839-1 01 1 0105-

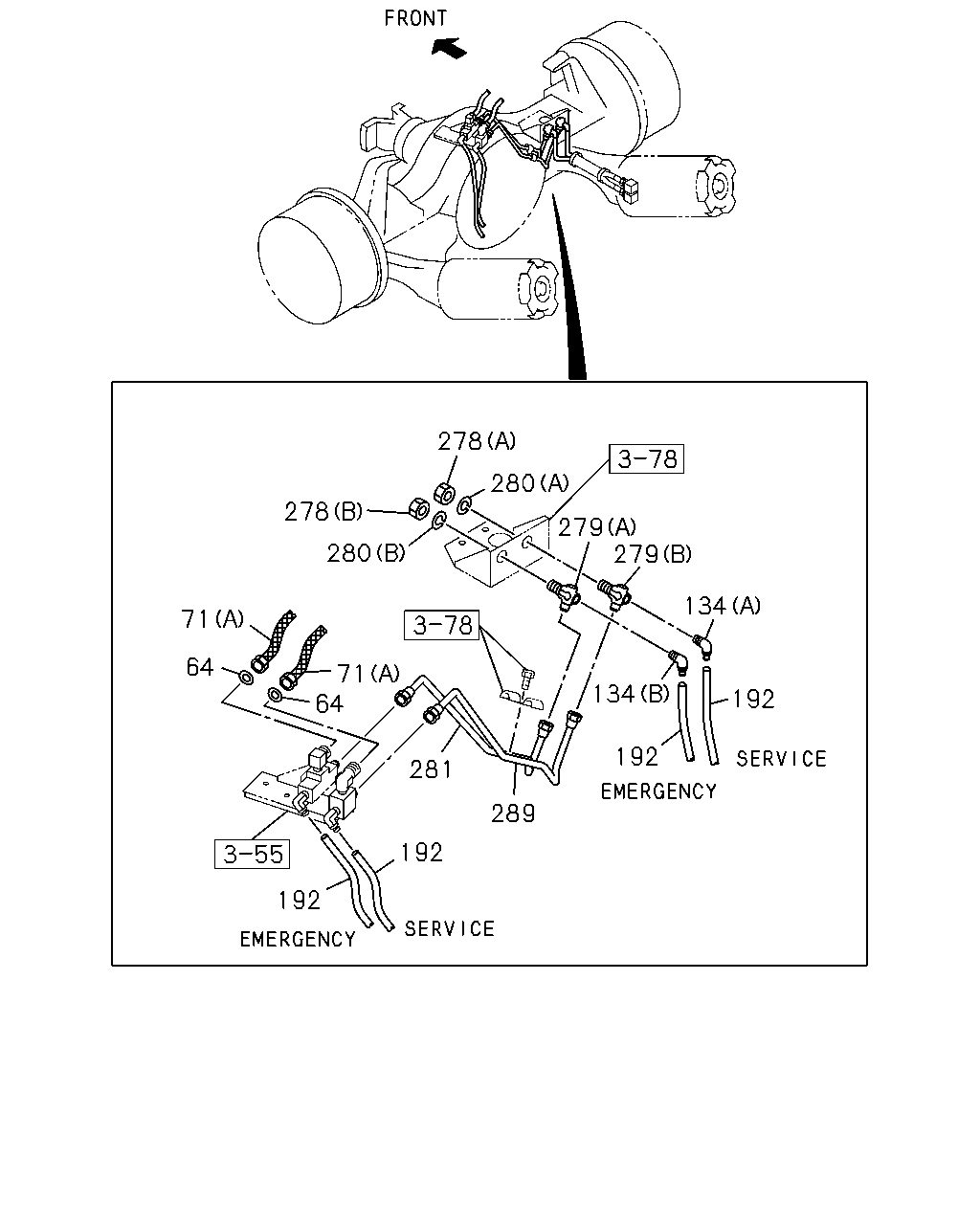

çizim 138795
278 280 278 279 279 280 134 71 64 71 64 134 192 192 281 289 192 192
BalonParca AdiParca NoAdetTipApplied Date
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 06 1 0105-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 01 1 0608-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 01 1 0608-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(B) L=630 		0-57909-630-0 01 1 0608-
134 CONNECTOR
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0105-
134 CONNECTOR
(D) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0612
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0212-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0701-
278 NUT; UNION
(A) M16 		9-99111-416-0 01 1 0105-0512
278 NUT; UNION
(A) M16 		0-91111-516-0 01 1 0601-
278 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0105-0512
278 NUT; UNION
(B) M20 		0-91111-520-0 01 1 0601-
279 UNION; AIR PIPE
(A) M14X35 		1-09650-272-2 01 1 0105-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0105-
279 UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
280 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0105-0603
280 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0604-
280 WASHER; LK
(B) ID=20.2 		9-09150-520-0 01 1 0105-0603
280 WASHER; LK
(B) ID=20.2 		0-91510-520-0 01 1 0604-
281 PIPE; AIR,EMERGENCY 1-49117-109-0 01 1 0105-
289 PIPE; AIR,MODULATOR TO RELAY VLV 1-49117-108-0 01 1 0105-

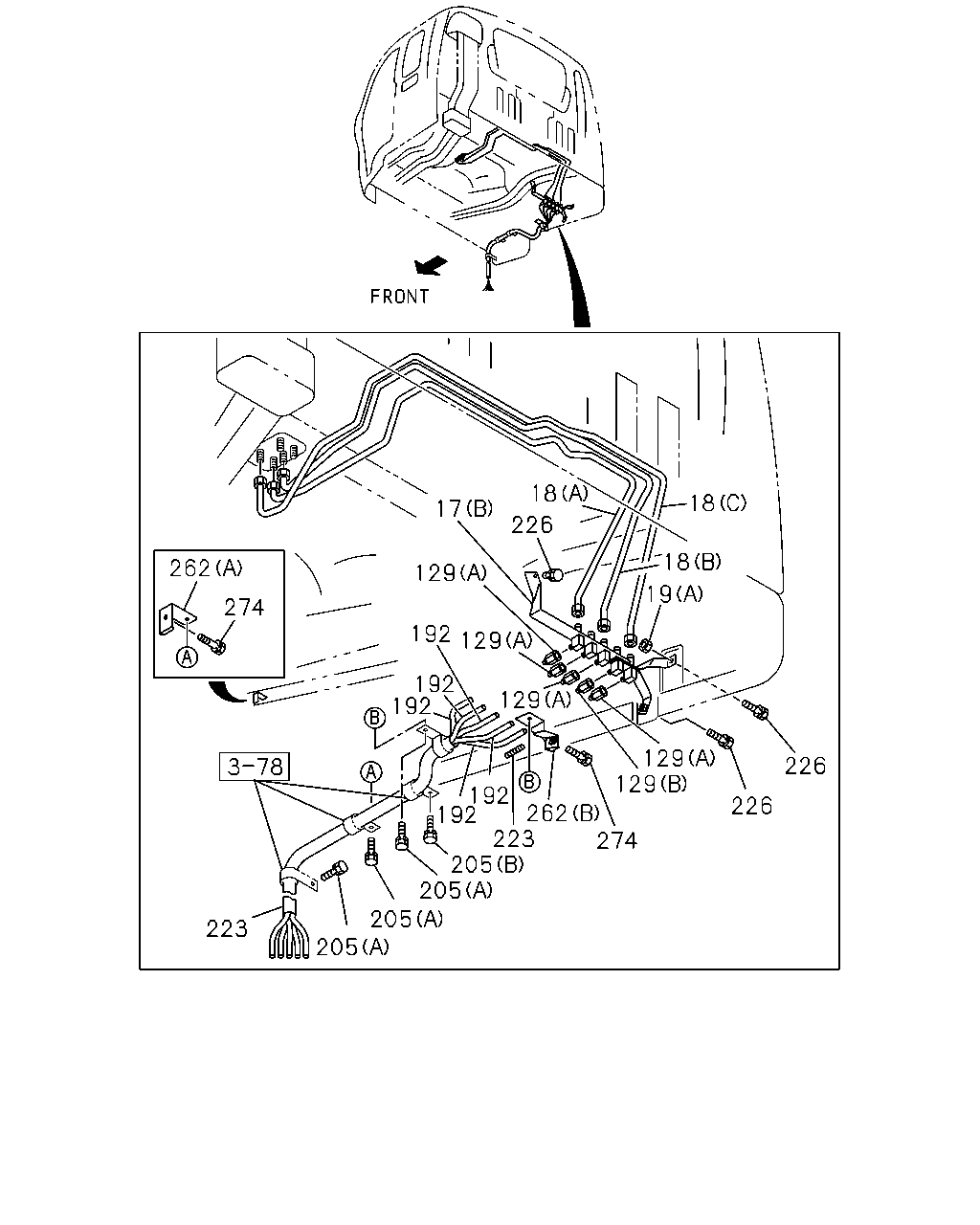

çizim 138798
18 18 17 226 18 262 129 19 274 192 129 192 192 129 129 129 226 192 192 226 262 223 274 205 205 205 205 223
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(C) 		1-09656-708-0 01 1 0105-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-655-0 01 1 0105-0111
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-47470-656-0 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-655-0 01 1 0112-
18 PIPE; AIR,UNION TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0105-
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(A) M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-0210
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0211-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0612
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0212-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0701-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
205 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
205 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
205 BOLT; TUBE CLIP
(B) M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-0501
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-0612
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0212-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0701-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-0904
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
226 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
226 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
262 BRACKET
(A) 		1-79996-143-0 01 1 0105-
262 BRACKET
(B) 		1-79996-258-1 01 1 0105-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-

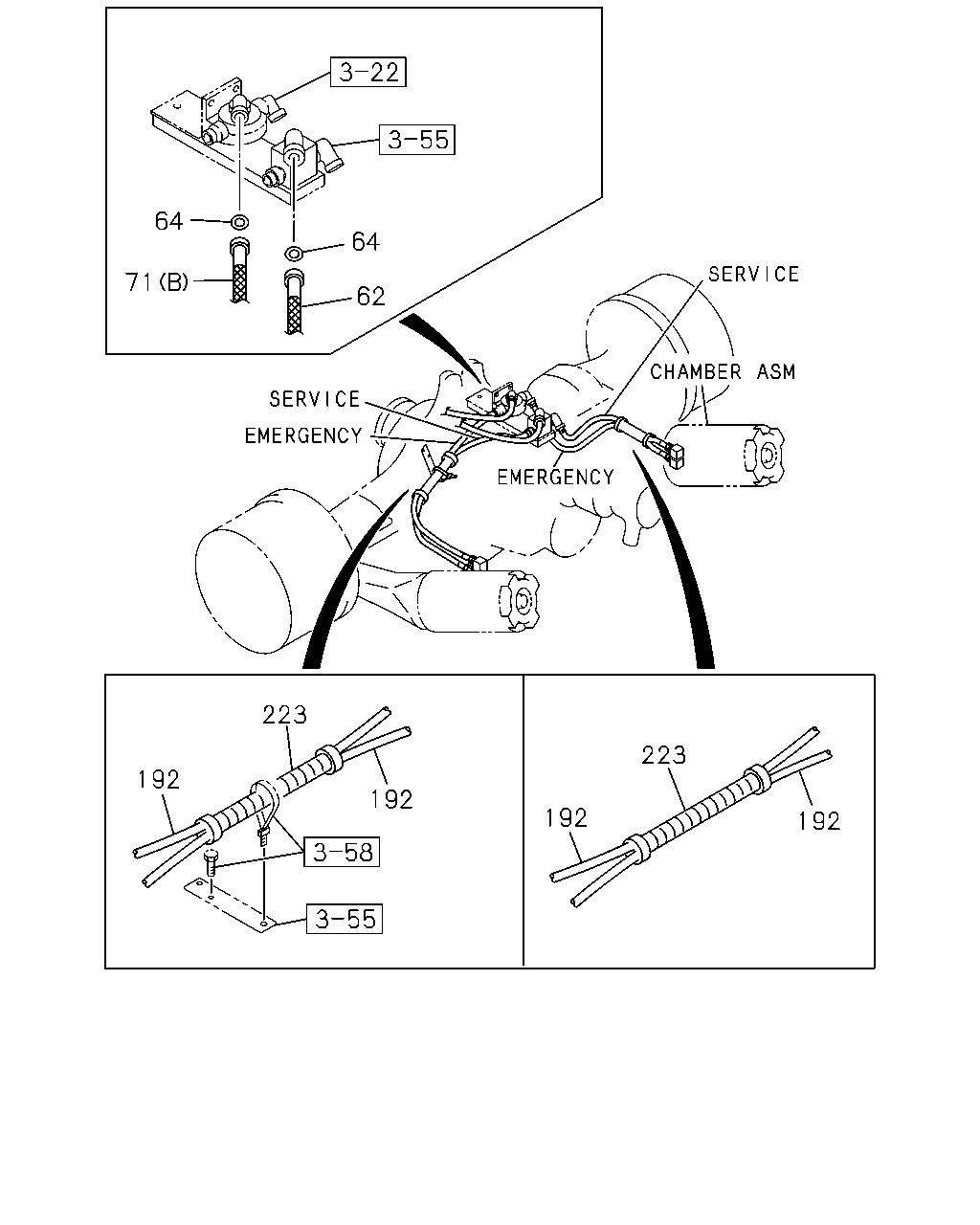

çizim 138803
64 64 71 62 223 223 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0105-0607
62 HOSE; FLEX,FWD RR
L=630 		0-57909-630-0 01 1 0608-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 06 1 0105-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 01 1 0608-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 01 1 0608-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
(B) L=630 		0-57909-630-0 01 1 0608-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0612
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0212-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0701-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-0612
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0212-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0701-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
