Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#121704) — 44 parça
◀

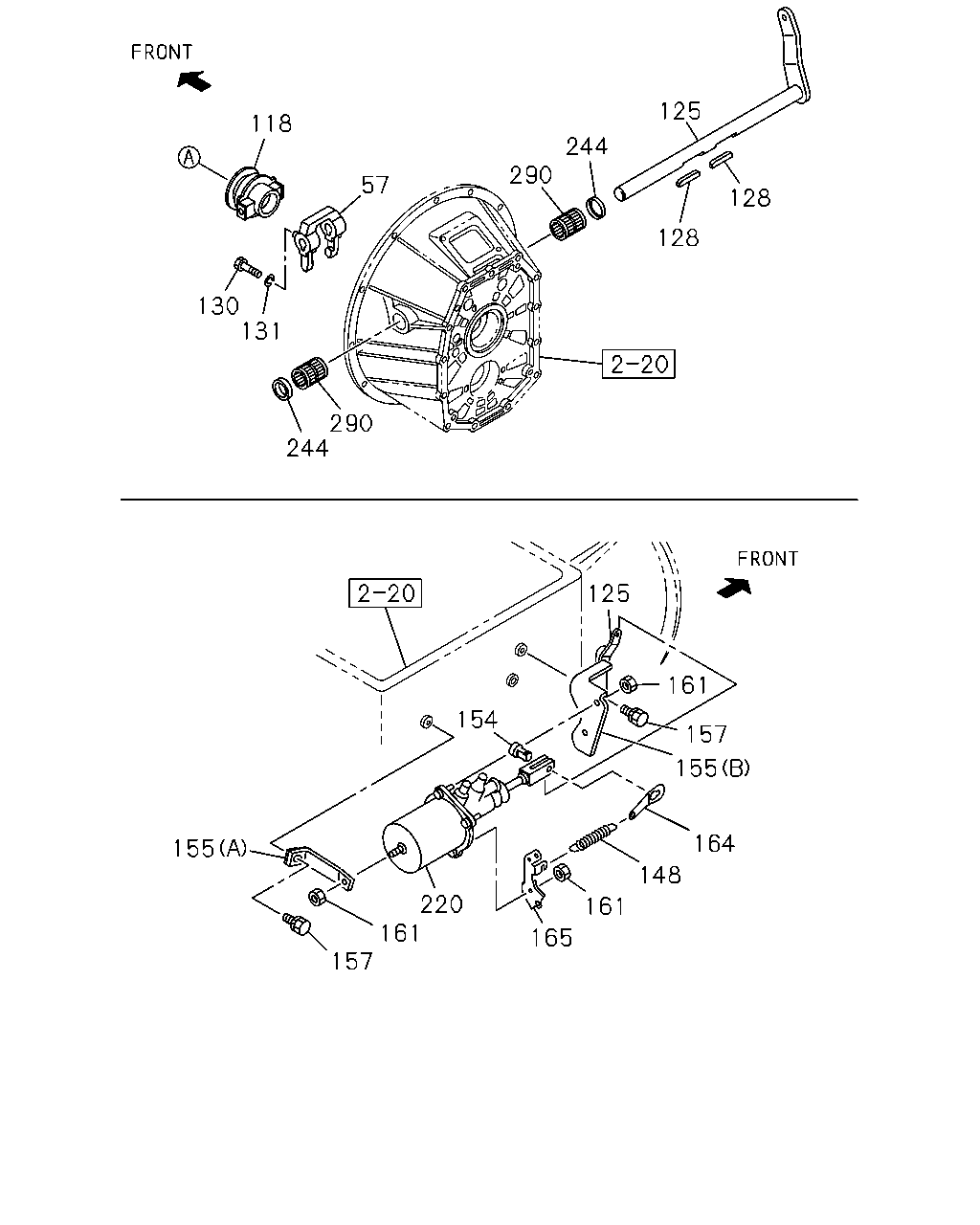

[201A] CLUTCH SHAFT,CLUTCH BOOSTER (19 parça)

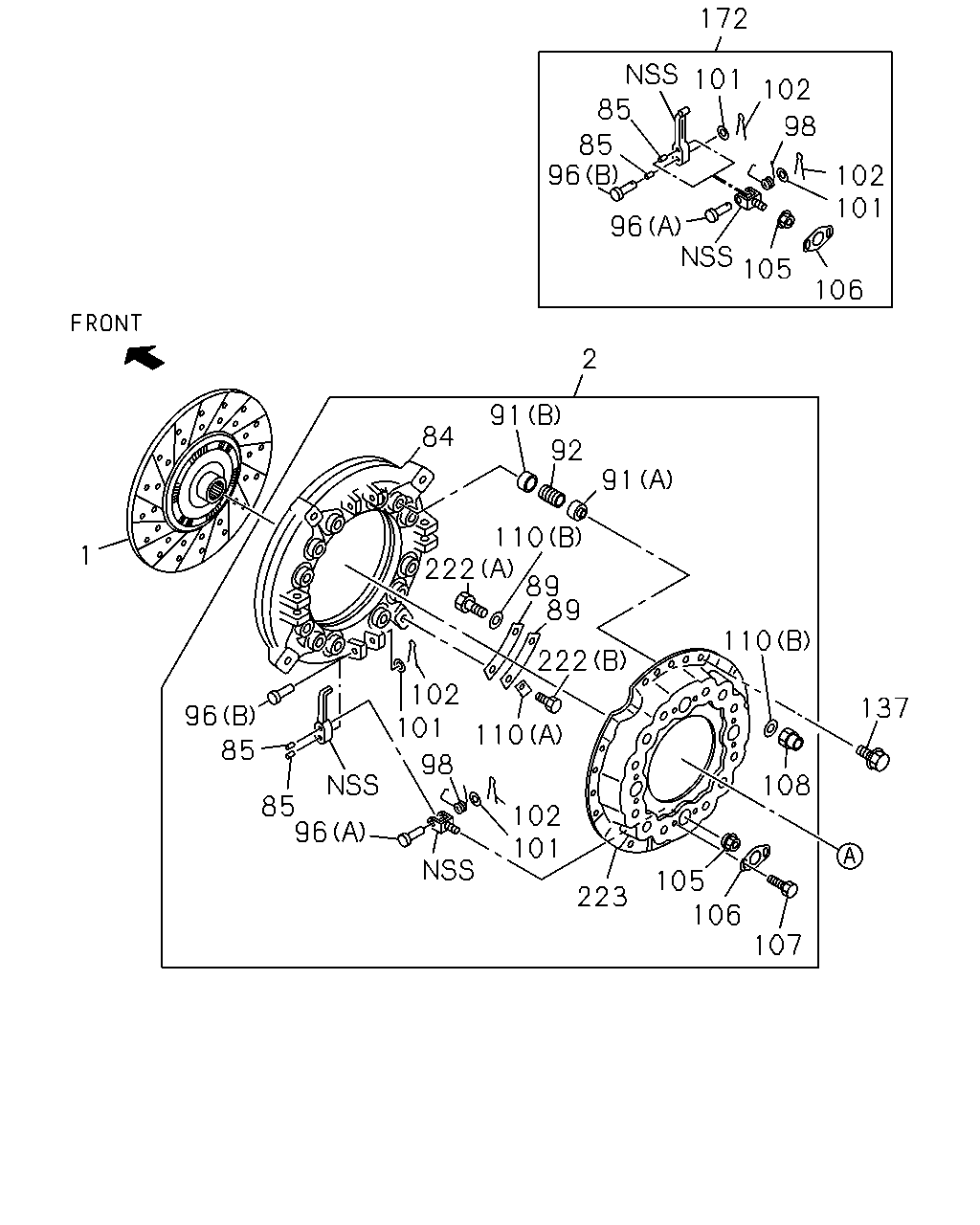

[201A] CLUTCH;DISC AND PLATE (25 parça)
▶
118
130
131
57
244
290
290
244
125
128
128
125
154
161
157
155
164
148
161
165
220
161
157
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
1304-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
1304-
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
1304-
125
SHAFT; CLU
1-31342-335-0
01
1
1304-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1304-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1304-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1304-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1304-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1304-
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
1304-
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
1304-
157
BOLT; BRKT
M10X25 FLANGE THA
0-28751-025-0
03
1
1304-
161
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
05
1
1304-
164
EYE; SPRING
1-31426-041-0
01
1
1304-
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
1304-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1304-1412
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-2
01
1
1304-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1304-
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
1304-
1
84
91
92
91
2
110
222
96
85
85
96
102
101
98
110
102
101
223
222
89
89
110
108
137
105
106
107
172
101
102
98
102
101
106
105
96
85
96
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-119-0
01
1
1304-1410
1
DISC; CLUTCH
15"
1-31240-851-2
01
1
1304-
2
PLATE ASM; PRESSURE,CLU
1-31220-377-2
01
1
1304-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1304-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1304-
89
PLATE; STRAP
1-31229-050-0
16
1
1304-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1304-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1304-
92
SPRING; CLU
1-31214-066-0
12
1
1304-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1304-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1304-
98
SPRING; RETURN
1-31233-003-0
04
1
1304-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1304-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1304-
105
NUT; SUPPORT
1-31235-014-0
04
1
1304-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1304-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1304-
108
NUT; STRAP
1-09449-036-0
04
1
1304-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1304-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1304-
137
BOLT; CLU COVER
M10X20 FLANGE THA
0-28151-020-0
12
1
1304-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
1304-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1304-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1304-
223
COVER; CLU
1-31211-019-1
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
