3-75 — BRAKE PIPING; AIR,FRONT (#12170) — 90 parça

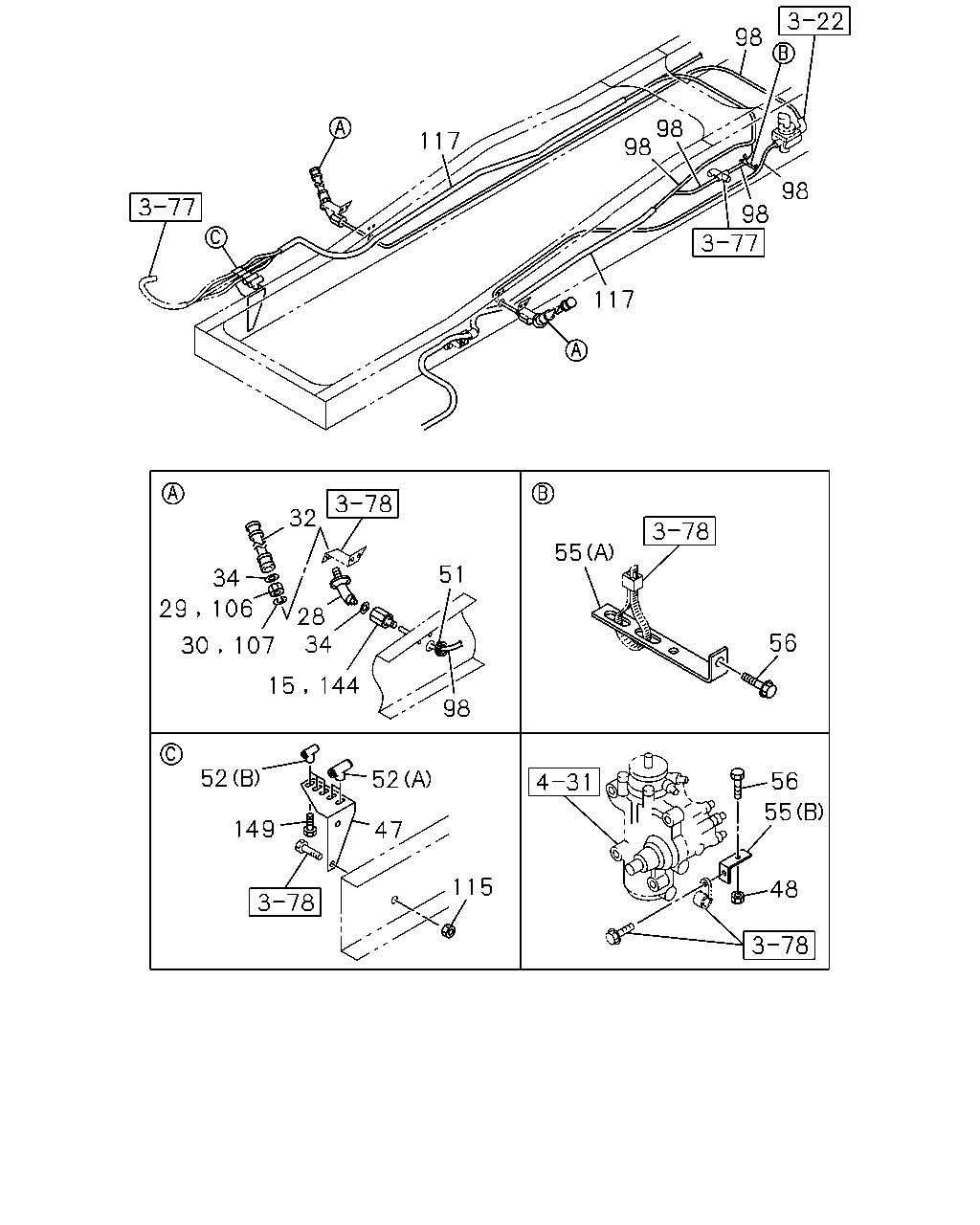

çizim 138770
98 98 98 117 98 98 117 32 55 51 34 29 106 28 34 56 30 107 15 144 98 52 52 56 55 149 47 115 48
BalonParca AdiParca NoAdetTipApplied Date
15 CONNECTOR; AIR PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0105-
15 CONNECTOR; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
28 NIPPLE; AIR PIPE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M20 		1-09654-199-2 02 1 0105-
29 NUT; NIPPLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M20 		9-99111-420-0 02 1 0105-0512
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 0601-
30 WASHER; LK,NIPPLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=20.2 		9-09150-520-0 02 1 0105-0603
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 02 1 0604-
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=580 		0-07807-580-1 02 1 0105-0605
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=580 		0-57807-580-1 02 1 0606-
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=560 		0-07817-560-1 02 1 0105-0605
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=560 		0-57817-560-1 02 1 0606-
32 HOSE; FLEX,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=500 		0-07847-500-1 02 1 0105-0605
32 HOSE; FLEX,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=500 		0-57847-500-1 02 1 0606-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0105-
47 BRACKET; PIPE UNION 1-47478-282-0 01 1 0105-
48 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 01 1 0108-0602
48 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
51 GROMMET; NYLON TUBE
BRAKE SYSTEM SPRING BRAKE(BCR) ID=24 OD=30 T=17 		9-09956-092-1 04 1 0105-
51 GROMMET; NYLON TUBE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0105-
52 CONNECTOR; NYLON TUBE
(A) 		1-09661-128-0 01 1 0105-
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0105-
52 CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0105-
55 BRACKET; TUBE UNION
(B) L=115 B=25 		1-47476-758-0 01 1 0108-
55 BRACKET; TUBE UNION
(A) 		1-47476-200-0 01 1 0105-
56 BOLT; UNION BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
56 BOLT; UNION BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
56 BOLT; UNION BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 0105-0512
56 BOLT; UNION BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0105-0302
98 TUBE; NYLON
L=2970 & 3370 		1-49216-215-0 AR 1 0105-0304
98 TUBE; NYLON
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CHINA GB VAR1<JAC> L=2970 & 3370 		1-49216-215-0 AR 1 0305-0401
98 TUBE; NYLON
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> L=2970 & 3370 		1-49216-215-0 AR 1 0402-
98 TUBE; NYLON
L=2030 & 4140 		1-49216-219-0 AR 1 0105-0304
98 TUBE; NYLON
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CHINA GB VAR1<JAC> L=2030 & 4140 		1-49216-219-0 AR 1 0305-0401
98 TUBE; NYLON
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> L=2030 & 4140 		1-49216-219-0 AR 1 0402-
98 TUBE; NYLON
BRAKE SYSTEM SPRING BRAKE(BCR) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0302
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0106
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0106
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0105-0302
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0303-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87410-083-0 AR 1 0105-0106
98 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=6 		1-87410-083-0 AR 1 0107-0304
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0303-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0303-
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0305-
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0305-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0305-
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-0304
106 NUT; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) M22 		9-09111-422-0 02 1 0105-0512
106 NUT; FLEX HOSE
M22 		0-91111-522-0 02 1 0601-
106 NUT; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) M20 		9-99111-420-0 02 1 0105-0512
106 NUT; FLEX HOSE
M20 		0-91111-520-0 02 1 0601-
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) ID=20.2 		9-09150-520-0 02 1 0105-0603
107 WASHER; LK,FLEX HOSE
ID=20.2 		0-91510-520-0 02 1 0604-
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) ID=22.5 		9-09150-522-0 02 1 0105-0603
107 WASHER; LK,FLEX HOSE
ID=22.5 		0-91510-522-0 02 1 0604-
115 NUT; TUBE UNION
M12 FLANGE 		0-91150-212-0 02 1 0105-0602
115 NUT; TUBE UNION
M12 FLANGE 		0-91180-212-0 02 1 0603-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0303-
117 TUBE; CORRUGATE
CHINA GB VAR1<JAC> SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0305-0401
117 TUBE; CORRUGATE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0402-
117 TUBE; CORRUGATE
BRAKE SYSTEM SPRING BRAKE(BCR) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 		1-87410-092-0 AR 1 0105-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-0106
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87410-097-0 AR 1 0105-0106
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-0302
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0303-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 0105-0106
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0305-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 0305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0303-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0305-
144 ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0105-
144 ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0105-
144 ADAPTER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL<NLG> M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
149 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X16 FLANGE 		0-28080-816-0 03 1 0105-0512
149 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X16 FLANGE 		0-28050-816-0 03 1 0601-

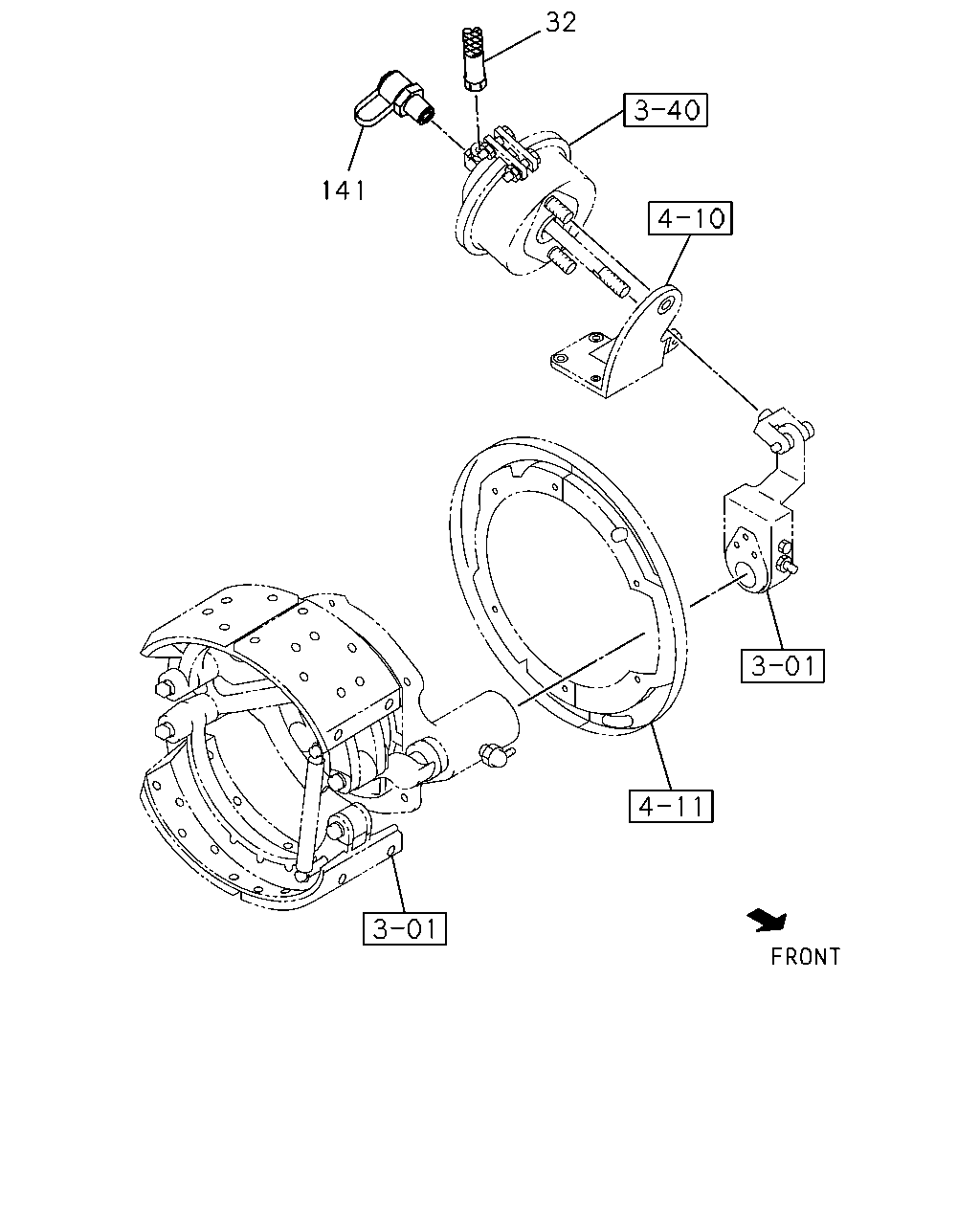

çizim 138800
32 141
BalonParca AdiParca NoAdetTipApplied Date
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=580 		0-07807-580-1 02 1 0105-0605
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=580 		0-57807-580-1 02 1 0606-
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=560 		0-07817-560-1 02 1 0105-0605
32 HOSE; FLEX,FRT
BRAKE SYSTEM SPRING BRAKE(BCR) L=560 		0-57817-560-1 02 1 0606-
32 HOSE; FLEX,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=500 		0-07847-500-1 02 1 0105-0605
32 HOSE; FLEX,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=500 		0-57847-500-1 02 1 0606-
141 CONNECTOR; TEST
BRAKE SYSTEM SPRING BRAKE(BCR) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0105-0401
141 CONNECTOR; TEST
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CHINA GB VAR2<JAY> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0402-
