1-30 — AIR CLEANER (#1217) — 96 parça

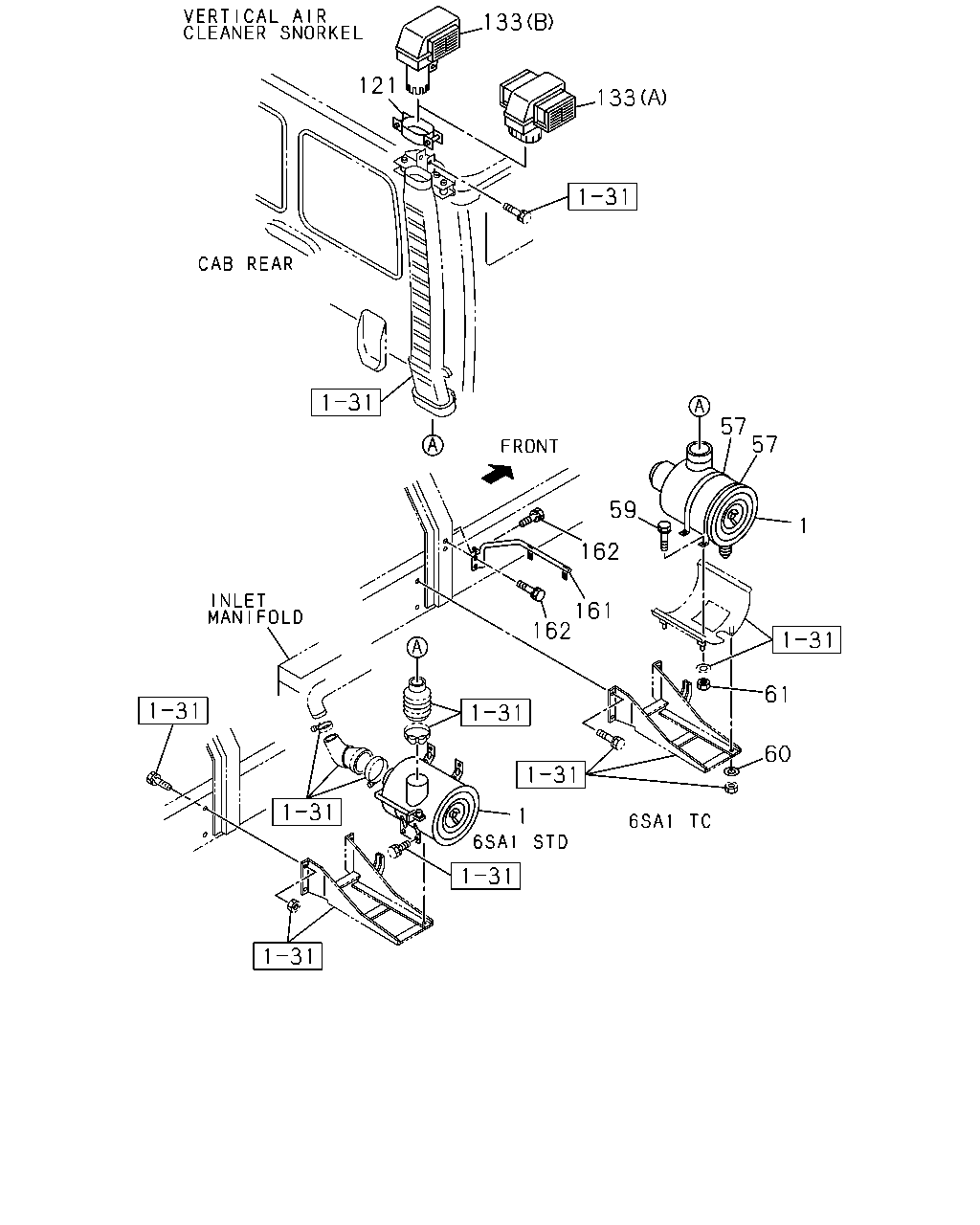

133 121 133 57 57 59 1 162 161 162 61 60 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-644-2	01	1	9202-	●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-628-2	01	1	9202-	●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-724-2	01	1	9202-		●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-691-2	01	1	9202-		●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-754-0	01	1	9212-			●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-601-3	01	1	9212-			●
57	BAND; ACL	1-53419-251-0	02	1	9212-			●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9212-			●
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9212-			●
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9212-			●
121	CLAMP; INL HOOD,ACL VERTICAL AIR CLEANER SNORKEL<PP3>	1-09707-160-0	01	1	9202-	●	●	●
133	HOOD ASM; INL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17> (A)	1-14210-660-0	01	1	9202-	●	●
133	HOOD ASM; INL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	1-14210-661-0	01	1	9202-	●	●
133	HOOD ASM; INL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14210-661-0	01	1	9202-			●
161	STAY; MUD GUARD,ACL BRKT	1-53497-207-2	01	1	9212-			●
162	BOLT; STAY TO BRKT M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9212-			●

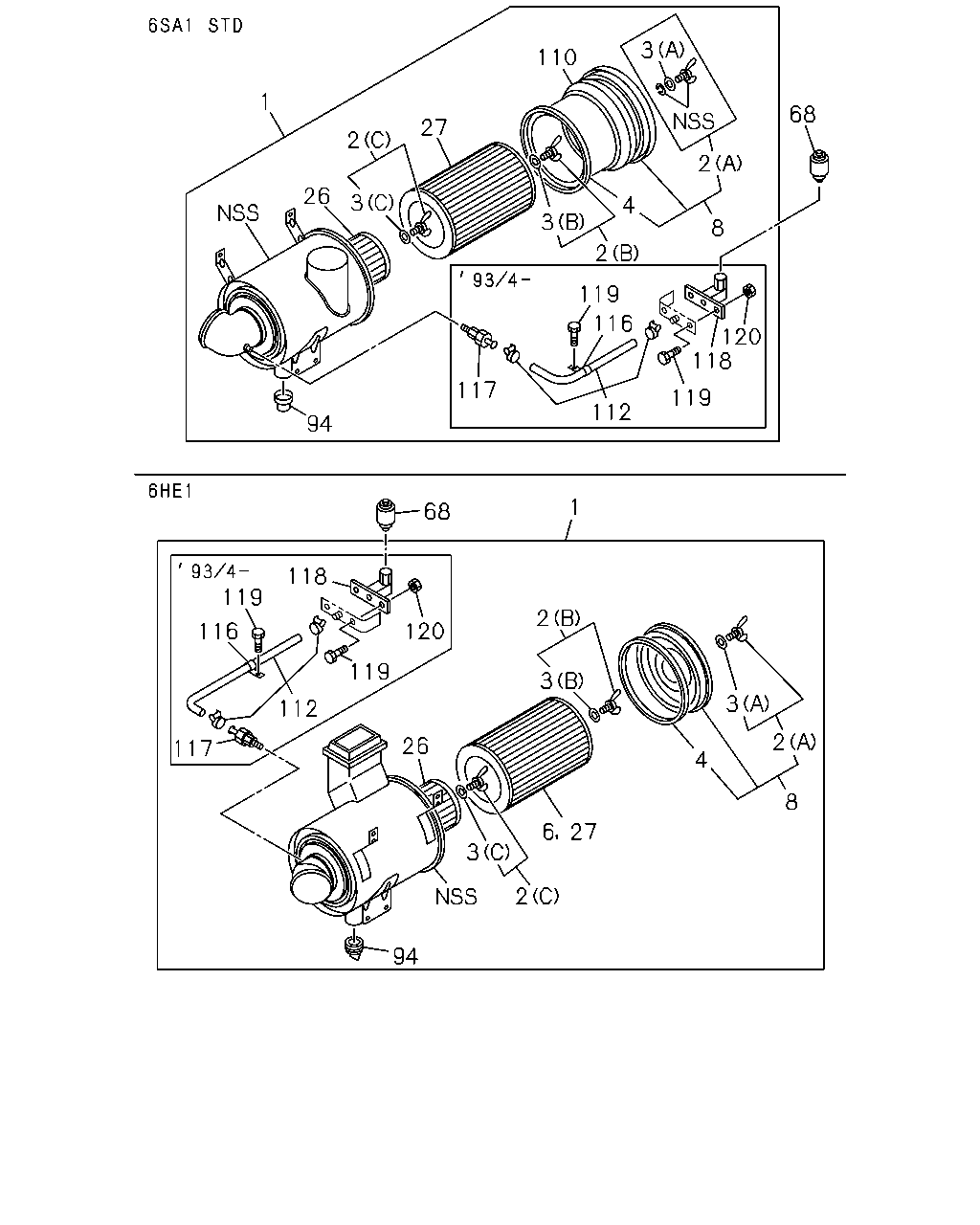

3 110 1 68 27 2 2 26 3 4 3 8 2 119 116 120 118 117 119 112 94 1 68 119 118 2 116 120 119 3 3 112 2 26 117 4 8 6 27 3 2 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-644-2	01	1	9202-	●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-628-2	01	1	9202-	●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-724-2	01	1	9202-		●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-691-2	01	1	9202-		●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-754-0	01	1	9212-			●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-601-3	01	1	9212-			●
2	NUT; WING,ELEMENT (C)	1-14217-036-0	01	1	9202-	●	●
2	NUT; WING,ELEMENT (A)	1-14217-049-0	01	1	9202-	●	●	●
2	NUT; WING,ELEMENT (B)	1-14217-050-0	01	1	9202-	●	●	●
2	NUT; WING,ELEMENT (C)	1-14217-003-0	01	1	9212-			●
3	WASHER; SEAL,WING NUT (C)	9-14219-177-0	01	1	9202-	●	●
3	WASHER; SEAL,WING NUT (B)	1-14219-118-0	01	1	9202-	●	●	●
3	WASHER; SEAL,WING NUT (A)	1-14219-156-0	01	1	9202-	●	●	●
3	WASHER; SEAL,WING NUT (C)	1-14219-032-0	01	1	9212-			●
4	GASKET; COVER TO BODY	1-14219-141-0	01	1	9202-	●	●
4	GASKET; COVER TO BODY	1-14219-128-0	01	1	9212-			●
6	FILTER; ACL CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-172-0	01	1	9202-		●
8	COVER ASM; ACL CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-108-0	01	1	9202-	●	●
8	COVER ASM; ACL EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-086-0	01	1	9202-	●	●
8	COVER ASM; ACL CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-105-0	01	1	9212-			●
8	COVER ASM; ACL EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-087-0	01	1	9212-			●
26	FILTER; ACL,INNER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-111-0	01	1	9202-	●	●
26	FILTER; ACL,INNER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-145-0	01	1	9202-	●	●
26	FILTER; ACL,INNER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-087-0	01	1	9212-			●
26	FILTER; ACL,INNER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-125-0	01	1	9212-			●
27	FILTER; ACL,OUTER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-172-0	01	1	9202-	●
27	FILTER; ACL,OUTER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-171-0	01	1	9202-	●	●
27	FILTER; ACL,OUTER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-182-0	01	1	9212-			●
27	FILTER; ACL,OUTER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-183-0	01	1	9212-			●
68	INDICATOR; SERVICE	1-14219-212-0	01	1	9202-	●	●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	9202-	●	●
94	VALVE; VACUATOR	1-14219-129-0	01	1	9212-			●
110	ADAPTER; ACL	1-14219-184-0	01	1	9202-	●
112	HOSE; INDICATOR	1-09360-879-0	01	1	9304-	●	●
116	CLIP; INDICATOR HOSE	1-09701-145-0	01	1	9304-	●	●
117	JOINT; INDICATOR HOSE	1-14219-040-0	01	1	9304-	●	●
118	BRACKET; INDICATOR	1-14219-187-0	01	1	9304-	●	●
119	BOLT; INDICATOR BRKT M6X16	9-02040-616-0	03	1	9304-	●	●
120	NUT; INDICATOR BRKT M6	9-09111-406-0	02	1	9304-	●	●

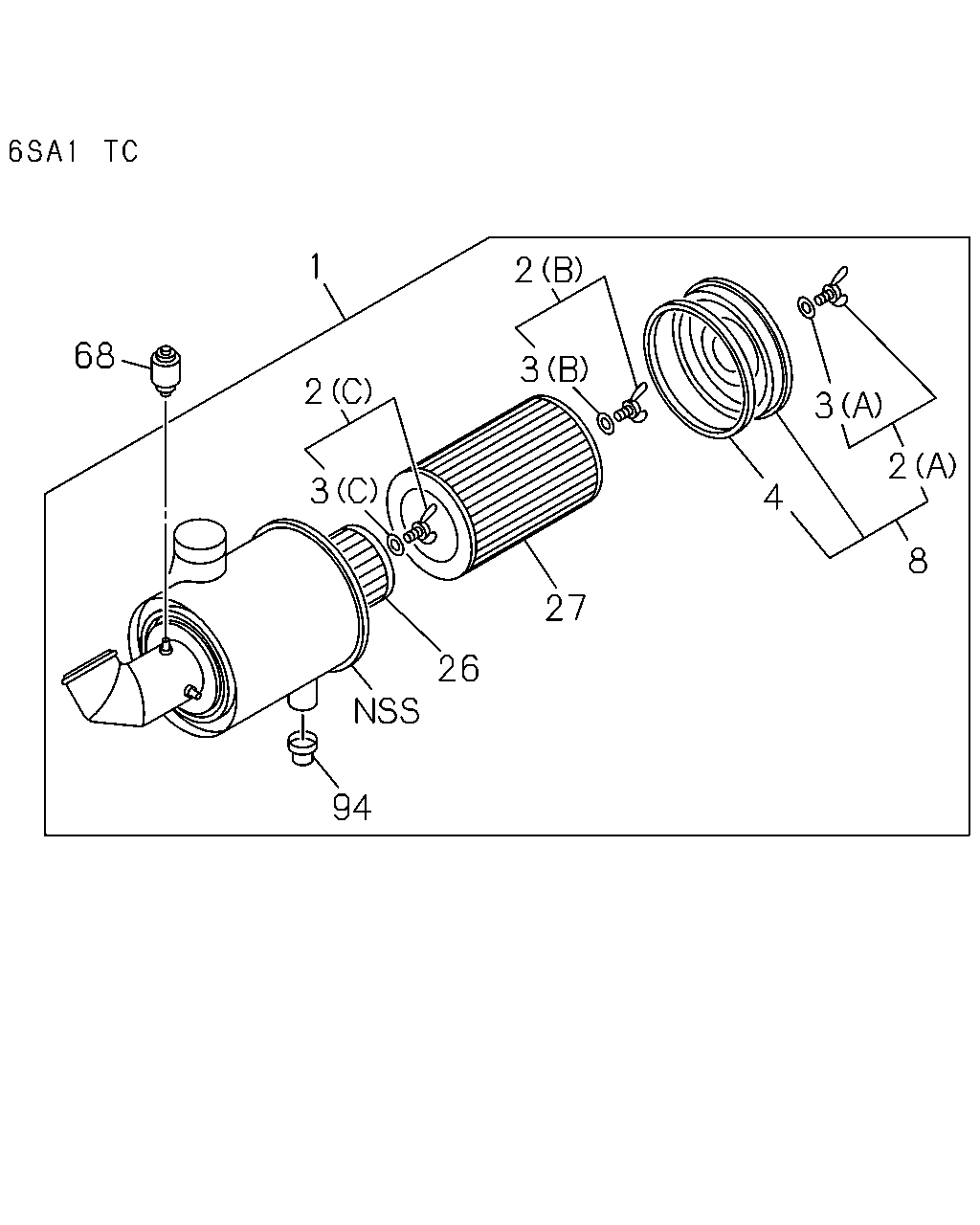

1 2 68 3 2 3 2 3 4 8 27 26 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-644-2	01	1	9202-	●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-628-2	01	1	9202-	●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-724-2	01	1	9202-		●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-691-2	01	1	9202-		●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-754-0	01	1	9212-			●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-601-3	01	1	9212-			●
2	NUT; WING,ELEMENT (C)	1-14217-036-0	01	1	9202-	●	●
2	NUT; WING,ELEMENT (A)	1-14217-049-0	01	1	9202-	●	●	●
2	NUT; WING,ELEMENT (B)	1-14217-050-0	01	1	9202-	●	●	●
2	NUT; WING,ELEMENT (C)	1-14217-003-0	01	1	9212-			●
3	WASHER; SEAL,WING NUT (C)	9-14219-177-0	01	1	9202-	●	●
3	WASHER; SEAL,WING NUT (B)	1-14219-118-0	01	1	9202-	●	●	●
3	WASHER; SEAL,WING NUT (A)	1-14219-156-0	01	1	9202-	●	●	●
3	WASHER; SEAL,WING NUT (C)	1-14219-032-0	01	1	9212-			●
4	GASKET; COVER TO BODY	1-14219-141-0	01	1	9202-	●	●
4	GASKET; COVER TO BODY	1-14219-128-0	01	1	9212-			●
8	COVER ASM; ACL CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-108-0	01	1	9202-	●	●
8	COVER ASM; ACL EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-086-0	01	1	9202-	●	●
8	COVER ASM; ACL CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-105-0	01	1	9212-			●
8	COVER ASM; ACL EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-087-0	01	1	9212-			●
26	FILTER; ACL,INNER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-111-0	01	1	9202-	●	●
26	FILTER; ACL,INNER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-145-0	01	1	9202-	●	●
26	FILTER; ACL,INNER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-087-0	01	1	9212-			●
26	FILTER; ACL,INNER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-125-0	01	1	9212-			●
27	FILTER; ACL,OUTER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-172-0	01	1	9202-	●
27	FILTER; ACL,OUTER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-171-0	01	1	9202-	●	●
27	FILTER; ACL,OUTER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-182-0	01	1	9212-			●
27	FILTER; ACL,OUTER EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14215-183-0	01	1	9212-			●
68	INDICATOR; SERVICE	1-14219-212-0	01	1	9202-	●	●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	9202-	●	●
94	VALVE; VACUATOR	1-14219-129-0	01	1	9212-			●

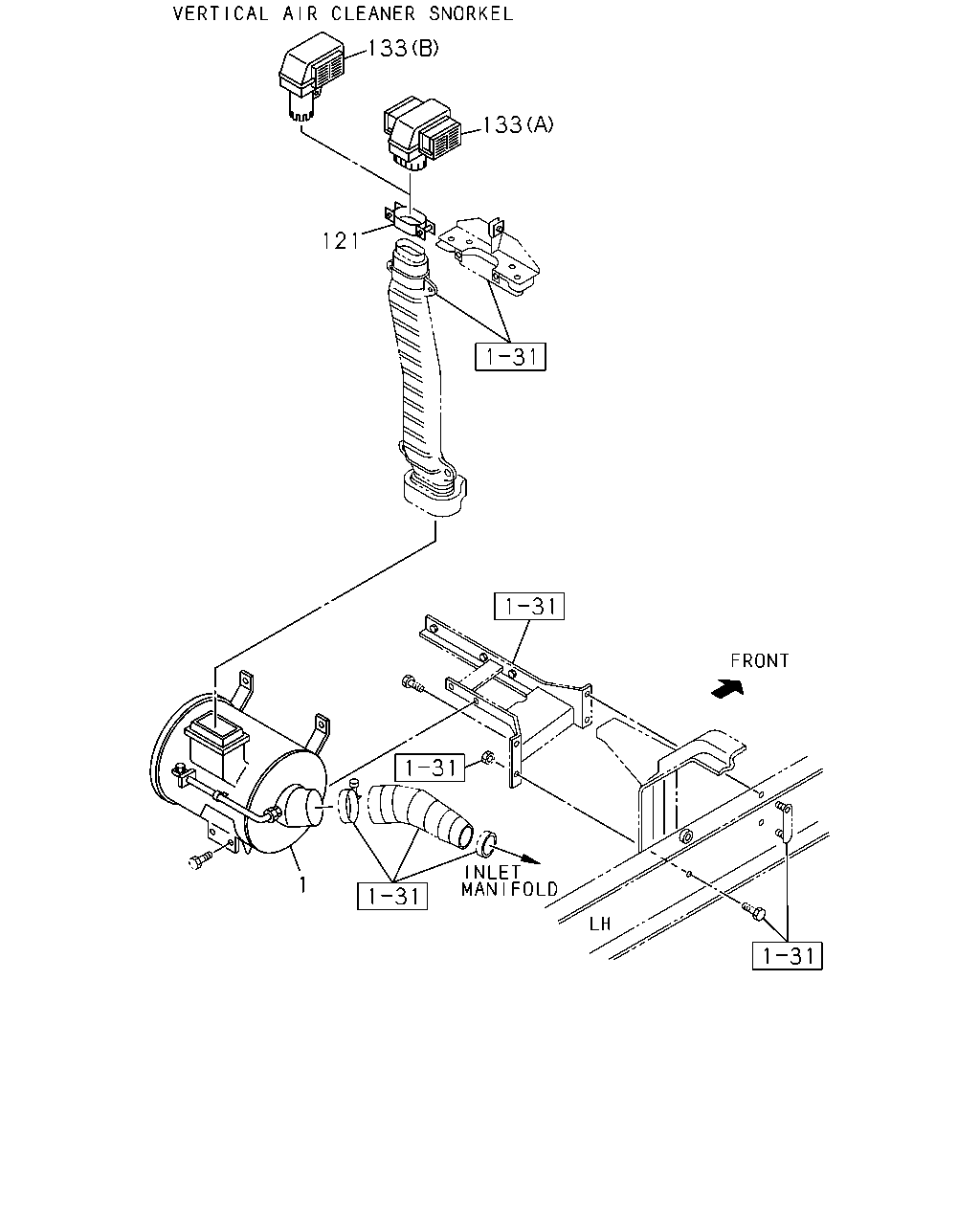

133 133 121 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-644-2	01	1	9202-	●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-628-2	01	1	9202-	●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-724-2	01	1	9202-		●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-691-2	01	1	9202-		●
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-754-0	01	1	9212-			●
1	CLEANER ASM; AIR EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-601-3	01	1	9212-			●
121	CLAMP; INL HOOD,ACL VERTICAL AIR CLEANER SNORKEL<PP3>	1-09707-160-0	01	1	9202-	●	●	●
133	HOOD ASM; INL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17> (A)	1-14210-660-0	01	1	9202-	●	●
133	HOOD ASM; INL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	1-14210-661-0	01	1	9202-	●	●
133	HOOD ASM; INL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14210-661-0	01	1	9202-			●
