Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#121697) — 42 parça
◀

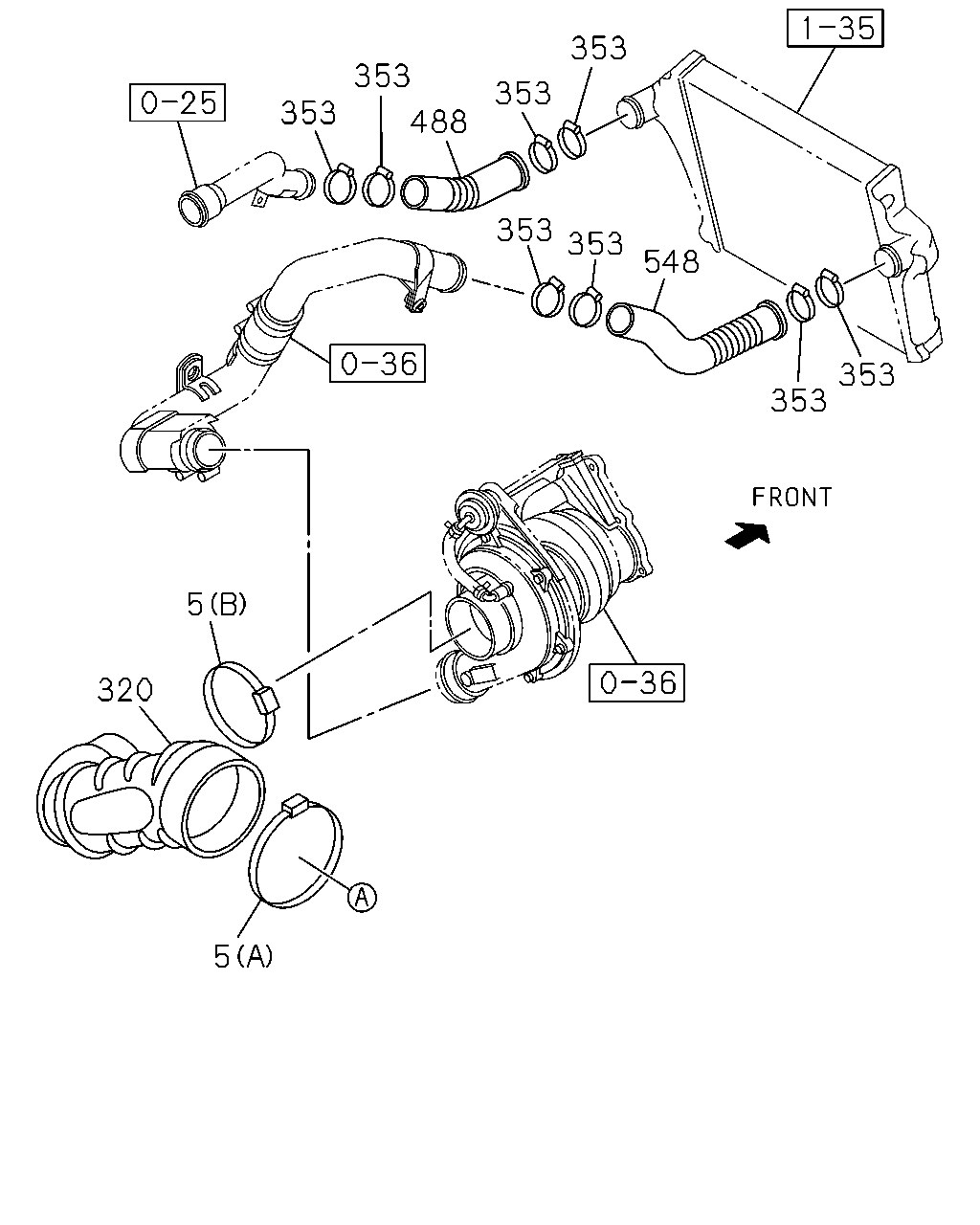

[131A] PIPING (6 parça)
[131A] DUCT FIXING (36 parça)
▶
353
353
353
353
488
353
5
320
5
353
353
548
353
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
1304-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1304-
320
HOSE; CONN,ACL
8-98073-257-0
01
1
1304-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1304-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1304-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-974-1
01
1
1304-
558
252
71
49
58
26
242
242
61
560
450
316
543
543
368
480
564
209
296
210
357
225
424
159
379
357
49
56
56
58
58
242
49
56
56
49
245
58
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1304-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1304-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1304-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1304-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1304-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1304-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1304-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1304-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1304-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
1304-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1304-
159
BOLT; AIR PIPE
M6X16 FLANGE THA
0-28050-616-0
02
1
1304-
209
BRACKET; ACL
8-98021-995-1
01
1
1304-1306
209
BRACKET; ACL
THA
8-97948-148-0
01
1
1307-
210
BOLT; ACL BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
1304-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1304-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1304-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1304-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1304-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1304-
252
DUCT; AIR INT
8-98012-861-1
01
1
1304-
296
NUT; ACL
M8 FLANGE THA
0-91180-108-0
04
1
1304-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1304-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
01
1
1304-
357
CLIP; RUBBER HOSE
ID=29.5
8-97354-979-0
01
1
1304-
368
SENSOR; TEMP
8-98065-377-0
01
1
1304-
379
HOSE; RUBBER
8-97619-194-0
01
1
1304-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1304-
450
CLAMP; HOSE
9-09915-504-1
01
1
1304-
480
ADAPTER
8-98086-417-0
01
1
1304-
543
SCREW; SENSOR
(A) M5X14 W/LK WASHER
0-36220-514-0
01
1
1304-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA
0-36230-412-0
02
1
1304-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1304-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1304-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1304-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1304-
