◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11488 - FTR(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#121690) — 50 parça
çizim 358247
107 217 13 1 10 11 2
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1304-
2 CABLE; BATTERY
L=305 THA 		8-97924-521-1 01 1 1304-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1304-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1304-
107 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 1304-
217 CLIP; BAND,CABLE
L=250 		5-09707-030-1 01 1 1304-

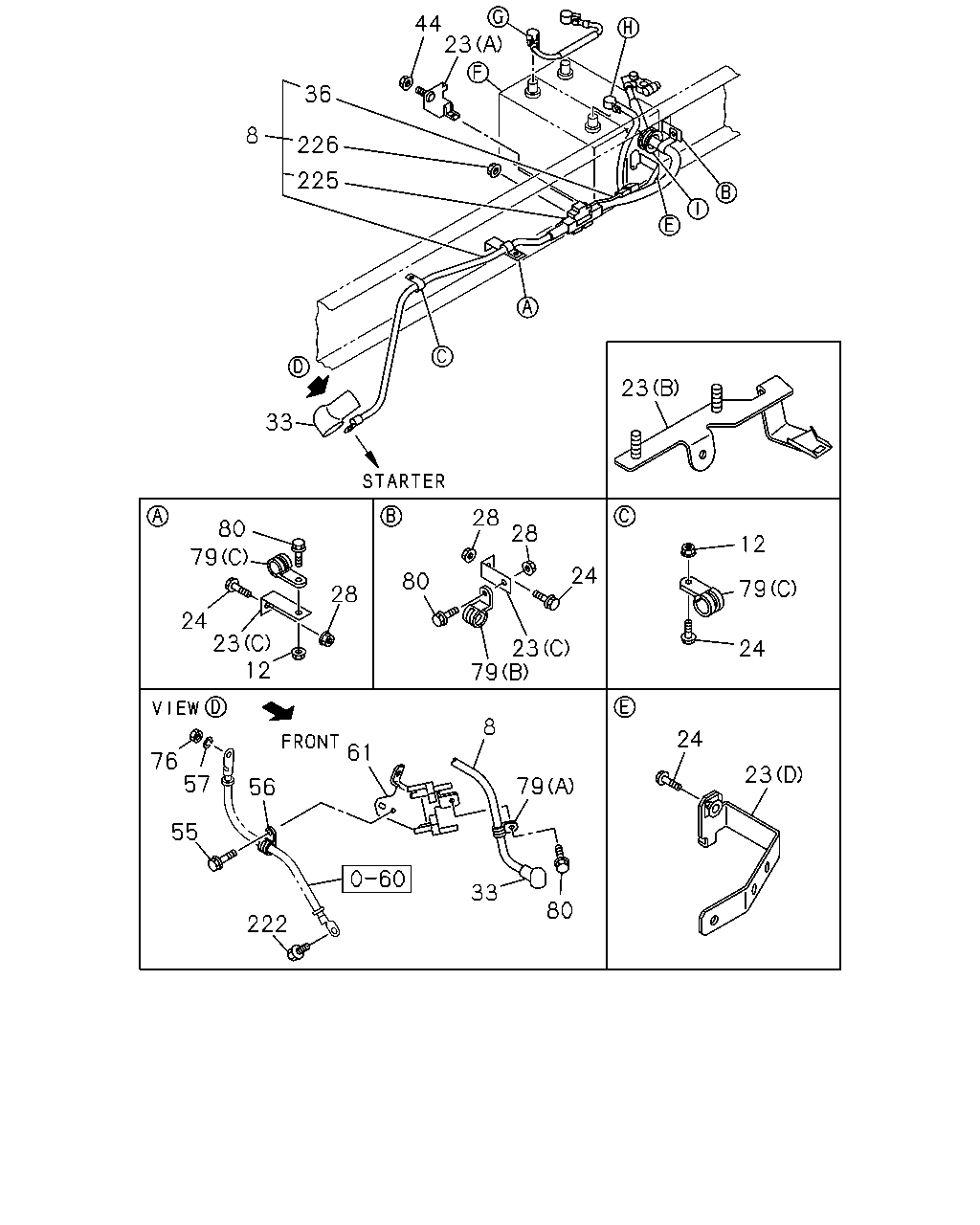

çizim 358881
222 33 80 79 8 61 76 57 55 24 23 24 12 79 23 28 24 23 79 80 28 80 79 24 23 12 28 33 8 36 226 225 44 23 56
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
WHEEL BASE 3600MM<36W> THA 		8-97926-436-1 01 1 1304-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W> THA 		8-97926-437-1 01 1 1304-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM<55W> THA 		8-97926-438-1 01 1 1304-
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 3600MM<36W> M8 FLANGE THA 		0-91180-108-0 03 1 1304-
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8 FLANGE THA 		0-91180-108-0 04 1 1304-
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 5500MM<55W> M8 FLANGE THA 		0-91180-108-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98201-024-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3600MM<36W> (D) 		8-97619-097-1 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (C) L=145 		1-47475-655-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM<55W> (C) L=55 		1-47475-304-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1304-
24 BOLT; BRKT TO FRAME
WHEEL BASE 3600MM<36W> M8X30 FLANGE THA 		0-28650-830-0 03 1 1304-
24 BOLT; BRKT TO FRAME
WHEEL BASE 3600MM<36W> M10X35 FLANGE THA 		0-28651-035-0 01 1 1304-
24 BOLT; BRKT TO FRAME
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA 		0-28650-830-0 04 1 1304-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM<55W> M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
28 NUT; BRKT TO FRAME
WHEEL BASE 3600MM<36W> M8 FLANGE THA 		0-91180-108-0 03 1 1304-
28 NUT; BRKT TO FRAME
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8 FLANGE THA 		0-91180-108-0 04 1 1304-
28 NUT; BRKT TO FRAME
WHEEL BASE 5500MM<55W> M8 FLANGE THA 		0-91180-108-0 01 1 1304-
33 CAP; INSULATOR 1-82699-431-0 01 1 1304-
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 1304-
44 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1304-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1304-1402
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1304-1402
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1304-1402
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1304-1402
76 NUT; BATTERY CABLE
M10 FLANGE THA 		0-91180-210-0 01 1 1304-1402
79 CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1304-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM<55W> (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1304-
79 CLIP; BATTERY CABLE
(C) ID=20 L=70 		1-09700-485-0 02 1 1304-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 1304-
79 CLIP; BATTERY CABLE
WHEEL BASE 3600MM<36W> (C) ID=21 L=24 		8-98019-191-0 02 1 1304-
79 CLIP; BATTERY CABLE
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (C) ID=21 L=24 		8-98019-191-0 03 1 1304-
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 1304-
80 BOLT; BATTERY CABLE CLIP
WHEEL BASE 3600MM<36W> M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
80 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X25 FLANGE THA 		0-28650-825-0 04 1 1304-
80 BOLT; BATTERY CABLE CLIP
WHEEL BASE 5500MM<55W> M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1304-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1304-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1304-
