3-70 — BRAKE PIPING; AIR,AIR MASTER (#12169) — 446 parça

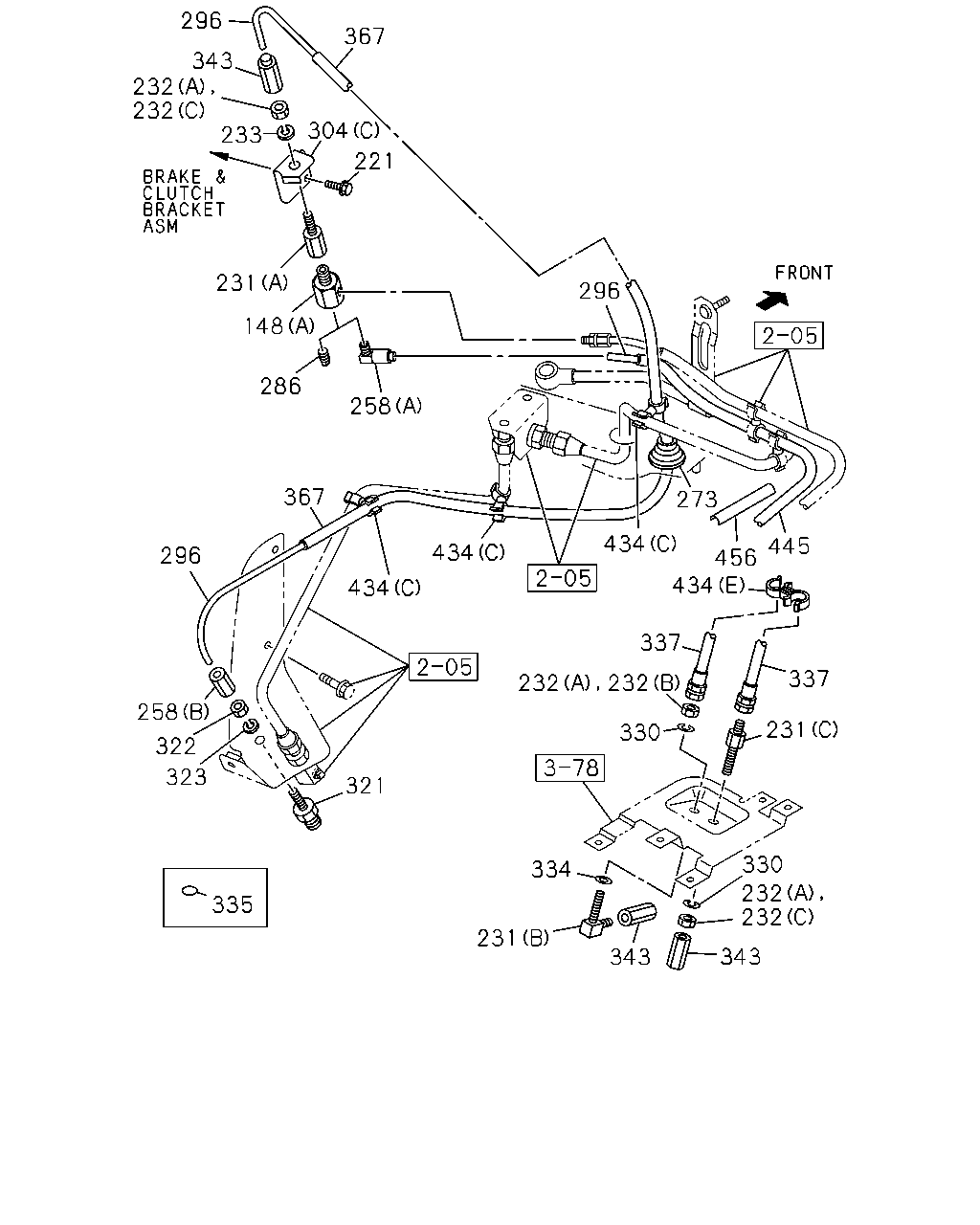

çizim 138754
296 367 343 232 232 304 233 221 296 231 148 286 258 367 273 434 445 434 296 456 434 434 337 337 232 258 231 330 322 323 321 330 334 232 232 335 231 343 343 232
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0111-
148 CONNECTOR; UNION
(A) 		8-94338-417-0 01 1 0105-0106
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0105-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0105-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-0211
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-0211
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0212-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0212-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 02 1 0105-0312
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0401-0512
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0601-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0211
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0211
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0212-0312
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0212-0312
232 NUT; UNION,AIR PIPE
(C) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8 		1-09400-029-0 01 1 0401-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0211
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0211
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0212-0603
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0212-0603
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (E) 		1-48319-059-0 01 1 0312-
258 CONNECTOR; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-0211
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0212-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0212-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
273 GROMMET
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-0211
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-0211
273 GROMMET
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0212-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0212-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0105-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
304 BRACKET; UNION
6WG1 TC-N(71L) MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47479-827-0 01 1 0306-
304 BRACKET; UNION
(B) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
(A) 		1-47477-757-1 01 1 0105-0106
304 BRACKET; UNION
ZF M/T<X9E> (A) 		1-47477-757-1 01 1 0107-
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (A) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0107-0305
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0306-
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0105-0211
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0105-0211
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0212-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0212-
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-0211
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-0211
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0212-0607
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0212-0607
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 0608-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 0608-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M12 		9-09840-280-0 01 1 0105-0301
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0105-0301
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-0603
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-0603
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 0604-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 0604-
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2 		9-09150-512-0 01 1 0105-0301
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0105-0301
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0105-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0105-
335 SEAL; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0105-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0105-
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0105-0211
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0105-0211
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0212-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0212-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-0512
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0105
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0307
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0308-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0601-
434 CLIP
ZF M/T<X9E> (F) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=300 		1-09707-001-1 01 1 0105-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) L=800 		1-83129-031-1 01 1 0105-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 0105-

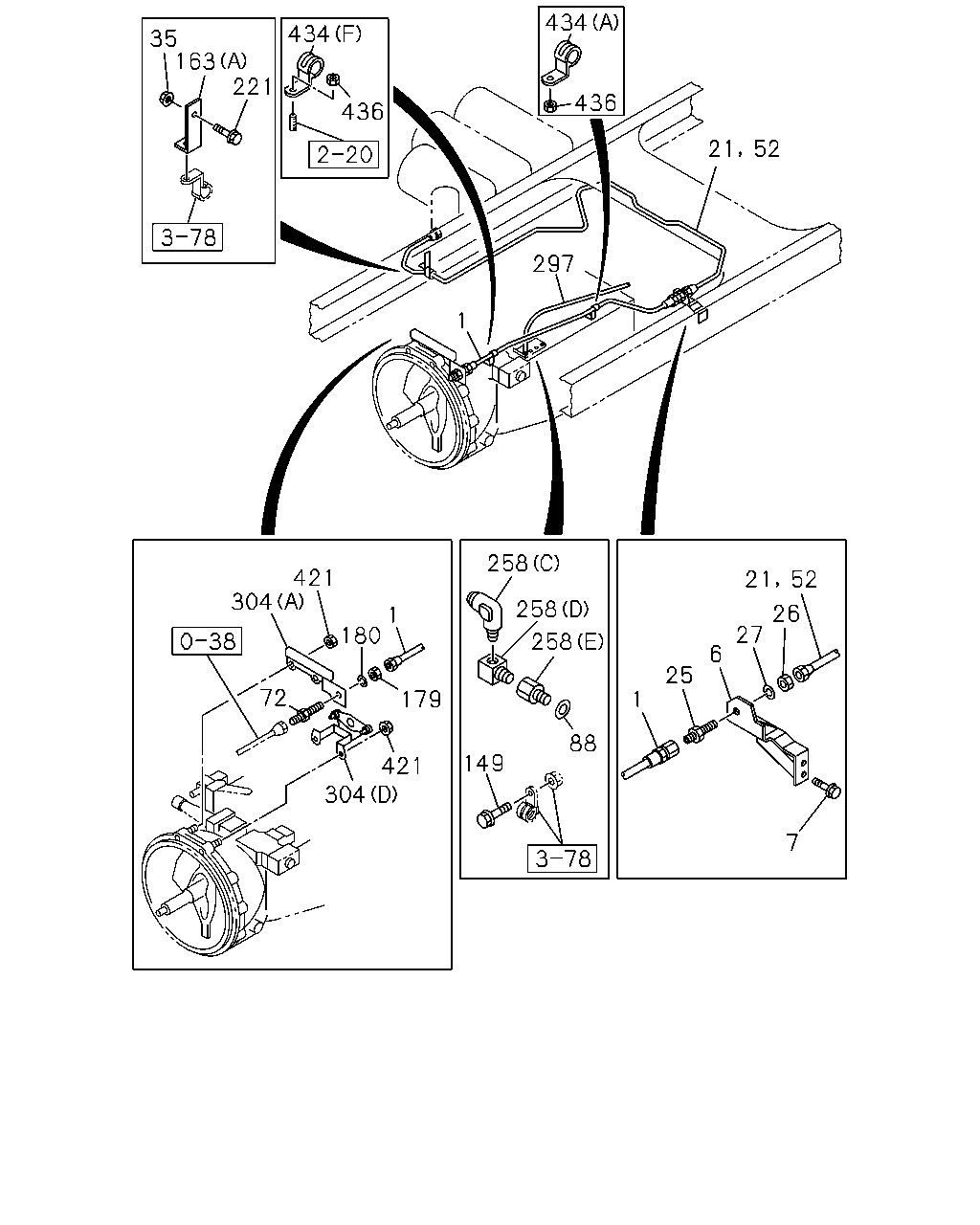

çizim 138768
434 434 35 163 221 436 436 21 52 297 1 258 421 304 21 52 258 26 27 1 180 258 6 25 72 179 1 88 149 421 304 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-856-0 01 1 0105-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49213-123-0 01 1 0105-0105
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-185-0 01 1 0106-
25 VALVE; CHECK 1-48320-042-1 01 1 0105-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 0105-0512
26 NUT; CHECK VLV
M22 		0-91111-522-0 01 1 0601-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 0105-0603
27 WASHER; LK,CHECK VLV
ID=22.5 		0-91510-522-0 01 1 0604-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49213-124-0 01 1 0105-0105
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-186-0 01 1 0106-
72 UNION; AIR PIPE
M16 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 0105-
88 GASKET; NYLON TUBE
MJD7S M/T(Y2Y) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0312-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
163 BRACKET; AIR PIPE
(A) 		1-34656-009-0 01 1 0105-
163 BRACKET; AIR PIPE
(B) 		1-47478-213-0 01 1 0105-0108
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
ZF M/T<X9E> (B) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-47478-213-0 01 1 0207-0311
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-47478-213-0 01 1 0207-0311
163 BRACKET; AIR PIPE
ZF M/T<X9E> (B) 		1-47478-213-0 01 1 0207-0311
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-47478-213-0 01 1 0312-
163 BRACKET; AIR PIPE
ZF M/T<X9E> (B) 		1-47478-213-0 01 1 0312-
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-47478-213-0 01 1 0312-
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-47478-213-0 01 1 0312-
179 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512
179 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0105-0603
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0604-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (E) 		1-48319-059-0 01 1 0312-
258 CONNECTOR; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-0211
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0212-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0212-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
304 BRACKET; UNION
6WG1 TC-N(71L) MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47479-827-0 01 1 0306-
304 BRACKET; UNION
(B) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
(A) 		1-47477-757-1 01 1 0105-0106
304 BRACKET; UNION
ZF M/T<X9E> (A) 		1-47477-757-1 01 1 0107-
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (A) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0107-0305
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0306-
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0105-0211
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0105-0211
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0212-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0212-
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
434 CLIP
ZF M/T<X9E> (F) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=300 		1-09707-001-1 01 1 0105-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
436 NUT; CLIP
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 02 1 0603-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0107
436 NUT; CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0108-0602
436 NUT; CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0603-

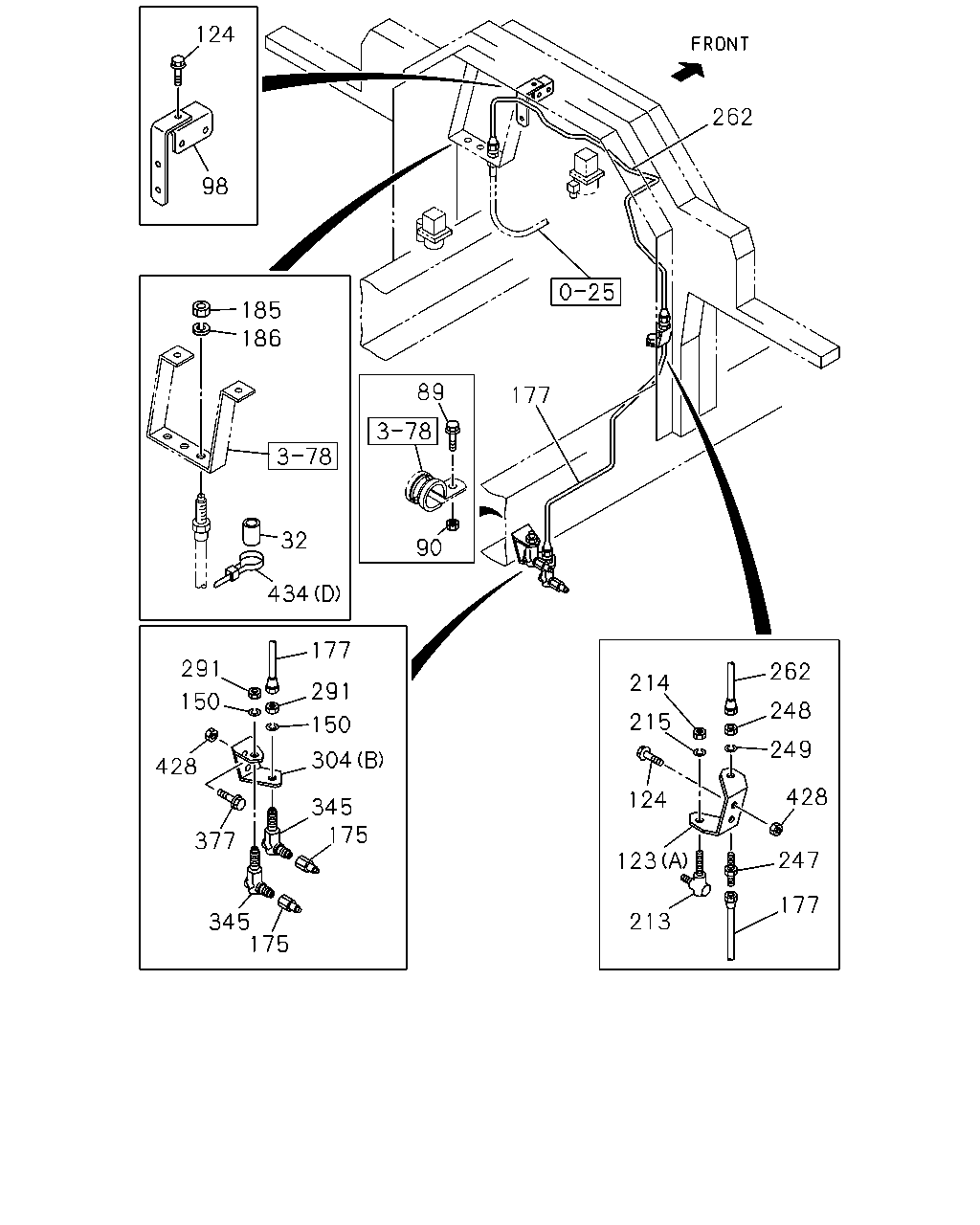

çizim 138781
124 262 98 185 186 89 177 32 90 434 177 291 262 214 291 150 248 215 150 249 304 428 428 124 345 175 377 247 123 177 213 345 175
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105
32 SLEEVE; RUBBER,AIR PIPE
EXC. ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105-0105
89 BOLT; TUBE CLIP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
89 BOLT; TUBE CLIP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0105
89 BOLT; TUBE CLIP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
89 BOLT; TUBE CLIP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8X20 FLANGE 		0-28650-820-0 01 1 0601-
90 NUT; TUBE CLIP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
90 NUT; TUBE CLIP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8 FLANGE 		0-91180-108-0 02 1 0603-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0105
90 NUT; TUBE CLIP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
90 NUT; TUBE CLIP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8 FLANGE 		0-91180-108-0 01 1 0603-
98 BRACKET; AIR PIPE 1-47477-471-0 01 1 0105-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0105-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
175 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-
177 PIPE; AIR,UNION TO UNION
L=687 SERVICED BY L=700 		1-47428-811-0 01 1 0105-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0105-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0105-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0105-0607
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0105-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0105-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0105-0607
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0105-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0105-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
262 PIPE; AIR,UNION TO FLEX 1-49121-783-0 01 1 0105-
291 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0108
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
ZF M/T<X9E> M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		9-09111-422-0 01 1 0207-0311
291 NUT; UNION
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		9-09111-422-0 01 1 0207-0311
291 NUT; UNION
ZF M/T<X9E> M22 		9-09111-422-0 01 1 0207-0311
291 NUT; UNION
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
ZF M/T<X9E> M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
ZF M/T<X9E> M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
304 BRACKET; UNION
6WG1 TC-N(71L) MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47479-827-0 01 1 0306-
304 BRACKET; UNION
(B) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
(A) 		1-47477-757-1 01 1 0105-0106
304 BRACKET; UNION
ZF M/T<X9E> (A) 		1-47477-757-1 01 1 0107-
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (A) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0107-0305
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0306-
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0105-0211
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0105-0211
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0212-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) 		1-71117-210-0 01 1 0212-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0105-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
ZF M/T<X9E> (F) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=300 		1-09707-001-1 01 1 0105-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-

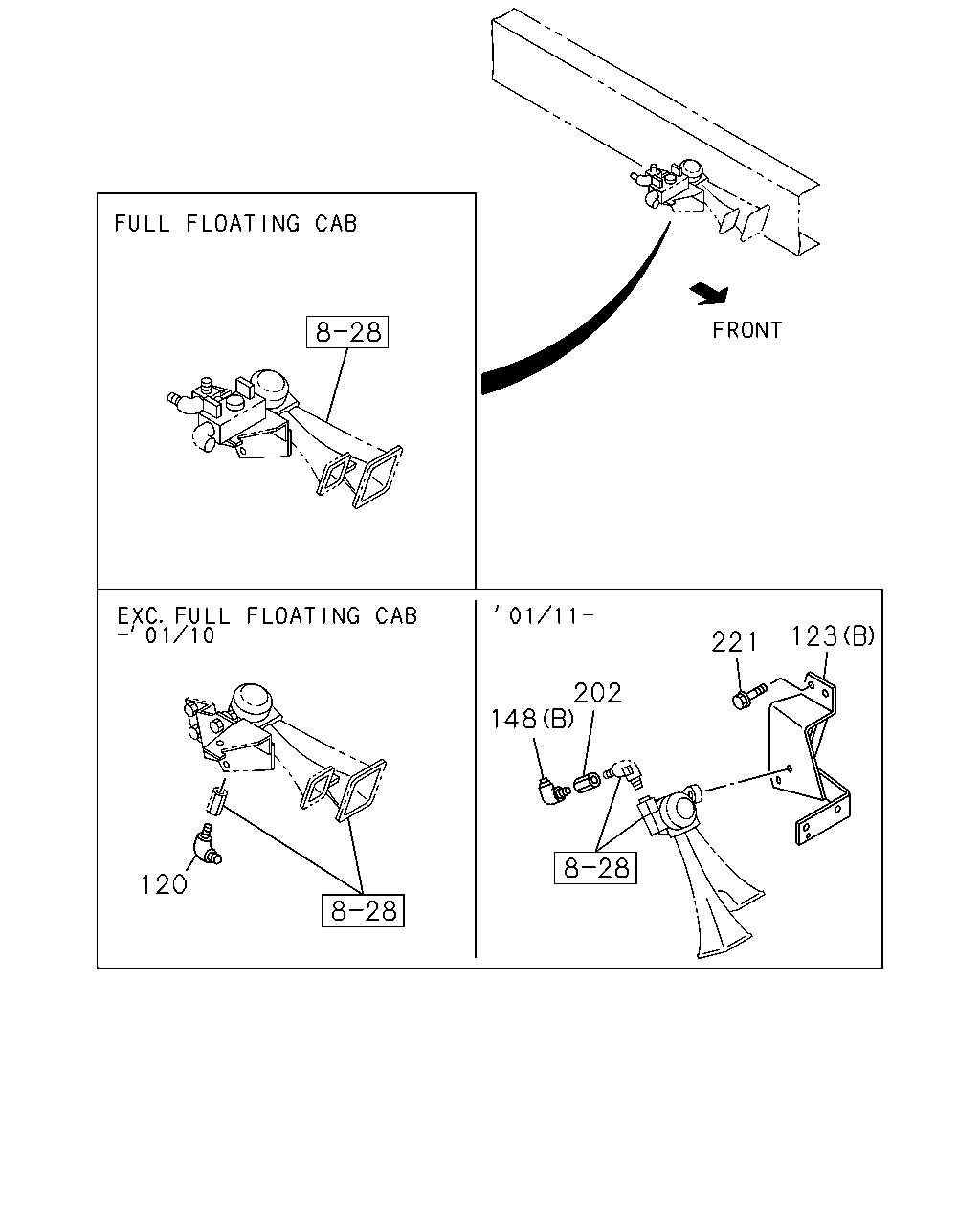

çizim 138808
123 221 202 148 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0105-0110
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0111-
148 CONNECTOR; UNION
(A) 		8-94338-417-0 01 1 0105-0106
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) 		8-94338-417-0 01 1 0107-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-1106
202 ADAPTER
EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-

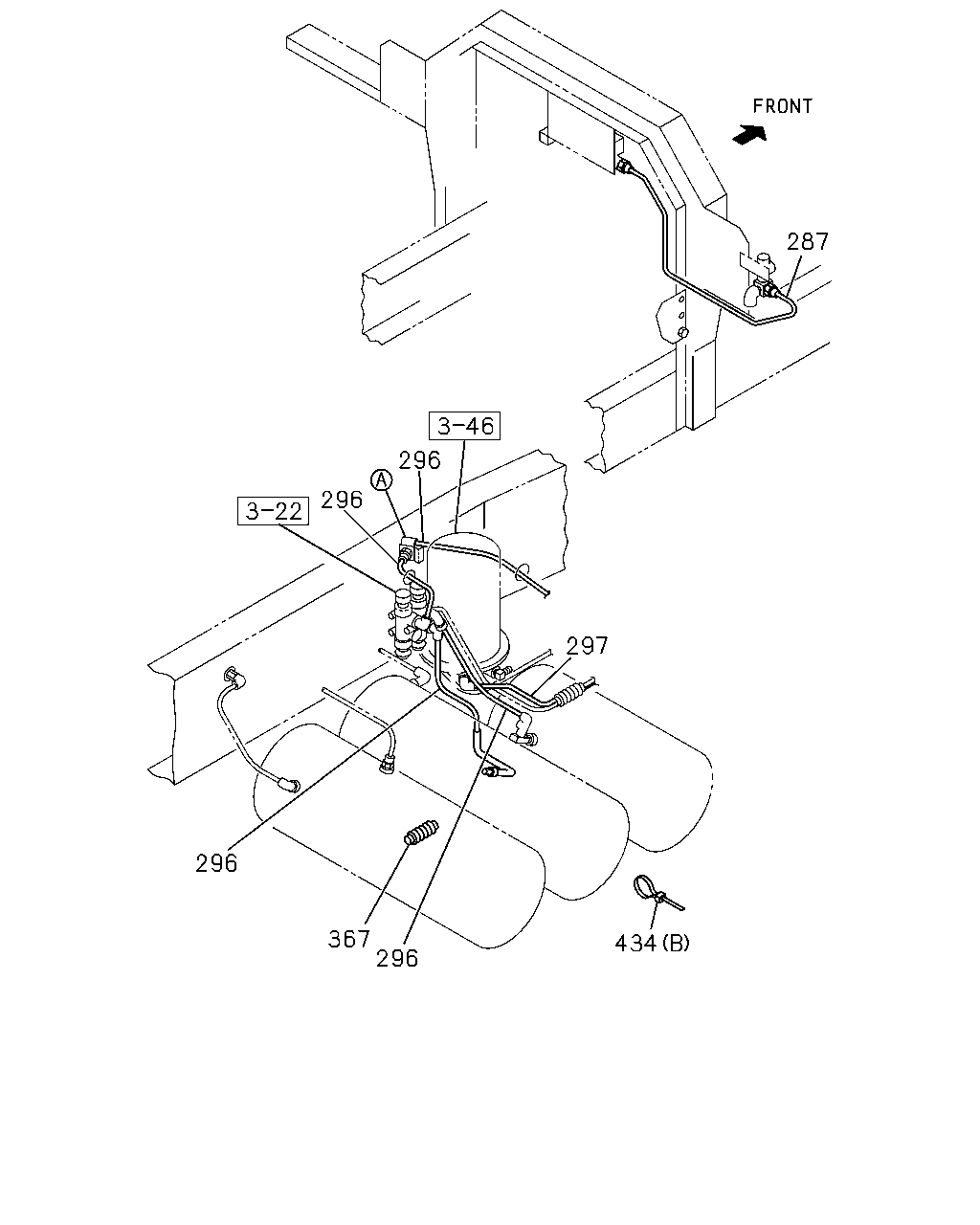

çizim 138813
287 296 296 297 296 367 296 434
BalonParca AdiParca NoAdetTipApplied Date
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) 		1-49122-364-0 01 1 0105-0202
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) L=1314 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L),6WG1 TC-R(75L) 		1-49122-365-0 01 1 0105-0202
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L),6WG1 TC-R(75L) L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-0512
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0105
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0307
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0308-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0601-
434 CLIP
ZF M/T<X9E> (F) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=300 		1-09707-001-1 01 1 0105-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0211
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0212-
çizim 138821
163 291 221 295 295 295 295 295 295 290 290 295 295 295 295 295 295 295
BalonParca AdiParca NoAdetTipApplied Date
163 BRACKET; AIR PIPE
(A) 		1-34656-009-0 01 1 0105-
163 BRACKET; AIR PIPE
(B) 		1-47478-213-0 01 1 0105-0108
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
ZF M/T<X9E> (B) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-47478-213-0 01 1 0207-0311
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-47478-213-0 01 1 0207-0311
163 BRACKET; AIR PIPE
ZF M/T<X9E> (B) 		1-47478-213-0 01 1 0207-0311
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-47478-213-0 01 1 0312-
163 BRACKET; AIR PIPE
ZF M/T<X9E> (B) 		1-47478-213-0 01 1 0312-
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-47478-213-0 01 1 0312-
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-47478-213-0 01 1 0312-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0211
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0212-
290 UNION; AIR PIPE 1-09661-064-0 01 1 0105-0108
290 UNION; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> 		1-09661-064-0 01 1 0109-0206
290 UNION; AIR PIPE
ZF M/T<X9E> 		1-09661-064-0 01 1 0109-0206
290 UNION; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> 		1-09661-064-0 01 1 0207-0311
290 UNION; AIR PIPE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) 		1-09661-064-0 01 1 0207-0311
290 UNION; AIR PIPE
ZF M/T<X9E> 		1-09661-064-0 01 1 0207-0311
290 UNION; AIR PIPE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) 		1-09661-064-0 01 1 0312-
290 UNION; AIR PIPE
ZF M/T<X9E> 		1-09661-064-0 01 1 0312-
290 UNION; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> 		1-09661-064-0 01 1 0312-
290 UNION; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) 		1-09661-064-0 01 1 0312-
291 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0108
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
ZF M/T<X9E> M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		9-09111-422-0 01 1 0207-0311
291 NUT; UNION
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		9-09111-422-0 01 1 0207-0311
291 NUT; UNION
ZF M/T<X9E> M22 		9-09111-422-0 01 1 0207-0311
291 NUT; UNION
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
ZF M/T<X9E> M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		9-09111-422-0 01 1 0312-0512
291 NUT; UNION
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
ZF M/T<X9E> M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),ELECTRICAL HORN<WB7> (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN<WB7> ZF M/T<X9E> (E) 		1-09661-073-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN<WB7> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (E) 		1-09661-073-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0105
295 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0106
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0311
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ELECTRICAL HORN<WB7> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
(B) 		1-09661-061-0 01 1 0105-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-09661-061-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-09661-061-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. ELECTRICAL HORN<WB7> (B) 		1-09661-061-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0105-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ELECTRICAL HORN<WB7> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (G) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (D) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (D) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (D) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (D) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (H) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0207-0311
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN<WB7> (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0312-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (F) R1/4 & RC1/4 		1-09664-211-0 01 1 0312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
