Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#121683) — 80 parça
◀

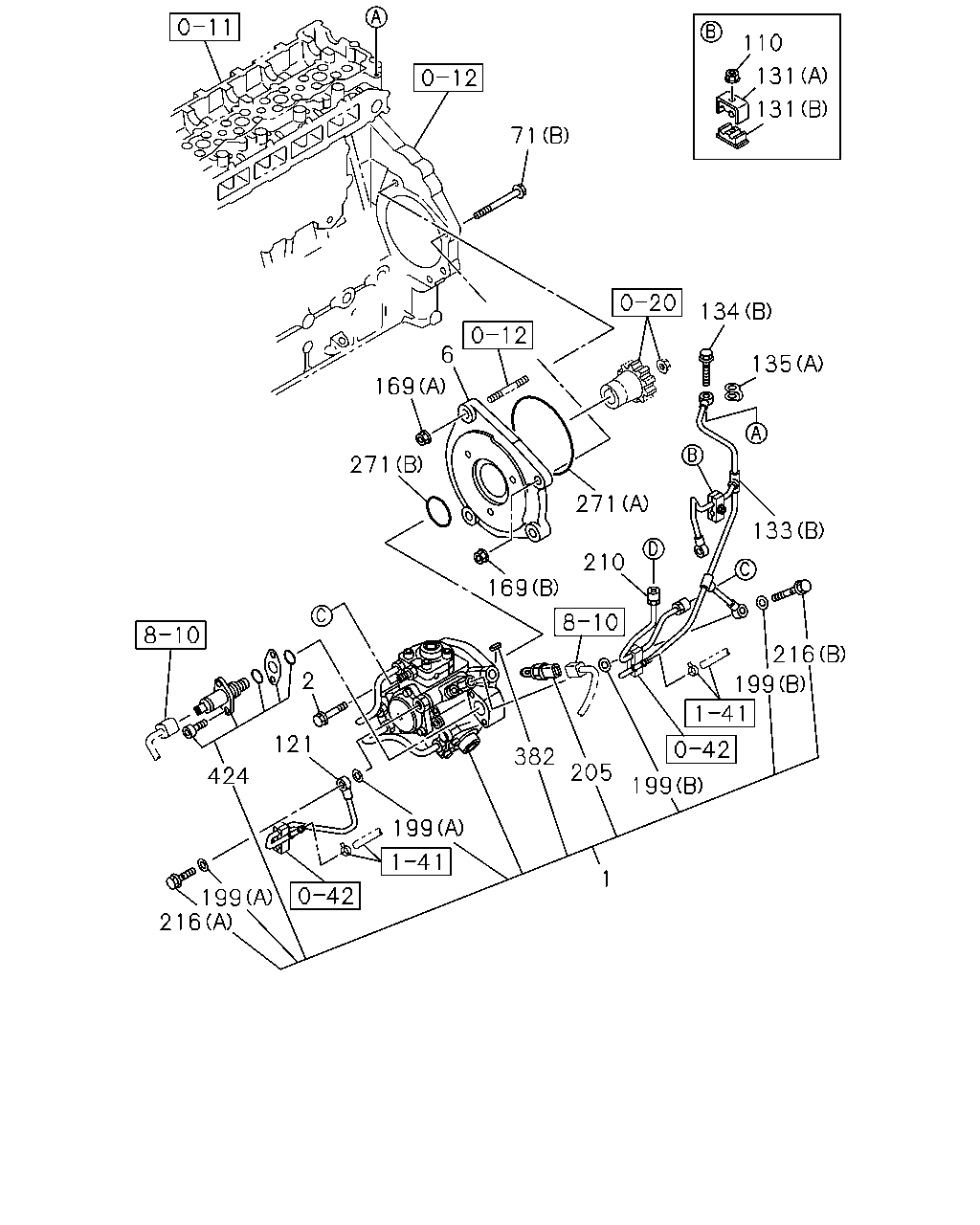

[040A] INJ PUMP (29 parça)

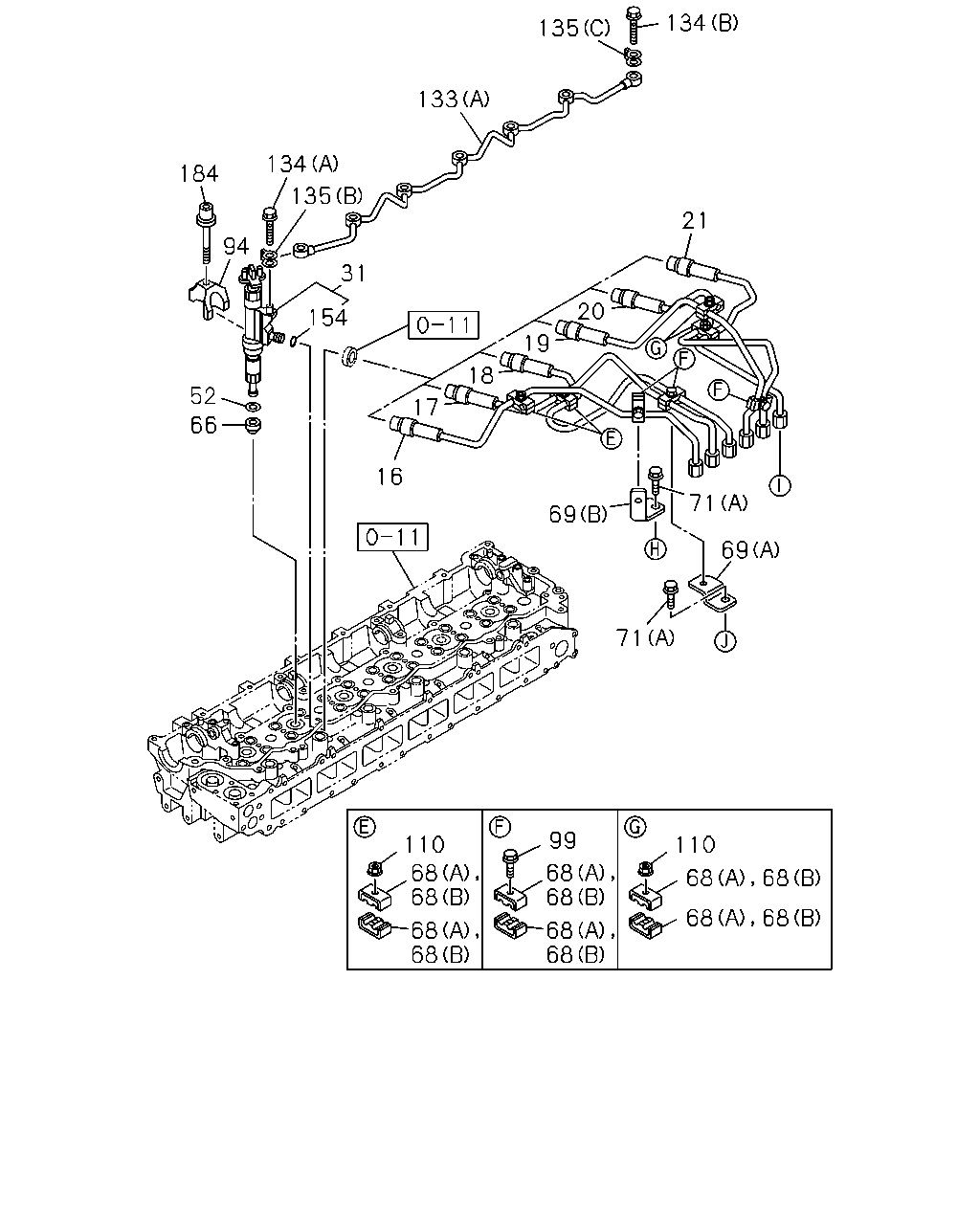

[040A] INJ PIPE (35 parça)

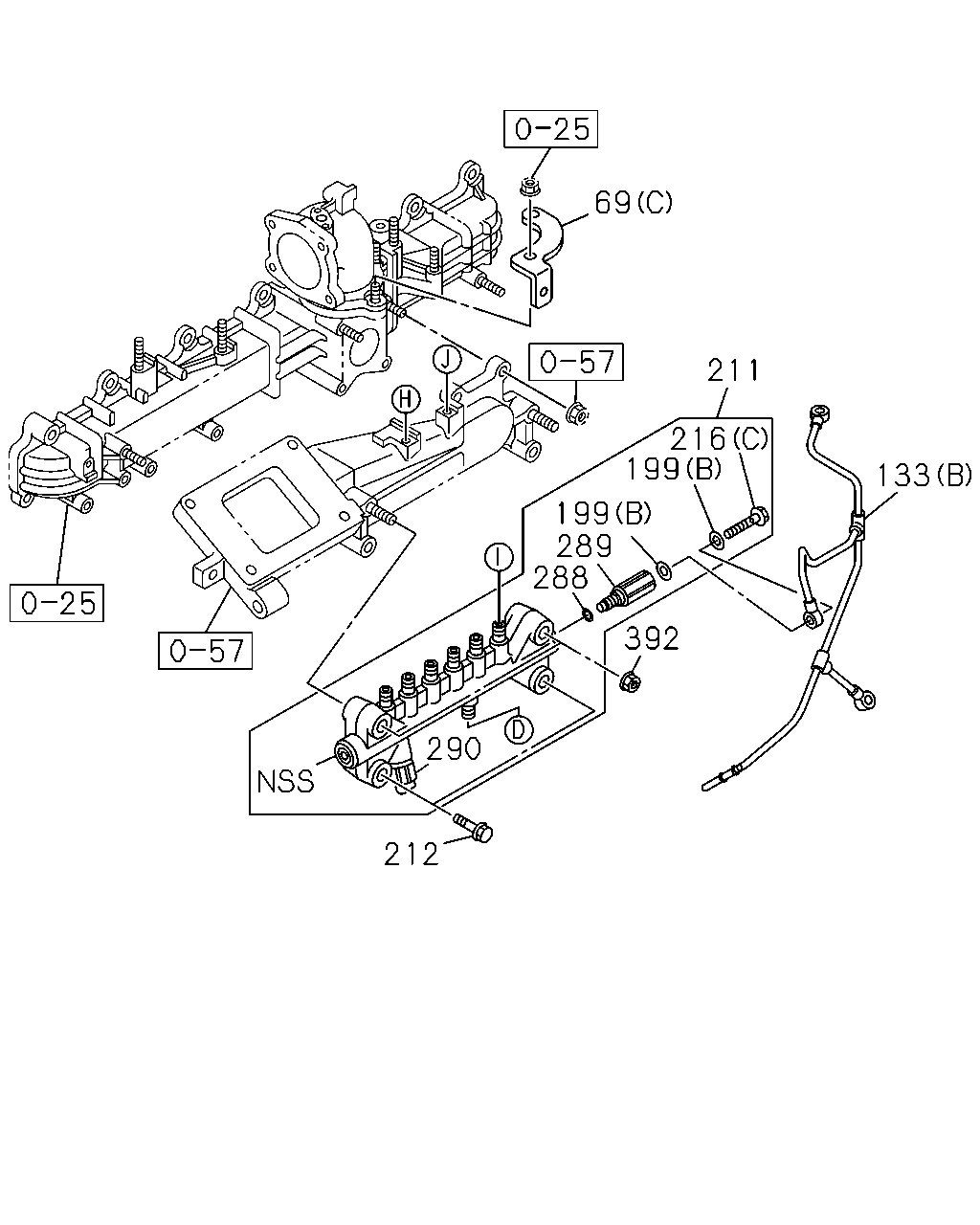

[040A] COMMON RAIL (16 parça)
▶
71
110
131
131
134
135
271
133
210
169
271
169
6
216
199
199
205
382
199
121
2
424
199
216
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-97605-946-7
01
1
1304-
2
BOLT; INJ PUMP
M8X28
8-94399-256-0
03
1
1304-
6
BRACKET; INJ PUMP TO C/BL
8-97601-154-1
01
1
1304-
71
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
71
BOLT; BRKT
(B) M12X100 FLANGE
0-28151-200-0
01
1
1304-
110
NUT; CLIP
M6 FLANGE THA
0-91180-106-0
05
1
1304-
121
PIPE; FUEL,FEED PUMP,SUCTION
8-98126-331-0
01
1
1304-
131
CLIP; OVERFLOW LEAK OFF
(A)
8-98000-010-2
01
1
1304-
131
CLIP; OVERFLOW LEAK OFF
(B)
8-98000-011-2
01
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97610-504-0
01
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98203-705-1
01
1
1304-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1304-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3
8-98065-992-0
06
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17
8-98079-755-0
01
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6
8-98231-393-0
01
1
1304-
169
NUT; BRKT
(A) M10 FLANGE THA
0-91180-110-0
02
1
1304-
169
NUT; BRKT
(B) M12 FLANGE THA
0-91180-112-0
01
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
04
1
1304-
205
SENSOR; FUEL TEMP
8-98023-581-0
01
1
1304-
210
PIPE; INJ,C/R
8-97608-480-1
01
1
1304-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1304-
216
BOLT; EYE
(B)
8-97351-388-0
01
1
1304-
216
BOLT; EYE
(C)
8-98043-033-0
01
1
1304-
271
GASKET; INJ PUMP
(A) ID=139.6
1-09623-464-0
01
1
1304-
271
GASKET; INJ PUMP
(B) ID=52
8-98031-844-0
01
1
1304-
382
KEY; DRIVE SHAFT
THA
8-98161-995-0
01
1
1304-
424
OVERHAUL KIT; SUPPLY PUMP
8-98145-449-1
01
1
1304-
184
134
135
94
52
66
154
31
133
135
134
21
20
19
18
17
16
69
71
71
69
110
99
110
68
68
68
68
68
68
68
68
68
68
68
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
8-98185-362-0
01
1
1304-1403
16
PIPE; INJ NO.1
8-98271-207-0
01
1
1404-
17
PIPE; INJ NO.2
8-98185-363-0
01
1
1304-1403
17
PIPE; INJ NO.2
8-98271-208-0
01
1
1404-
18
PIPE; INJ NO.3
8-98185-364-0
01
1
1304-1403
18
PIPE; INJ NO.3
8-98271-209-0
01
1
1404-
19
PIPE; INJ NO.4
8-98185-365-0
01
1
1304-1403
19
PIPE; INJ NO.4
8-98271-210-0
01
1
1404-
20
PIPE; INJ NO.5
8-98185-366-0
01
1
1304-1403
20
PIPE; INJ NO.5
8-98271-211-0
01
1
1404-
21
PIPE; INJ NO.6
8-98185-367-0
01
1
1304-1403
21
PIPE; INJ NO.6
8-98271-212-0
01
1
1404-
31
NOZZLE ASM; INJ
8-98172-046-1
06
1
1304-
52
GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3
8-94173-412-0
06
1
1304-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-98079-248-0
06
1
1304-
68
CLIP; INJ PIPE
(A)
8-98039-293-0
10
1
1304-1405
68
CLIP; INJ PIPE
(B)
8-98148-996-2
04
1
1304-1405
68
CLIP; INJ PIPE
(B)
8-98148-996-2
14
1
1406-
69
BRACKET; INJ PIPE CLIP
(B)
8-98038-940-0
01
1
1304-
69
BRACKET; INJ PIPE CLIP
(C)
8-98038-941-0
01
1
1304-
69
BRACKET; INJ PIPE CLIP
(A)
8-98049-015-0
01
1
1304-
71
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
71
BOLT; BRKT
(B) M12X100 FLANGE
0-28151-200-0
01
1
1304-
94
BRACKET; INJ NOZZLE
8-98028-999-1
06
1
1304-
99
BOLT; CLIP,INJ,PIPE
M6X35 FLANGE
0-28050-635-0
03
1
1304-
110
NUT; CLIP
M6 FLANGE THA
0-91180-106-0
05
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97610-504-0
01
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98203-705-1
01
1
1304-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1304-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3
8-98065-992-0
06
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17
8-98079-755-0
01
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6
8-98231-393-0
01
1
1304-
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
0-95690-111-0
06
1
1304-
184
BOLT; NOZZLE HOLDER
M8X54
8-98008-895-0
06
1
1304-
69
211
216
199
199
289
288
133
392
290
212
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
BRACKET; INJ PIPE CLIP
(B)
8-98038-940-0
01
1
1304-
69
BRACKET; INJ PIPE CLIP
(C)
8-98038-941-0
01
1
1304-
69
BRACKET; INJ PIPE CLIP
(A)
8-98049-015-0
01
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97610-504-0
01
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98203-705-1
01
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
04
1
1304-
211
RAIL ASM; COMMON
8-97609-980-2
01
1
1304-
212
BOLT; RAIL ASM
M10X50 FLANGE
8-97372-243-0
02
1
1304-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1304-
216
BOLT; EYE
(B)
8-97351-388-0
01
1
1304-
216
BOLT; EYE
(C)
8-98043-033-0
01
1
1304-
288
GASKET
ID=11 OD=16.3
1-15641-046-0
01
1
1304-
289
LIMITER; FUEL PRESS
THA
8-98032-549-0
01
1
1304-
290
SENSOR; PRESS
8-98119-790-0
01
1
1304-
392
NUT; RAIL ASM
M10 FLANGE THA
0-91180-110-0
02
1
1304-
