Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#121679) — 40 parça
◀

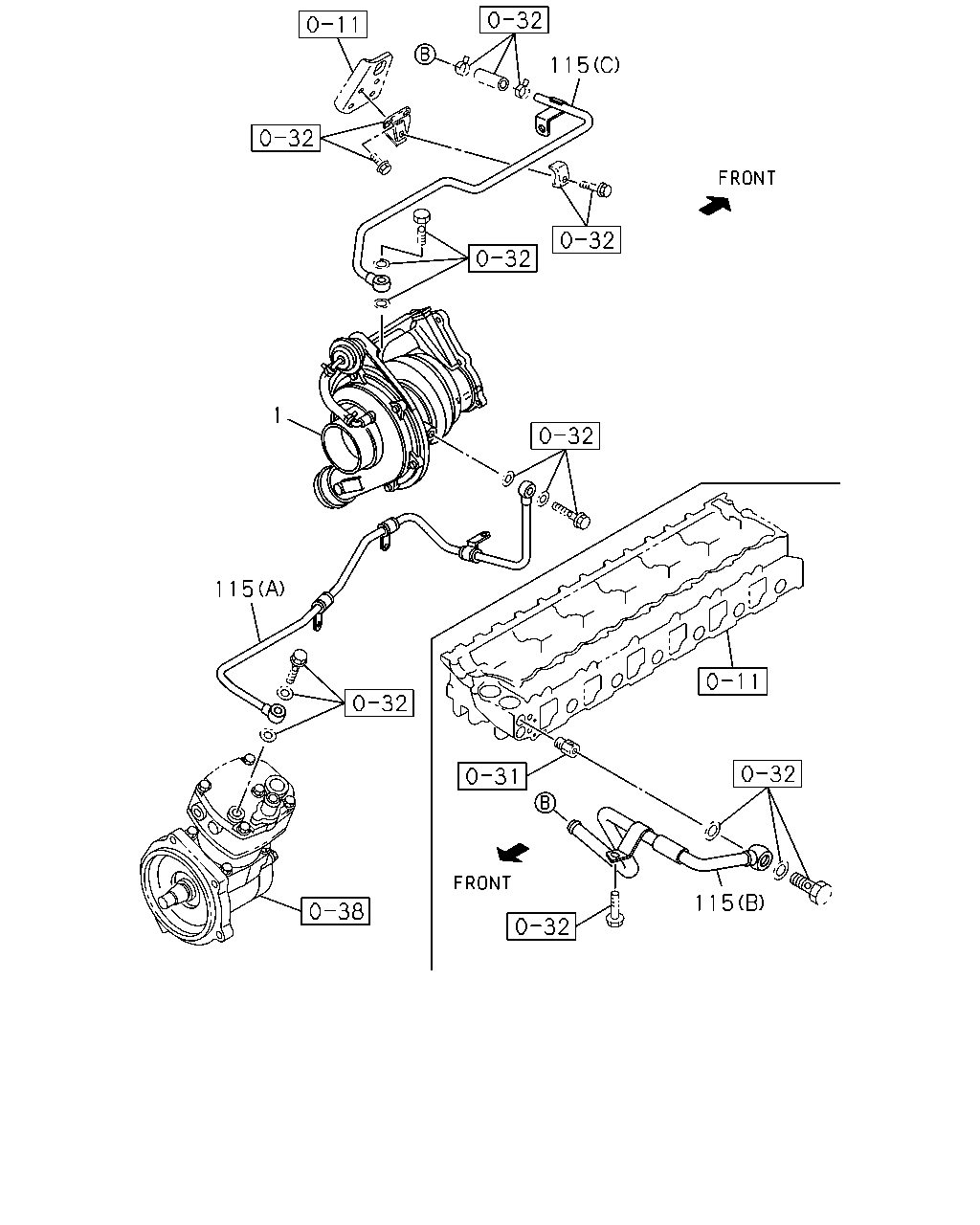

[036A] PIPING;WATER PIPE (4 parça)
[036A] FIXING;TURBOCHARGER (36 parça)
▶
115
1
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-926-2
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94392-950-0
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-94395-454-4
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-97618-808-0
01
1
1304-
2
12
212
10
11
20
79
79
398
398
20
398
398
92
143
98
143
28
92
398
488
398
20
12
94
17
122
17
162
275
217
265
275
217
13
162
17
16
388
11
212
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-926-2
01
1
1304-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
1304-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
1304-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
1304-
12
STUD; TURBOCHARGER
(B)
9-04130-825-0
01
1
1304-
12
STUD; TURBOCHARGER
(A)
9-04731-080-0
02
1
1304-
13
STUD; EXH PIPE
M12X103 L=123
8-94394-656-0
01
1
1304-
16
ADAPTER; EXH PIPE
8-94395-767-0
01
1
1304-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
1304-
20
PIPE; INL,TURBOCHARGER OUT
(C)
8-97606-675-1
01
1
1304-
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-97618-726-2
01
1
1304-1408
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-98251-577-0
01
1
1409-
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-97618-734-0
01
1
1304-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
1304-
79
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
02
1
1304-
92
BOLT; INL PIPE
(B) M8X35 FLANGE THA
0-28650-835-0
01
1
1304-
92
BOLT; INL PIPE
(A) M8X40 FLANGE THA
0-28650-840-0
01
1
1304-
94
GASKET; INL PIPE
8-98053-830-0
01
1
1304-1402
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
1304-1408
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98245-240-0
01
1
1409-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
1304-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
1304-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
1304-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1304-
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
1304-
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
1304-
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
1304-
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-2
01
1
1304-
398
MOUNTING
(F)
8-94160-177-0
01
1
1304-
398
MOUNTING
(C)
8-94390-551-1
01
1
1304-
398
MOUNTING
(D)
8-94394-504-0
01
1
1304-
398
MOUNTING
(E)
8-94394-529-0
01
1
1304-
398
MOUNTING
(A)
8-94395-766-0
01
1
1304-
398
MOUNTING
(B) OD=23
8-97105-689-6
01
1
1304-
488
HOSE; RUBBER
1-09360-797-1
01
1
1304-1408
488
HOSE; RUBBER
8-98245-240-0
01
1
1409-
