3-55 — BRAKE PIPING; OIL,REAR
(#12167) — 31 parça
◀

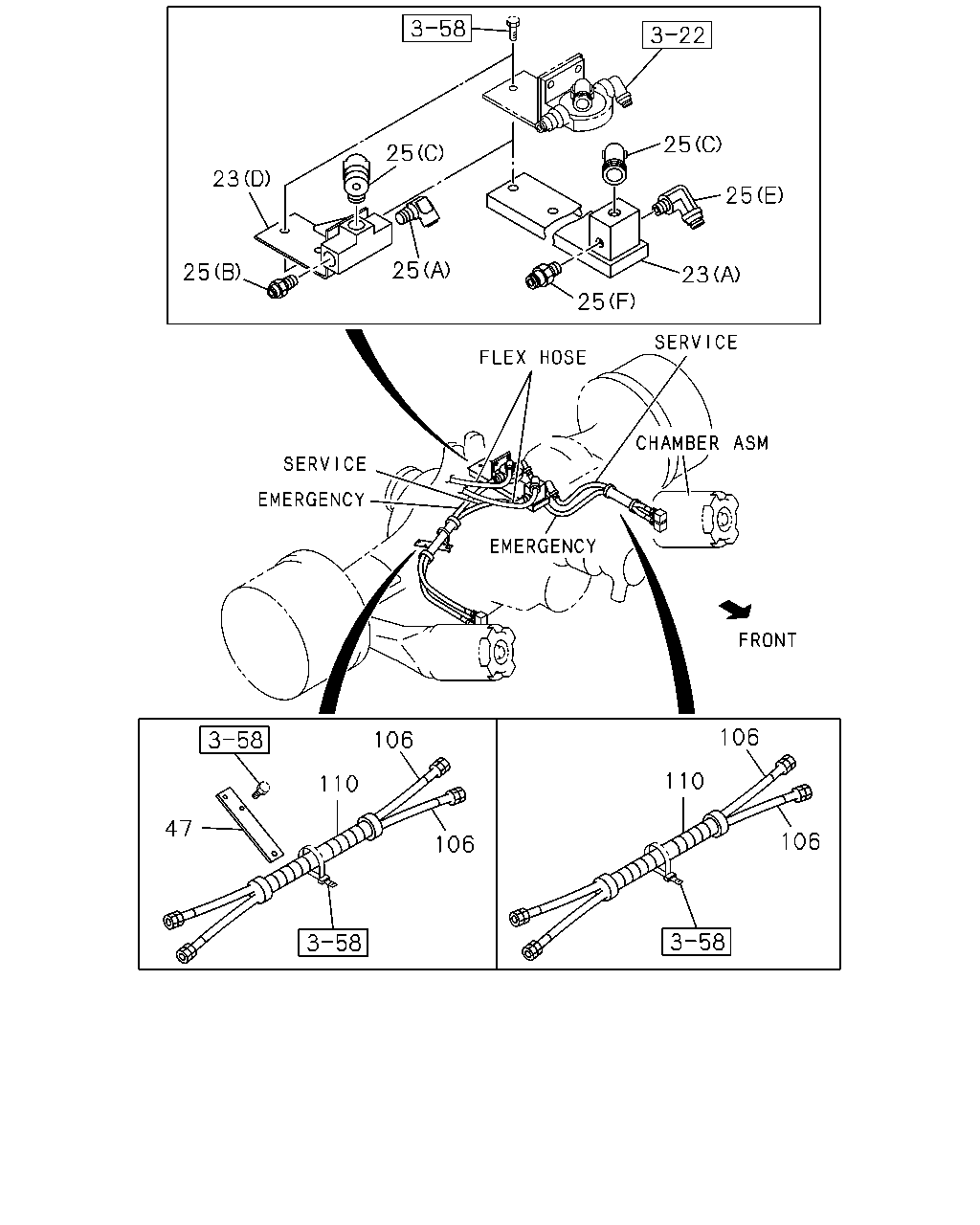

[355A] FORWARD (17 parça)

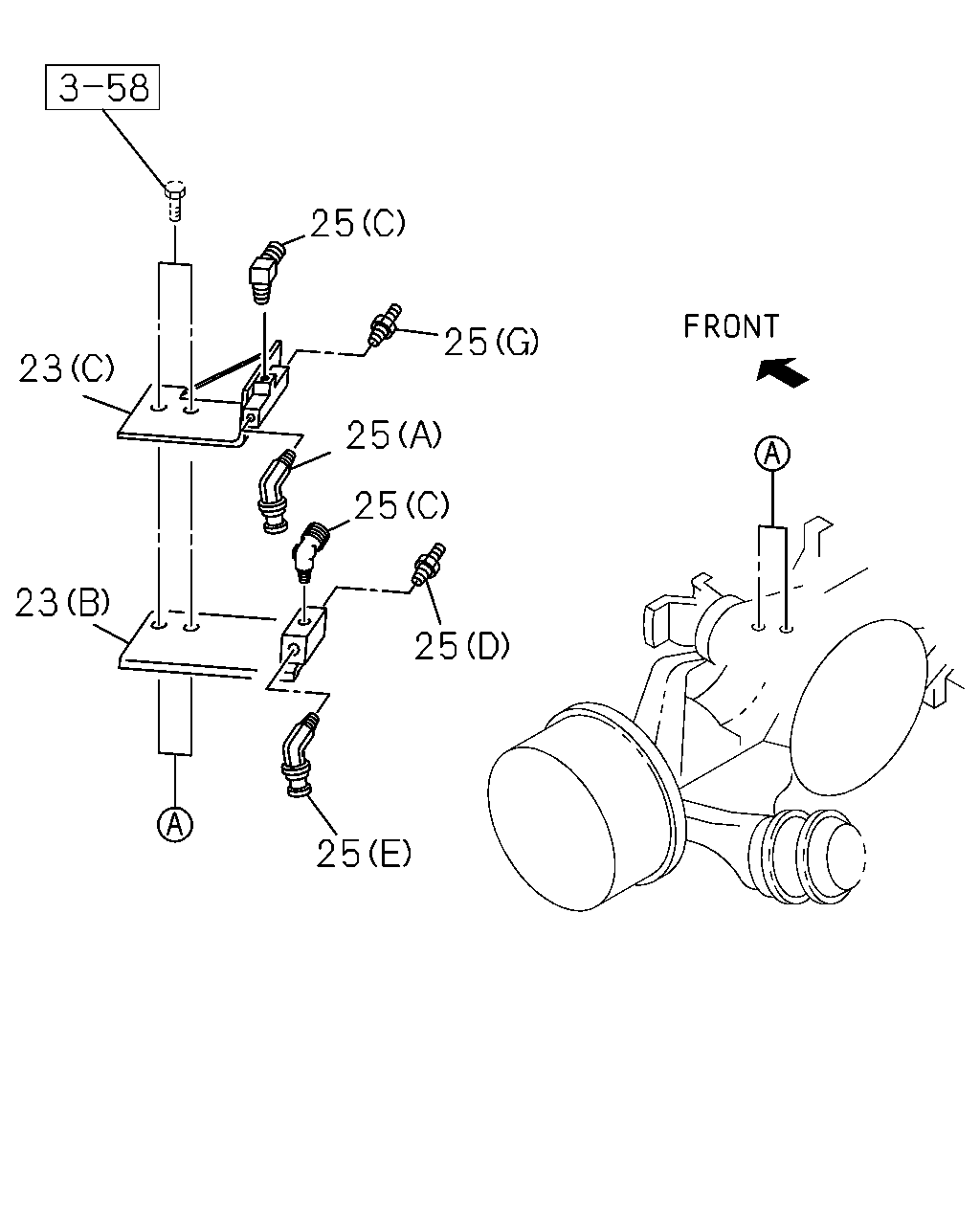

[355A] REARWARD (13 parça)

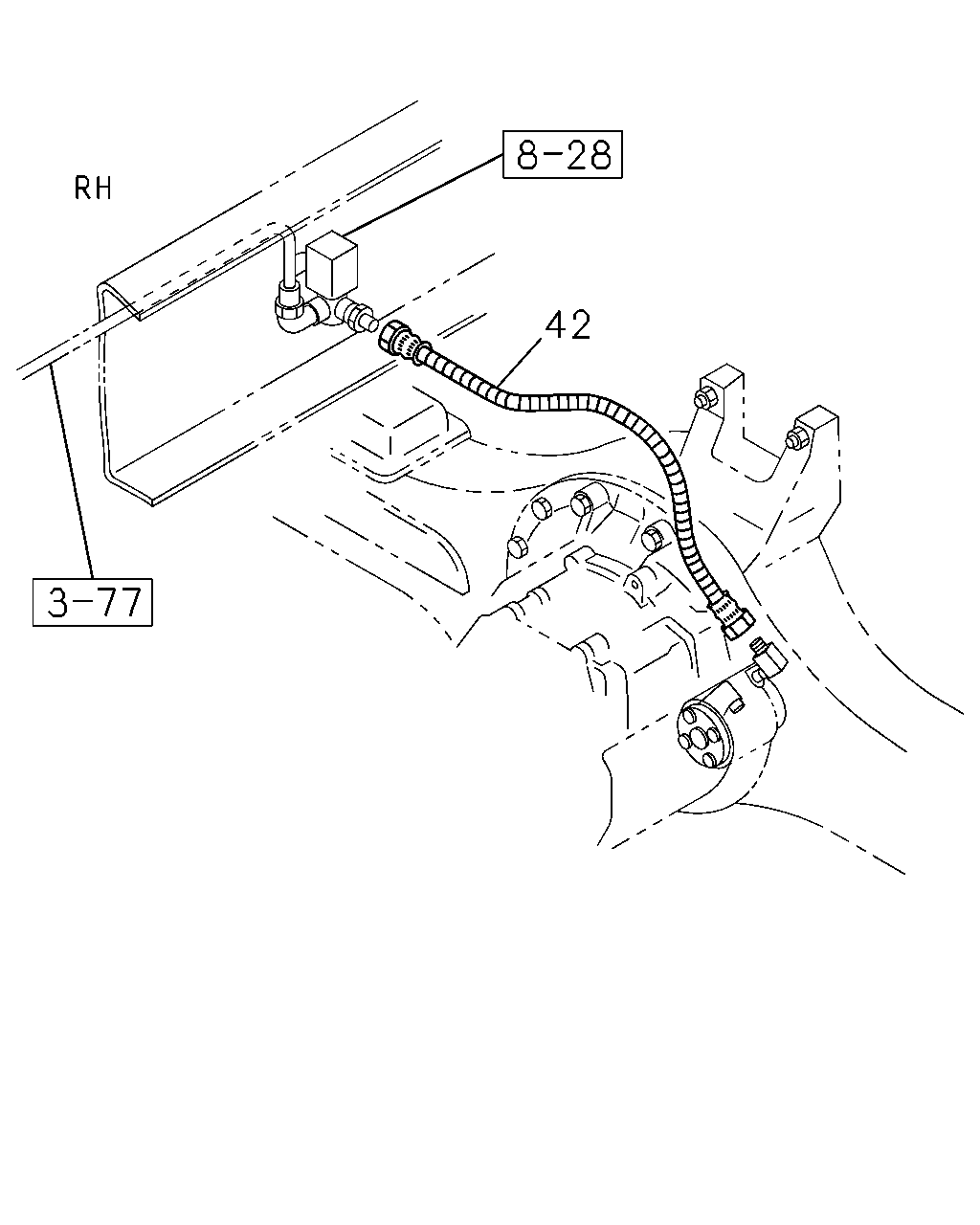

[355A] HOSE;DIFF LOCK (1 parça)
▶
25
25
23
25
25
25
23
25
106
106
110
110
47
106
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
NIPPLE; W/BRKT
(A)
1-47470-373-1
01
1
0105-
23
NIPPLE; W/BRKT
(B)
1-47470-500-0
01
1
0105-
23
NIPPLE; W/BRKT
(D)
1-47475-536-1
01
1
0105-
23
NIPPLE; W/BRKT
(C)
1-47477-703-1
01
1
0105-0402
23
NIPPLE; W/BRKT
(C)
1-47479-966-0
01
1
0403-
25
CONNECTOR
(G) M14 & PT3/8 STRAIGHT
1-09650-085-1
01
1
0105-
25
CONNECTOR
(D) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
0105-
25
CONNECTOR
(C) M27 & PT3/8 ELBOW
1-09660-136-1
02
1
0105-
25
CONNECTOR
(C) M27 & PT3/8 ELBOW
1-09660-136-1
02
1
0105-
25
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0105-
25
CONNECTOR
(E) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0105-
25
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0105-
25
CONNECTOR
(F) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0105-
47
BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-42119-123-0
01
1
0105-
47
BRACKET
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-42119-065-0
01
1
0105-
106
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0105-
110
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0109-
25
25
23
25
25
23
25
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
NIPPLE; W/BRKT
(A)
1-47470-373-1
01
1
0105-
23
NIPPLE; W/BRKT
(B)
1-47470-500-0
01
1
0105-
23
NIPPLE; W/BRKT
(D)
1-47475-536-1
01
1
0105-
23
NIPPLE; W/BRKT
(C)
1-47477-703-1
01
1
0105-0402
23
NIPPLE; W/BRKT
(C)
1-47479-966-0
01
1
0403-
25
CONNECTOR
(G) M14 & PT3/8 STRAIGHT
1-09650-085-1
01
1
0105-
25
CONNECTOR
(D) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
0105-
25
CONNECTOR
(C) M27 & PT3/8 ELBOW
1-09660-136-1
02
1
0105-
25
CONNECTOR
(C) M27 & PT3/8 ELBOW
1-09660-136-1
02
1
0105-
25
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0105-
25
CONNECTOR
(E) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0105-
25
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0105-
25
CONNECTOR
(F) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0105-
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
HOSE; FLEX,DIFF LOCK
L=580
1-09363-641-0
01
1
0105-
