Isuzu WW
▶
TRUCKS
▶
FTR
▶
11488 - FTR(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

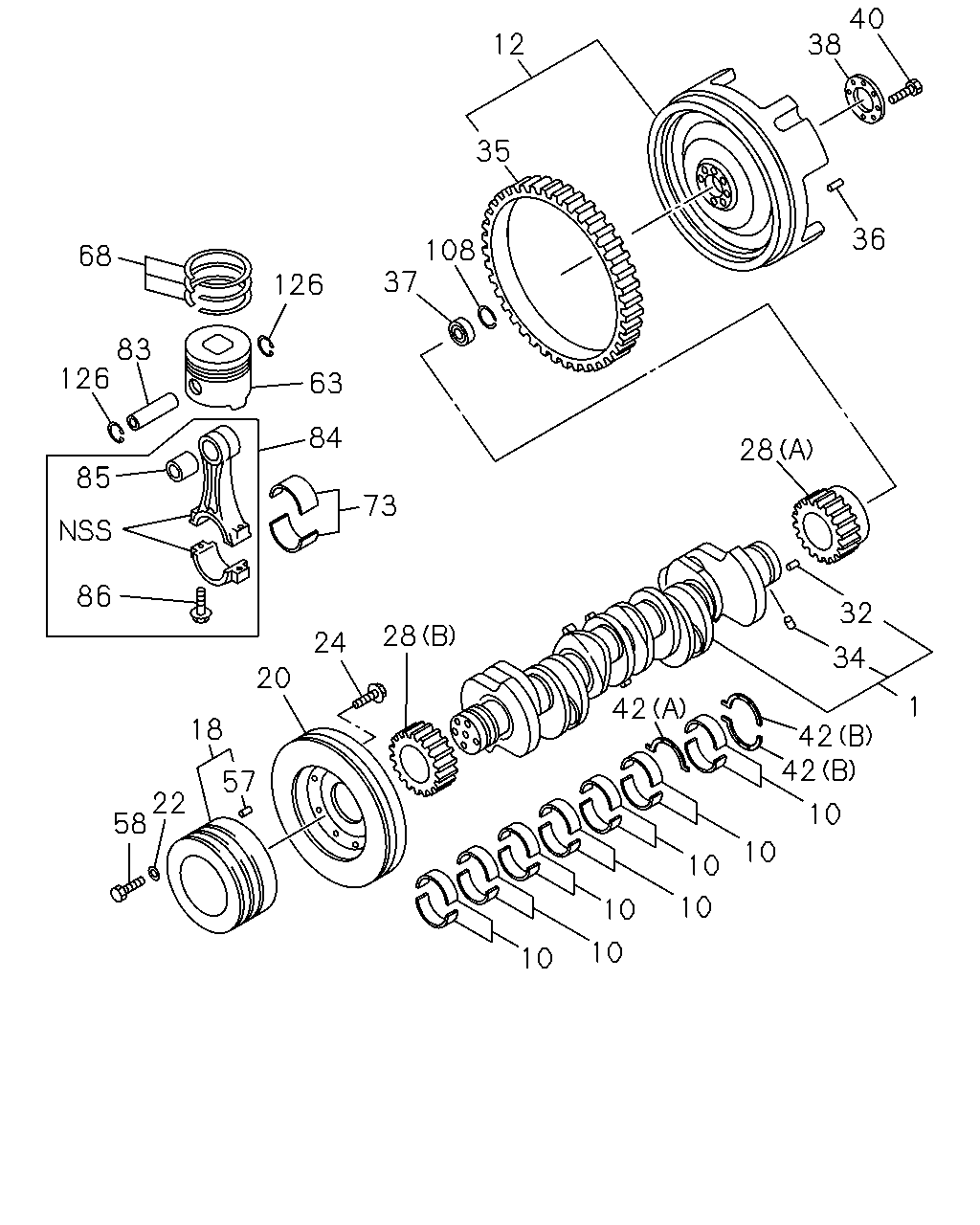

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#121668) — 32 parça
12
35
108
37
126
68
83
126
85
86
84
63
73
24
20
18
22
58
28
57
10
10
10
10
10
42
42
34
1
32
42
10
28
36
38
40
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-004-0
01
1
1304-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
1304-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
1304-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
1304-
12
FLYWHEEL
8-97602-463-2
01
1
1304-
18
PULLEY; CR/SHF
3-GROOVE
8-97606-944-0
01
1
1304-
20
DAMPER; CR/SHF
8-97613-696-1
01
1
1304-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
1304-
24
BOLT; DAMPER
M10X16 FLANGE THA
0-28151-016-0
06
1
1304-
28
GEAR; CR/SHF
(A) Z=42
8-94392-255-1
01
1
1304-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
1304-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
1304-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1304-
35
GEAR; RING
Z=140
8-94396-784-1
01
1
1304-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1304-
37
BEARING; PILOT,TOP GEAR SHAFT
8-94392-288-0
01
1
1304-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1304-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
1304-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1304-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1304-
57
PIN; PULLEY
OD=8 L=16
8-94391-156-0
01
1
1304-
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
1304-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
06
1
1304-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98040-125-0
06
1
1304-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-97616-358-0
06
1
1304-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-97616-359-0
06
1
1304-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
06
1
1304-
84
ROD ASM; CONN
8-98018-425-2
06
1
1304-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
06
1
1304-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1304-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
1304-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
12
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
