1 |

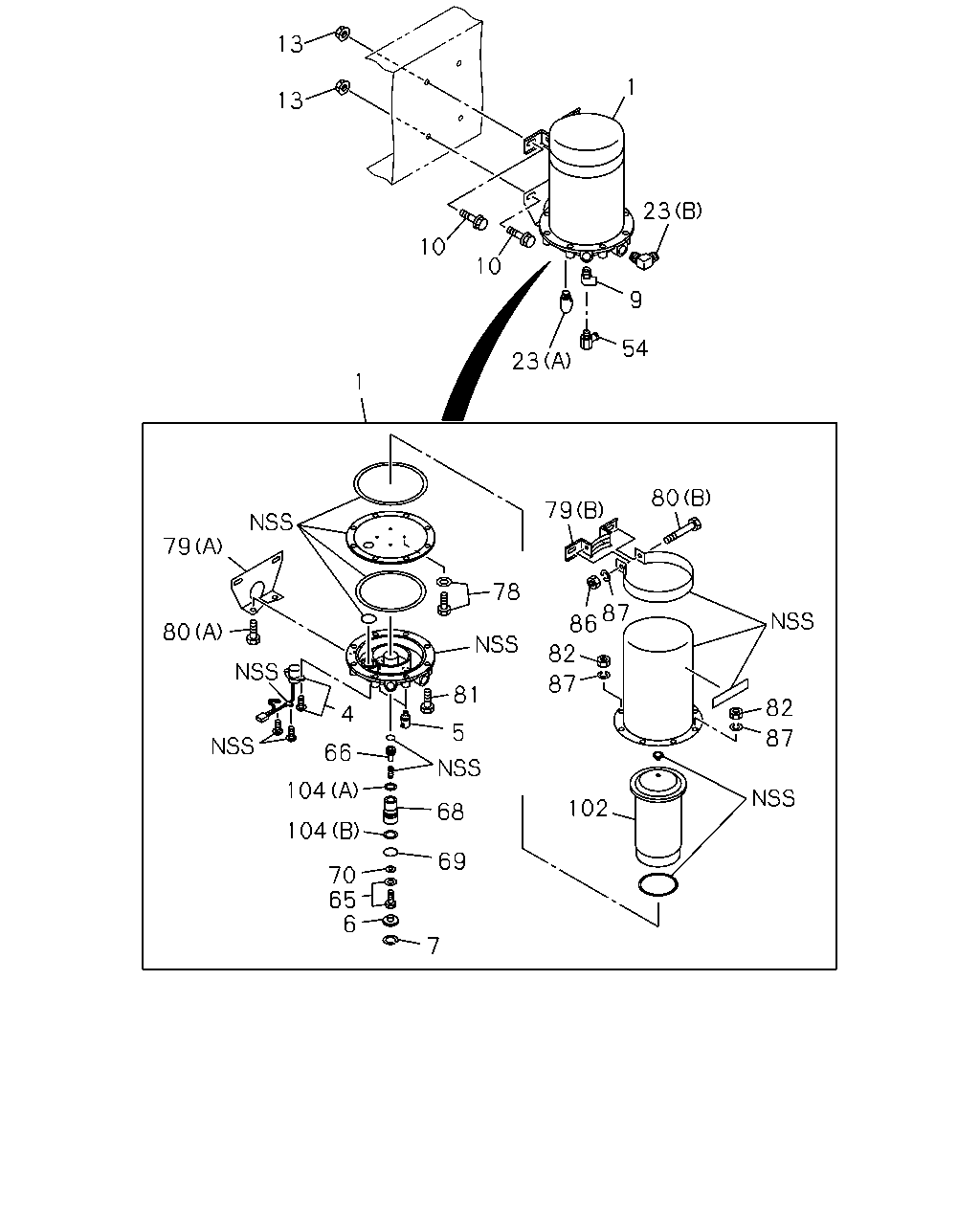

DRYER; AIR
AIR DRYER<PS7>
|
1-48190-216-0 |
01 |
1 |
0105-0305 |
| |
1 |
DRYER; AIR
AIR DRYER<PS7>
|
1-48190-324-1 |
01 |
1 |
0306- |
| |
4 |
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
|
1-85576-216-0 |
01 |
1 |
0105- |
| |
5 |
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
|
1-48199-085-0 |
02 |
1 |
0105- |
| |
6 |
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
|
1-48199-419-0 |
01 |
1 |
0105- |
| |
7 |
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
|
1-48199-154-0 |
01 |
1 |
0105- |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7>
DIN6 & R1/4 ELBOW
|
1-09661-067-0 |
01 |
1 |
0105- |
| |
10 |
BOLT; AIR DRYER
AIR DRYER<PS7>
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0105-0512 |
| |
10 |
BOLT; AIR DRYER
AIR DRYER<PS7>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
| |
13 |
NUT; AIR DRYER
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0105-0602 |
| |
13 |
NUT; AIR DRYER
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
| |
23 |
CONNECTOR; AIR TANK
AIR DRYER<PS7>
(A)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0105- |
| |
23 |
CONNECTOR; AIR TANK
AIR DRYER<PS7>
(B)
M22 & R1/2 W/VALVE
|
1-48320-026-2 |
01 |
1 |
0105- |
| |
54 |
CONNECTOR
AIR DRYER<PS7>
|
8-94241-962-0 |
01 |
1 |
0105- |
| |
65 |
BOLT; PURGE VLV
AIR DRYER<PS7>
|
1-48199-393-0 |
01 |
1 |
0105- |
| |
66 |
PISTON; AIR DRYER
AIR DRYER<PS7>
|
1-48199-198-0 |
01 |
1 |
0105- |
| |
68 |
BODY; VALVE
AIR DRYER<PS7>
|
1-48199-439-0 |
01 |
1 |
0105-0305 |
| |
68 |
BODY; VALVE
AIR DRYER<PS7>
|
1-48199-352-0 |
01 |
1 |
0306- |
| |
69 |
GASKET; EXH COVER
AIR DRYER<PS7>
|
1-48199-153-0 |
01 |
1 |
0306- |
| |
70 |
VALVE; AIR DRYER
AIR DRYER<PS7>
|
1-48199-105-0 |
01 |
1 |
0105- |
| |
78 |
BOLT; OIL FILTER,AIR DRYER
AIR DRYER<PS7>
|
1-48199-494-0 |
04 |
1 |
0306- |
| |
79 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(B)
|
1-48199-336-0 |
01 |
1 |
0105- |
| |
79 |
BRACKET; AIR DRYER
AIR DRYER<PS7>
(A)
|
1-48199-354-0 |
01 |
1 |
0105- |
| |
80 |
BOLT; BRKT
AIR DRYER<PS7>
(B)
|
1-48199-335-0 |
01 |
1 |
0105- |
| |
80 |
BOLT; BRKT
AIR DRYER<PS7>
(A)
|
1-48199-338-0 |
02 |
1 |
0105- |
| |
81 |
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
|
1-48199-341-0 |
06 |
1 |
0105- |
| |
82 |
NUT; CASE,AIR DRYER
AIR DRYER<PS7>
|
1-48199-421-0 |
08 |
1 |
0105- |
| |
86 |
NUT; BRKT
AIR DRYER<PS7>
|
1-48199-333-0 |
01 |
1 |
0105- |
| |
87 |
WASHER; LK,BRKT
AIR DRYER<PS7>
|
1-48199-334-0 |
09 |
1 |
0105- |
| |
102 |
CARTRIDGE; AIR DRYER
AIR DRYER<PS7>
|
1-48199-347-0 |
01 |
1 |
0105-0305 |
| |
102 |
CARTRIDGE; AIR DRYER
AIR DRYER<PS7>
|
1-48199-493-0 |
01 |
1 |
0306- |
| |
104 |
GASKET
AIR DRYER<PS7>
(A)
|
1-48199-108-0 |
01 |
1 |
0306- |
| |
104 |
GASKET
AIR DRYER<PS7>
(B)
|
1-48199-109-0 |
01 |
1 |
0306- |
