Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#121647) — 104 parça
◀
[740A] BRACKET AND COVER (16 parça)
[740A] INST PANEL AND OTHER PARTS (49 parça)
[740A] REINFORCEMENT AND OTHER PARTS (39 parça)
▶

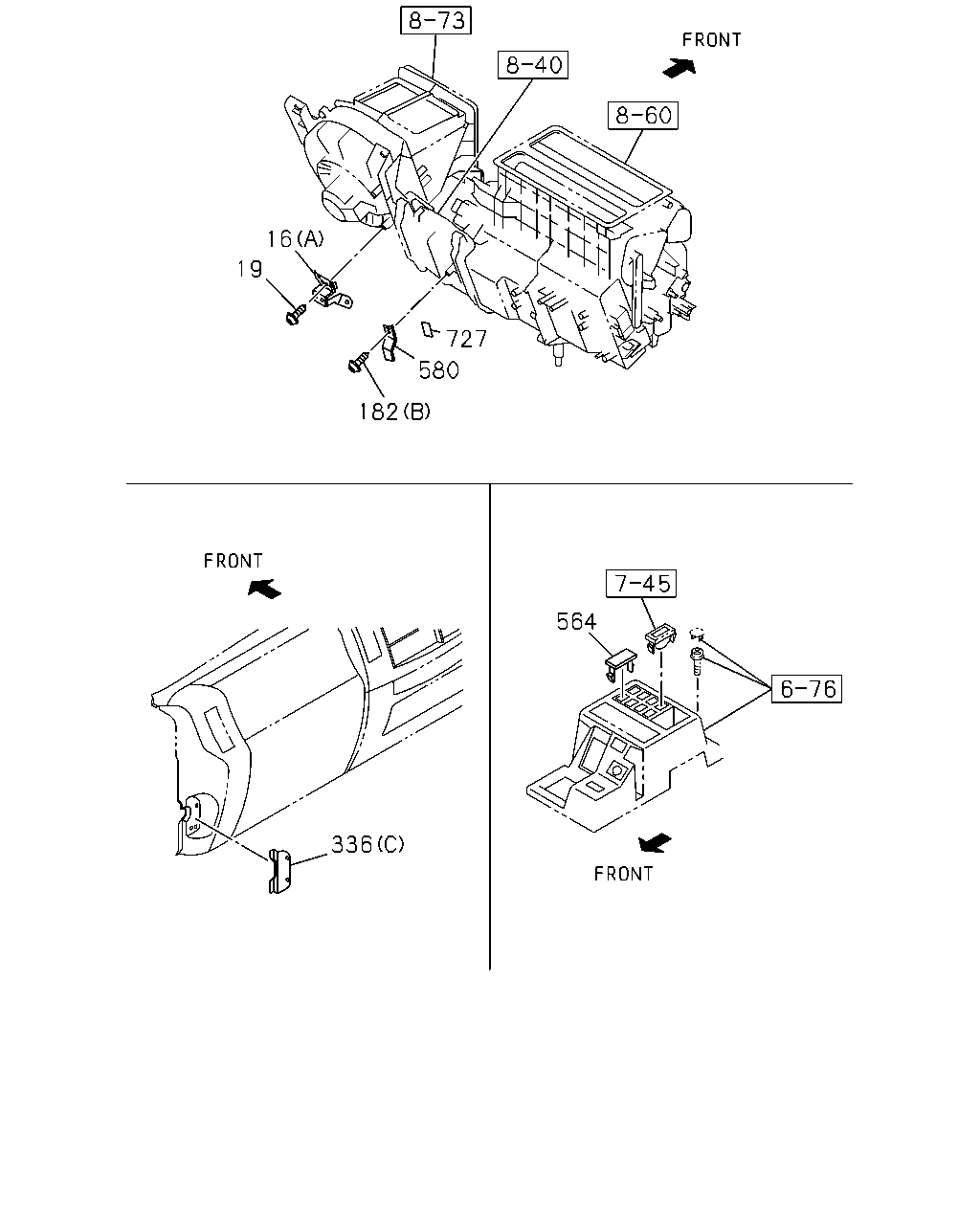

16
19
727
580
182
336
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1304-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-512-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-511-0
01
1
1304-
19
SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
182
BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1304-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1304-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97407-420-1
01
1
1304-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97407-427-4
01
1
1304-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97409-491-1
01
1
1304-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97422-653-0
01
1
1304-
564
COVER; SW
8-97043-732-1
06
1
1304-
580
BRACKET; COVER
8-98017-528-1
01
1
1304-
727
SEAL; BRACKET
8-98186-934-0
01
1
1304-

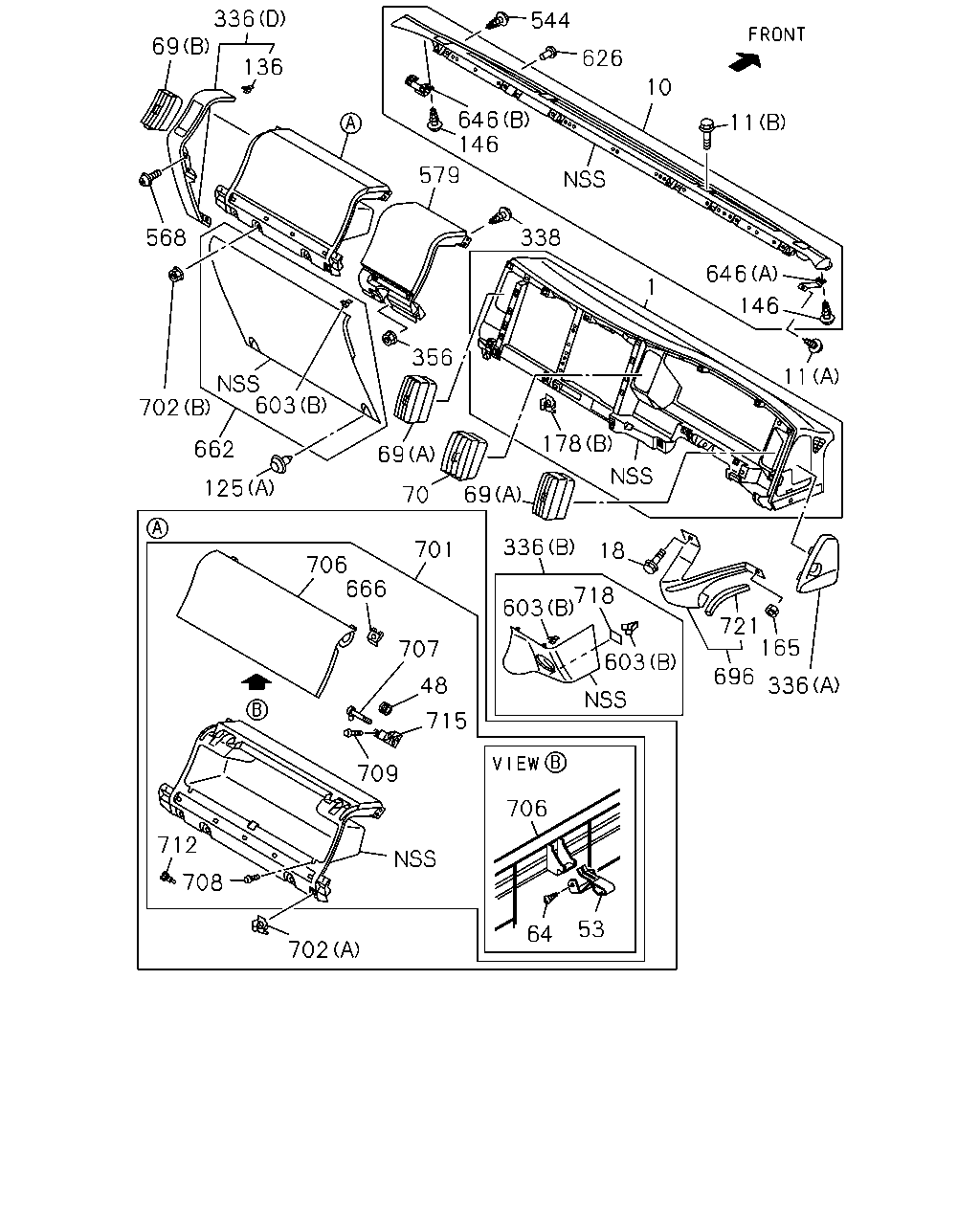

336
69
136
568
702
603
662
125
69
70
356
579
646
146
544
626
10
11
646
146
11
178
69
701
706
666
707
48
715
709
712
708
702
06
64
53
696
336
165
721
603
718
603
336
18
1
338
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
THA
8-97926-376-1
01
1
1304-
10
PANEL ASM; GARNISH
GRAY
8-97422-097-0
01
1
1304-
11
BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1304-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1304-
18
BOLT; BRKT
M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
01
1
1304-
48
SPRING; GLOVE BOX LID
THA
8-97926-410-0
01
1
1304-
48
SPRING; GLOVE BOX LID
THA
8-97926-411-0
01
1
1304-
53
STRIKER; GLOVE BOX
THA
8-97926-403-1
01
1
1304-
64
SCREW; STRIKER
M4X85 THA
8-97926-404-0
01
1
1304-
69
GRILLE; SIDE,AIR OUTLET
(A)
8-98028-561-2
02
1
1304-
69
GRILLE; SIDE,AIR OUTLET
(B)
8-98028-562-2
01
1
1304-
70
GRILLE; CENTER,AIR OUTLET
8-98028-563-2
01
1
1304-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1304-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1304-
136
CLIP; INST COVER
8-98076-254-0
02
1
1304-
146
SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1304-
165
NUT; BRKT KNEE PAD
M6 FLANGE THA
0-91180-106-0
01
1
1304-
178
NUT; INST PANEL
(B) THA
8-97926-385-0
30
1
1304-
178
NUT; INST PANEL
(A) M6 FLANGE THA
0-91180-106-0
01
1
1304-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97407-420-1
01
1
1304-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97407-427-4
01
1
1304-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97409-491-1
01
1
1304-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97422-653-0
01
1
1304-
338
SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1304-
356
NUT; COVER
M6 FLANGE THA
0-91180-106-0
01
1
1304-
544
SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1304-
568
BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
579
COVER; INST PNL
GRAY
8-97409-853-2
01
1
1304-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
05
1
1304-
626
RETAINER
OD=15 BLACK
8-94279-804-0
02
1
1304-
646
BRACKET; GARNISH PANEL
(A)
8-98051-490-2
01
1
1304-
646
BRACKET; GARNISH PANEL
(B)
8-98051-492-2
01
1
1304-
662
COVER; LWR,INST PANEL
GRAY
8-97407-429-3
01
1
1304-
666
INSERT; INST PANEL
M5 THA
8-97926-400-0
04
1
1304-
696
BRACKET; KNEE
8-98066-085-1
01
1
1304-
701
TRAY; INST
THA
8-97926-381-1
01
1
1304-
702
NUT; TRAY
(B) M6 FLANGE THA
0-91180-106-0
02
1
1304-
702
NUT; TRAY
(A)
8-98037-629-0
01
1
1304-
706
LID; TRAY INST
THA
8-97926-402-1
01
1
1304-
707
SHAFT; TRAY INST LID
THA
8-97926-393-0
02
1
1304-
708
STOPPER; TRAY INST LID
THA
8-97926-394-0
02
1
1304-
709
SCREW; TRAY INST
M5X16 TAPPING THA
0-71040-516-0
04
1
1304-
712
LOCK; TRAY INST LID
THA
8-97926-395-0
01
1
1304-
715
SUPPORT; TRAY,HINGE
THA
8-97926-396-0
01
1
1304-
715
SUPPORT; TRAY,HINGE
THA
8-97926-397-0
01
1
1304-
718
SEAL; COVER
7X31
8-98061-777-0
01
1
1304-
721
FINISHER; BRKT,KNEE
L=140
8-97892-742-0
01
1
1304-

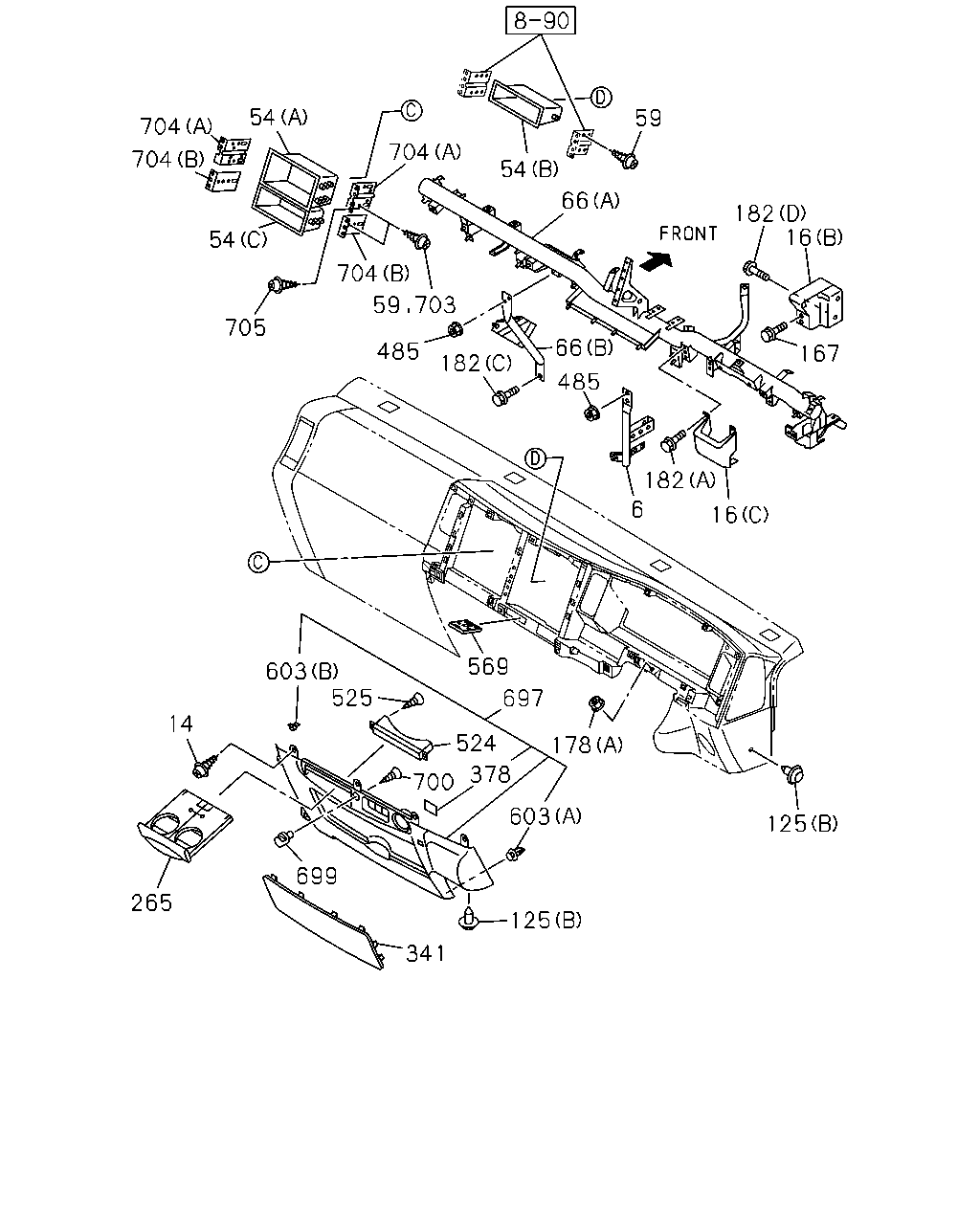

704
704
54
54
705
704
704
54
59
703
485
182
66
66
59
182
16
167
182
16
485
569
697
178
603
125
125
378
524
700
699
341
265
14
603
525
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
SUPPORT; INST PANEL
8-98196-255-0
01
1
1304-
14
SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1304-
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1304-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-512-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-511-0
01
1
1304-
54
POCKET; CENTER CLUSTER
(A) H=108.4 BLACK
8-97407-129-2
01
1
1304-
54
POCKET; CENTER CLUSTER
(B) THA
8-97926-412-0
01
1
1304-
54
POCKET; CENTER CLUSTER
(C) THA
8-97926-414-0
01
1
1304-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1304-
66
REINFORCEMENT; INST PANEL
(B)
8-98151-167-0
01
1
1304-
66
REINFORCEMENT; INST PANEL
(A)
8-98174-904-1
01
1
1304-1406
66
REINFORCEMENT; INST PANEL
(A)
8-98240-609-0
01
1
1407-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1304-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1304-
167
BOLT; REINF TO INST
M8X23 FLANGE
8-97264-766-0
04
1
1304-
178
NUT; INST PANEL
(B) THA
8-97926-385-0
30
1
1304-
178
NUT; INST PANEL
(A) M6 FLANGE THA
0-91180-106-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
182
BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1304-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1304-
265
HOLDER; CUP
GRAY
8-97418-528-0
01
1
1304-
341
LID; FUSE BOX
GRAY
8-97422-209-0
01
1
1304-
378
SEAL; INST PANEL
5X30
8-98176-199-0
01
1
1304-
485
NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA
0-91180-106-0
04
1
1304-
524
STAND ASM; CUP,INST
8-98054-414-0
01
1
1304-
525
SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1304-
569
HOLDER; CARD
8-97410-276-0
01
1
1304-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
05
1
1304-
697
PANEL; INST CENTER
GRAY
8-97422-207-1
01
1
1304-
699
HOOK; INST PANEL
GRAY
8-97408-927-0
01
1
1304-
700
BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1304-
704
BRACKET; CENTER POCKET
(B)
8-97585-616-2
02
1
1304-
704
BRACKET; CENTER POCKET
(A)
8-97585-618-2
02
1
1304-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
08
1
1304-
