◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#12164) — 240 parça
çizim 138787
32 32 32
BalonParca AdiParca NoAdetTipApplied Date
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 0105-0401
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0402-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0402-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-0401
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) CHINA GB VAR2<JAY> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0402-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0402-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0105-0401
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CHINA GB VAR2<JAY> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0402-

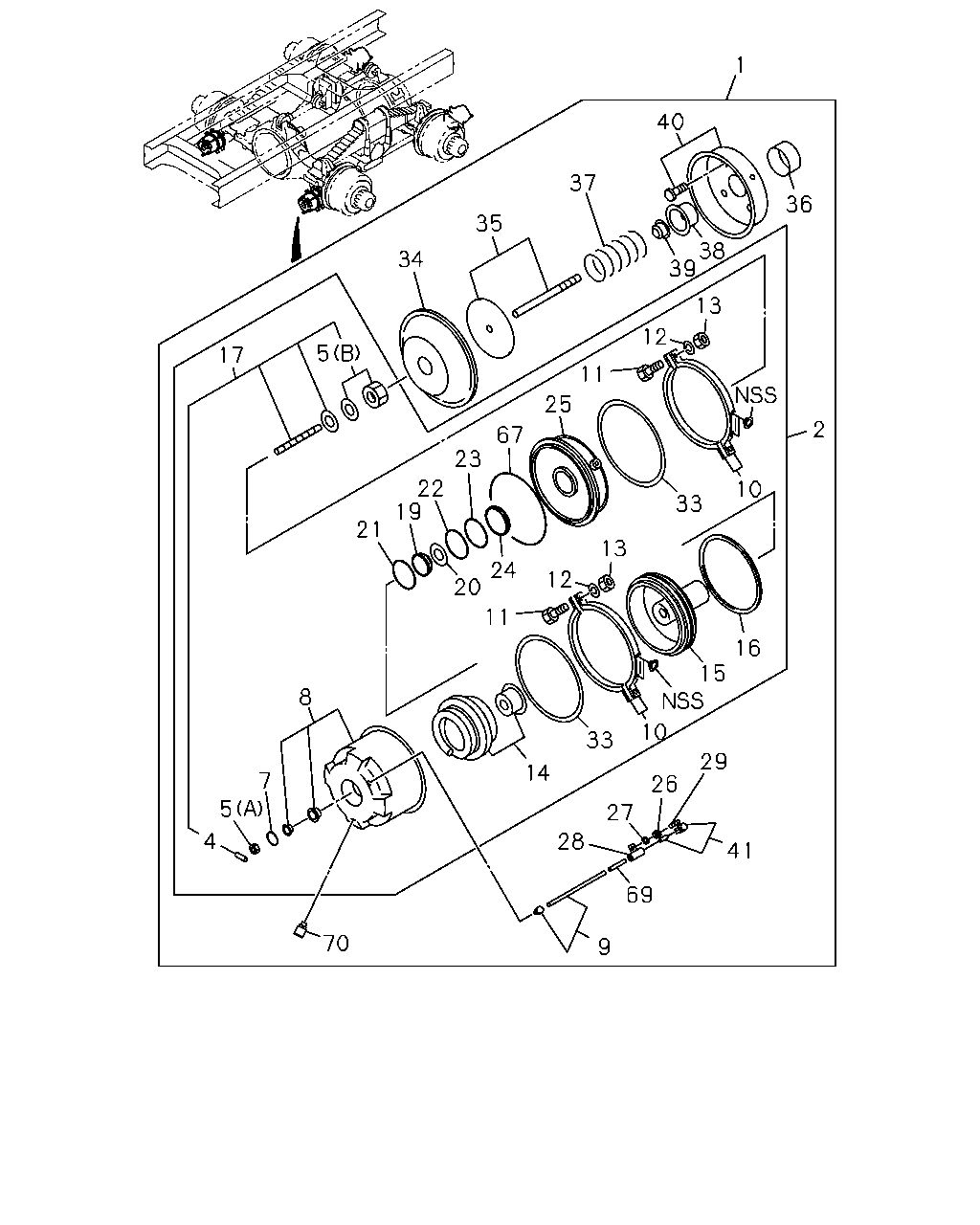

çizim 138788
1 40 37 36 35 38 39 34 13 12 5 17 11 25 2 67 23 22 19 10 33 21 13 24 20 11 12 16 15 1 8 33 29 14 7 5 4 26 27 28 41 69 70 9
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD RH,REARWARD LH 		1-48252-018-0 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD RH,REARWARD LH 		1-48252-018-0 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD LH,REARWARD RH 		1-48252-019-0 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD LH,REARWARD RH 		1-48252-019-0 01 1 0105-
4 PIN; STRAIGHT,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-056-0 02 1 0212-
4 PIN; STRAIGHT,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-056-0 02 1 0212-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-0211
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-0211
4 PIN; STRAIGHT,SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-056-0 04 1 0212-
4 PIN; STRAIGHT,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-056-0 04 1 0212-
5 NUT; SHELL
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (A) 		1-48259-054-0 01 1 0212-
5 NUT; SHELL
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (A) 		1-48259-054-0 01 1 0212-
5 NUT; SHELL
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (B) 		1-48259-074-0 01 1 0212-
5 NUT; SHELL
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (B) 		1-48259-074-0 01 1 0212-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-0211
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-0211
5 NUT; SHELL
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (A) 		1-48259-054-0 02 1 0212-
5 NUT; SHELL
REAR AXLE RT260<C2B> (A) 		1-48259-054-0 02 1 0212-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0105-0211
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0105-0211
5 NUT; SHELL
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (B) 		1-48259-074-0 02 1 0212-
5 NUT; SHELL
REAR AXLE RT260<C2B> (B) 		1-48259-074-0 02 1 0212-
7 GASKET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-055-0 01 1 0212-
7 GASKET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-055-0 01 1 0212-
7 GASKET 1-48259-055-0 02 1 0105-0211
7 GASKET 1-48259-055-0 02 1 0105-0211
7 GASKET
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-055-0 02 1 0212-
7 GASKET
REAR AXLE RT260<C2B> 		1-48259-055-0 02 1 0212-
8 SHELL; CYL,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-070-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-070-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-069-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-069-1 01 1 0105-
9 PIPE ASM; SHELL
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-076-0 01 1 0212-
9 PIPE ASM; SHELL
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-076-0 01 1 0212-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-0211
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-0211
9 PIPE ASM; SHELL
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-076-0 02 1 0212-
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> 		1-48259-076-0 02 1 0212-
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-016-0 04 1 0212-
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-016-0 04 1 0212-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0105-0211
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0105-0211
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-016-0 08 1 0212-
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-016-0 08 1 0212-
11 BOLT; CLAMP RING
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-035-0 04 1 0212-
11 BOLT; CLAMP RING
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-035-0 04 1 0212-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0105-0211
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0105-0211
11 BOLT; CLAMP RING
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-035-0 08 1 0212-
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> 		1-48259-035-0 08 1 0212-
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-046-0 04 1 0212-
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-046-0 04 1 0212-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 0105-0211
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 0105-0211
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-046-0 08 1 0212-
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> 		1-48259-046-0 08 1 0212-
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M10 		9-09110-510-0 04 1 0212-
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M10 		9-09110-510-0 04 1 0212-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 0105-0211
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 0105-0211
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M10 		9-09110-510-0 08 1 0212-
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> M10 		9-09110-510-0 08 1 0212-
14 SPRING & SEAT SET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-037-0 01 1 0212-
14 SPRING & SEAT SET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-037-0 01 1 0212-
14 SPRING & SEAT SET 1-48259-037-0 02 1 0105-0211
14 SPRING & SEAT SET 1-48259-037-0 02 1 0105-0211
14 SPRING & SEAT SET
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-037-0 02 1 0212-
14 SPRING & SEAT SET
REAR AXLE RT260<C2B> 		1-48259-037-0 02 1 0212-
15 PISTON
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48262-005-0 01 1 0212-
15 PISTON
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48262-005-0 01 1 0212-
15 PISTON 1-48262-005-0 02 1 0105-0211
15 PISTON 1-48262-005-0 02 1 0105-0211
15 PISTON
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48262-005-0 02 1 0212-
15 PISTON
REAR AXLE RT260<C2B> 		1-48262-005-0 02 1 0212-
16 GASKET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-048-0 01 1 0212-
16 GASKET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-048-0 01 1 0212-
16 GASKET 1-48259-048-0 02 1 0105-0211
16 GASKET 1-48259-048-0 02 1 0105-0211
16 GASKET
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-048-0 02 1 0212-
16 GASKET
REAR AXLE RT260<C2B> 		1-48259-048-0 02 1 0212-
17 BOLT ASM; EMERGENCY
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-073-0 01 1 0212-
17 BOLT ASM; EMERGENCY
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-073-0 01 1 0212-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-0211
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-0211
17 BOLT ASM; EMERGENCY
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-073-0 02 1 0212-
17 BOLT ASM; EMERGENCY
REAR AXLE RT260<C2B> 		1-48259-073-0 02 1 0212-
19 COVER; PISTON
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48269-011-0 01 1 0212-
19 COVER; PISTON
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48269-011-0 01 1 0212-
19 COVER; PISTON 1-48269-011-0 02 1 0105-0211
19 COVER; PISTON 1-48269-011-0 02 1 0105-0211
19 COVER; PISTON
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48269-011-0 02 1 0212-
19 COVER; PISTON
REAR AXLE RT260<C2B> 		1-48269-011-0 02 1 0212-
20 RING; RET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-060-0 01 1 0212-
20 RING; RET
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-060-0 01 1 0212-
20 RING; RET 1-48259-060-0 02 1 0105-0211
20 RING; RET 1-48259-060-0 02 1 0105-0211
20 RING; RET
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-060-0 02 1 0212-
20 RING; RET
REAR AXLE RT260<C2B> 		1-48259-060-0 02 1 0212-
21 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-049-0 01 1 0212-
21 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-049-0 01 1 0212-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0105-0211
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0105-0211
21 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-049-0 02 1 0212-
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-049-0 02 1 0212-
22 RING; BACKUP,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-019-0 01 1 0212-
22 RING; BACKUP,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-019-0 01 1 0212-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-0211
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-0211
22 RING; BACKUP,SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-019-0 02 1 0212-
22 RING; BACKUP,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-019-0 02 1 0212-
23 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-047-0 01 1 0212-
23 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-047-0 01 1 0212-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0105-0211
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0105-0211
23 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-047-0 02 1 0212-
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-047-0 02 1 0212-
24 BEARING; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-020-0 01 1 0212-
24 BEARING; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-020-0 01 1 0212-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-0211
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-0211
24 BEARING; SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-020-0 02 1 0212-
24 BEARING; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-020-0 02 1 0212-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-085-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-085-0 01 1 0105-
26 NUT; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-058-0 02 1 0212-
26 NUT; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-058-0 02 1 0212-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-0211
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-0211
26 NUT; PRESSURE PLATE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-058-0 04 1 0212-
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-058-0 04 1 0212-
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-057-0 01 1 0212-
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-057-0 01 1 0212-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 0105-0211
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 0105-0211
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-057-0 02 1 0212-
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-057-0 02 1 0212-
28 BRACKET; PRESSURE PLATE,HOSE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-059-0 01 1 0212-
28 BRACKET; PRESSURE PLATE,HOSE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-059-0 01 1 0212-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-0211
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-0211
28 BRACKET; PRESSURE PLATE,HOSE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-059-0 02 1 0212-
28 BRACKET; PRESSURE PLATE,HOSE
REAR AXLE RT260<C2B> 		1-48259-059-0 02 1 0212-
29 STUD; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-050-0 01 1 0212-
29 STUD; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-050-0 01 1 0212-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-0211
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-0211
29 STUD; PRESSURE PLATE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-050-0 02 1 0212-
29 STUD; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-050-0 02 1 0212-
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-044-0 02 1 0212-
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-044-0 02 1 0212-
33 RETAINER; DIAPH 1-48259-044-0 04 1 0105-0211
33 RETAINER; DIAPH 1-48259-044-0 04 1 0105-0211
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-044-0 04 1 0212-
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> 		1-48259-044-0 04 1 0212-
34 DIAPHRAGM
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48252-010-0 01 1 0212-
34 DIAPHRAGM
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48252-010-0 01 1 0212-
34 DIAPHRAGM 1-48252-010-0 02 1 0105-0211
34 DIAPHRAGM 1-48252-010-0 02 1 0105-0211
34 DIAPHRAGM
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48252-010-0 02 1 0212-
34 DIAPHRAGM
REAR AXLE RT260<C2B> 		1-48252-010-0 02 1 0212-
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48253-010-0 01 1 0212-
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48253-010-0 01 1 0212-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0105-0211
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0105-0211
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48253-010-0 02 1 0212-
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48253-010-0 02 1 0212-
36 RETAINER; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-043-0 01 1 0212-
36 RETAINER; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-043-0 01 1 0212-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0105-0211
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0105-0211
36 RETAINER; SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-043-0 02 1 0212-
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-043-0 02 1 0212-
37 SPRING; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48255-003-0 01 1 0212-
37 SPRING; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48255-003-0 01 1 0212-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-0211
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-0211
37 SPRING; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48255-003-0 02 1 0212-
37 SPRING; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48255-003-0 02 1 0212-
38 COVER; ROD & PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-066-0 01 1 0212-
38 COVER; ROD & PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-066-0 01 1 0212-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-0211
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-0211
38 COVER; ROD & PLATE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-066-0 02 1 0212-
38 COVER; ROD & PLATE
REAR AXLE RT260<C2B> 		1-48259-066-0 02 1 0212-
39 COVER; ROD & PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-065-0 01 1 0212-
39 COVER; ROD & PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-065-0 01 1 0212-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-0211
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-0211
39 COVER; ROD & PLATE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-065-0 02 1 0212-
39 COVER; ROD & PLATE
REAR AXLE RT260<C2B> 		1-48259-065-0 02 1 0212-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-068-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-068-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-067-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-067-1 01 1 0105-
41 PIPE ASM; LWR COVER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-075-0 01 1 0212-
41 PIPE ASM; LWR COVER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-075-0 01 1 0212-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0105-0211
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0105-0211
41 PIPE ASM; LWR COVER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-075-0 02 1 0212-
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> 		1-48259-075-0 02 1 0212-
67 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-053-0 01 1 0212-
67 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-053-0 01 1 0212-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-0211
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-0211
67 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-053-0 02 1 0212-
67 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-053-0 02 1 0212-
69 HOSE; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-051-0 01 1 0212-
69 HOSE; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-051-0 01 1 0212-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-0211
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-0211
69 HOSE; PRESSURE PLATE
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-051-0 02 1 0212-
69 HOSE; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-051-0 02 1 0212-
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-052-0 01 1 0212-
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-052-0 01 1 0212-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0105-0211
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0105-0211
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT210<C2A> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> 		1-48259-052-0 02 1 0212-
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-052-0 02 1 0212-

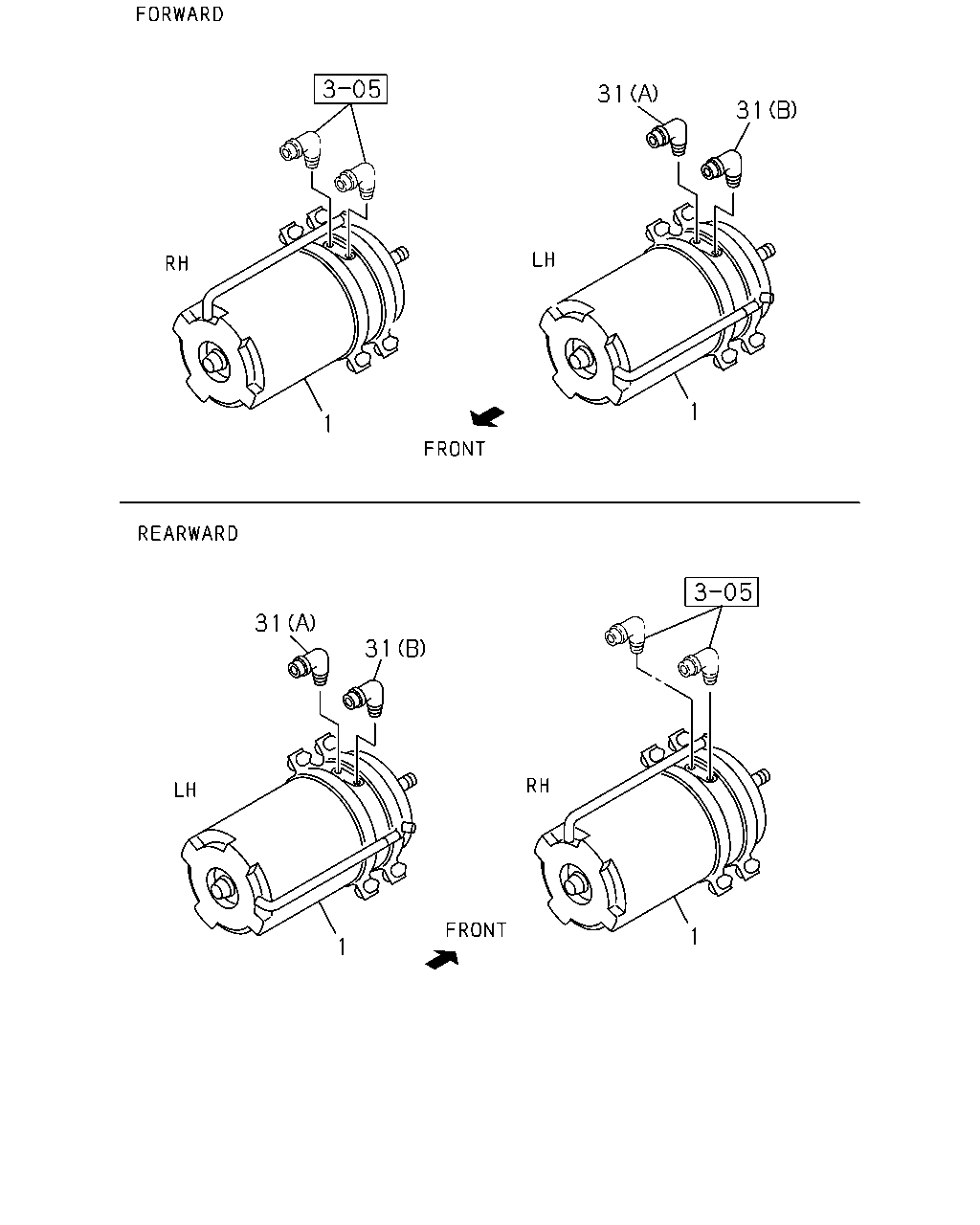

çizim 138807
31 31 1 1 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
31 CONNECTOR
(A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
(A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
(B) SERVICE DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-
31 CONNECTOR
(B) SERVICE DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
