3-40 — FRONT BRAKE POWER CHAMBER (#12163) — 191 parça

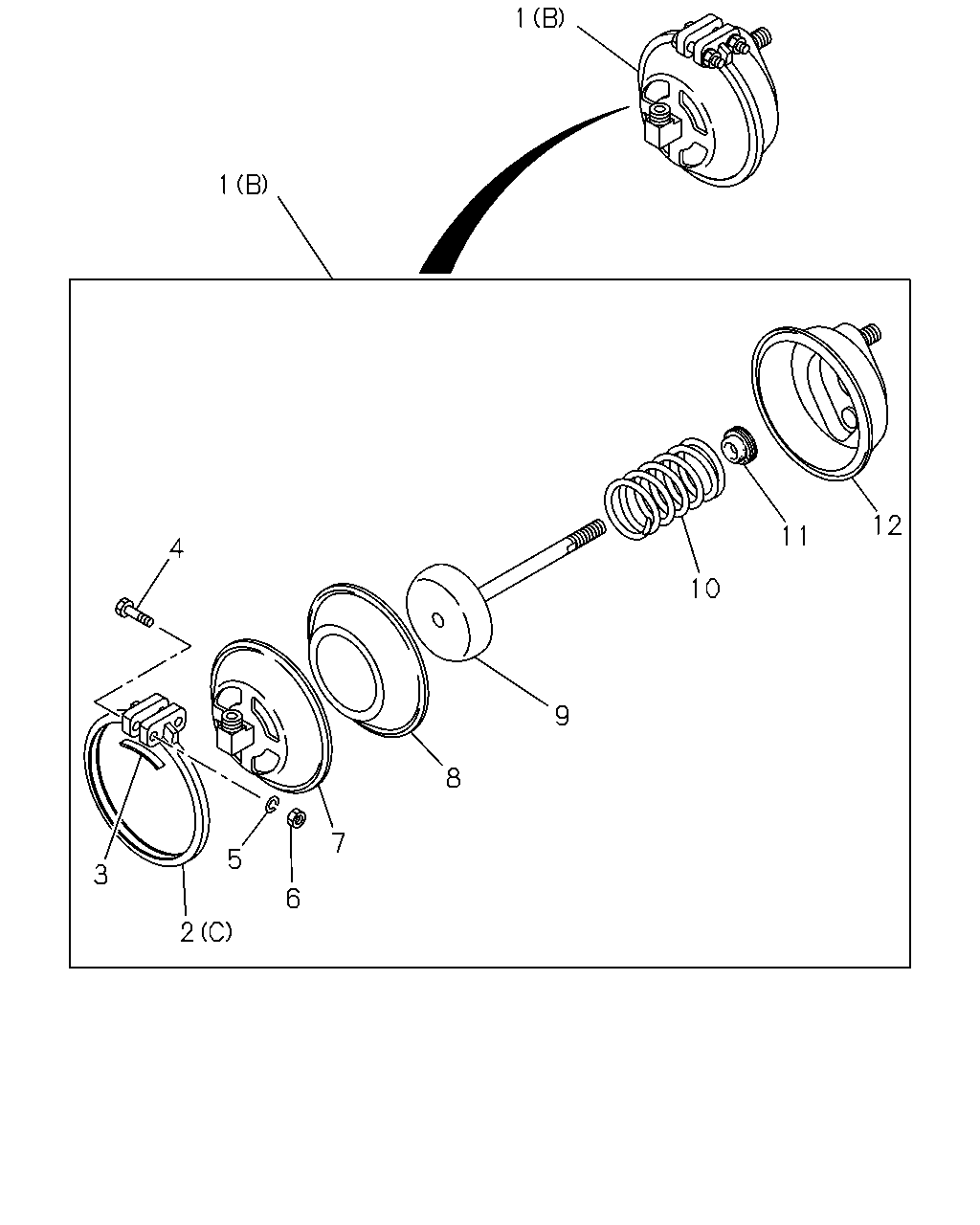

çizim 138789
1 1 12 11 4 10 9 8 7 5 3 6 2
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-523-1 01 1 0105-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-522-1 01 1 0105-
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48250-425-0 02 1 0105-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 04 1 0105-0401
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 04 1 0105-0401
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) 		9-48259-049-0 02 1 0105-
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 04 1 0105-0401
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 02 1 0402-
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 02 1 0402-
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 02 1 0105-
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 08 1 0105-0401
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 04 1 0402-0402
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 04 1 0402-0402
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-035-0 04 1 0403-
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-035-0 04 1 0403-
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 0105-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10 		1-09985-345-0 04 1 0403-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10 		1-09985-345-0 04 1 0403-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 0105-0401
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0402-0402
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0402-0402
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0403-
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0105-0401
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 08 1 0105-0401
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 04 1 0402-0402
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 04 1 0402-0402
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0403-
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0403-
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 0105-
7 COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-050-0 02 1 0105-
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 02 1 0105-0401
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 01 1 0402-
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 01 1 0402-
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-009-0 02 1 0105-
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 02 1 0105-0401
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 01 1 0402-
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 01 1 0402-
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-003-0 02 1 0105-
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 02 1 0105-0401
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 01 1 0402-
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 01 1 0402-
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48255-012-0 02 1 0105-
11 SEAL; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-025-0 02 1 0105-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-243-0 01 1 0105-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-247-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-242-0 01 1 0105-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-246-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-023-0 02 1 0105-

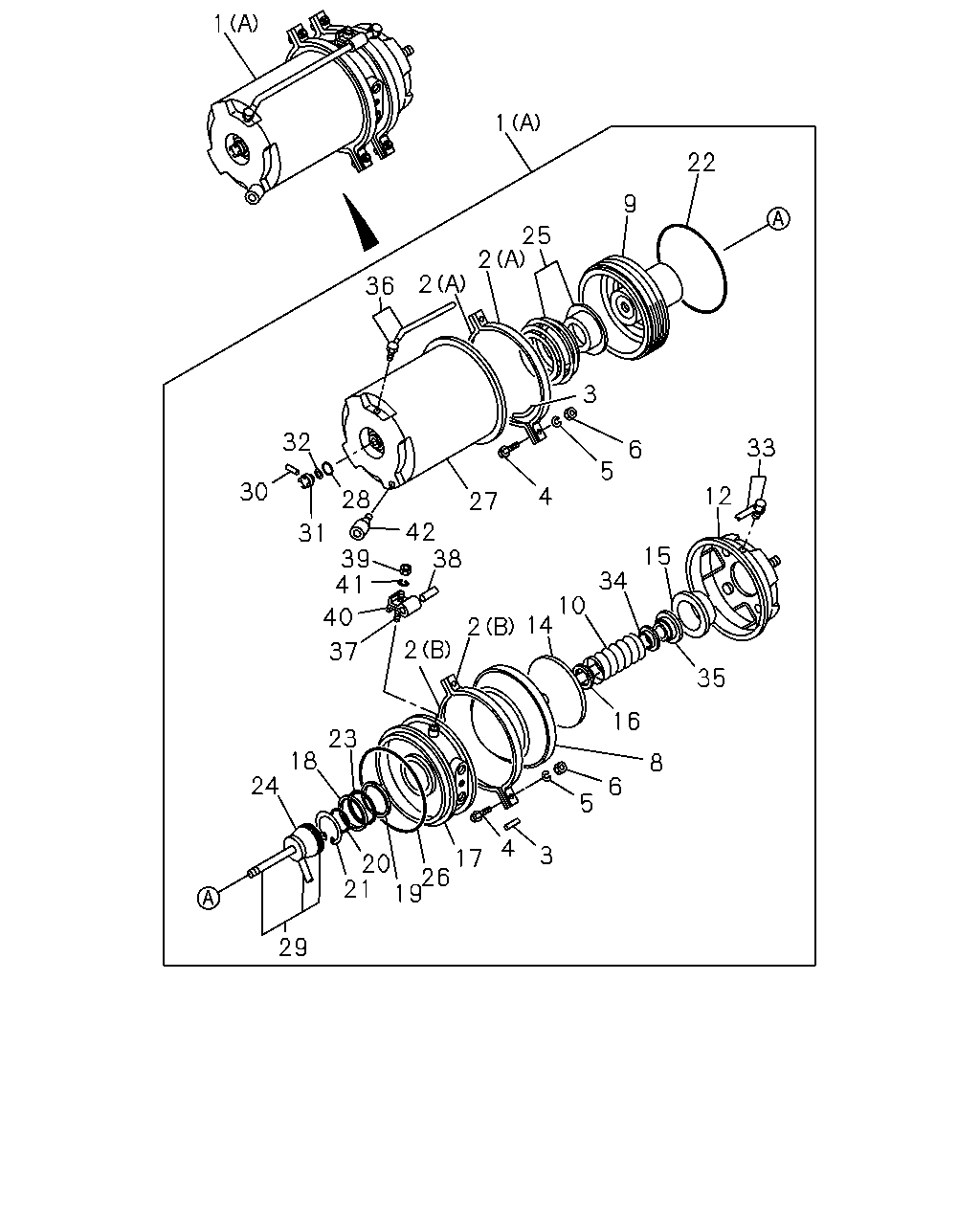

çizim 138790
1 1 22 9 25 2 2 36 3 32 28 33 6 5 30 12 4 27 42 38 31 39 41 40 37 15 34 10 28 35 16 23 18 24 8 6 5 4 3 20 17 26 21 19 29 2 14
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-523-1 01 1 0105-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-522-1 01 1 0105-
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48250-425-0 02 1 0105-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 04 1 0105-0401
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 04 1 0105-0401
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 02 1 0402-
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) 		9-48259-049-0 02 1 0105-
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 04 1 0105-0401
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 02 1 0402-
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 02 1 0402-
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 02 1 0105-
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 08 1 0105-0401
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 04 1 0402-0402
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 04 1 0402-0402
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-035-0 04 1 0403-
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-035-0 04 1 0403-
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 0105-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10 		1-09985-345-0 04 1 0403-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10 		1-09985-345-0 04 1 0403-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 0105-0401
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0402-0402
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0402-0402
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0403-
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0105-0401
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 08 1 0105-0401
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 04 1 0402-0402
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 04 1 0402-0402
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0403-
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0403-
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 0105-
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 02 1 0105-0401
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 01 1 0402-
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 01 1 0402-
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-009-0 02 1 0105-
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 02 1 0105-0401
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 01 1 0402-
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 01 1 0402-
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-003-0 02 1 0105-
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 02 1 0105-0401
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 01 1 0402-
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 01 1 0402-
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48255-012-0 02 1 0105-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-243-0 01 1 0105-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-247-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-242-0 01 1 0105-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-246-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-023-0 02 1 0105-
14 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-045-0 02 1 0105-0401
14 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-045-0 01 1 0402-
14 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-045-0 01 1 0402-
15 RETAINER; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-043-0 02 1 0105-0401
15 RETAINER; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-043-0 01 1 0402-
15 RETAINER; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-043-0 01 1 0402-
16 RETAINER; SPRING,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-033-0 02 1 0105-0401
16 RETAINER; SPRING,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-033-0 01 1 0402-
16 RETAINER; SPRING,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-033-0 01 1 0402-
17 PLATE; PRESS,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-088-0 01 1 0105-
17 PLATE; PRESS,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-087-0 01 1 0105-
18 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-019-0 02 1 0105-0401
18 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-019-0 01 1 0402-
18 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-019-0 01 1 0402-
19 BEARING; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-020-0 02 1 0105-0401
19 BEARING; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-020-0 01 1 0402-
19 BEARING; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-020-0 01 1 0402-
20 GASKET; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-047-0 02 1 0105-0401
20 GASKET; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-047-0 01 1 0402-
20 GASKET; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-047-0 01 1 0402-
21 RING; SNAP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-060-0 02 1 0105-0401
21 RING; SNAP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-060-0 01 1 0402-
21 RING; SNAP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-060-0 01 1 0402-
22 GASKET; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-048-0 02 1 0105-0401
22 GASKET; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-048-0 01 1 0402-
22 GASKET; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-048-0 01 1 0402-
23 GASKET; COVER,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-049-0 02 1 0105-0401
23 GASKET; COVER,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-049-0 01 1 0402-
23 GASKET; COVER,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-049-0 01 1 0402-
24 COVER; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48269-011-0 02 1 0105-0401
24 COVER; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48269-011-0 01 1 0402-
24 COVER; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48269-011-0 01 1 0402-
25 SPRING & SEAT SET
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-037-0 02 1 0105-0401
25 SPRING & SEAT SET
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-037-1 01 1 0402-
25 SPRING & SEAT SET
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-037-1 01 1 0402-
26 GASKET; PRESS PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-053-0 02 1 0105-0401
26 GASKET; PRESS PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-053-0 01 1 0402-
26 GASKET; PRESS PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-053-0 01 1 0402-
27 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-232-0 01 1 0105-
27 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-233-0 01 1 0105-
28 GASKET; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-09920-268-0 02 1 0105-0401
28 GASKET; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-09920-268-0 01 1 0402-
28 GASKET; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-09920-268-0 01 1 0402-
29 BOLT ASM; EMARGENCY
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-073-0 02 1 0105-0401
29 BOLT ASM; EMARGENCY
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-073-0 01 1 0402-
29 BOLT ASM; EMARGENCY
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-073-0 01 1 0402-
30 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-056-0 04 1 0105-0401
30 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-056-0 02 1 0402-
30 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-056-0 02 1 0402-
31 NUT; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-054-0 02 1 0105-0401
31 NUT; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-054-0 01 1 0402-
31 NUT; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-054-0 01 1 0402-
32 GASKET; BOLT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-055-0 02 1 0105-0401
32 GASKET; BOLT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-055-0 01 1 0402-
32 GASKET; BOLT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-055-0 01 1 0402-
33 PIPE ASM; LWR COVER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-080-0 02 1 0105-0401
33 PIPE ASM; LWR COVER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-080-0 01 1 0402-
33 PIPE ASM; LWR COVER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-080-0 01 1 0402-
34 COVER; RETAINER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-065-0 02 1 0105-0401
34 COVER; RETAINER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-065-0 01 1 0402-
34 COVER; RETAINER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-065-0 01 1 0402-
35 COVER; ROD & PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-066-0 02 1 0105-0401
35 COVER; ROD & PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-066-0 01 1 0402-
35 COVER; ROD & PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-066-0 01 1 0402-
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89922-126-1 02 1 0105-0401
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89922-126-1 01 1 0402-0402
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89922-126-1 01 1 0402-0402
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-076-0 01 1 0403-
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-076-0 01 1 0403-
37 STUD; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-050-0 02 1 0105-0401
37 STUD; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-050-0 01 1 0402-
37 STUD; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-050-0 01 1 0402-
38 HOSE; AIR
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-051-0 02 1 0105-0401
38 HOSE; AIR
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-051-0 01 1 0402-
38 HOSE; AIR
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-051-0 01 1 0402-
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94311-428-0 04 1 0105-0401
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94311-428-0 02 1 0402-0402
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94311-428-0 02 1 0402-0402
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) M8 		9-09111-508-0 02 1 0403-
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) M8 		9-09111-508-0 02 1 0403-
40 BRACKET; AIR HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-244-0 02 1 0105-0401
40 BRACKET; AIR HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-244-0 01 1 0402-
40 BRACKET; AIR HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-244-0 01 1 0402-
41 WASHER; LK,BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2 		9-09150-508-0 02 1 0105-0401
41 WASHER; LK,BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2 		9-09150-508-0 01 1 0402-
41 WASHER; LK,BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2 		9-09150-508-0 01 1 0402-
42 COVER; EXH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89966-127-3 02 1 0105-0401
42 COVER; EXH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89966-127-3 01 1 0402-
42 COVER; EXH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89966-127-3 01 1 0402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
