Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#121624) — 123 parça
◀
[605A] PROTECTOR AND BLISTER FENDER (28 parça)
[605A] SIDE PANEL (30 parça)
[605A] FRONT PANEL AND OTHER PARTS (17 parça)
[605A] FENDER (34 parça)
[605A] FRONT PANEL COMPONENT (14 parça)
▶

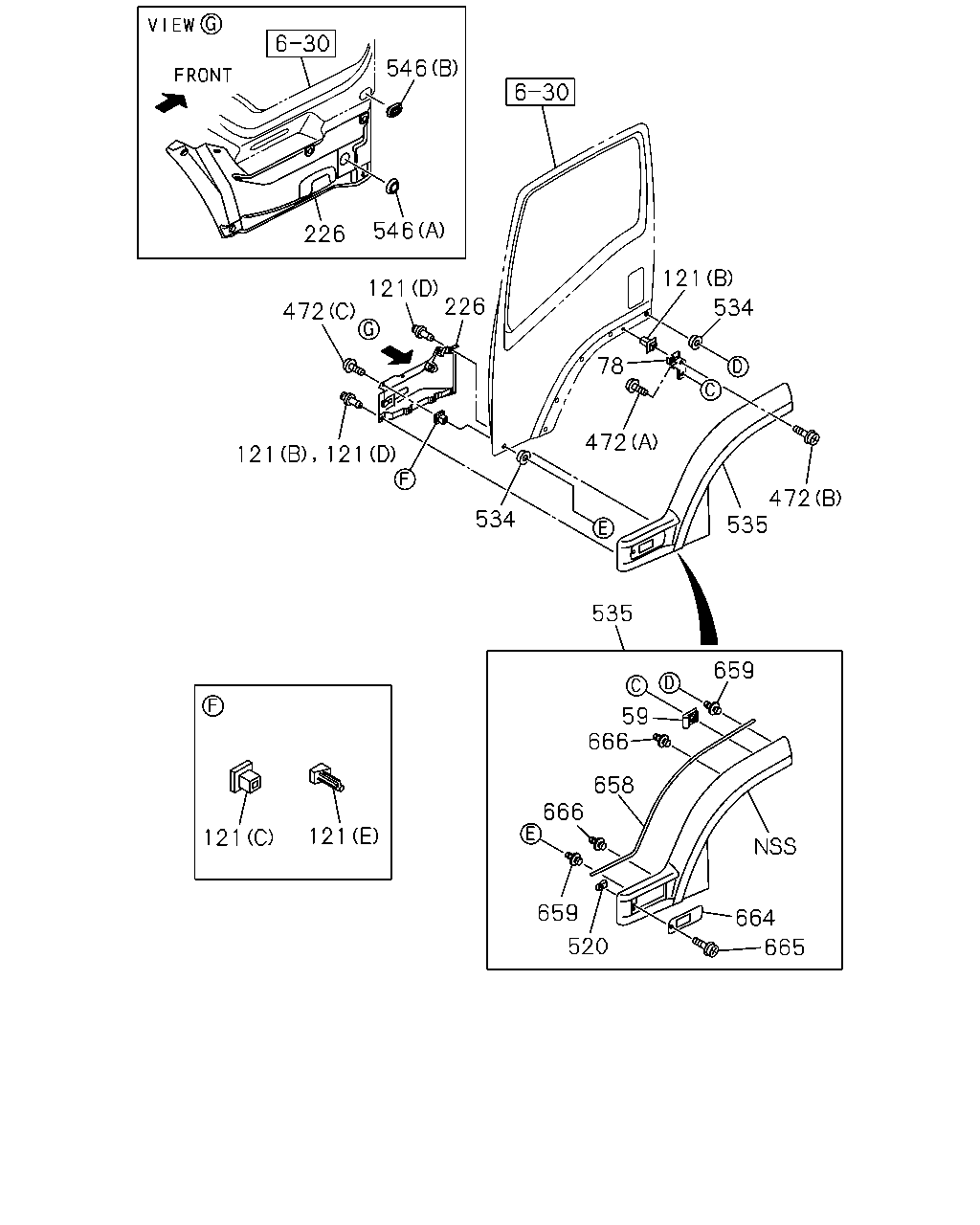

121
534
78
472
472
535
535
659
664
665
520
659
666
658
666
59
121
121
534
121
121
472
121
226
546
226
546
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
59
GROMMET; SCREW
8-94279-723-0
02
1
1304-
59
GROMMET; SCREW
8-94279-723-0
06
1
1304-
78
BRACKET; FENDER
8-98041-166-1
01
1
1304-
78
BRACKET; FENDER
8-98041-165-1
01
1
1304-
121
GROMMET; FENDER
(C) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1304-
121
GROMMET; FENDER
(A)
8-94279-723-0
04
1
1304-
121
GROMMET; FENDER
(D) OD=8.3
8-94279-989-0
12
1
1304-
121
GROMMET; FENDER
(B) H=15
8-94463-268-1
04
1
1304-
121
GROMMET; FENDER
(E)
8-98073-421-0
01
1
1304-
121
GROMMET; FENDER
(E)
8-98073-420-0
01
1
1304-
226
PROTECTOR; FRT
8-98037-715-2
01
1
1304-
226
PROTECTOR; FRT
8-98037-714-2
01
1
1304-
472
SCREW; FENDER TO CAB
(A) M6X18 TAPPING
8-98059-505-0
02
1
1304-
472
SCREW; FENDER TO CAB
(C) M5X16
8-98090-737-0
08
1
1304-
472
SCREW; FENDER TO CAB
(B) M5X12
8-98093-669-0
04
1
1304-
520
NUT; FENDER
8-94279-501-0
02
1
1304-
534
FASTENER
ID=5.4 OD=6.8
8-98241-984-0
12
1
1304-
535
FENDER; BLISTER
WHITE THA
8-97415-386-1
01
1
1304-
535
FENDER; BLISTER
WHITE THA
8-97415-366-1
01
1
1304-
546
PLUG; DUMMY HOLE
(A) OD=38
8-94159-507-0
02
1
1304-
546
PLUG; DUMMY HOLE
(B)
8-94430-184-1
02
1
1304-
658
FINISHER; BLISTER FENDER
8-98041-169-3
01
1
1304-
658
FINISHER; BLISTER FENDER
8-98041-168-3
01
1
1304-
659
CLIP; FENDER
D5.4X8
1-09983-154-0
08
1
1304-
664
BASE; DOOR,SIDE TURN
WHITE THA
8-97421-557-0
01
1
1304-
664
BASE; DOOR,SIDE TURN
WHITE THA
8-97421-529-0
01
1
1304-
665
SCREW; FENDER
M6X20 W/PL WASHER
0-36210-620-0
02
1
1304-
666
CLIP; BLISTER FENDER
8-98071-178-0
04
1
1304-

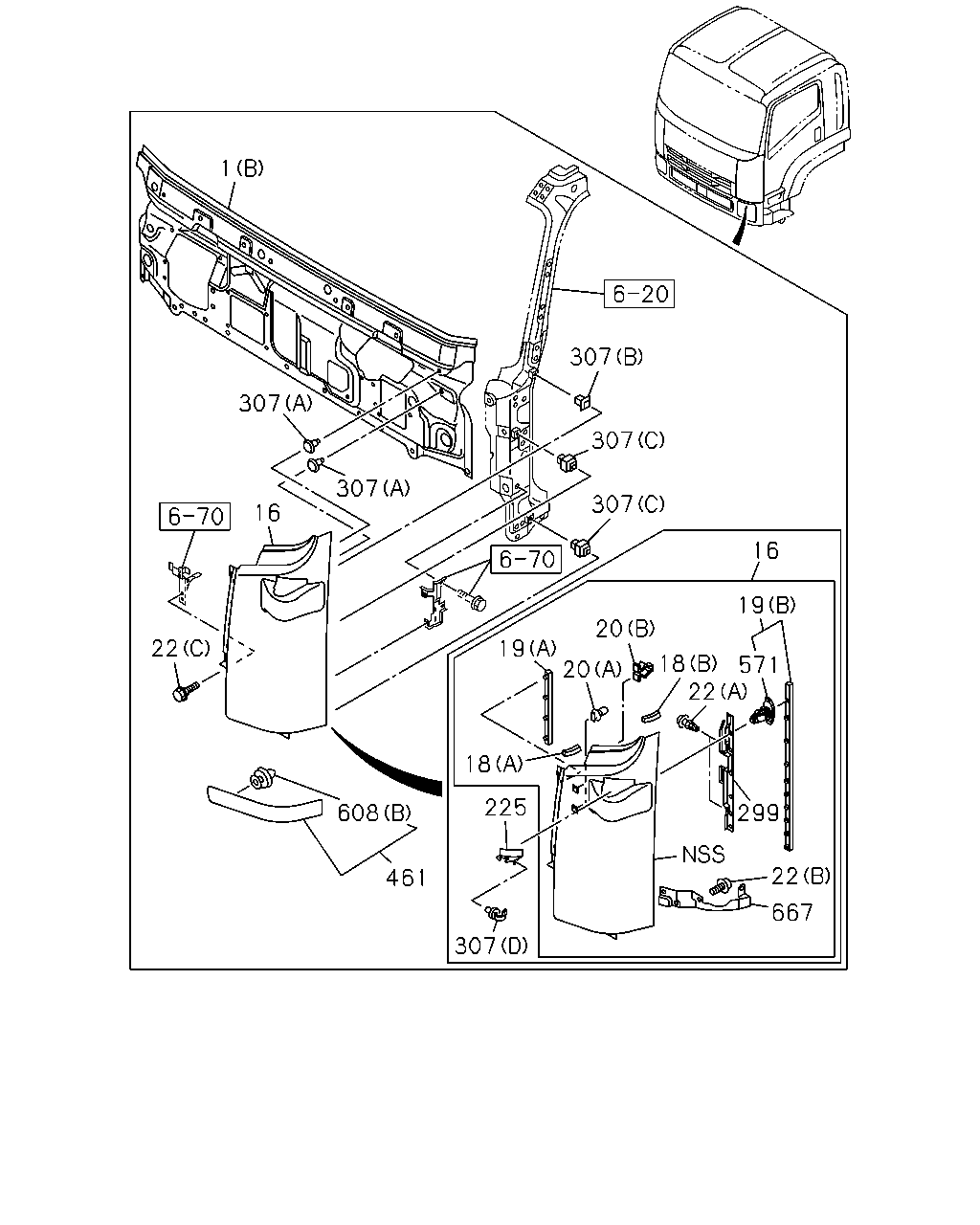

1
307
307
307
307
307
16
22
608
461
16
19
20
20
19
18
571
22
299
22
667
307
225
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
(B)
8-97585-960-9
01
1
1304-1408
1
PANEL ASM; FRT
(B) THA
8-98283-936-0
01
1
1409-
1
PANEL ASM; FRT
(A)
8-98030-234-4
01
1
1304-
16
PANEL; FRONT,SIDE
WHITE THA
8-97421-168-5
01
1
1304-
16
PANEL; FRONT,SIDE
WHITE THA
8-97413-421-4
01
1
1304-
18
SEAL; A-POST UPR,FRT SIDE PANEL
(B)
8-98038-608-0
02
1
1304-
18
SEAL; A-POST UPR,FRT SIDE PANEL
(A)
8-98043-511-1
02
1
1304-
19
SEAL; FRT SIDE PANEL
(A)
8-98036-581-0
01
1
1304-
19
SEAL; FRT SIDE PANEL
(B)
8-98041-359-2
01
1
1304-
19
SEAL; FRT SIDE PANEL
(A)
8-98036-580-0
01
1
1304-
19
SEAL; FRT SIDE PANEL
(B)
8-98041-358-2
01
1
1304-
20
CLIP; FRT PANEL SIDE
(A)
8-97410-739-0
04
1
1304-
20
CLIP; FRT PANEL SIDE
(B)
8-97410-740-2
02
1
1304-
22
SCREW; FRT PANEL SIDE
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1304-
22
SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER
0-74360-410-0
06
1
1304-
22
SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE
8-98061-108-0
06
1
1304-
225
COVER; SIDE,FRT
8-98041-431-1
01
1
1304-
299
COVER; FRT PANEL SIDE
8-98034-814-1
01
1
1304-
299
COVER; FRT PANEL SIDE
8-98034-813-1
01
1
1304-
307
GROMMET; FRT PANEL
(B)
8-97410-738-0
02
1
1304-
307
GROMMET; FRT PANEL
(C)
8-98021-300-1
04
1
1304-
307
GROMMET; FRT PANEL
(A)
8-98034-363-1
04
1
1304-
307
GROMMET; FRT PANEL
(D)
8-98028-743-0
01
1
1304-
461
PANEL; FRT SIDE
8-98058-164-2
01
1
1304-
461
PANEL; FRT SIDE
8-98058-163-2
01
1
1304-
571
CLIP; SEAL
NATURAL
8-98027-457-0
20
1
1304-
608
CLIP
(B)
8-98282-490-0
02
1
1408-
608
CLIP
(A) D5.4X8
1-09983-154-0
06
1
1304-
667
STAY; EXT,SIDE PANEL
8-98063-344-0
01
1
1304-
667
STAY; EXT,SIDE PANEL
8-98063-343-0
01
1
1304-

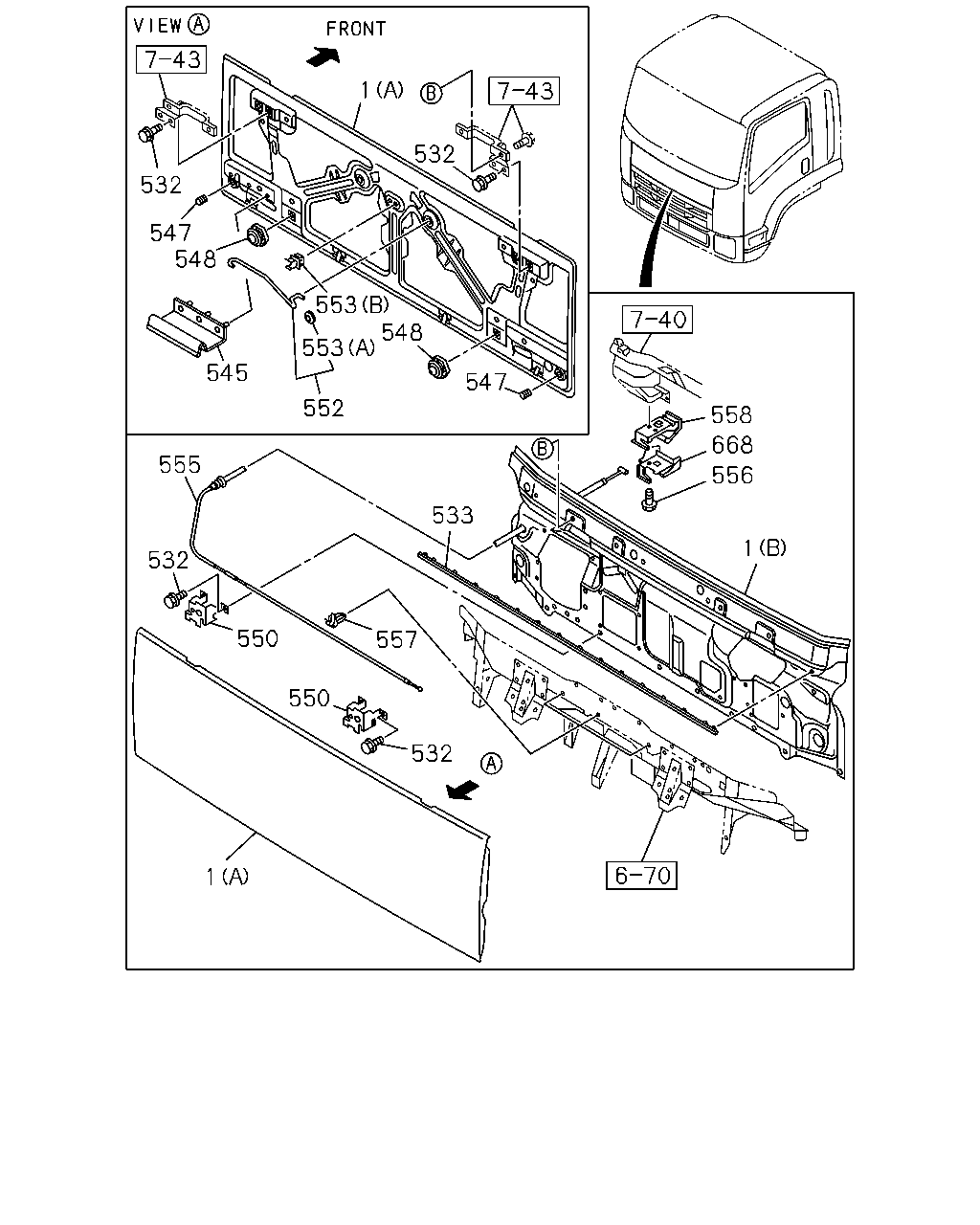

553
553
548
547
558
668
556
1
533
557
532
550
550
532
555
545
548
547
532
1
532
552
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
(B)
8-97585-960-9
01
1
1304-1408
1
PANEL ASM; FRT
(B) THA
8-98283-936-0
01
1
1409-
1
PANEL ASM; FRT
(A)
8-98030-234-4
01
1
1304-
532
BOLT; FRT PANEL
M8X20 FLANGE THA
0-28650-820-0
08
1
1304-
533
SEAL; FRT PANEL
THA
8-97926-493-0
01
1
1304-
545
SEAL; FRT LID
THA
8-97926-489-0
01
1
1304-
547
RUBBER; CUSHION
OD=22 L=29
8-94324-556-2
02
1
1304-
548
STRIKER; FRT LID PANEL
8-98068-145-1
02
1
1304-
550
LOCK ASM; FRT LID
8-98036-569-2
02
1
1304-
552
STAY; FRT LID
8-98089-838-0
01
1
1304-
553
CLIP; STAY
(B)
8-97031-428-0
01
1
1304-
553
CLIP; STAY
(A)
8-98071-399-0
01
1
1304-
555
CABLE; FRT LID
8-98036-574-1
01
1
1304-
556
BOLT; CABLE
M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
557
CLIP; CABLE
ID=4.8
8-94128-483-0
03
1
1304-
558
LEVER; FRT LID
1-79338-007-0
01
1
1304-
668
COVER; LEVER,FRT LID
8-98076-339-0
01
1
1304-

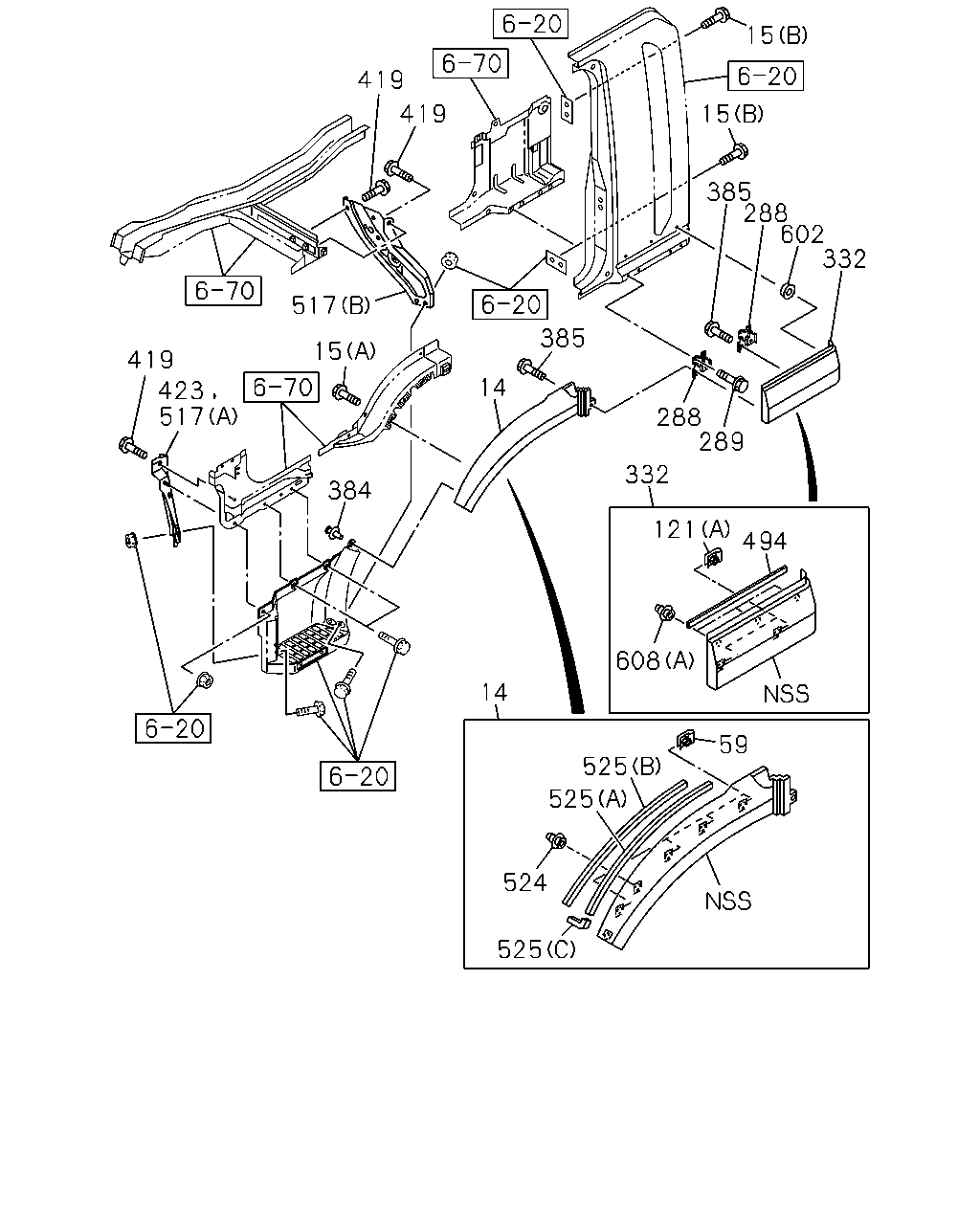

419
419
15
15
385
602
288
332
288
332
289
121
494
608
59
525
525
524
525
14
384
517
423
419
517
15
14
385
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
THA
8-98132-740-0
01
1
1304-
14
FENDER; FRT
THA
8-98132-739-0
01
1
1304-
15
BOLT; FENDER
(A) M6X20 W/PL WASHER
8-98059-504-0
06
1
1304-
15
BOLT; FENDER
(B) M8X15.5 HEX SOCKET
8-98141-874-0
08
1
1304-
59
GROMMET; SCREW
8-94279-723-0
02
1
1304-
59
GROMMET; SCREW
8-94279-723-0
06
1
1304-
121
GROMMET; FENDER
(C) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1304-
121
GROMMET; FENDER
(A)
8-94279-723-0
04
1
1304-
121
GROMMET; FENDER
(D) OD=8.3
8-94279-989-0
12
1
1304-
121
GROMMET; FENDER
(B) H=15
8-94463-268-1
04
1
1304-
121
GROMMET; FENDER
(E)
8-98073-421-0
01
1
1304-
121
GROMMET; FENDER
(E)
8-98073-420-0
01
1
1304-
288
BRACKET; FENDER SKIRT
8-98041-162-1
04
1
1304-
289
BOLT; FENDER SKIRT BRKT
M6X16 FLANGE THA
0-28650-616-0
08
1
1304-
332
FENDER; RR
WHITE THA
8-97413-424-2
01
1
1304-
332
FENDER; RR
WHITE THA
8-97413-423-2
01
1
1304-
384
CLIP; FENDER LWR
D8X13.5
1-09987-248-1
02
1
1304-
385
SCREW; FENDER LWR
M6X20 W/PL WASHER
8-98059-504-0
04
1
1304-
419
BOLT; STEP
M8X20 FLANGE THA
0-28650-820-0
08
1
1304-
423
SUPPORT ASM; STEP
8-98037-335-1
01
1
1310-
423
SUPPORT ASM; STEP
8-98037-336-1
01
1
1310-
494
FINISHER; FENDER
8-98072-723-0
01
1
1304-
494
FINISHER; FENDER
8-98041-172-1
01
1
1304-
517
SUPPORT; STEP PANEL
(A)
8-98037-336-1
01
1
1304-1309
517
SUPPORT; STEP PANEL
(B)
8-98037-351-2
01
1
1304-
517
SUPPORT; STEP PANEL
(A)
8-98037-335-1
01
1
1304-1309
517
SUPPORT; STEP PANEL
(B)
8-98037-350-2
01
1
1304-
524
CLIP; FENDER COVER
OD=7.9 BLACK
8-94279-974-1
02
1
1304-
525
SEAL; FENDER
(A)
8-98061-760-0
02
1
1304-
525
SEAL; FENDER
(B)
8-98061-761-0
02
1
1304-
525
SEAL; FENDER
(C)
8-98061-762-0
02
1
1304-
602
RETAINER; COVER
ID=5.4 OD=6.8
8-98241-984-0
06
1
1304-
608
CLIP
(B)
8-98282-490-0
02
1
1408-
608
CLIP
(A) D5.4X8
1-09983-154-0
06
1
1304-

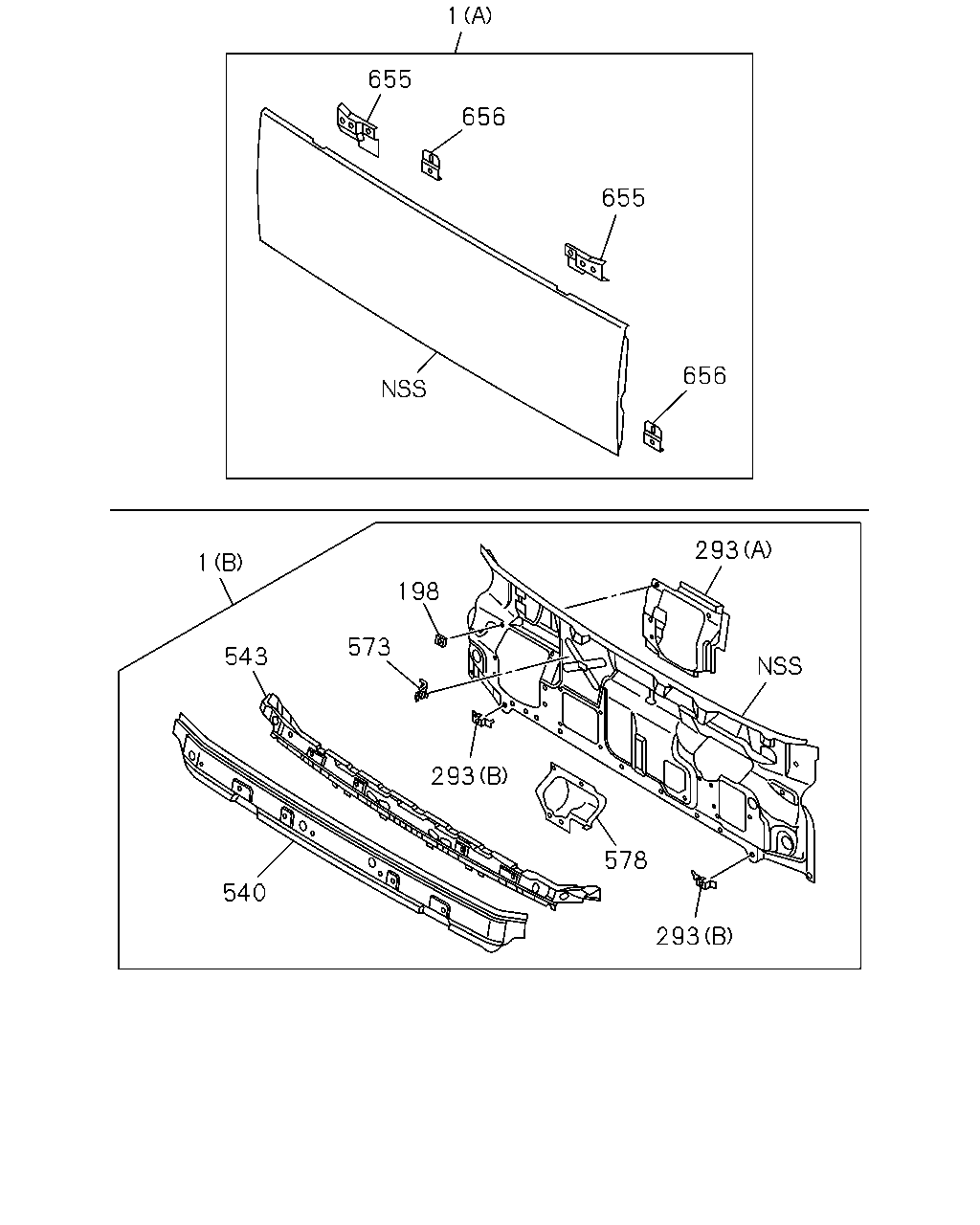

1
655
656
655
656
293
198
573
543
1
540
293
578
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
(B)
8-97585-960-9
01
1
1304-1408
1
PANEL ASM; FRT
(B) THA
8-98283-936-0
01
1
1409-
1
PANEL ASM; FRT
(A)
8-98030-234-4
01
1
1304-
198
NUT; PANEL
M6 THA
9-09114-086-0
02
1
1304-
293
BRACKET; PANEL
(A)
8-97586-007-3
01
1
1304-
293
BRACKET; PANEL
(B)
8-98008-124-1
01
1
1304-
293
BRACKET; PANEL
(B)
8-98008-126-1
01
1
1304-
540
PANEL; FRONT,OUTER
8-97585-966-2
01
1
1304-
543
CLOSING; FRT MTG RAIL
8-97585-990-4
01
1
1304-
573
BRACKET; SUPPORT
8-98017-700-2
01
1
1304-
578
COVER; WIPER MOTOR
8-97586-018-3
01
1
1304-
655
PATCH; HINGE
8-98031-263-0
01
1
1304-
655
PATCH; HINGE
8-98031-264-0
01
1
1304-
656
PATCH; STRIKER
8-98031-265-0
02
1
1304-
