Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

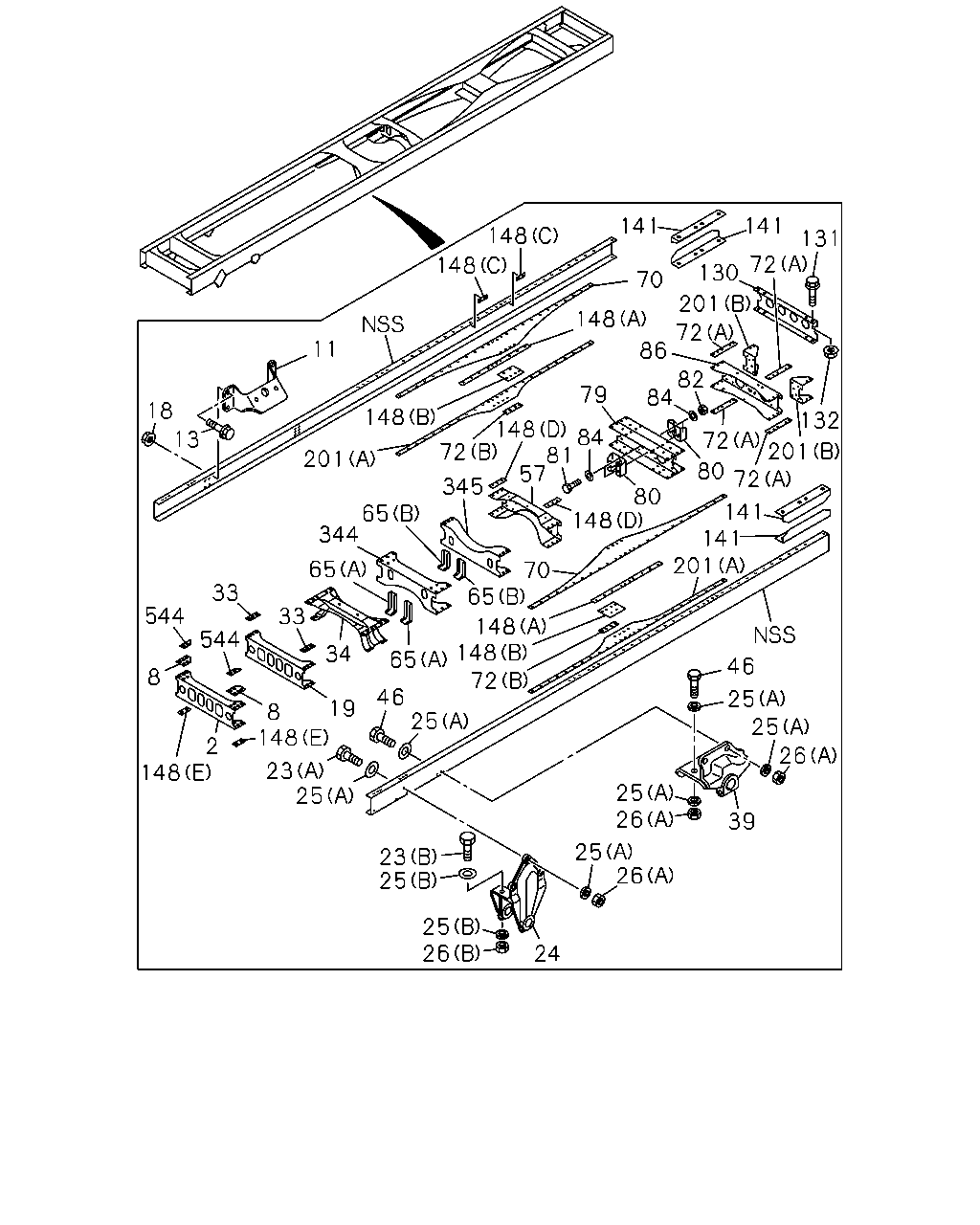

5-01 — FRAME AND OTHER PARTS
(#121617) — 60 parça
Tümü
A - WHEEL BASE 6300MM
B - WHEEL BASE 7100MM
18
11
148
148
141
141
544
33
33
65
344
65
201
148
148
70
72
148
79
86
72
201
130
72
131
8
544
8
2
148
34
148
345
57
81
84
84
82
65
70
148
80
72
132
201
72
141
141
201
148
148
72
65
46
25
19
80
13
23
25
23
25
25
26
24
26
25
25
26
26
25
25
46
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
8-97610-852-6
01
1
1304-1307
●
●
2
MEMBER; CROSS,1ST
THA
8-97948-166-0
01
1
1308-
●
●
8
GUSSET; 1ST C/MBR
THA
8-97611-027-0
02
1
1304-1307
●
●
8
GUSSET; 1ST C/MBR
THA
8-97948-167-0
02
1
1308-
●
●
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1304-
●
●
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
1304-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1304-
●
●
19
MEMBER; CROSS,2ND
8-97610-853-4
01
1
1304-1307
●
●
19
MEMBER; CROSS,2ND
THA
8-97948-169-0
01
1
1308-
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1304-
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1304-
●
●
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1304-1307
●
●
24
BRACKET; FRT SPR,FRT
THA
8-97948-158-0
01
1
1308-
●
●
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1304-1307
●
●
24
BRACKET; FRT SPR,FRT
THA
8-97948-160-0
01
1
1308-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1304-
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1304-
●
●
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1304-
●
●
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1304-
●
●
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1304-1307
●
●
33
SPACER; 2ND C/MBR,UPR
THA
8-97948-140-0
02
1
1308-
●
●
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1304-1307
●
●
34
MEMBER; CROSS,3RD
THA
8-97948-172-0
01
1
1308-
●
●
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1304-
●
●
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1304-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1304-
●
●
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97612-103-1
01
1
1304-
●
●
65
BRACKET; CENTER BRG
(A)
8-97612-486-0
02
1
1304-
●
65
BRACKET; CENTER BRG
(B)
8-97614-125-0
02
1
1304-
●
65
BRACKET; CENTER BRG
(B)
8-97614-127-0
02
1
1304-
●
65
BRACKET; CENTER BRG
(A)
8-97614-134-0
02
1
1304-
●
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1304-
●
●
72
SPACER; TRUNNION
(A)
8-97612-110-0
04
1
1304-1307
●
●
72
SPACER; TRUNNION
(A) THA
8-97948-182-0
04
1
1308-
●
●
72
SPACER; TRUNNION
(B) THA
8-97922-399-0
02
1
1304-
●
●
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97612-104-0
01
1
1304-
●
●
80
BRACKET; C/MBR
THA
1-53363-068-0
02
1
1304-1307
●
●
80
BRACKET; C/MBR
THA
8-97948-138-0
02
1
1308-
●
●
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1304-
●
●
82
NUT; BRKT
M14 THA
0-91110-514-0
02
1
1304-
●
●
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1304-
●
●
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-655-0
01
1
1304-
●
●
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
1304-
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
1304-
●
●
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1304-
●
●
141
STIFFENER
THA
8-97926-003-1
04
1
1304-
●
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1304-1307
●
●
148
SPACER; C/MBR
(E) THA
8-97948-168-0
02
1
1308-
●
●
148
SPACER; C/MBR
(D) THA
8-97612-109-0
02
1
1304-
●
●
148
SPACER; C/MBR
(C)
8-97612-111-0
04
1
1304-1307
●
●
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1304-
●
●
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1304-
●
●
201
GUSSET; C/MBR
(A)
8-97612-107-3
02
1
1304-
●
201
GUSSET; C/MBR
(B) THA
8-97612-108-2
02
1
1304-
●
●
201
GUSSET; C/MBR
(A)
8-98200-450-0
02
1
1304-
●
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1304-1307
●
●
344
MEMBER; CROSS,4TH
THA
8-97948-180-0
01
1
1308-
●
●
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1304-1307
●
●
345
MEMBER; CROSS,5TH
THA
8-97948-180-0
01
1
1308-
●
●
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
1304-1307
●
●
