Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

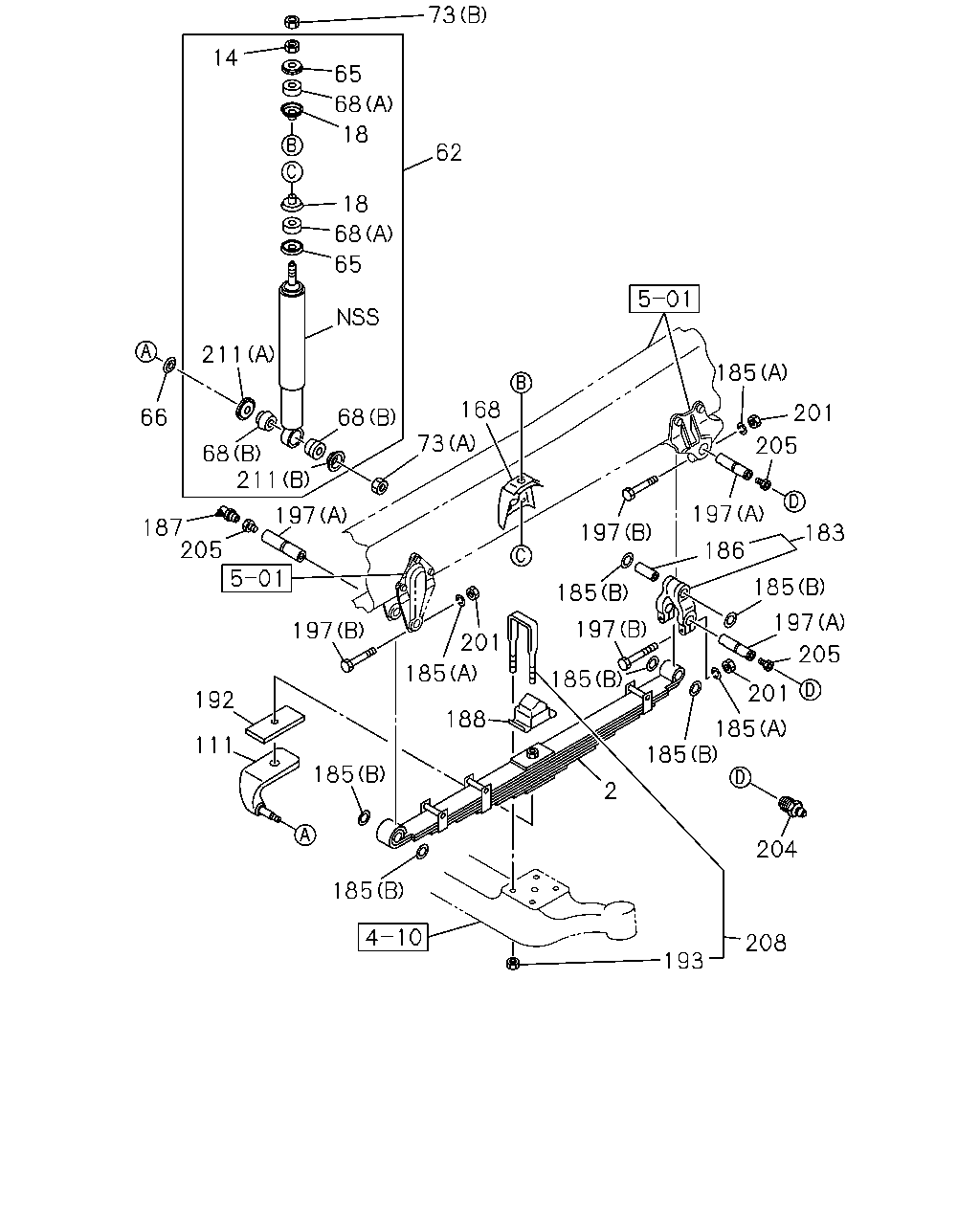

4-50 — FRONT SUSPENSION
(#121612) — 33 parça
73
65
68
18
62
18
68
65
14
211
68
211
66
187
197
68
73
168
197
185
197
186
205
183
201
185
185
197
205
201
185
185
185
197
2
201
185
197
205
192
111
185
185
193
208
204
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98167-308-0
02
1
1304-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1304-
18
WASHER; CENTERING,S/ABS
ID=20.8 THA
9-51631-041-0
04
1
1304-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-224-0
02
1
1304-
65
WASHER; S/ABS
ID=16.5 THA
9-51631-040-0
04
1
1304-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1304-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1304-
68
BUSHING; S/ABS
(A) THA
9-51631-039-0
04
1
1304-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1304-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-195-0
01
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-193-0
01
1
1304-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1304-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1304-1307
183
SHACKLE; FRT SUSP
1-51162-029-5
04
1
1308-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1304-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1304-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1304-1307
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
04
1
1308-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1304-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1304-1307
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-188-0
02
1
1308-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1304-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1304-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1304-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1304-1306
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1307-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1304-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1304-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1304-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1304-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1304-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1304-
