3-26 — TRAILER CONTROL (#12161) — 178 parça

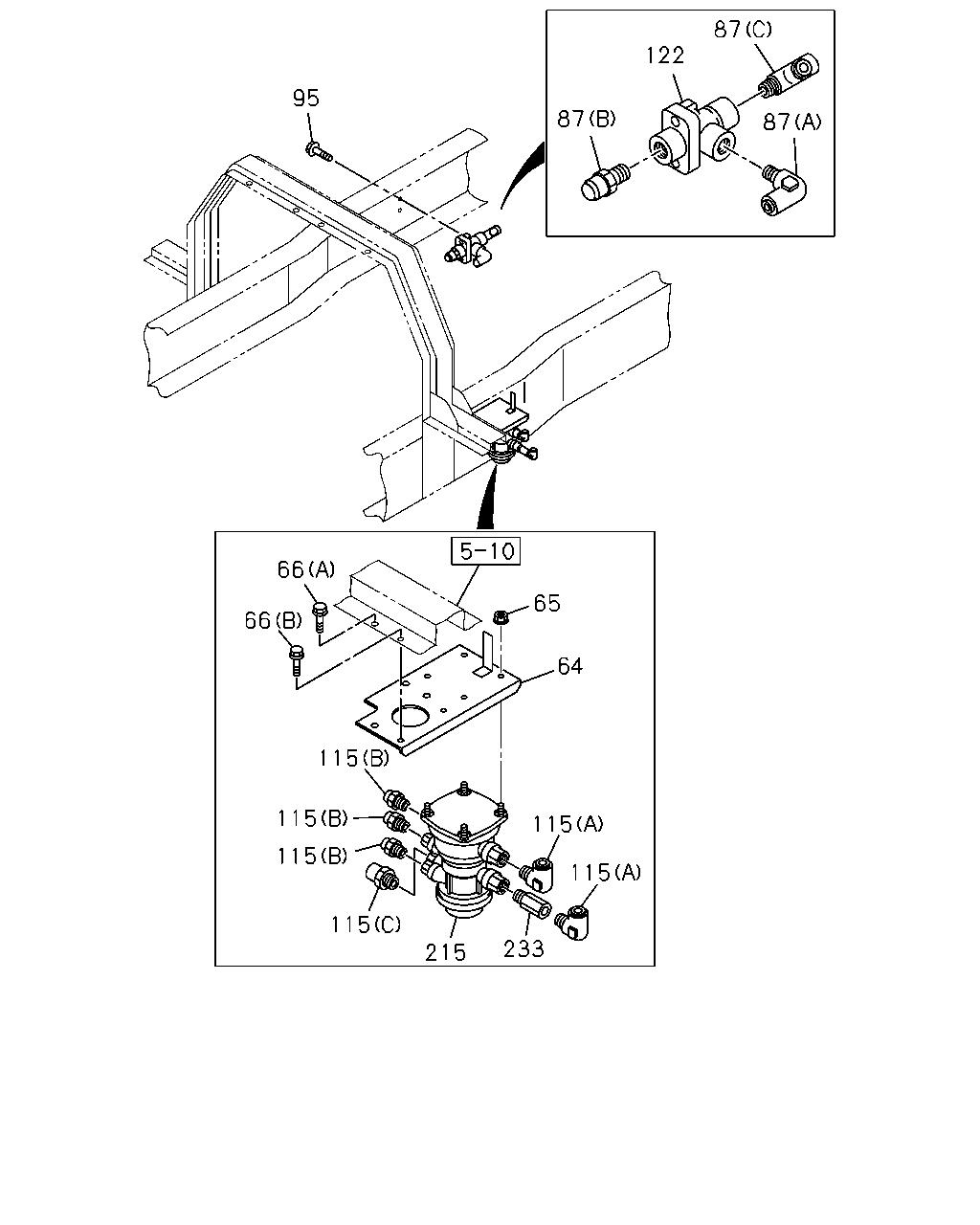

87 122 95 87 87 66 65 66 64 115 115 115 115 115 115 233 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV	1-48495-216-0	01	1	0105-
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	04	1	0105-0602
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; VLV BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; VLV BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; VLV BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
66	BOLT; VLV BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-
87	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
87	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
87	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0105-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28050-816-0	02	1	0601-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0105-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE HAND CONTROL<NLG>	1-48410-531-1	01	1	0105-
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0105-
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0105-

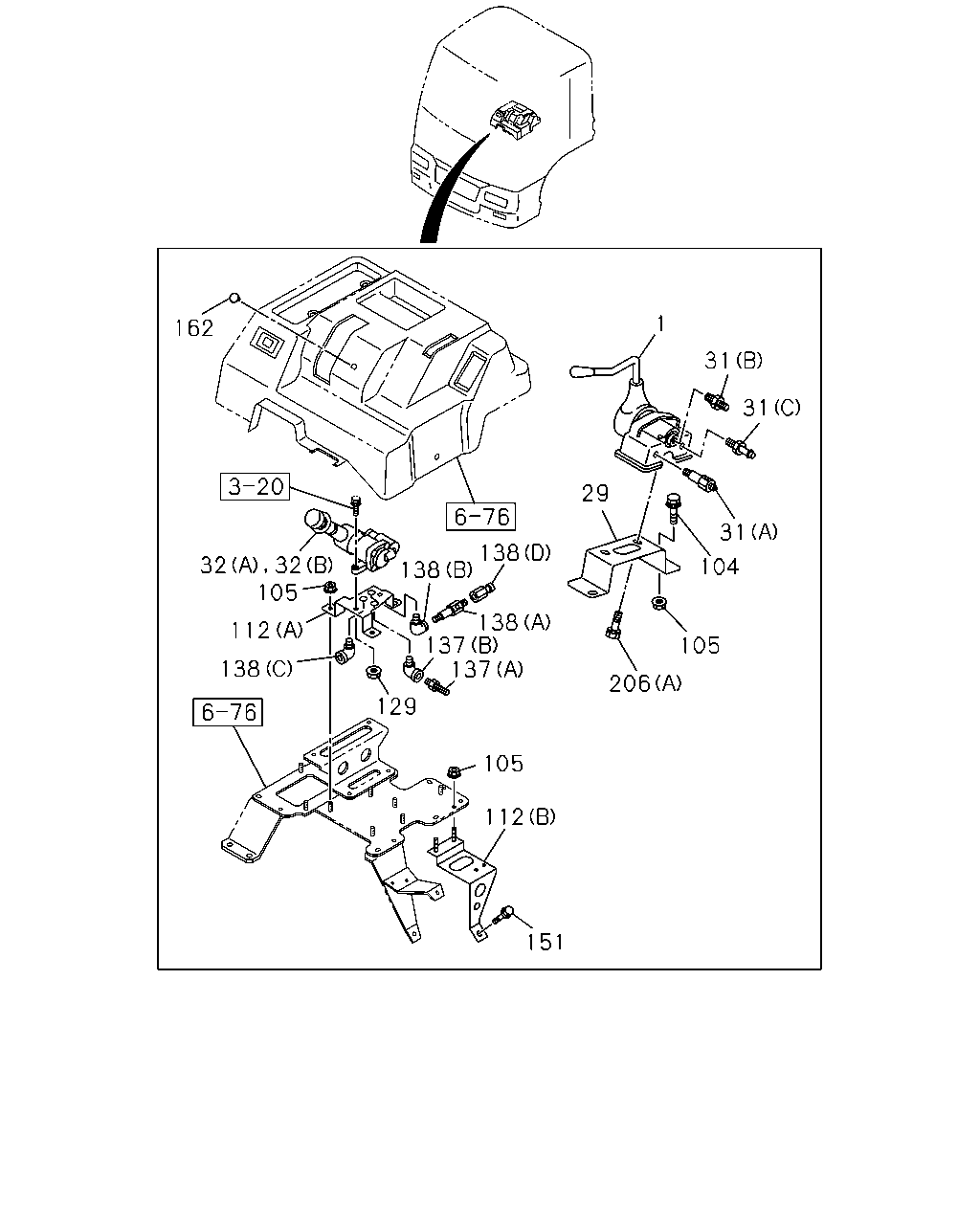

1 162 31 31 29 31 138 138 32 105 32 104 138 137 137 112 105 138 206 129 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-849-0	01	1	0105-
29	BRACKET; HAND BRK	1-79996-131-2	01	1	0105-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0105-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0105-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0105-0607
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-
32	VALVE; BRK,HAND CONT (A)	1-48460-339-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT (B)	1-48460-316-0	01	1	0106-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-0602
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	0105-
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-112-2	01	1	0105-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0212-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0212-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0105-0211
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09650-352-1	01	1	0105-
138	CONNECTOR; DELIVERY (B)	1-09650-240-1	01	1	0105-0105
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0105-
138	CONNECTOR; DELIVERY (D)	1-09660-880-0	01	1	0105-
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	0105-
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0105-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0105-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0105-0105
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL<NLG> (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0105-0512
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL<NLG> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-

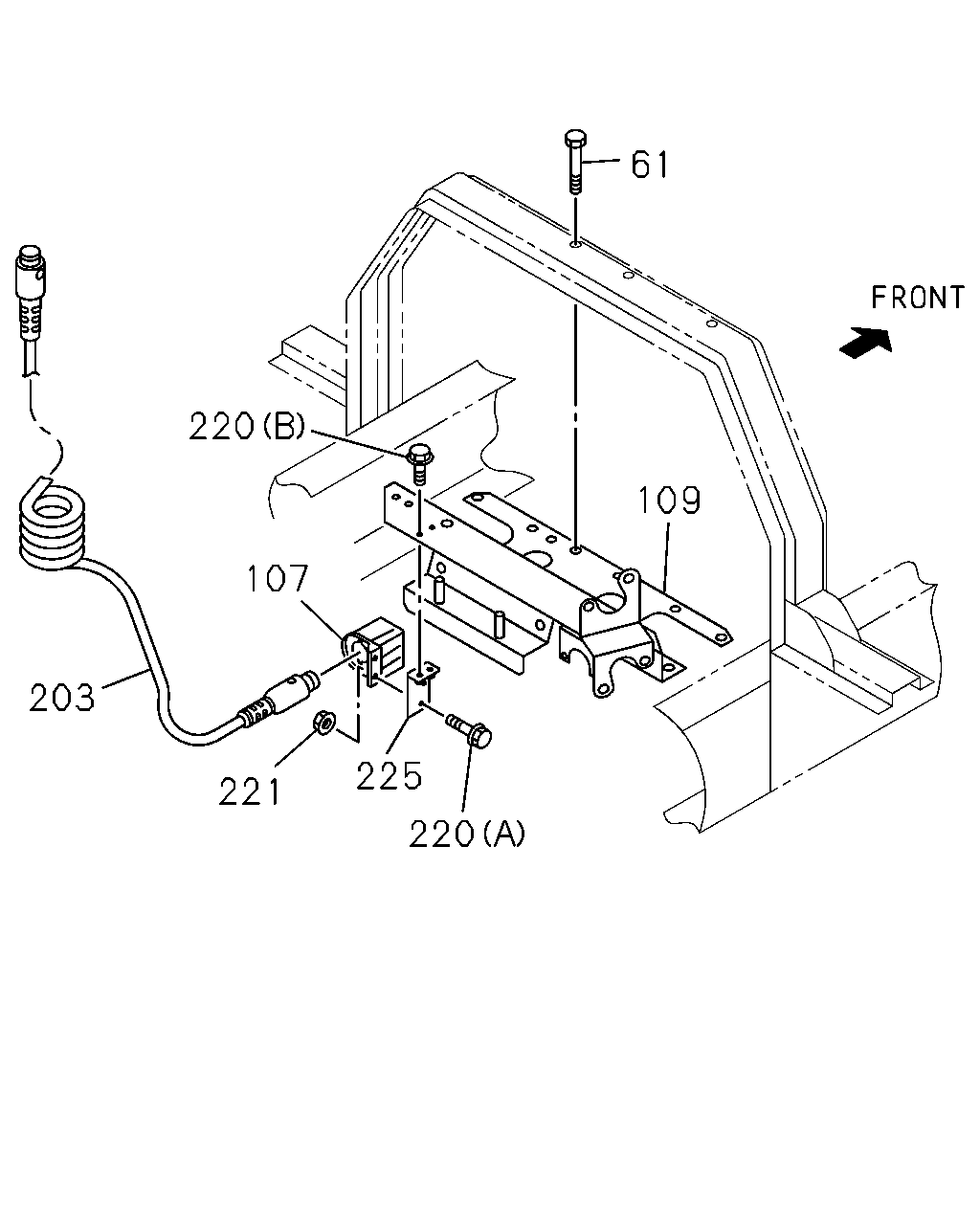

61 220 109 107 225 203 221 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	0105-0311
61	BOLT; STEP BOARD M10X30 FLANGE	0-28681-030-0	08	1	0312-0512
61	BOLT; STEP BOARD M10X30 FLANGE	0-28651-030-0	08	1	0601-1110
61	BOLT; STEP BOARD M10X30 FLANGE	0-28651-030-0	06	1	1111-
107	HANGER; JUMPER HOSE	1-57550-022-2	01	1	0105-
109	BRACKET; HOSE HANGER	1-53497-657-0	01	1	0105-0105
109	BRACKET; HOSE HANGER	1-53497-672-0	01	1	0106-0201
109	BRACKET; HOSE HANGER	1-53497-683-1	01	1	0202-
203	CABLE; JUMPER L=5500	1-82659-201-2	01	1	0105-1009
203	CABLE; JUMPER L=5500	8-98107-178-0	01	1	1010-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	0105-0512
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	0105-0602
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	0603-
225	BRACKET; HANGER	1-82698-002-0	01	1	0105-

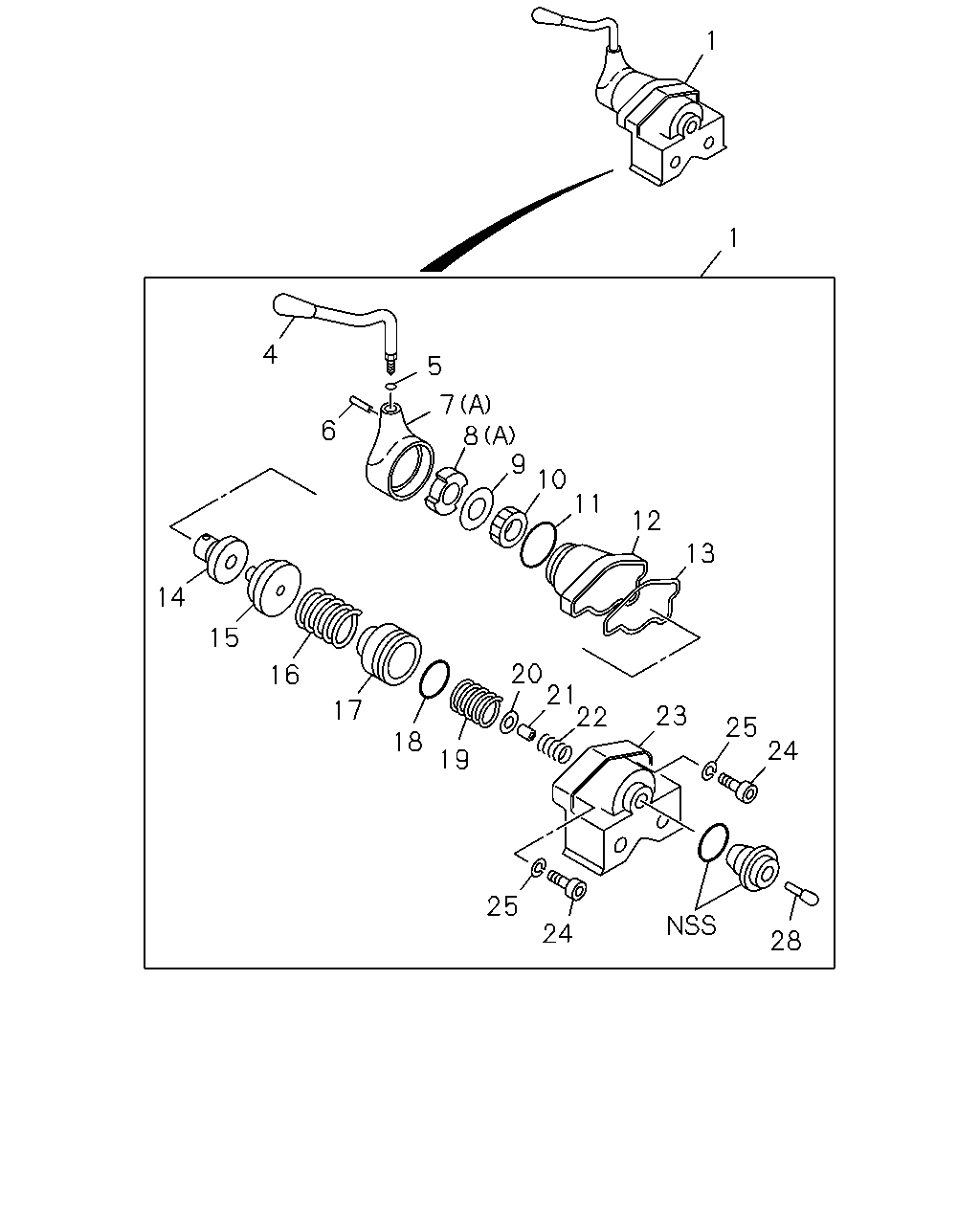

1 1 4 5 7 8 6 9 10 11 12 13 14 15 20 21 22 16 17 23 25 24 18 19 25 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-849-0	01	1	0105-
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	0105-
5	GASKET; HANDLE	1-48119-128-0	01	1	0105-
6	PIN; SPR	1-48119-143-0	01	1	0105-
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0105-0105
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	0105-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0105-0105
8	STOPPER; BRK VLV (A)	1-48119-136-0	01	1	0105-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0105-
10	RING; ADJ	1-48119-122-0	01	1	0105-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0105-
12	COVER; BRK VLV	1-48129-097-1	01	1	0105-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0105-
14	FOLLOWER; CAM	1-48129-109-0	01	1	0105-
15	CAM; FOLLOWER	1-48129-110-0	01	1	0105-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0105-
17	PISTON; SPR	1-48129-095-0	01	1	0105-
18	GASKET; BODY	1-48129-096-0	01	1	0105-
19	SPRING; PISTON	1-48129-094-0	01	1	0105-
20	GUIDE; VLV	1-48129-090-0	01	1	0105-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0105-
22	SPRING; VLV	1-48123-024-0	01	1	0105-
23	BODY; BRK VLV	1-48111-060-1	01	1	0105-
24	BOLT; EXH VLV	1-48129-092-0	02	1	0105-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0105-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0105-

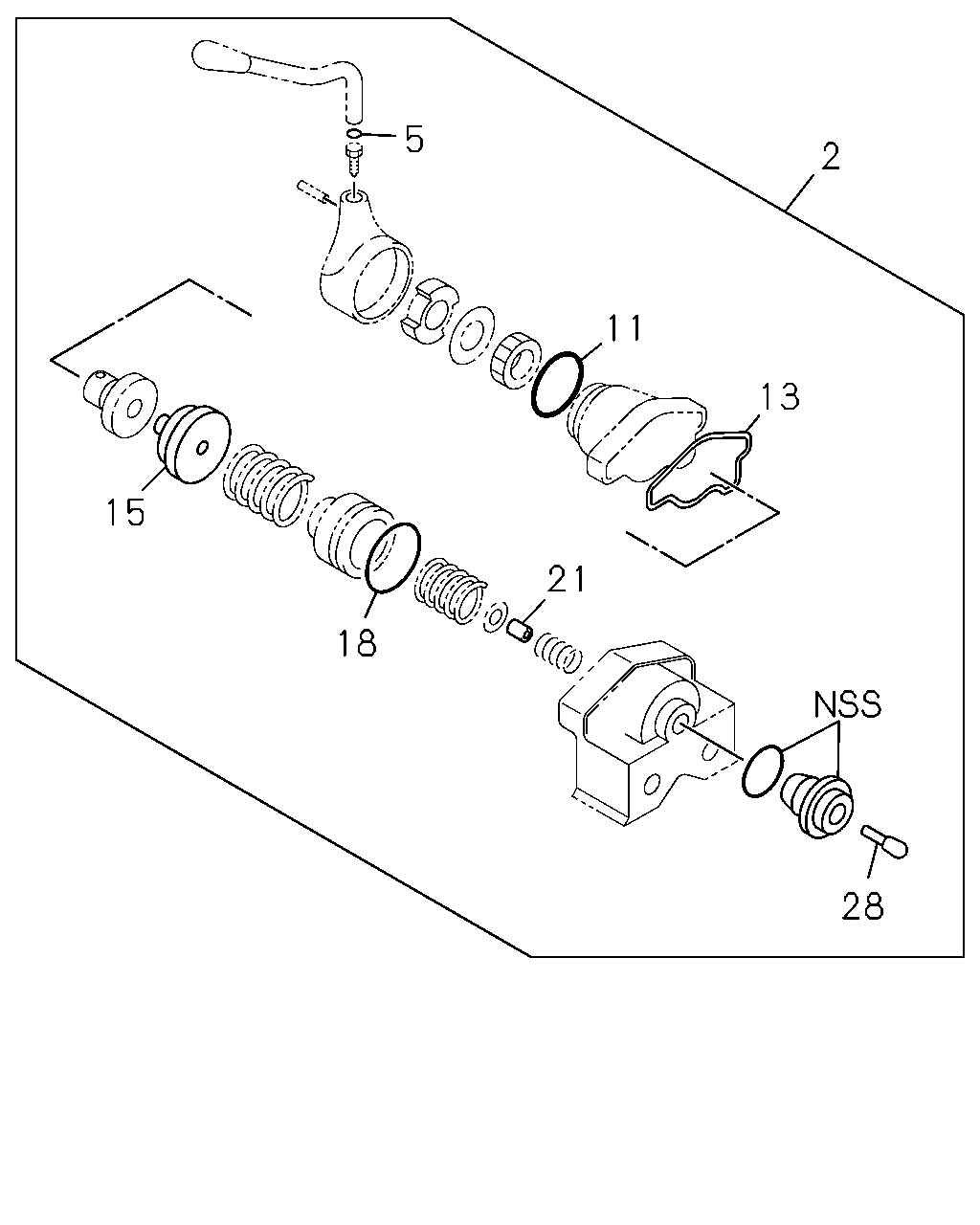

5 2 11 13 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	0105-
5	GASKET; HANDLE	1-48119-128-0	01	1	0105-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0105-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0105-
15	CAM; FOLLOWER	1-48129-110-0	01	1	0105-
18	GASKET; BODY	1-48129-096-0	01	1	0105-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0105-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0105-

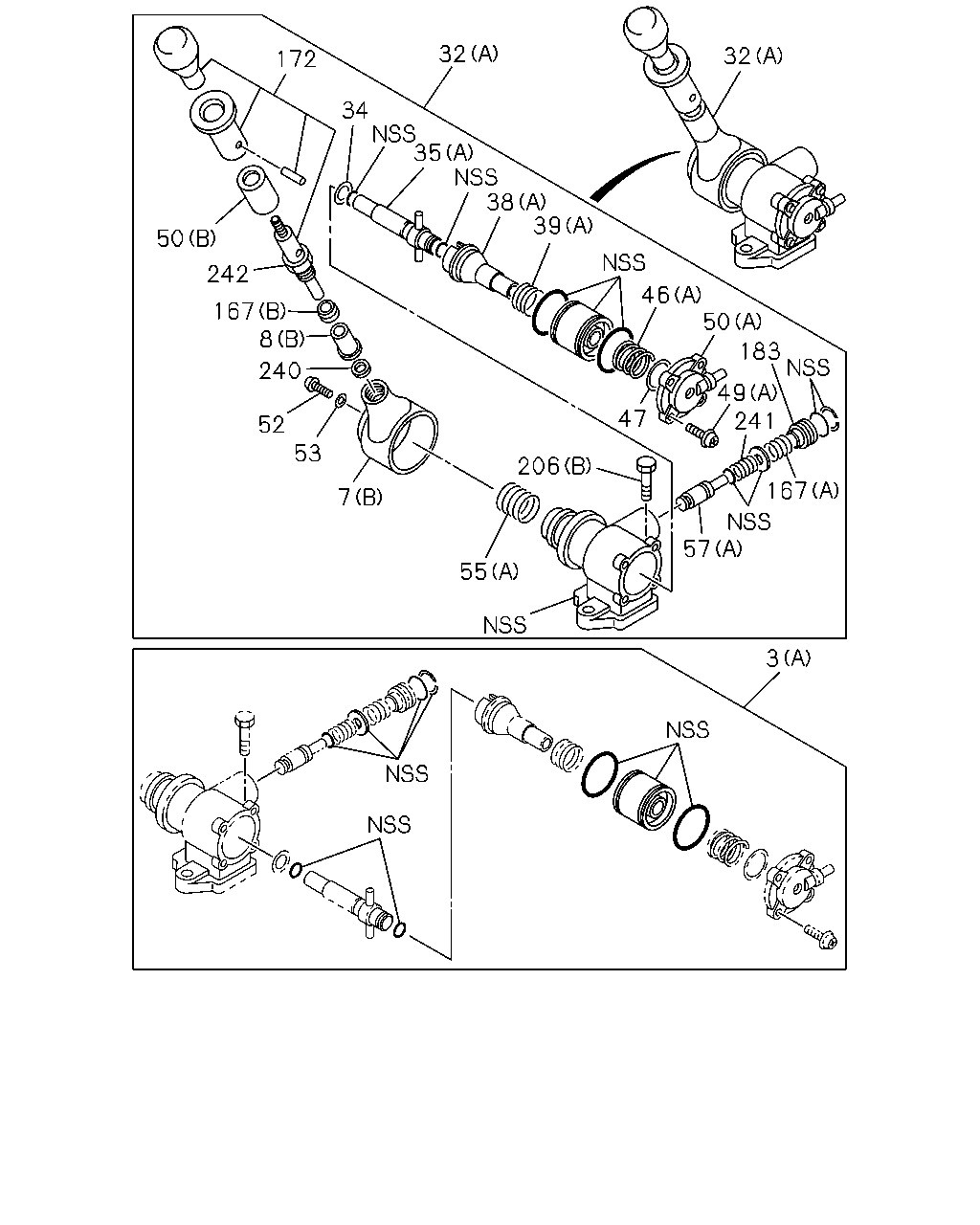

32 32 172 34 35 38 39 50 242 46 50 167 8 183 49 241 240 47 52 53 167 206 7 57 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-245-0	01	1	0105-0105
3	REPAIR KIT; HAND BRK VLV (B)	1-48469-083-0	01	1	0106-
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0105-0105
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	0105-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0105-0105
8	STOPPER; BRK VLV (A)	1-48119-136-0	01	1	0105-
32	VALVE; BRK,HAND CONT (A)	1-48460-339-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT (B)	1-48460-316-0	01	1	0106-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0105-
35	HOLDER; CAM (A)	1-48469-171-0	01	1	0105-0105
35	HOLDER; CAM (B)	1-48469-054-0	01	1	0106-
38	SEAT; EXH VLV (A)	1-48469-172-0	01	1	0105-0105
38	SEAT; EXH VLV (B)	1-48469-057-0	01	1	0106-
39	SPRING; RETURN,CAM RING (A)	1-48469-150-0	01	1	0105-0105
39	SPRING; RETURN,CAM RING (B)	1-48469-063-0	01	1	0106-
46	SPRING; MAIN,PISTON (A)	1-48469-173-0	01	1	0105-0105
46	SPRING; MAIN,PISTON (B)	1-48469-119-0	01	1	0106-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0105-
49	SCREW; COVER (A)	1-48469-169-0	04	1	0105-0105
49	SCREW; COVER (B)	1-48469-120-0	04	1	0106-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-0105
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	0106-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-0105
52	SCREW; HANDLE	1-48469-062-0	01	1	0105-
53	WASHER; HANDLE	1-48469-061-0	01	1	0105-
55	SPRING; RETURN,HANDLE (A)	1-48469-155-0	01	1	0105-0105
55	SPRING; RETURN,HANDLE (B)	1-48469-059-0	01	1	0106-
57	PLUNGER; HAND BRK VLV (A)	1-48469-180-0	01	1	0105-0105
57	PLUNGER; HAND BRK VLV (B)	1-48469-076-0	01	1	0106-
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0105-0105
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0105-0105
172	KNOB; VALVE	1-48469-203-0	01	1	0105-0105
183	RETAINER; VALVE	1-48469-185-0	01	1	0105-0105
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0105-0105
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL<NLG> (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0105-0512
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL<NLG> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
240	RING; STOPPER	1-48469-199-0	01	1	0105-0105
241	SPRING; RETURN	1-48469-182-0	01	1	0105-0105
242	NUT; LK	1-48469-179-0	01	1	0105-0105

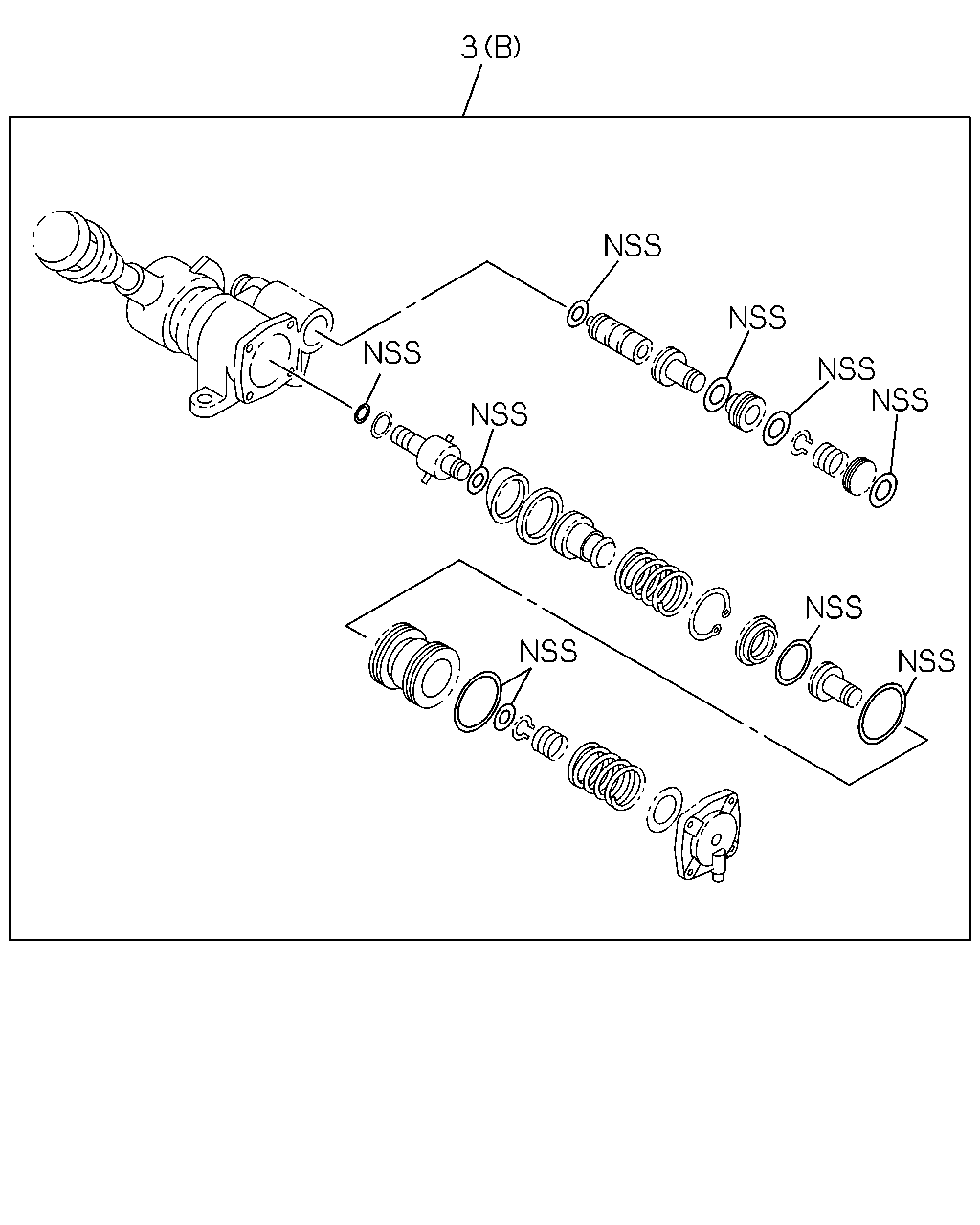

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV (A)	1-85576-245-0	01	1	0105-0105
	3	REPAIR KIT; HAND BRK VLV (B)	1-48469-083-0	01	1	0106-

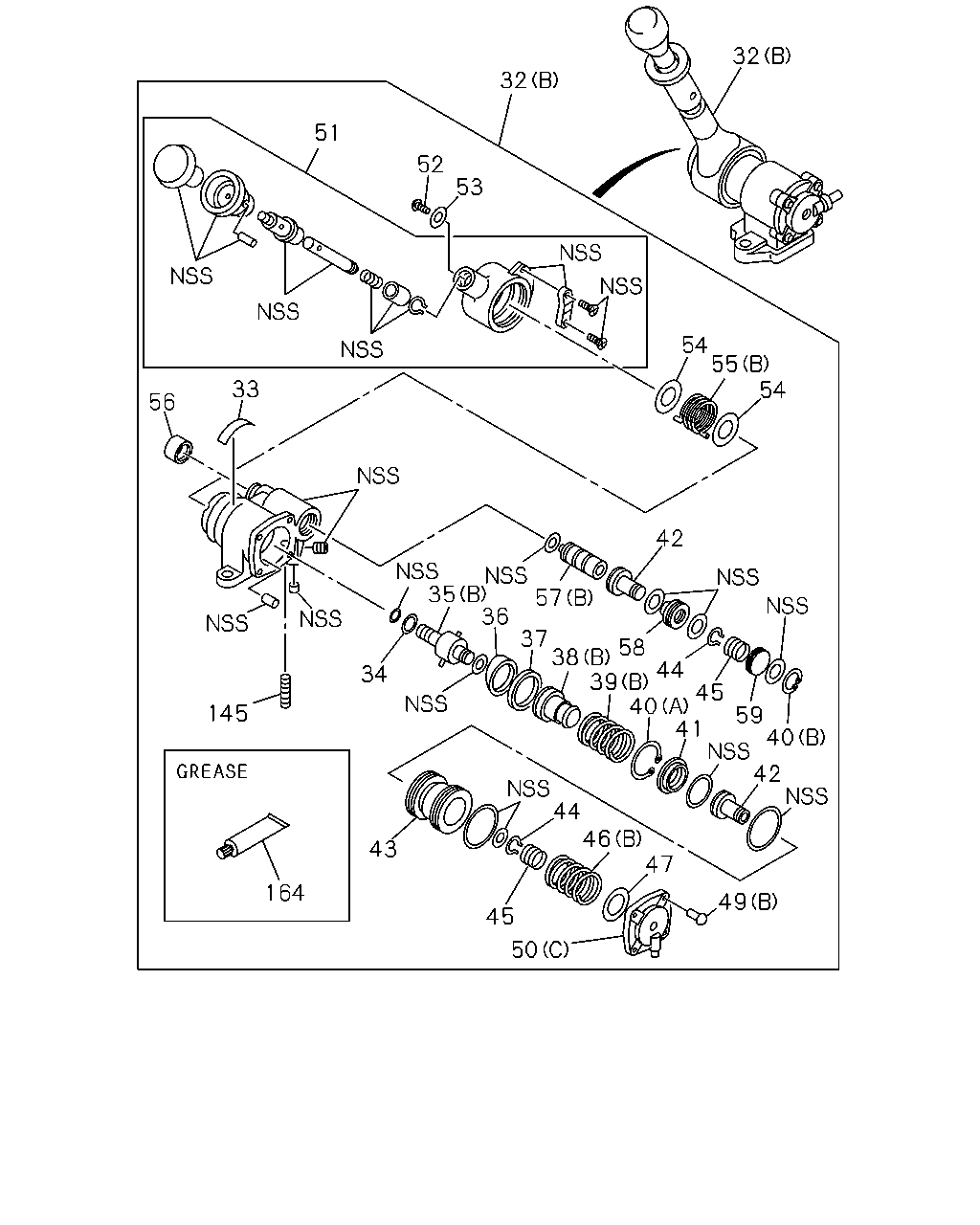

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 44 39 45 40 41 42 34 145 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT (A)	1-48460-339-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT (B)	1-48460-316-0	01	1	0106-
33	PLATE; CAUTION	1-48469-121-0	01	1	0106-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0105-
35	HOLDER; CAM (A)	1-48469-171-0	01	1	0105-0105
35	HOLDER; CAM (B)	1-48469-054-0	01	1	0106-
36	RING; CAM	1-48469-056-0	01	1	0106-
37	GUIDE; CAM RING	1-48469-058-0	01	1	0106-
38	SEAT; EXH VLV (A)	1-48469-172-0	01	1	0105-0105
38	SEAT; EXH VLV (B)	1-48469-057-0	01	1	0106-
39	SPRING; RETURN,CAM RING (A)	1-48469-150-0	01	1	0105-0105
39	SPRING; RETURN,CAM RING (B)	1-48469-063-0	01	1	0106-
40	RING; SNAP (A)	1-48469-067-0	01	1	0106-
40	RING; SNAP (B)	1-48469-079-0	01	1	0106-
41	SEAT; FEED VLV	1-48469-066-0	01	1	0106-
42	VALVE; FEED	1-48469-065-0	02	1	0106-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0106-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0106-
45	SPRING; FEED VLV	1-48469-070-0	02	1	0106-
46	SPRING; MAIN,PISTON (A)	1-48469-173-0	01	1	0105-0105
46	SPRING; MAIN,PISTON (B)	1-48469-119-0	01	1	0106-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0105-
49	SCREW; COVER (A)	1-48469-169-0	04	1	0105-0105
49	SCREW; COVER (B)	1-48469-120-0	04	1	0106-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-0105
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	0106-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-0105
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	0106-
52	SCREW; HANDLE	1-48469-062-0	01	1	0105-
53	WASHER; HANDLE	1-48469-061-0	01	1	0105-
54	SEAT; SPRING	1-48469-082-0	02	1	0106-
55	SPRING; RETURN,HANDLE (A)	1-48469-155-0	01	1	0105-0105
55	SPRING; RETURN,HANDLE (B)	1-48469-059-0	01	1	0106-
56	BOOT; PLUNGER	1-48469-080-0	01	1	0106-
57	PLUNGER; HAND BRK VLV (A)	1-48469-180-0	01	1	0105-0105
57	PLUNGER; HAND BRK VLV (B)	1-48469-076-0	01	1	0106-
58	HOLDER; FEED VLV	1-48469-077-0	01	1	0106-
59	HOLDER; SPRING	1-48469-078-0	01	1	0106-
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	0106-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0106-
