3-22 — AIR CONTROL PARTS (#12160) — 161 parça

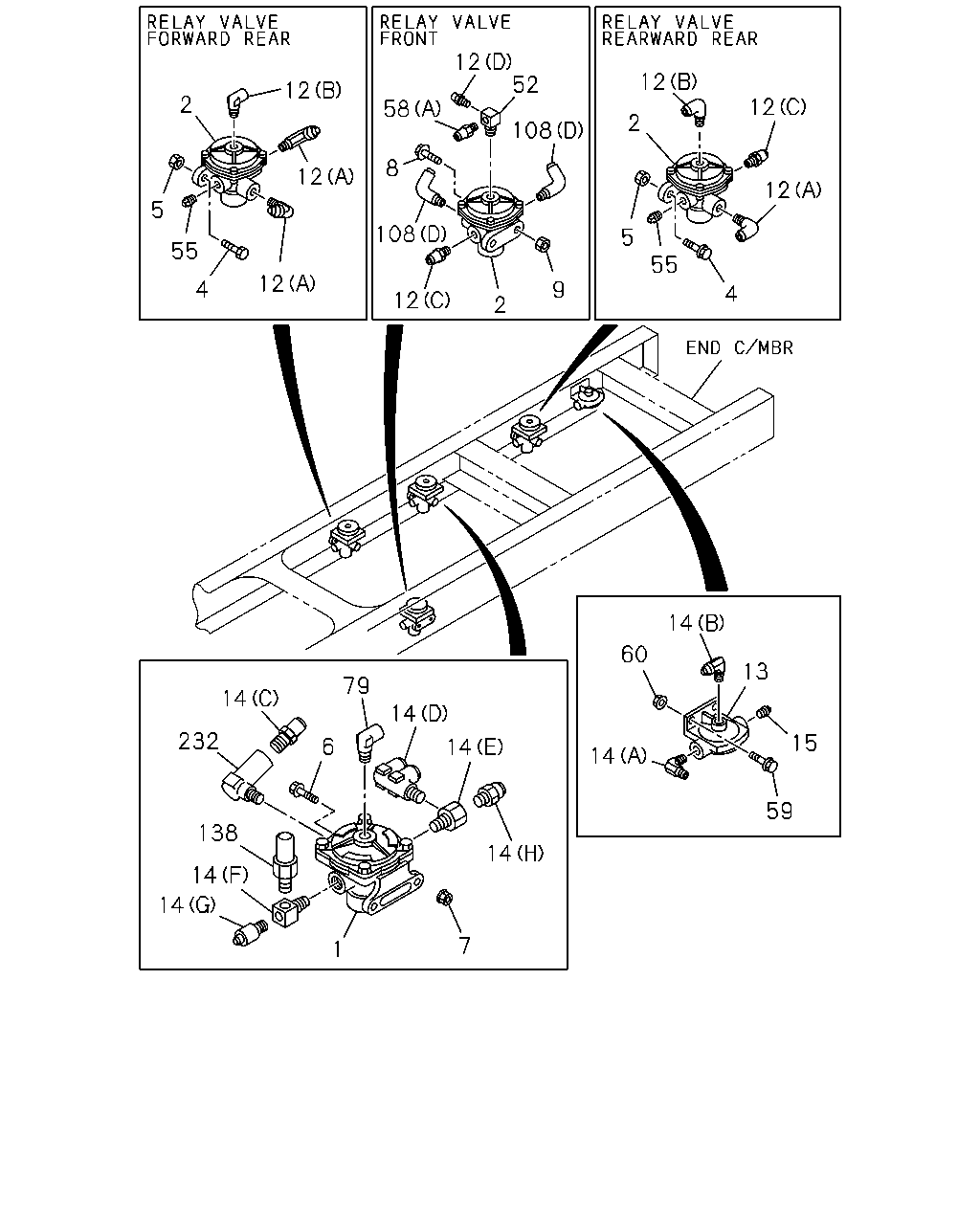

çizim 138726
12 52 12 12 2 12 58 2 108 8 12 12 5 108 5 55 55 12 4 9 4 12 2 14 60 13 79 14 14 232 15 6 14 14 59 138 14 14 14 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-875-0 01 1 0105-0105
1 VALVE; RELAY RWD RR 1-48240-052-0 01 1 0106-
2 VALVE; RELAY 1-48210-278-0 01 1 0105-
2 VALVE; RELAY 1-48210-278-0 01 1 0105-
2 VALVE; RELAY 1-48210-278-0 01 1 0105-
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 0105-0512
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28651-040-0 04 1 0601-
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 0105-0512
6 BOLT; VLV
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603-
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 0105-0512
8 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
12 CONNECTOR; RELAY VLV
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0105-
13 VALVE ASM; QUICK RELEASE 1-48410-320-0 01 1 0105-0105
14 CONNECTOR; RELAY VLV
(F) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0105-
14 CONNECTOR; RELAY VLV
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0105-0105
14 CONNECTOR; RELAY VLV
(G) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-0105
14 CONNECTOR; RELAY VLV
(G) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
14 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
14 CONNECTOR; RELAY VLV
(H) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0105
14 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0105-0105
14 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0106-
14 CONNECTOR; RELAY VLV
BRAKE SYSTEM SPRING BRAKE(BCR) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0105-
14 CONNECTOR; RELAY VLV
BRAKE SYSTEM SPRING BRAKE(BCR) (E) PT3/8 3WAY 		1-09661-300-0 01 1 0105-
15 PLUG; VALVE
PT3/8 		9-09204-517-0 01 1 0105-0105
52 CONNECTOR; RELAY VLV
M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0105-
55 PLUG; SUPPLY
PT1/2 		9-09204-521-0 01 1 0105-
55 PLUG; SUPPLY
PT1/2 		9-09204-521-0 01 1 0105-
58 ADAPTER
CHINA GB VAR1<JAC> (C) PT3/8 		1-09664-210-0 01 1 0306-0401
58 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) PT3/8 		1-09664-210-0 01 1 0402-
58 ADAPTER
CHINA GB VAR1<JAC> (B) PT3/8 		1-48319-058-0 01 1 0212-0305
58 ADAPTER
CHINA GB VAR1<JAC> (B) PT3/8 		1-48319-058-0 02 1 0306-0401
58 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8 		1-48319-058-0 02 1 0402-
58 ADAPTER
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0105
60 NUT; RELEASE VALVE FIX
M8 FLANGE 		0-91150-108-0 02 1 0105-0105
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0306-0401
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0402-1106
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		8-97633-775-0 02 1 1107-
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0212-0401
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0402-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0211
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0212-0305
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0306-0401
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0402-
108 CONNECTOR; ELBOW
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
108 CONNECTOR; ELBOW
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0105-
108 CONNECTOR; ELBOW
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0105-0305
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0306-0401
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0402-1106
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		8-97633-775-0 01 1 1107-
138 SWITCH; RELAY VALVE 1-48340-057-1 01 1 0105-0312
138 SWITCH; RELAY VALVE 1-48340-068-0 01 1 0401-
232 VALVE; CHECK 1-48320-031-1 01 1 0105-

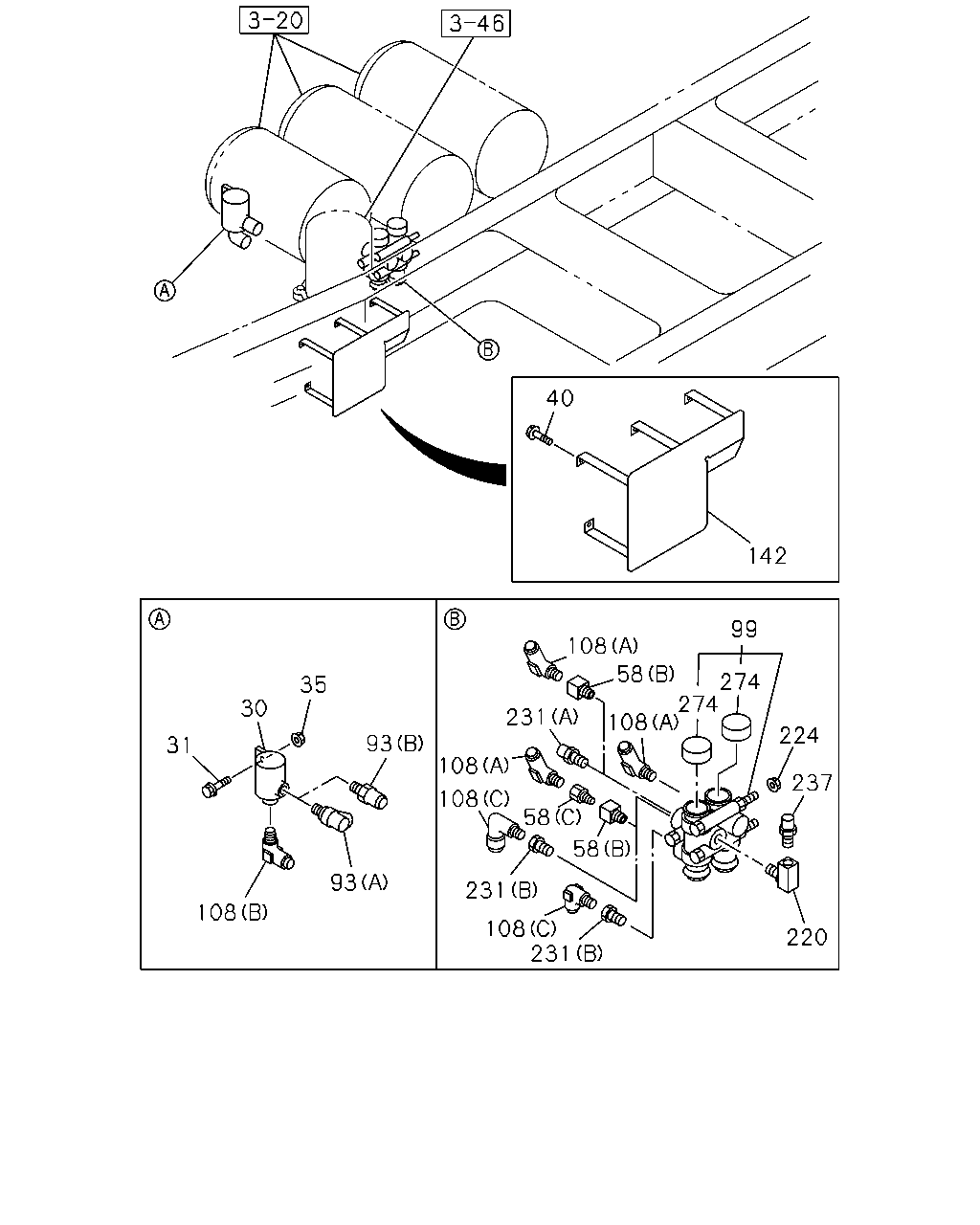

çizim 138739
40 142 99 108 58 274 274 35 30 231 108 224 93 31 108 237 108 58 58 93 231 108 108 231 220
BalonParca AdiParca NoAdetTipApplied Date
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0105-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
40 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28680-830-0 05 1 0105-0512
40 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 05 1 0601-
58 ADAPTER
CHINA GB VAR1<JAC> (C) PT3/8 		1-09664-210-0 01 1 0306-0401
58 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) PT3/8 		1-09664-210-0 01 1 0402-
58 ADAPTER
CHINA GB VAR1<JAC> (B) PT3/8 		1-48319-058-0 01 1 0212-0305
58 ADAPTER
CHINA GB VAR1<JAC> (B) PT3/8 		1-48319-058-0 02 1 0306-0401
58 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8 		1-48319-058-0 02 1 0402-
58 ADAPTER
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
93 CONNECTOR; GOV
AIR DRYER<PS7> (A) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0105-
93 CONNECTOR; GOV
EXC. AIR DRYER<PS7> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0105-
99 VALVE; PROTECTION 1-48110-175-1 01 1 0105-
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0306-0401
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0402-1106
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		8-97633-775-0 02 1 1107-
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0212-0401
108 CONNECTOR; ELBOW
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0402-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0211
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0212-0305
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0306-0401
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0402-
108 CONNECTOR; ELBOW
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
108 CONNECTOR; ELBOW
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0105-
108 CONNECTOR; ELBOW
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0105-0305
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0306-0401
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0402-1106
108 CONNECTOR; ELBOW
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		8-97633-775-0 01 1 1107-
142 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48219-143-0 01 1 0105-
220 CONNECTOR; 3WAY 1-09661-232-0 01 1 0105-
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0105-0602
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603-
231 CONNECTOR; NYLON TUBE
EXC. CHINA GB VAR1<JAC> (B) R3/8 OD=15.9 		1-09661-082-0 02 1 0306-0401
231 CONNECTOR; NYLON TUBE
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) R3/8 OD=15.9 		1-09661-082-0 02 1 0402-1106
231 CONNECTOR; NYLON TUBE
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) 		8-97633-776-0 02 1 1107-
231 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0105-0211
231 CONNECTOR; NYLON TUBE
EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0212-0401
231 CONNECTOR; NYLON TUBE
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0402-
231 CONNECTOR; NYLON TUBE
(B) R3/8 OD=15.9 		1-09661-082-0 02 1 0105-0305
231 CONNECTOR; NYLON TUBE
CHINA GB VAR1<JAC> (B) R3/8 OD=15.9 		1-09661-082-0 01 1 0306-0401
231 CONNECTOR; NYLON TUBE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) R3/8 OD=15.9 		1-09661-082-0 01 1 0402-1106
231 CONNECTOR; NYLON TUBE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) 		8-97633-776-0 01 1 1107-
237 VALVE; SAFETY 1-48320-012-2 01 1 0105-
274 COVER; DUST 1-48119-450-0 02 1 0105-

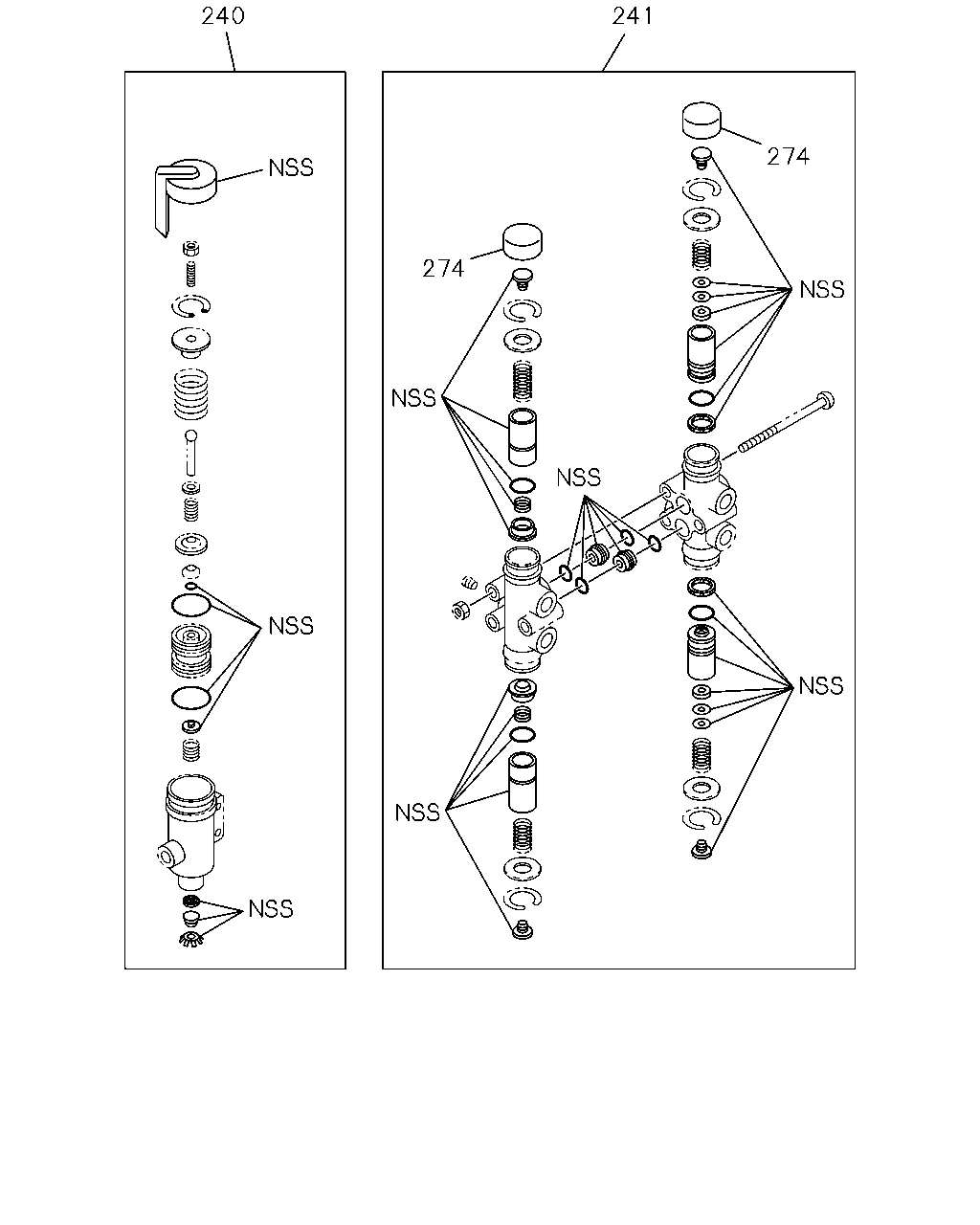

çizim 138742
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0105-
241 REPAIR KIT; PROTECTION VALVE 1-85576-240-0 01 1 0105-
274 COVER; DUST 1-48119-450-0 02 1 0105-

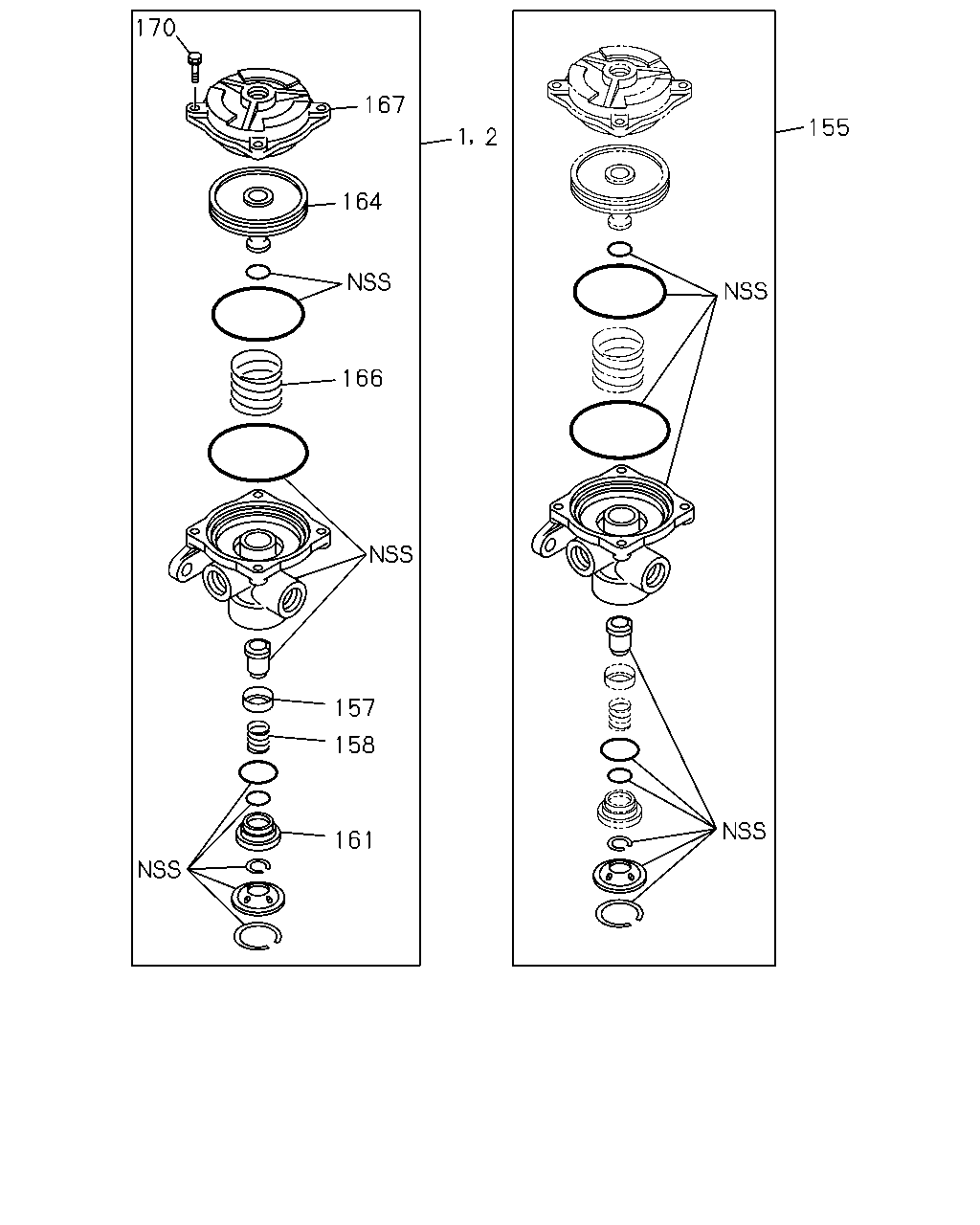

çizim 138745
170 167 155 2 1 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-875-0 01 1 0105-0105
1 VALVE; RELAY RWD RR 1-48240-052-0 01 1 0106-
2 VALVE; RELAY 1-48210-278-0 01 1 0105-
2 VALVE; RELAY 1-48210-278-0 01 1 0105-
2 VALVE; RELAY 1-48210-278-0 01 1 0105-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0105-0304
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0105-0304
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0105-0304
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0305-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0305-
157 RETAINER; VALVE 1-48213-002-0 01 1 0105-0304
157 RETAINER; VALVE 1-48213-002-0 01 1 0105-0304
157 RETAINER; VALVE 1-48213-002-0 01 1 0105-0304
157 RETAINER; VALVE 1-48213-002-0 01 1 0305-
157 RETAINER; VALVE 1-48213-002-0 01 1 0305-
158 SPRING; VALVE 1-47819-089-0 01 1 0105-0304
158 SPRING; VALVE 1-47819-089-0 01 1 0105-0304
158 SPRING; VALVE 1-47819-089-0 01 1 0105-0304
158 SPRING; VALVE 1-47819-089-0 01 1 0305-
158 SPRING; VALVE 1-47819-089-0 01 1 0305-
161 GUIDE; VALVE 1-48129-014-0 01 1 0105-0304
161 GUIDE; VALVE 1-48129-014-0 01 1 0105-0304
161 GUIDE; VALVE 1-48129-014-0 01 1 0105-0304
161 GUIDE; VALVE 1-48129-014-0 01 1 0305-
161 GUIDE; VALVE 1-48129-014-0 01 1 0305-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0105-0304
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0105-0304
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0105-0304
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0305-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0305-
166 SPRING; PISTON 1-47819-090-0 01 1 0105-0304
166 SPRING; PISTON 1-47819-090-0 01 1 0105-0304
166 SPRING; PISTON 1-47819-090-0 01 1 0105-0304
166 SPRING; PISTON 1-47819-090-0 01 1 0305-
166 SPRING; PISTON 1-47819-090-0 01 1 0305-
167 COVER; VALVE 1-48219-070-0 01 1 0105-0304
167 COVER; VALVE 1-48219-070-0 01 1 0105-0304
167 COVER; VALVE 1-48219-070-0 01 1 0105-0304
167 COVER; VALVE 1-48219-070-0 01 1 0305-
167 COVER; VALVE 1-48219-070-0 01 1 0305-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0105-0304
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0105-0304
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0105-0304
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0305-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
