Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#121597) — 43 parça
◀

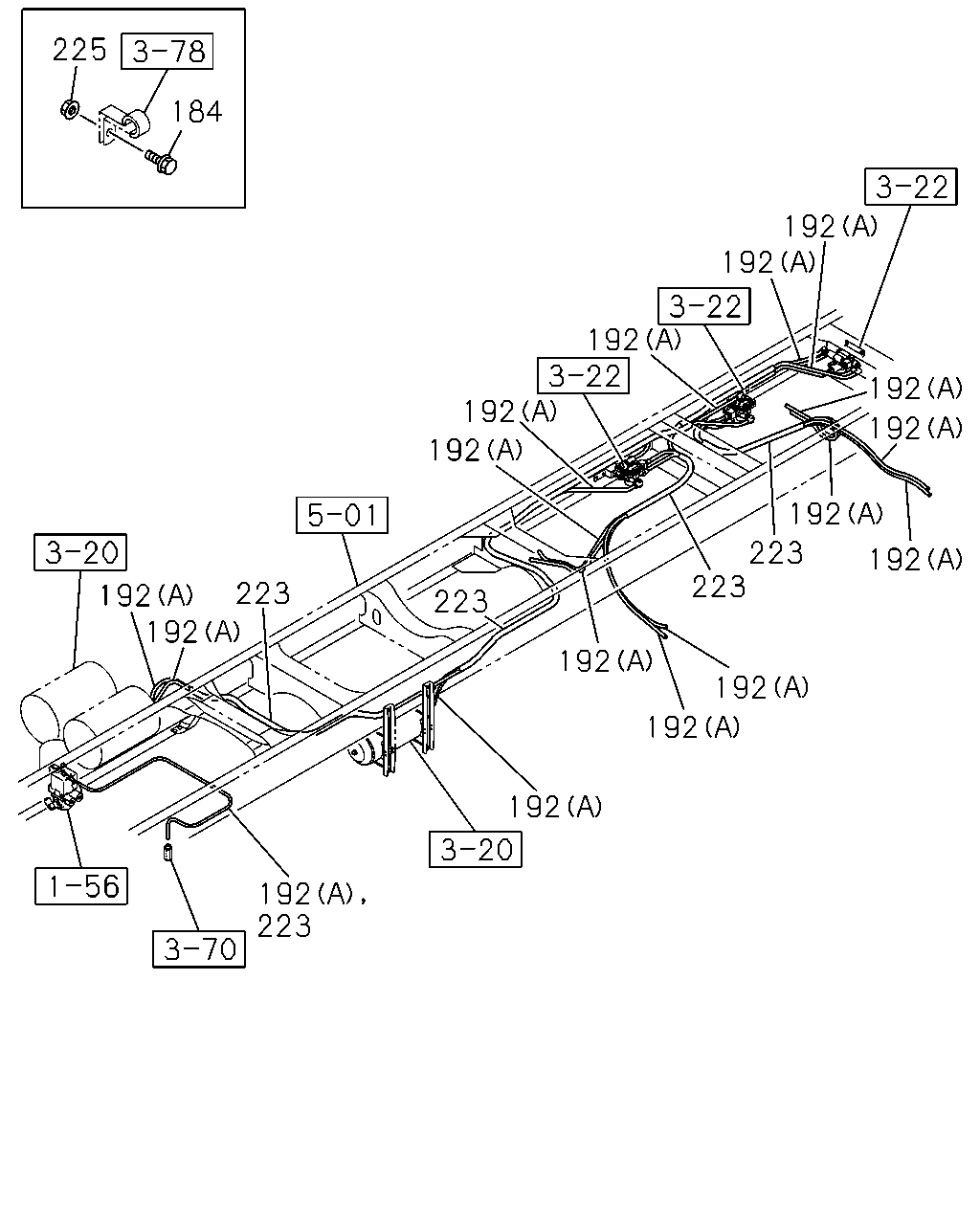

[377A] FRAME SIDE (14 parça)

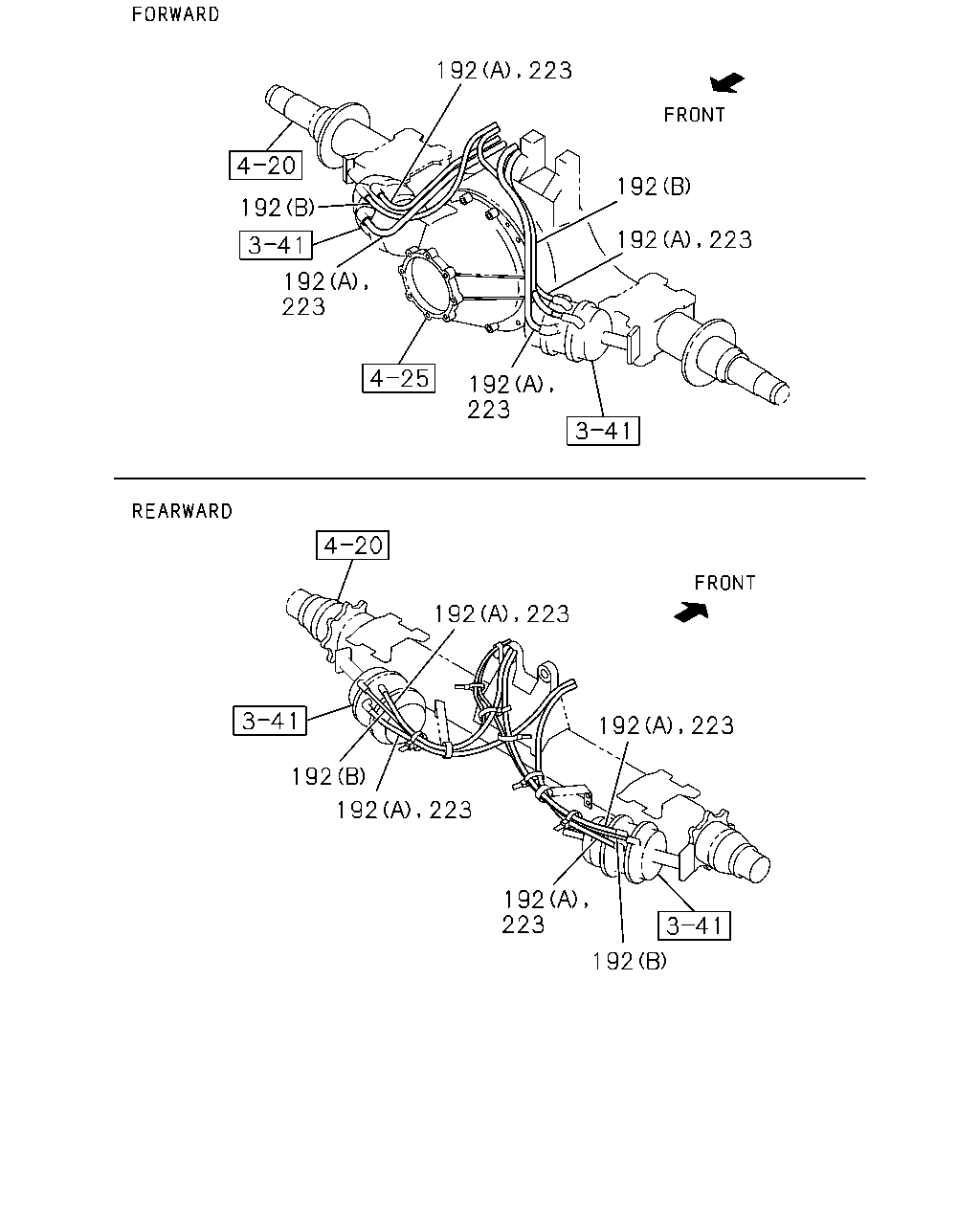

[377A] REAR AXLE SIDE (12 parça)

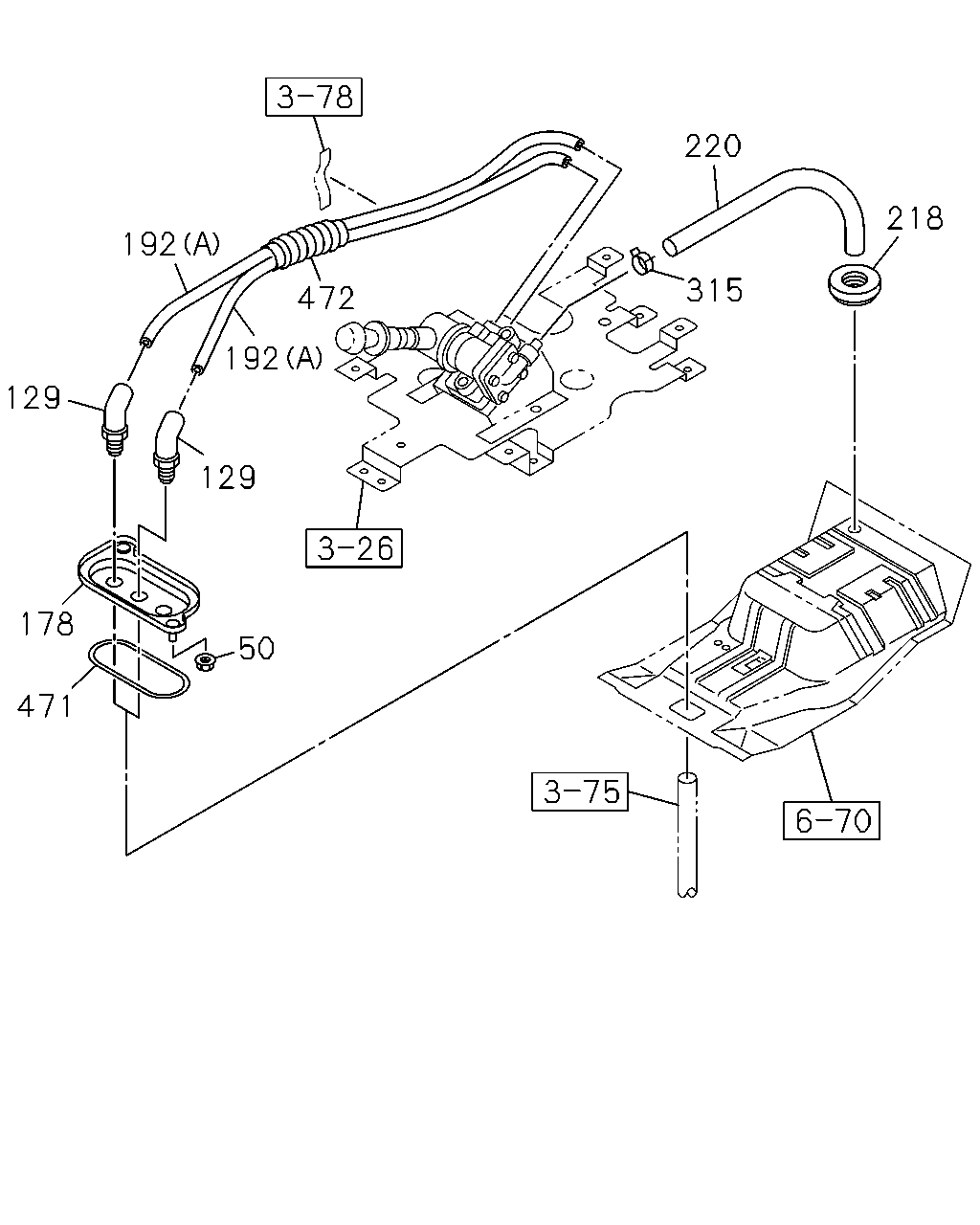

[377A] CAB SIDE (17 parça)
▶
225
184
192
192
223
192
223
192
192
192
223
192
192
192
192
192
192
192
192
192
223
223
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
184
BOLT; TUBE CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
192
TUBE; NYLON
(B) FORWARD L=1050 OD=8 THA
1-49218-619-1
01
1
1304-
192
TUBE; NYLON
(B) REARWARD L=970 OD=8 THA
1-49222-926-0
01
1
1304-
192
TUBE; NYLON
(B) FORWARD L=960 OD=8 THA
1-49218-613-1
01
1
1304-
192
TUBE; NYLON
(B) REARWARD L=1030 OD=8 THA
1-49222-927-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1304-
225
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
223
192
223
192
192
192
223
192
223
192
223
192
192
223
192
192
223
192
192
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
(B) FORWARD L=1050 OD=8 THA
1-49218-619-1
01
1
1304-
192
TUBE; NYLON
(B) REARWARD L=970 OD=8 THA
1-49222-926-0
01
1
1304-
192
TUBE; NYLON
(B) FORWARD L=960 OD=8 THA
1-49218-613-1
01
1
1304-
192
TUBE; NYLON
(B) REARWARD L=1030 OD=8 THA
1-49222-927-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1304-
220
218
315
192
472
192
129
129
178
471
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
129
CONNECTOR; NYLON TUBE
8-97611-963-1
02
1
1304-
178
BRACKET; UNION
8-98017-054-1
01
1
1304-
192
TUBE; NYLON
(B) FORWARD L=1050 OD=8 THA
1-49218-619-1
01
1
1304-
192
TUBE; NYLON
(B) REARWARD L=970 OD=8 THA
1-49222-926-0
01
1
1304-
192
TUBE; NYLON
(B) FORWARD L=960 OD=8 THA
1-49218-613-1
01
1
1304-
192
TUBE; NYLON
(B) REARWARD L=1030 OD=8 THA
1-49222-927-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1304-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1304-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1304-
315
CLIP
ID=14
8-94238-572-0
01
1
1304-
471
SEAL; BRKT
1-79738-832-0
01
1
1304-
472
TUBE; SPUTTER
THA
8-98067-708-0
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
