Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#121595) — 11 parça
◀

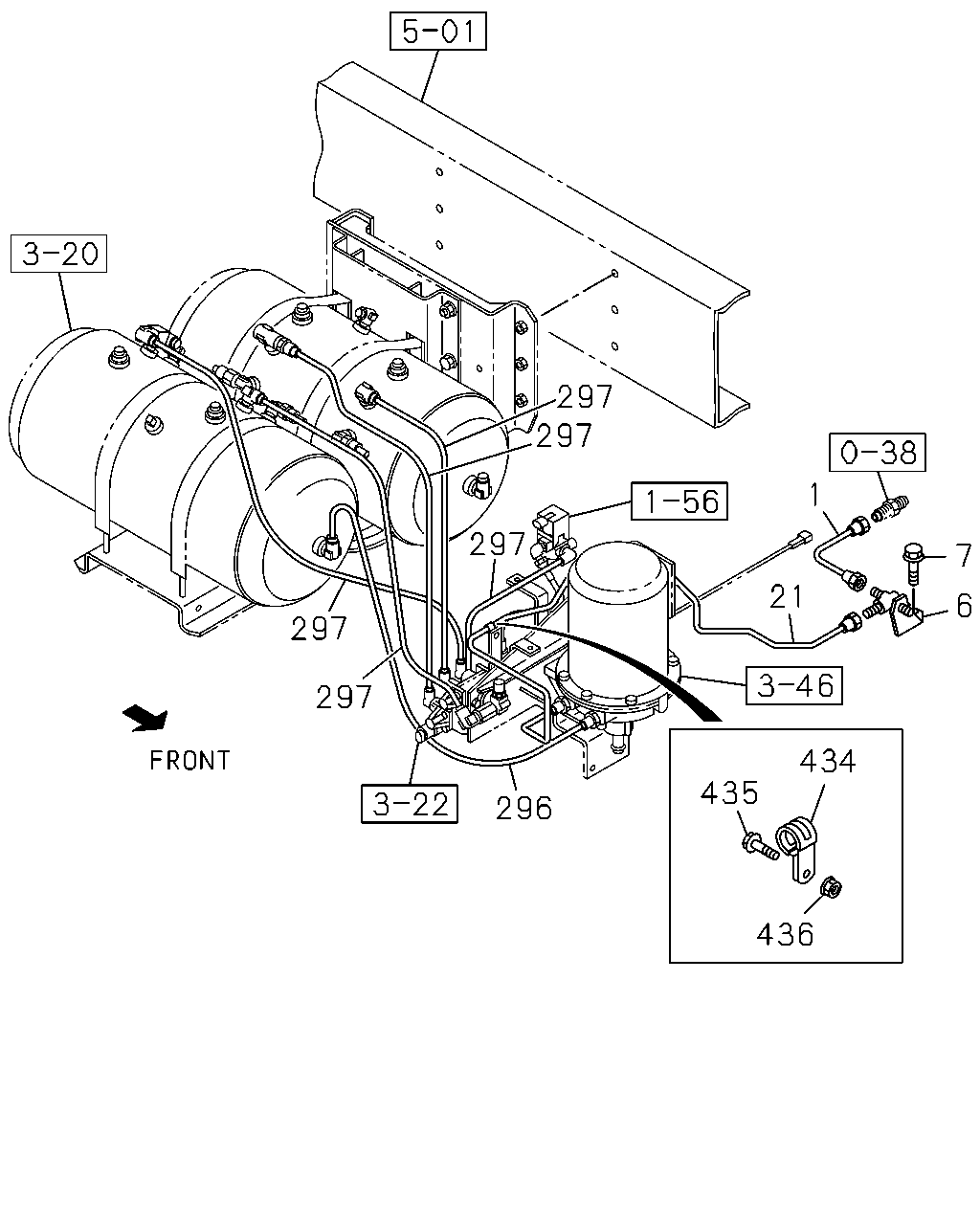

[370A] AIR TANK SIDE (10 parça)

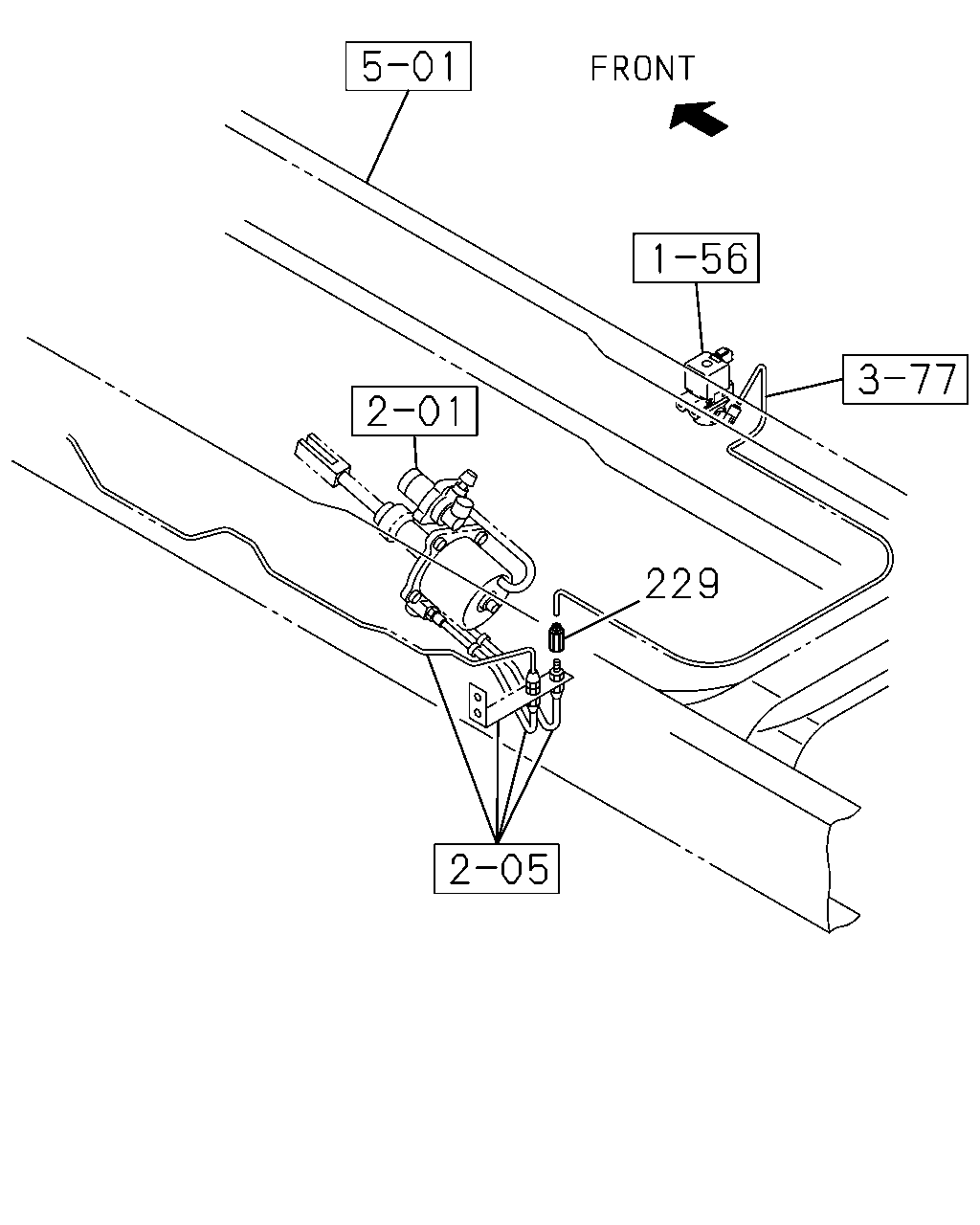

[370A] FRAME SIDE (1 parça)
▶
297
297
297
297
297
296
435
436
434
21
1
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
L=320
8-98067-411-0
01
1
1304-
6
BRACKET; FLEX HOSE,AIR TANK
8-98076-344-0
01
1
1304-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
21
PIPE; AIR,UNION TO AIR DRYER
L=1724
8-98076-343-0
01
1
1304-
296
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
01
1
1304-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1304-
297
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
04
1
1304-
434
CLIP
ID=16 L=20 THA
0-95235-536-0
02
1
1304-
435
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
436
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
02
1
1304-
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
229
ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1304-
