Sayfa 3-20 - Isuzu EPC

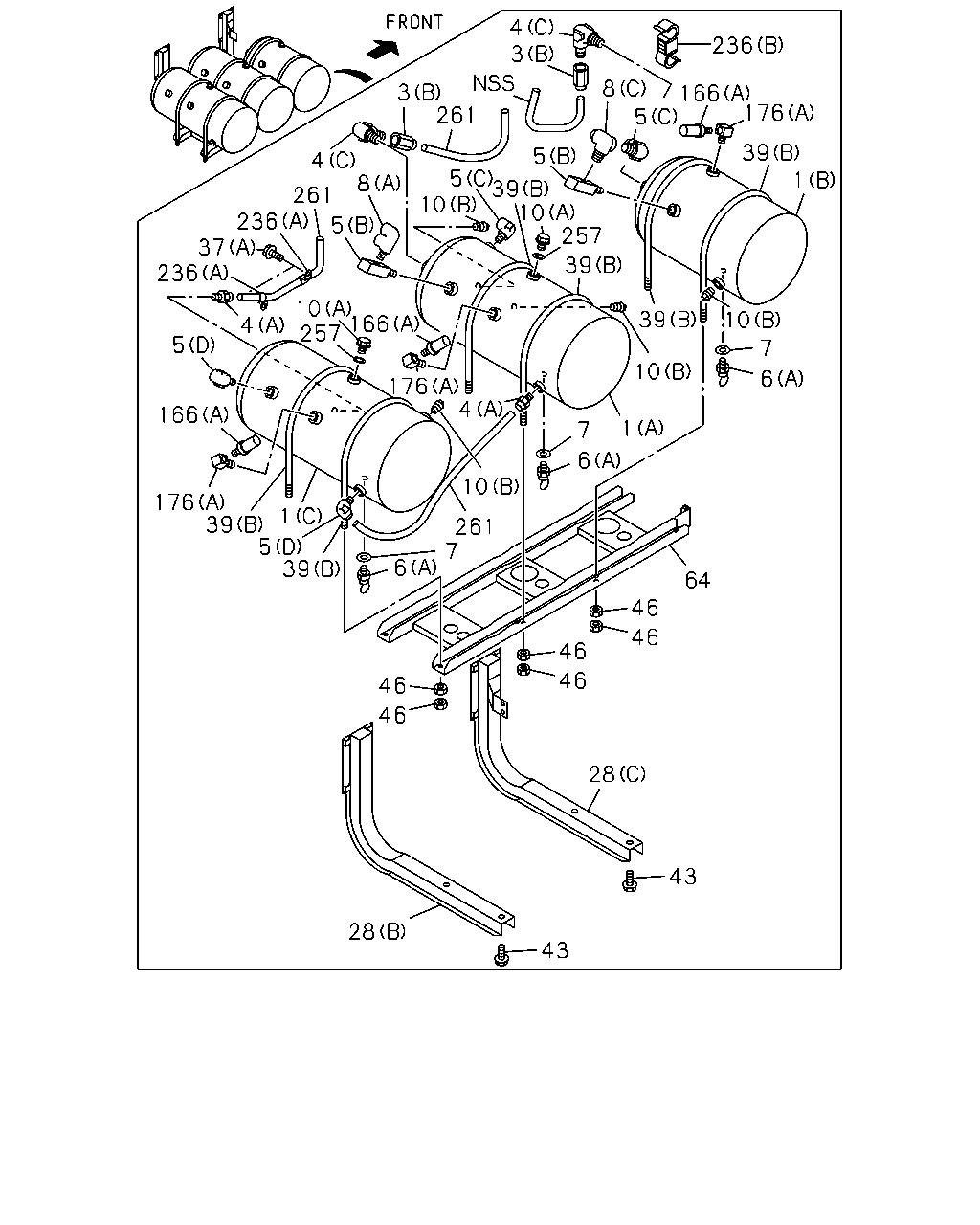

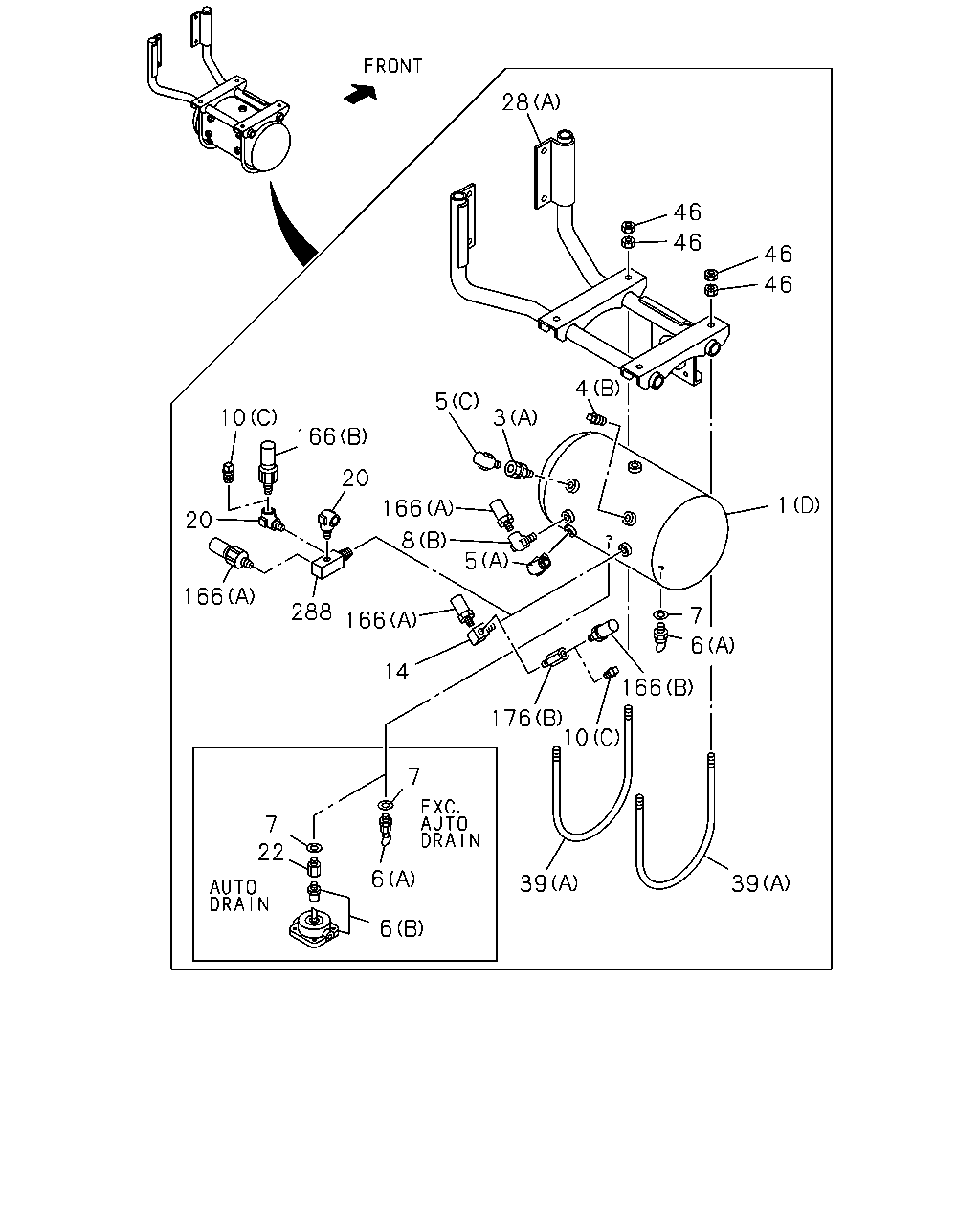

3-20 — AIR TANK (#12159) — 282 parça

28 46 46 46 46 4 5 10 3 166 20 1 166 20 8 5 166 288 7 166 6 14 166 176 10 7 7 22 6 39 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR CHINA GB VAR1<JAC> (A)	1-48371-240-1	01	1	0212-0401
1	TANK ASM; AIR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A)	1-48371-240-1	01	1	0402-
1	TANK ASM; AIR CHINA GB VAR1<JAC> (B)	1-48371-241-0	01	1	0212-0401
1	TANK ASM; AIR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-48371-241-0	01	1	0402-
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-0211
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC> (A)	1-48370-710-0	01	1	0212-0401
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A)	1-48370-710-0	01	1	0402-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-0211
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC> (B)	1-48370-712-0	01	1	0212-0401
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-48370-712-0	01	1	0402-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0105-
3	VALVE; CHECK,AIR TANK CHINA GB VAR1<JAC> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0212-0401
3	VALVE; CHECK,AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0402-
3	VALVE; CHECK,AIR TANK (A)	1-48320-013-2	01	1	0105-
4	CONNECTOR; FLARE CHINA GB VAR1<JAC> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-0401
4	CONNECTOR; FLARE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0402-
4	CONNECTOR; FLARE EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0212-0401
4	CONNECTOR; FLARE EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0402-
4	CONNECTOR; FLARE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-0211
4	CONNECTOR; FLARE CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0212-0401
4	CONNECTOR; FLARE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0402-
5	UNION; AIR TANK CHINA GB VAR1<JAC> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0306-0401
5	UNION; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0402-
5	UNION; AIR TANK EXC. CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0306-0401
5	UNION; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0402-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-0305
5	UNION; AIR TANK CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0306-0401
5	UNION; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0402-
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
5	UNION; AIR TANK (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0212-0305
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0306-0401
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0402-
8	CONNECTOR; AIR TANK EXC. CHINA GB VAR1<JAC> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0212-0401
8	CONNECTOR; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0402-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-0211
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0212-0401
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0402-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
10	PLUG; AIR TANK EXC. CHINA GB VAR1<JAC> (B) PT3/8	9-09204-517-0	03	1	0212-0401
10	PLUG; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8	9-09204-517-0	03	1	0402-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0105-0211
10	PLUG; AIR TANK CHINA GB VAR1<JAC> (B) PT3/8	9-09204-517-0	04	1	0212-0401
10	PLUG; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8	9-09204-517-0	04	1	0402-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-0605
14	UNION; 3 WAY,AIR TANK PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-0207
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
176	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
288	CONNECTOR; PRESSURE UNIT PT1/4 4WAY	1-09660-358-0	01	1	0208-

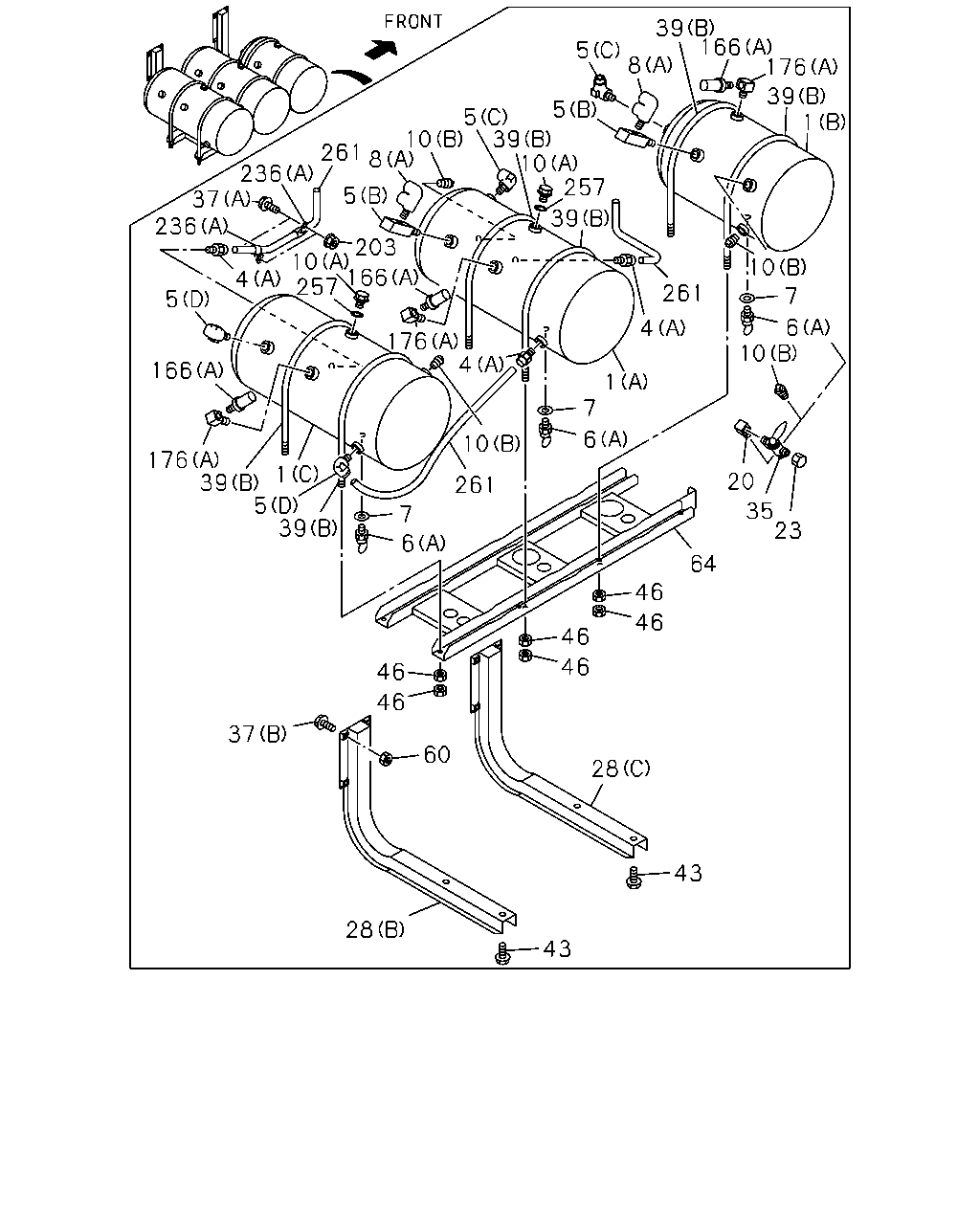

39 166 176 5 8 39 1 5 5 10 39 10 257 261 8 236 37 236 5 39 203 10 166 257 10 4 5 261 7 6 10 4 176 4 166 1 7 6 10 176 39 5 39 1 20 261 35 23 7 6 64 46 46 46 46 46 46 37 60 28 43 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR CHINA GB VAR1<JAC> (A)	1-48371-240-1	01	1	0212-0401
1	TANK ASM; AIR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A)	1-48371-240-1	01	1	0402-
1	TANK ASM; AIR CHINA GB VAR1<JAC> (B)	1-48371-241-0	01	1	0212-0401
1	TANK ASM; AIR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-48371-241-0	01	1	0402-
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-0211
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC> (A)	1-48370-710-0	01	1	0212-0401
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A)	1-48370-710-0	01	1	0402-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-0211
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC> (B)	1-48370-712-0	01	1	0212-0401
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-48370-712-0	01	1	0402-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0105-
4	CONNECTOR; FLARE CHINA GB VAR1<JAC> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-0401
4	CONNECTOR; FLARE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0402-
4	CONNECTOR; FLARE EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0212-0401
4	CONNECTOR; FLARE EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0402-
4	CONNECTOR; FLARE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-0211
4	CONNECTOR; FLARE CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0212-0401
4	CONNECTOR; FLARE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0402-
5	UNION; AIR TANK CHINA GB VAR1<JAC> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0306-0401
5	UNION; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0402-
5	UNION; AIR TANK EXC. CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0306-0401
5	UNION; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0402-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-0305
5	UNION; AIR TANK CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0306-0401
5	UNION; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0402-
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
5	UNION; AIR TANK (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0212-0305
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0306-0401
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0402-
8	CONNECTOR; AIR TANK EXC. CHINA GB VAR1<JAC> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0212-0401
8	CONNECTOR; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0402-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-0211
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0212-0401
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0402-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
10	PLUG; AIR TANK EXC. CHINA GB VAR1<JAC> (B) PT3/8	9-09204-517-0	03	1	0212-0401
10	PLUG; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8	9-09204-517-0	03	1	0402-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0105-0211
10	PLUG; AIR TANK CHINA GB VAR1<JAC> (B) PT3/8	9-09204-517-0	04	1	0212-0401
10	PLUG; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8	9-09204-517-0	04	1	0402-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-0605
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0105-0512
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
60	NUT; AIR TANK FIX M10 FLANGE	0-91150-210-0	02	1	0105-0602
60	NUT; AIR TANK FIX M10 FLANGE	0-91180-210-0	02	1	0603-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
176	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
203	NUT M8 FLANGE	0-91150-108-0	01	1	0105-0305
203	NUT EXC. CHINA GB VAR1<JAC> M8 FLANGE	0-91150-108-0	01	1	0306-0401
203	NUT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> M8 FLANGE	0-91150-108-0	01	1	0402-0602
203	NUT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> M8 FLANGE	0-91180-108-0	01	1	0603-
236	CLIP; BAND CHINA GB VAR1<JAC> (B) ID=12 & 12	1-09709-280-1	01	1	0306-0401
236	CLIP; BAND CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) ID=12 & 12	1-09709-280-1	01	1	0402-
236	CLIP; BAND (A) ID=14 H=50 L=20	1-09700-843-0	02	1	0105-
257	GASKET; PLUG ID=14	1-09630-145-0	02	1	0105-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-

216 215 216 208 278 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0212-0512
80	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
208	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
208	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0601-
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=24 L=32	1-09700-766-1	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=21	8-94242-034-0	01	1	0105-
278	BRACKET; CONNECTOR L=90 B=25	1-47476-630-0	01	1	0212-

4 3 236 8 3 261 166 5 176 39 1 5 4 8 5 39 10 10 257 261 236 37 236 5 39 4 10 166 257 10 39 5 7 10 6 176 4 166 1 7 6 10 176 39 5 39 1 261 7 6 64 46 46 46 46 46 46 28 43 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR CHINA GB VAR1<JAC> (A)	1-48371-240-1	01	1	0212-0401
1	TANK ASM; AIR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A)	1-48371-240-1	01	1	0402-
1	TANK ASM; AIR CHINA GB VAR1<JAC> (B)	1-48371-241-0	01	1	0212-0401
1	TANK ASM; AIR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-48371-241-0	01	1	0402-
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-0211
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC> (A)	1-48370-710-0	01	1	0212-0401
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A)	1-48370-710-0	01	1	0402-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-0211
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC> (B)	1-48370-712-0	01	1	0212-0401
1	TANK ASM; AIR EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-48370-712-0	01	1	0402-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0105-
3	VALVE; CHECK,AIR TANK CHINA GB VAR1<JAC> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0212-0401
3	VALVE; CHECK,AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0402-
3	VALVE; CHECK,AIR TANK (A)	1-48320-013-2	01	1	0105-
4	CONNECTOR; FLARE CHINA GB VAR1<JAC> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-0401
4	CONNECTOR; FLARE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0402-
4	CONNECTOR; FLARE EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0212-0401
4	CONNECTOR; FLARE EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0402-
4	CONNECTOR; FLARE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-0211
4	CONNECTOR; FLARE CHINA GB VAR1<JAC> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0212-0401
4	CONNECTOR; FLARE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0402-
5	UNION; AIR TANK CHINA GB VAR1<JAC> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0306-0401
5	UNION; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0402-
5	UNION; AIR TANK EXC. CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0306-0401
5	UNION; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0402-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-0305
5	UNION; AIR TANK CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0306-0401
5	UNION; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0402-
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
5	UNION; AIR TANK (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0212-0305
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0306-0401
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0402-
8	CONNECTOR; AIR TANK EXC. CHINA GB VAR1<JAC> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0212-0401
8	CONNECTOR; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0402-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-0211
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0212-0401
8	CONNECTOR; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0402-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
10	PLUG; AIR TANK EXC. CHINA GB VAR1<JAC> (B) PT3/8	9-09204-517-0	03	1	0212-0401
10	PLUG; AIR TANK EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8	9-09204-517-0	03	1	0402-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0105-0211
10	PLUG; AIR TANK CHINA GB VAR1<JAC> (B) PT3/8	9-09204-517-0	04	1	0212-0401
10	PLUG; AIR TANK CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) PT3/8	9-09204-517-0	04	1	0402-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-0605
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0105-0512
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
176	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
236	CLIP; BAND CHINA GB VAR1<JAC> (B) ID=12 & 12	1-09709-280-1	01	1	0306-0401
236	CLIP; BAND CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) ID=12 & 12	1-09709-280-1	01	1	0402-
236	CLIP; BAND (A) ID=14 H=50 L=20	1-09700-843-0	02	1	0105-
257	GASKET; PLUG ID=14	1-09630-145-0	02	1	0105-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0105-0512
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
