Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#121588) — 85 parça
◀
[322A] FIXING NO.2 (21 parça)
[322A] FIXING NO.3 (15 parça)
[322A] RELAY VALVE NO.1 (13 parça)
[322A] FIXING NO.1 (20 parça)
[322A] RELAY VALVE NO.2 (3 parça)
[322A] QUICK RELEASE VALVE (12 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶

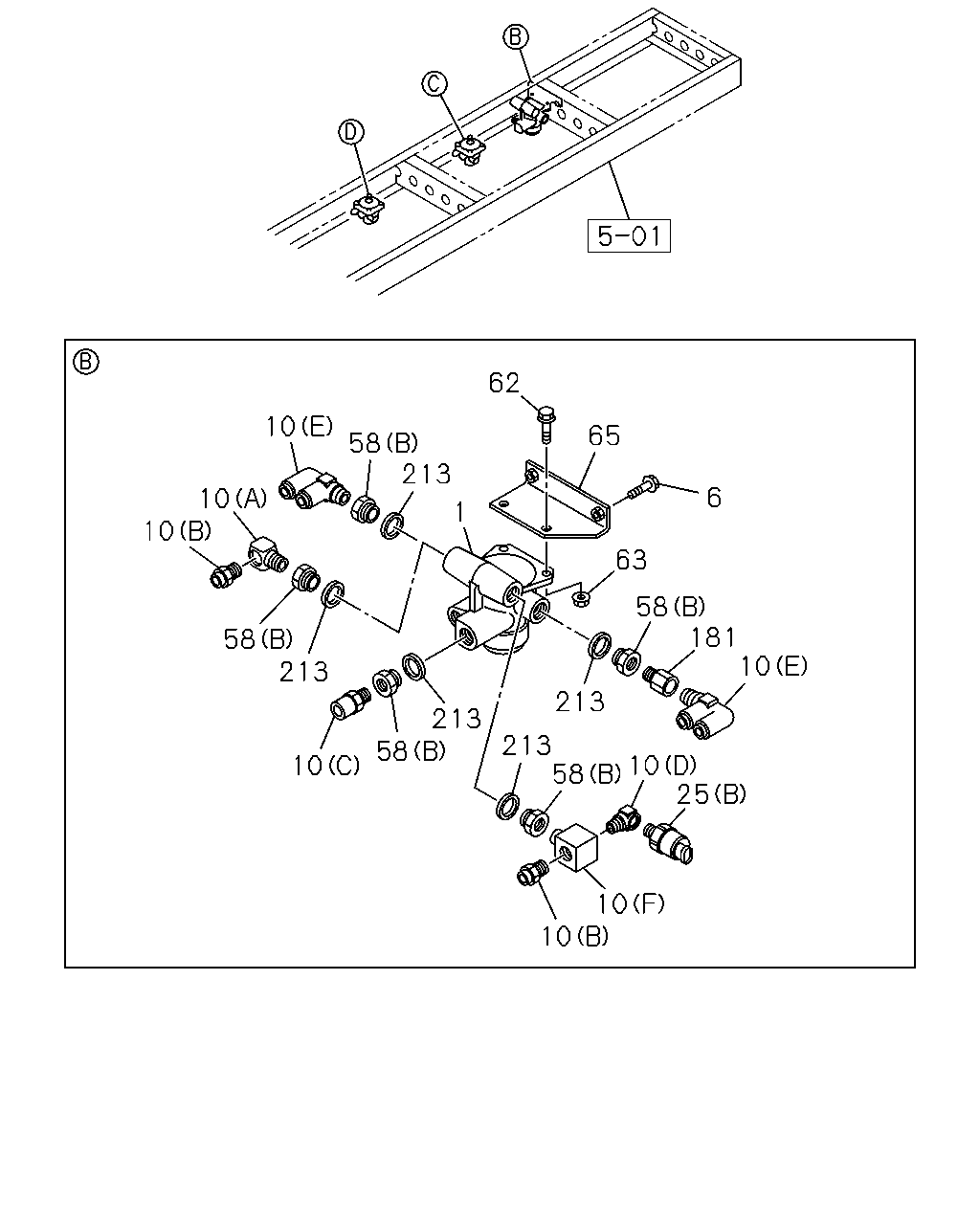

10
10
10
25
58
213
213
10
181
58
63
6
65
62
213
58
10
213
58
10
10
10
213
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48240-354-1
01
1
1304-
6
BOLT; VLV
M8X35 FLANGE THA
0-28650-835-0
02
1
1304-
10
CONNECTOR
(F)
1-09656-708-0
01
1
1304-
10
CONNECTOR
(D) PT1/4 2WAY
1-09660-693-0
01
1
1304-
10
CONNECTOR
(A) PT3/8 ELBOW
1-09660-696-0
01
1
1304-
10
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
1304-
10
CONNECTOR
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
10
CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
02
1
1304-
25
SWITCH; PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
1304-
25
SWITCH; PRESSURE
(B)
8-98010-856-1
01
1
1304-
58
ADAPTER
(B) INNER PT3/8,OUTER M22
1-09650-494-1
05
1
1304-
58
ADAPTER
(A) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1304-
58
ADAPTER
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
58
ADAPTER
(D) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1304-
58
ADAPTER
(E)
8-98031-238-0
01
1
1304-
58
ADAPTER
(F)
8-98166-127-0
01
1
1304-
62
BOLT; BRKT FIX
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
63
NUT; BRKT FIX
M8 FLANGE THA
0-91180-108-0
02
1
1304-
65
BRACKET; RELAY VLV RR
THA
1-47471-032-0
01
1
1304-
181
ADAPTER; PRESSURE SW
PT3/8
1-09664-210-0
01
1
1304-
213
GASKET
ID=22.5
9-09571-422-0
05
1
1304-
73
8
12
55
12
4
108
12
52
5
56
2
12
52
2
52
56
5
73
8
55
4
12
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
VALVE; RELAY
1-48210-875-0
02
1
1304-
4
BOLT; RELAY VLV TO BRKT
M10X35 FLANGE THA
0-28651-035-0
04
1
1304-
5
NUT
M10 FLANGE THA
0-91180-210-0
04
1
1304-
8
BOLT; BRKT
M10X30 FLANGE THA
0-28651-030-0
04
1
1304-
12
CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1304-
12
CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1304-
52
CONNECTOR; RELAY VLV
(A) DIN8X2 & R3/8 3WAY
1-09660-996-0
01
1
1304-
52
CONNECTOR; RELAY VLV
(B)
8-98203-578-0
02
1
1304-
55
PLUG; SUPPLY
PT3/8
9-09204-517-0
02
1
1304-
56
BRACKET; RELAY VLV
8-98094-850-0
02
1
1304-
73
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1304-
108
CONNECTOR; ELBOW
(B) PT3/8 ELBOW
1-09660-696-0
01
1
1304-
108
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1304-
108
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1304-

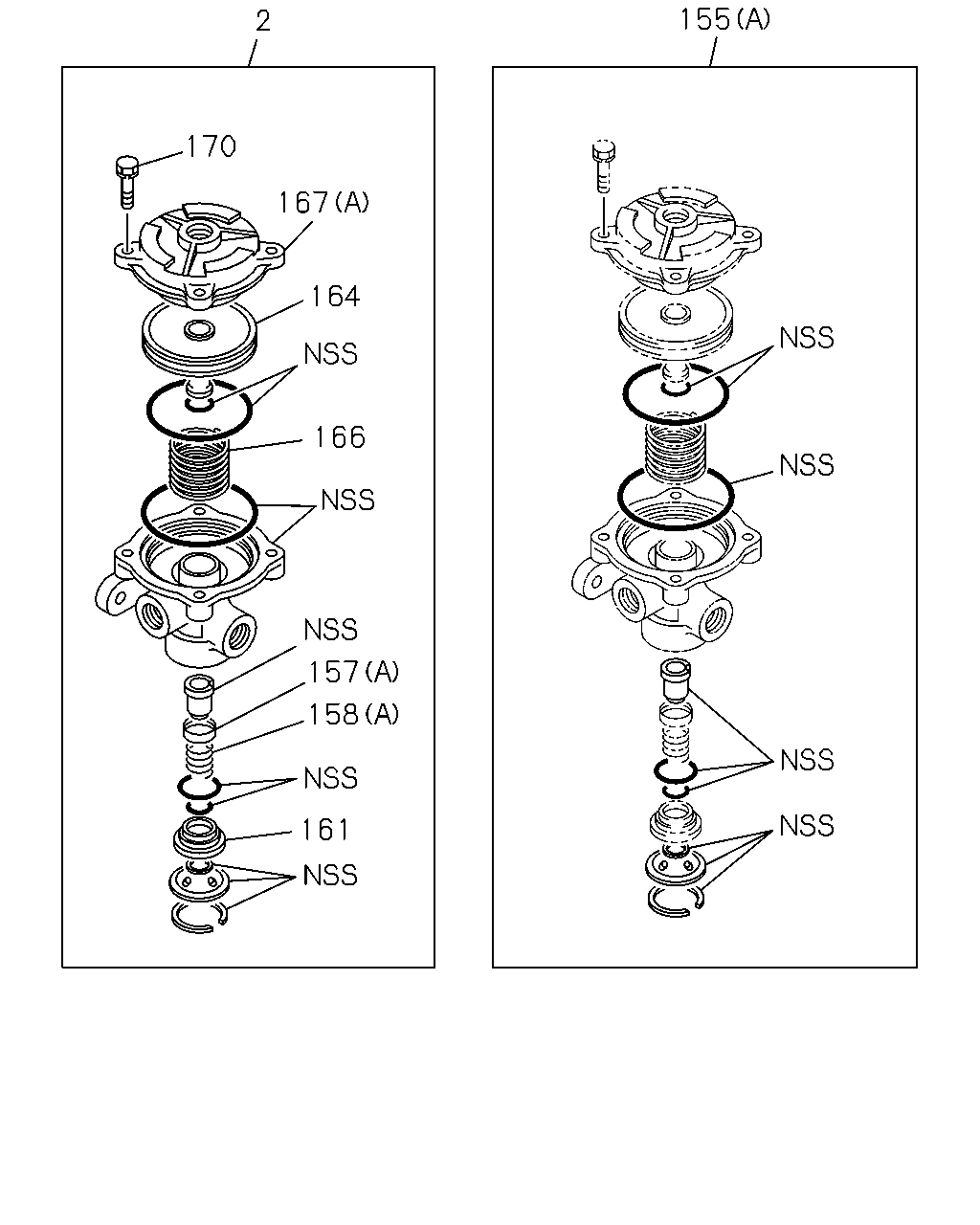

2
170
164
167
166
157
158
161
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
VALVE; RELAY
1-48210-875-0
02
1
1304-
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-033-0
02
1
1304-
155
REPAIR KIT; RELAY VALVE
(B)
1-85576-408-0
01
1
1304-
157
RETAINER; VALVE
(A)
1-48213-002-0
02
1
1304-
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1304-
158
SPRING; VALVE
(A)
1-47819-089-0
02
1
1304-
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1304-
161
GUIDE; VALVE
1-48129-014-0
02
1
1304-
164
PISTON; RELAY VALVE
1-48219-071-0
02
1
1304-
166
SPRING; PISTON
1-47819-090-0
02
1
1304-
167
COVER; VALVE
(B)
1-48119-625-0
04
1
1304-
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1304-
170
SCREW; COVER TO BODY
1-48219-039-0
08
1
1304-

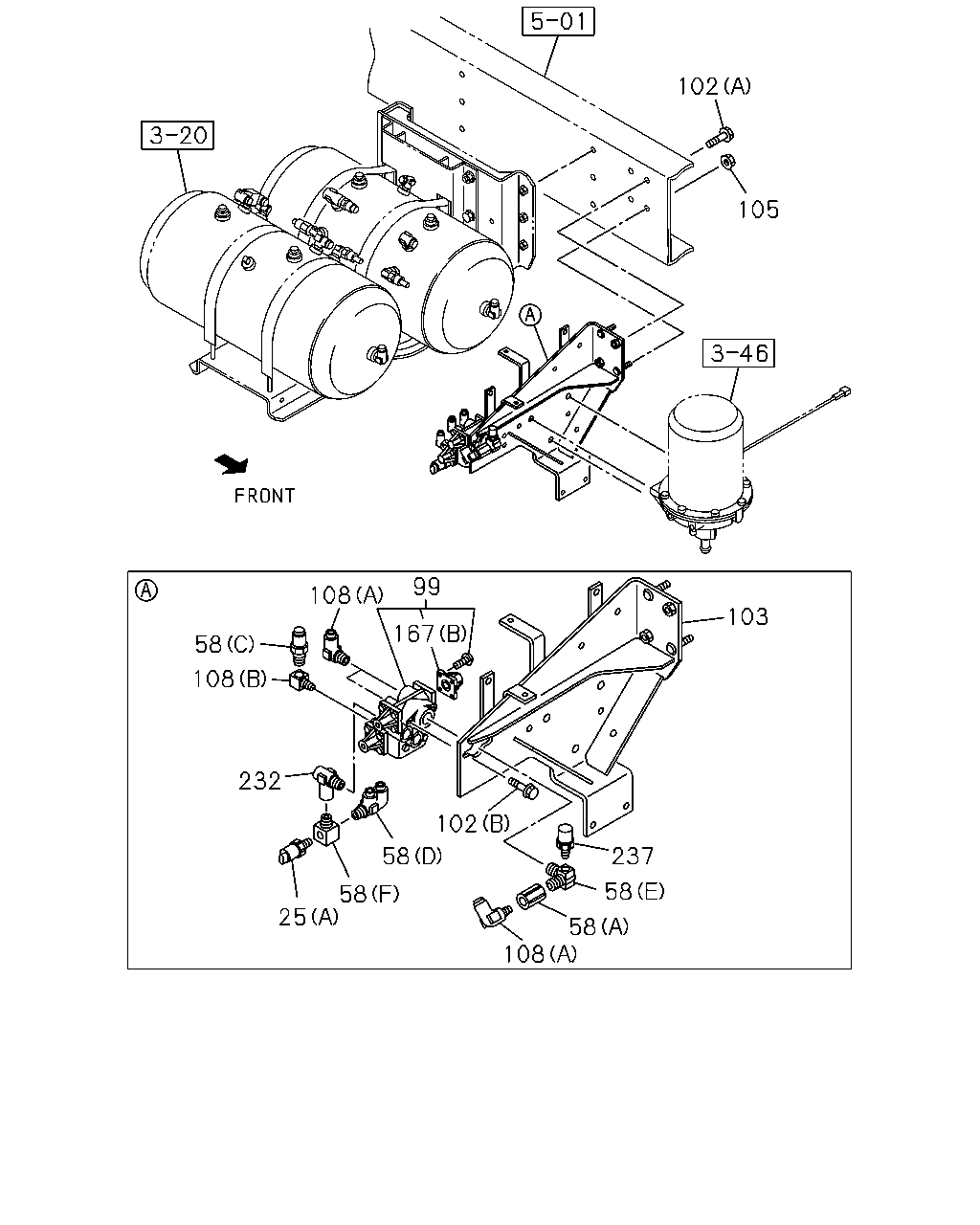

102
105
108
99
167
103
237
58
102
58
108
58
58
25
232
108
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
SWITCH; PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
1304-
25
SWITCH; PRESSURE
(B)
8-98010-856-1
01
1
1304-
58
ADAPTER
(B) INNER PT3/8,OUTER M22
1-09650-494-1
05
1
1304-
58
ADAPTER
(A) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1304-
58
ADAPTER
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
58
ADAPTER
(D) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1304-
58
ADAPTER
(E)
8-98031-238-0
01
1
1304-
58
ADAPTER
(F)
8-98166-127-0
01
1
1304-
99
VALVE; PROTECTION
1-48110-288-2
01
1
1304-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
102
BOLT; PROTECTION VALVE
(A) M10X35 FLANGE THA
0-28651-035-0
02
1
1304-
103
BRACKET; PROTECTION VALVE
THA
8-97925-395-0
01
1
1304-
105
NUT; BRKT,VALVE
M10 FLANGE THA
0-91180-210-0
02
1
1304-
108
CONNECTOR; ELBOW
(B) PT3/8 ELBOW
1-09660-696-0
01
1
1304-
108
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1304-
108
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1304-
167
COVER; VALVE
(B)
1-48119-625-0
04
1
1304-
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1304-
232
VALVE; CHECK
8-98032-527-0
01
1
1304-
237
VALVE; SAFETY
1-48320-012-2
01
1
1304-

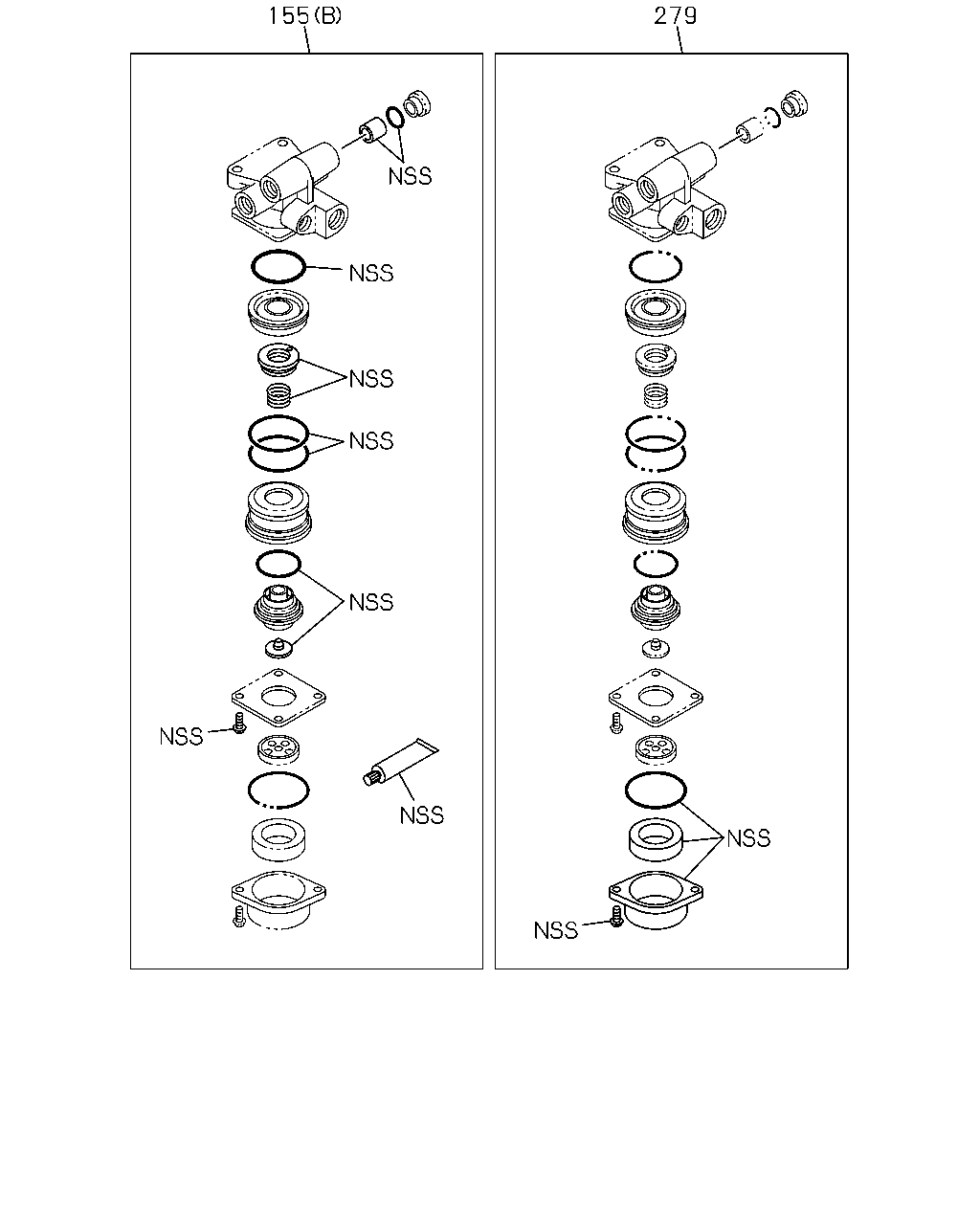

279
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-033-0
02
1
1304-
155
REPAIR KIT; RELAY VALVE
(B)
1-85576-408-0
01
1
1304-
279
REPAIR KIT; SILENCER
1-85576-409-0
01
1
1304-

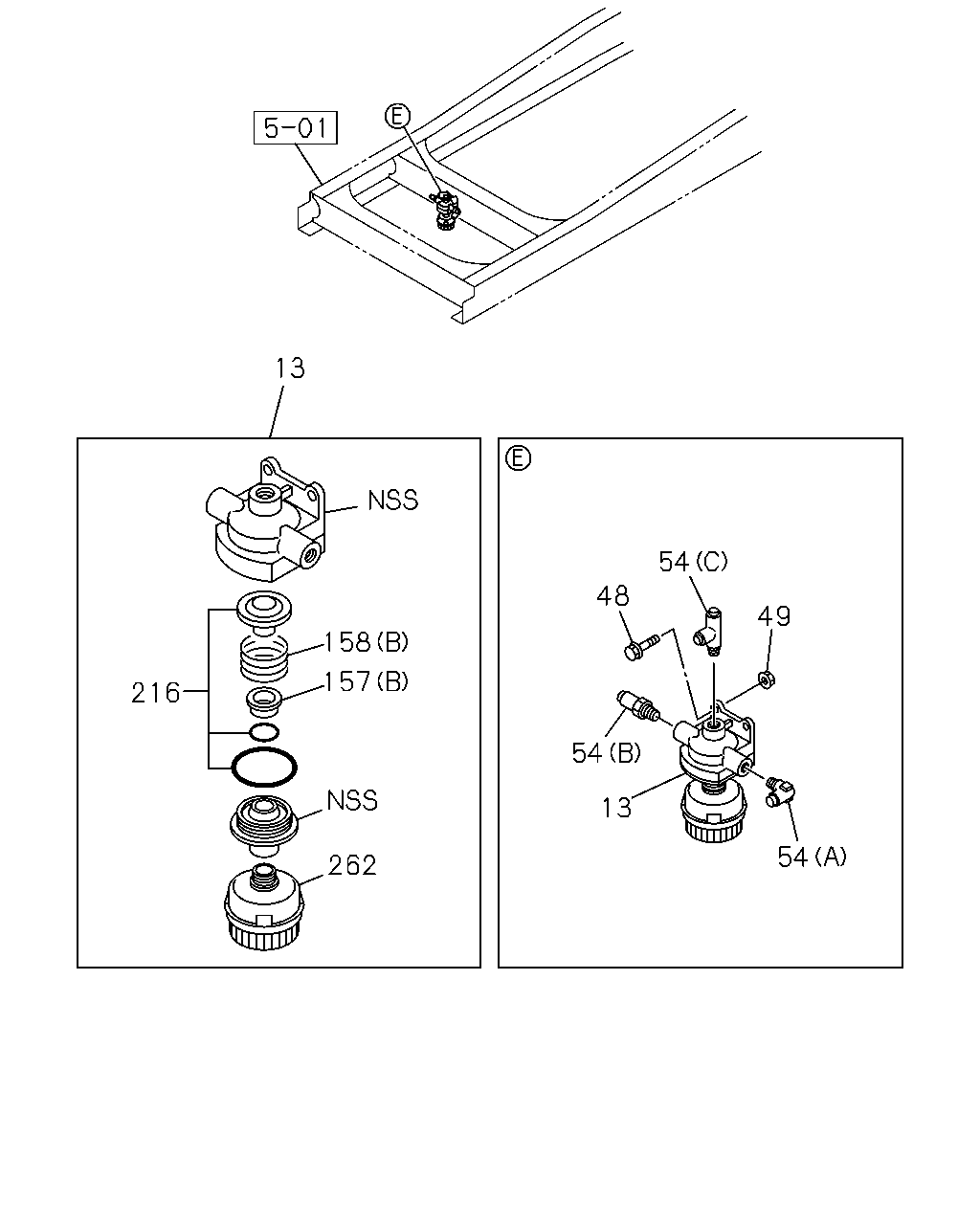

13
216
158
157
262
48
54
13
54
49
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
1304-
48
BOLT; QUICK RELEASE VLV
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
49
NUT; QUICK RELEASE VLV
M8 FLANGE THA
0-91180-108-0
02
1
1304-
54
CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
54
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
54
CONNECTOR; QUICK RELEASE VLV
(C)
1-09661-207-0
01
1
1304-
157
RETAINER; VALVE
(A)
1-48213-002-0
02
1
1304-
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1304-
158
SPRING; VALVE
(A)
1-47819-089-0
02
1
1304-
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1304-
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-484-0
01
1
1304-
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1304-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-1
01
1
1304-
