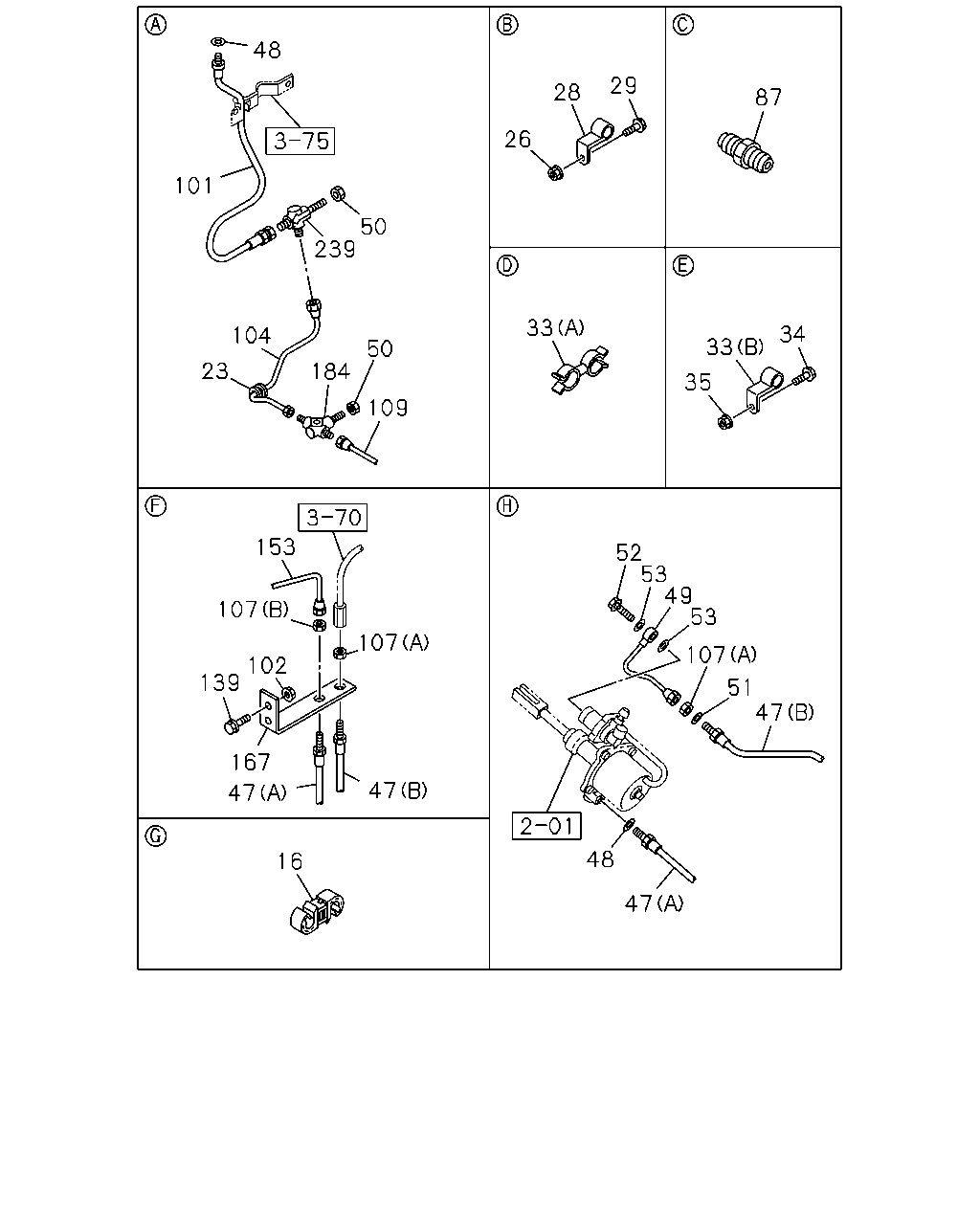

16 |
CLIP; FLEX HOSE
ID=10 & 12
|
1-09709-278-1 |
01 |
1 |
1304- |
| |
23 |
GROMMET; CLU PIPE
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1304- |
| |
26 |
NUT; CLIP,OIL PIPE
M8 FLANGE
THA
|
0-91180-108-0 |
03 |
1 |
1304- |
| |
28 |
CLIP; OIL PIPE
ID=8 H=20 L=20
|
1-09700-604-0 |
03 |
1 |
1304- |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
THA
|
0-28650-825-0 |
02 |
1 |
1304- |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
THA
|
0-28650-830-0 |
01 |
1 |
1304- |
| |
33 |
CLIP; OIL PIPE
(B)
ID=8 H=20 L=20
|
1-09700-604-0 |
04 |
1 |
1304- |
| |
33 |
CLIP; OIL PIPE
(A)
ID=8.3 & 10
|
8-94176-792-0 |
01 |
1 |
1304- |
| |
34 |
BOLT; PIPE CLIP
M8X30 FLANGE
THA
|
0-28650-830-0 |
04 |
1 |
1304- |
| |
35 |
NUT; PIPE CLIP
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
1304- |
| |
47 |
HOSE; FLEX,CLU CONT
(B)
L=560
|
1-09363-689-0 |
01 |
1 |
1304- |
| |
47 |
HOSE; FLEX,CLU CONT
(A)
L=520
|
1-09364-583-0 |
01 |
1 |
1304- |
| |
48 |
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
THA
|
9-09571-410-0 |
01 |
1 |
1304- |
| |
48 |
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
THA
|
9-09571-410-0 |
01 |
1 |
1304- |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232
|
1-49124-795-0 |
01 |
1 |
1304-1308 |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232
THA
|
8-97948-222-0 |
01 |
1 |
1309- |
| |
50 |
NUT; UNION
M12
|
0-91111-512-0 |
01 |
1 |
1304- |
| |
50 |
NUT; UNION
M12
|
0-91111-512-0 |
01 |
1 |
1304- |
| |
51 |
WASHER; LK
ID=12.2
|
0-91510-512-0 |
01 |
1 |
1304- |
| |
52 |
BOLT; EYE,AIR PIPE
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
1304- |
| |
53 |
GASKET; JOINT BOLT
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
1304-1312 |
| |
53 |
GASKET; JOINT BOLT
ID=14.2 OD=19.2
|
8-98251-345-0 |
02 |
1 |
1401- |
| |
87 |
UNION; OIL PIPE
M14 STRAIGHT
|
0-92113-008-0 |
01 |
1 |
1304- |
| |
101 |
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440
|
8-98072-346-0 |
01 |
1 |
1304- |
| |
102 |
NUT; FLEX HOSE,CLU CONT
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
1304- |
| |
104 |
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=542
SERVICED BY L=550
|
1-47428-753-0 |
01 |
1 |
1304- |
| |
107 |
NUT; UNION,OIL PIPE
(B)
M14
|
0-91111-514-0 |
01 |
1 |
1304- |
| |
107 |
NUT; UNION,OIL PIPE
(A)
M12
|
9-09840-280-0 |
02 |
1 |
1304- |
| |
109 |
PIPE; AIR,UNION TO UNION
L=1407
SERVICED BY L=1550
|
1-47428-766-0 |
01 |
1 |
1304- |
| |
139 |
BOLT; BRKT
M8X30 FLANGE
THA
|
0-28650-830-0 |
02 |
1 |
1304- |
| |
153 |
PIPE ASM; CLU,UNION TO FLEX
L=2227
THA
|
8-98130-573-0 |
01 |
1 |
1304- |
| |
167 |
BRACKET; UNION
|
8-98077-571-0 |
01 |
1 |
1304- |
| |
184 |
UNION; FLEX HOSE
M14 2WAY
|
1-09654-176-2 |
01 |
1 |
1304- |
| |
239 |
UNION; CLU HOSE
|
8-98107-850-0 |
01 |
1 |
1304- |
