◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11541 - FVM CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#121567) — 198 parça
çizim 355620
70 62 75 56 75 94 22 22 105 81 60 107 81
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM<63W> (E) 		8-98217-354-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1304-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-628-0 01 1 1304-1305
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 6300MM<63W> (C) 		8-98220-876-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1304-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1304-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 1304-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1308-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 1304-1307
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 1304-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
75 RUBBER; SUPPORT,BRKT
OD=40 THA 		1-22159-094-0 02 1 1304-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 06 1 1304-
107 BOLT; BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-

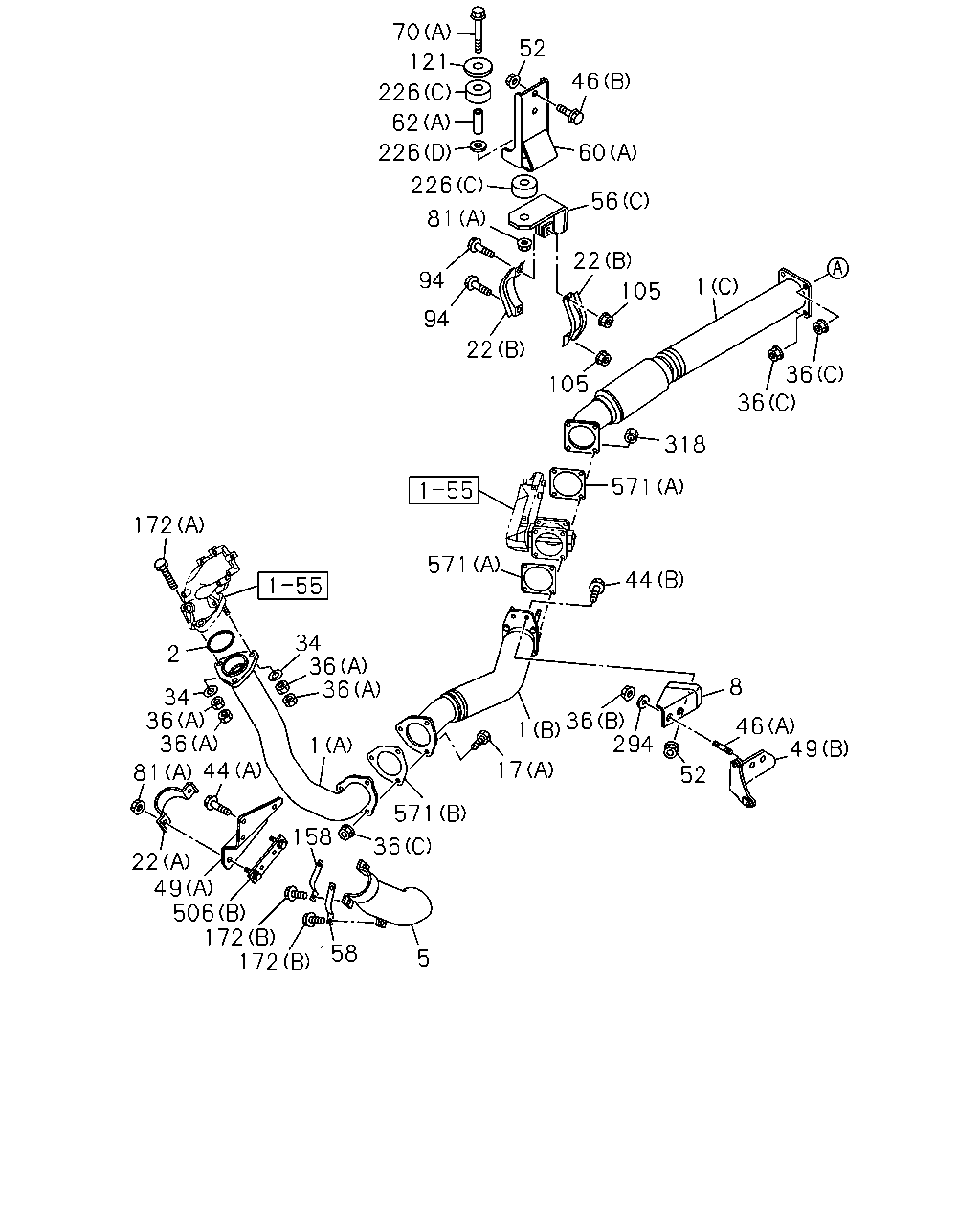

çizim 358096
70 226 121 62 226 81 226 94 94 46 52 60 56 22 1 105 36 36 318 571 44 8 46 49 52 294 36 1 17 571 36 5 158 172 172 506 49 22 158 1 44 81 36 36 34 2 172 34 36 36 571 22 105
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) THA 		8-97925-381-0 01 1 1304-
1 PIPE; EXH
(A) THA 		8-98126-486-5 01 1 1304-
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1304-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 1304-
5 PROTECTOR; HEAT
THA 		8-97630-122-2 01 1 1304-
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1304-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1304-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1304-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1304-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1304-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1304-
44 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 1304-
44 BOLT; BRKT
(A) M10X20 FLANGE THA 		0-28751-020-0 03 1 1304-
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 THA 		0-44011-025-0 02 1 1304-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-97629-970-0 01 1 1304-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98120-497-0 01 1 1304-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM<63W> (E) 		8-98217-354-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1304-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-628-0 01 1 1304-1305
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 6300MM<63W> (C) 		8-98220-876-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1304-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1304-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 1304-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1308-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 1304-1307
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 1304-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1304-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1304-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1304-
158 BRACKET; HEAT PROTECTOR 8-97630-104-0 02 1 1304-
172 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1304-
172 BOLT
(A) M12X65 		1-09000-386-0 02 1 1304-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1304-1307
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1308-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1304-1307
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1308-
226 RUBBER; CUSHION
(C) 		8-97379-882-0 02 1 1304-
226 RUBBER; CUSHION
(D) 		8-98090-400-0 01 1 1304-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1304-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 1304-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1304-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1304-
571 GASKET
(A) 		1-22116-043-0 02 1 1304-
571 GASKET
(B) 		8-98043-481-0 01 1 1304-

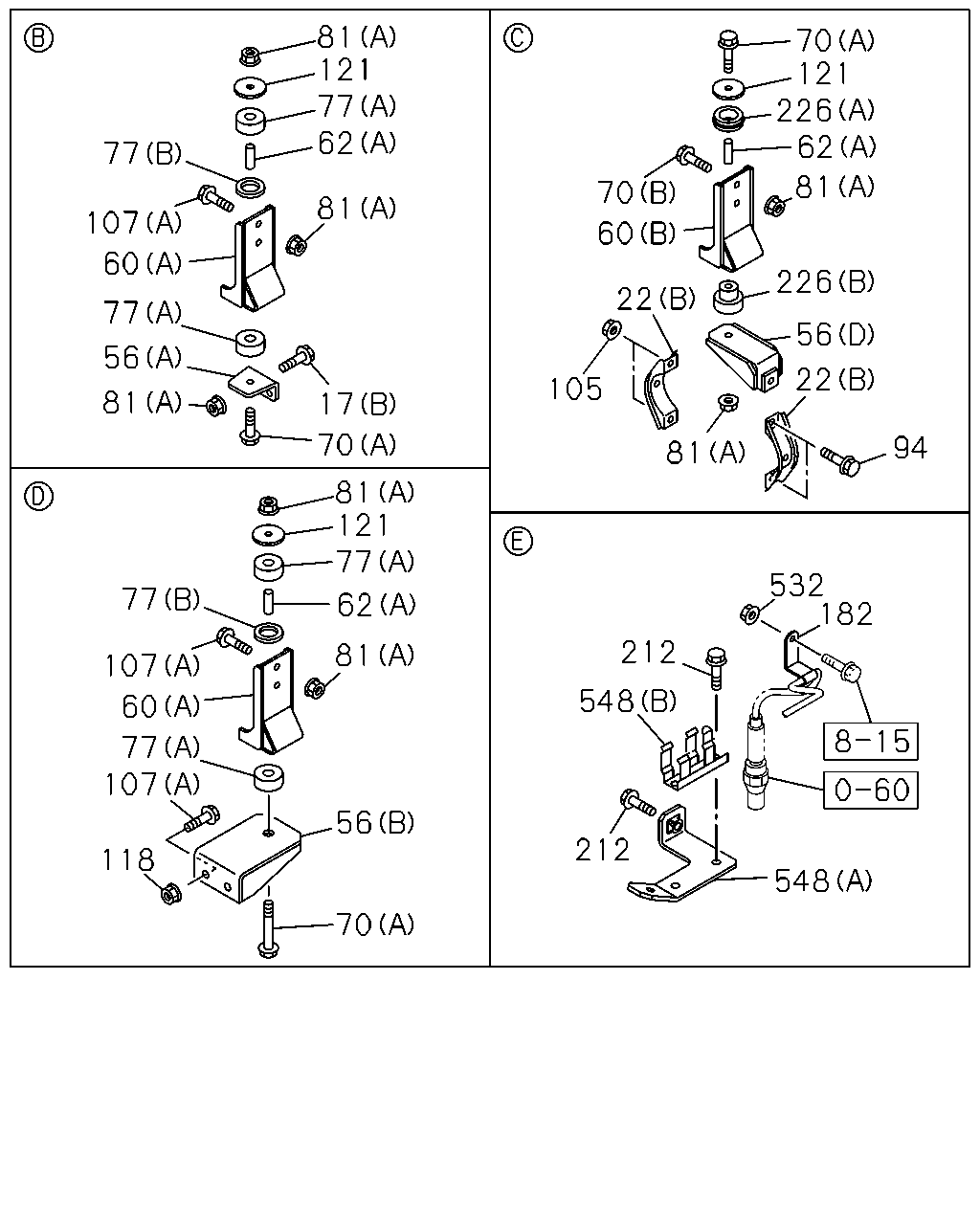

çizim 358455
212 548 212 548 182 532 22 56 226 94 81 105 22 60 70 81 62 226 121 70 81 121 77 62 81 77 107 60 77 56 81 17 70 81 121 77 62 81 56 70 118 107 77 60 107 77
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1304-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1304-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM<63W> (E) 		8-98217-354-0 01 1 1304-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1304-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-628-0 01 1 1304-1305
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 6300MM<63W> (C) 		8-98220-876-0 01 1 1304-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1304-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1304-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 1304-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1308-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 1304-1307
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 1304-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
77 RUBBER; CUSHION,BRKT
(A) 		8-97379-882-0 04 1 1304-
77 RUBBER; CUSHION,BRKT
(B) 		8-98090-400-0 02 1 1304-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 06 1 1304-
107 BOLT; BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 1304-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1304-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1304-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1304-
182 CLIP; HARNESS
ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 1304-
212 BOLT; BRKT
M6X12 FLANGE THA 		0-28050-612-0 02 1 1304-
212 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1304-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1304-1307
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1308-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1304-1307
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1308-
226 RUBBER; CUSHION
(C) 		8-97379-882-0 02 1 1304-
226 RUBBER; CUSHION
(D) 		8-98090-400-0 01 1 1304-
532 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
548 BRACKET; O2 SENSOR
(B) 		8-97262-725-0 01 1 1304-
548 BRACKET; O2 SENSOR
(A) THA 		8-98152-132-0 01 1 1304-
çizim 358670
126 36 84 506 12 506 84
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1304-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1304-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1304-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1304-
126 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-98217-353-0 01 1 1304-
126 PIPE; EXH,RR
WHEEL BASE 7100MM<71W> THA 		8-98200-667-0 01 1 1304-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1304-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
