◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11541 - FVM CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#121566) — 388 parça

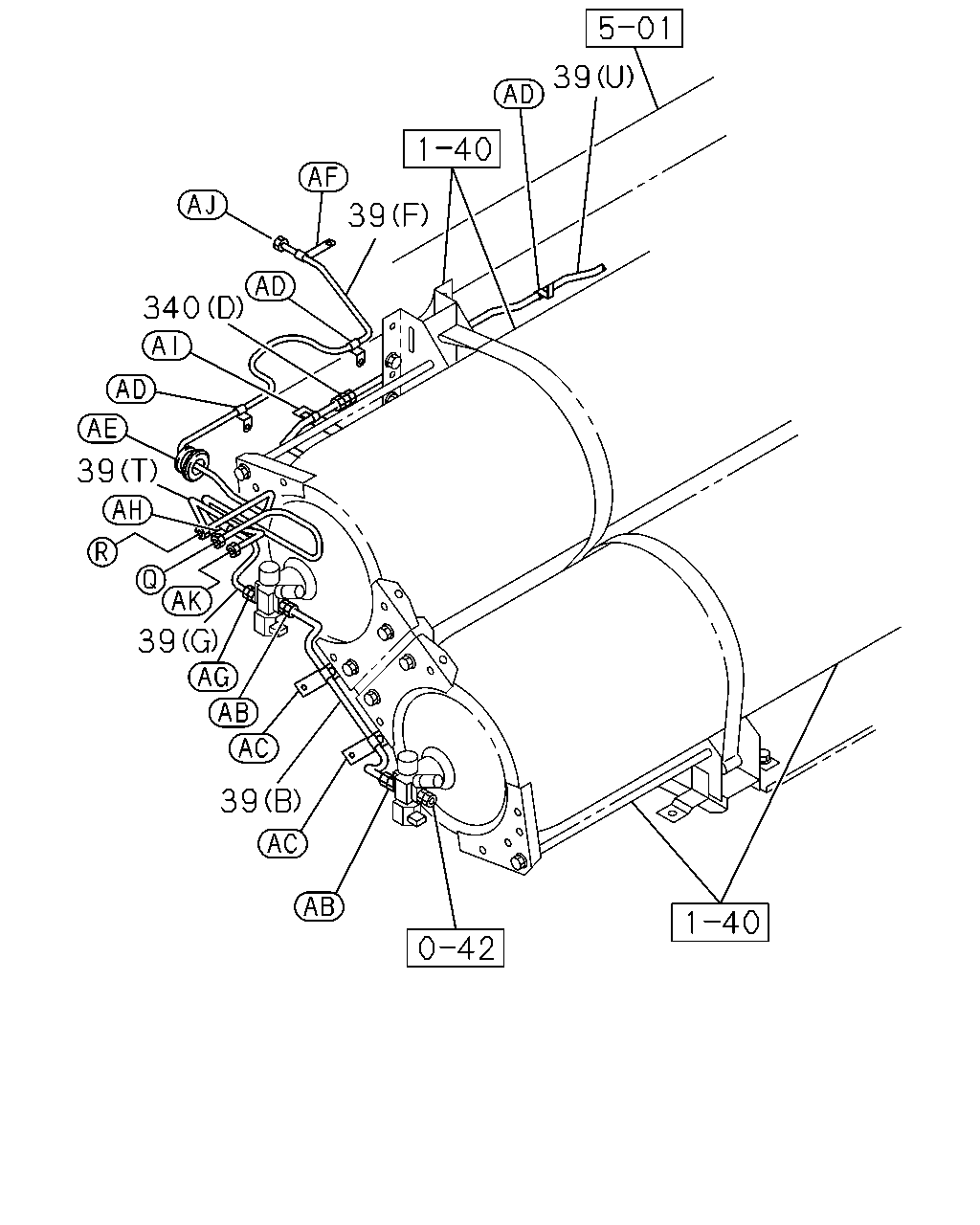

çizim 355560
39 39 340 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1304-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1304-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1304-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1304-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1304-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1304-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1304-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1304-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1304-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1304-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1304-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1304-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1304-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1304-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1304-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1304-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1304-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1304-
39 PIPE; FUEL
(A) 		8-98157-804-0 02 1 1304-1308
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1304-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1304-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1304-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1304-
39 PIPE; FUEL
(X) THA 		8-98239-012-0 01 1 1304-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-

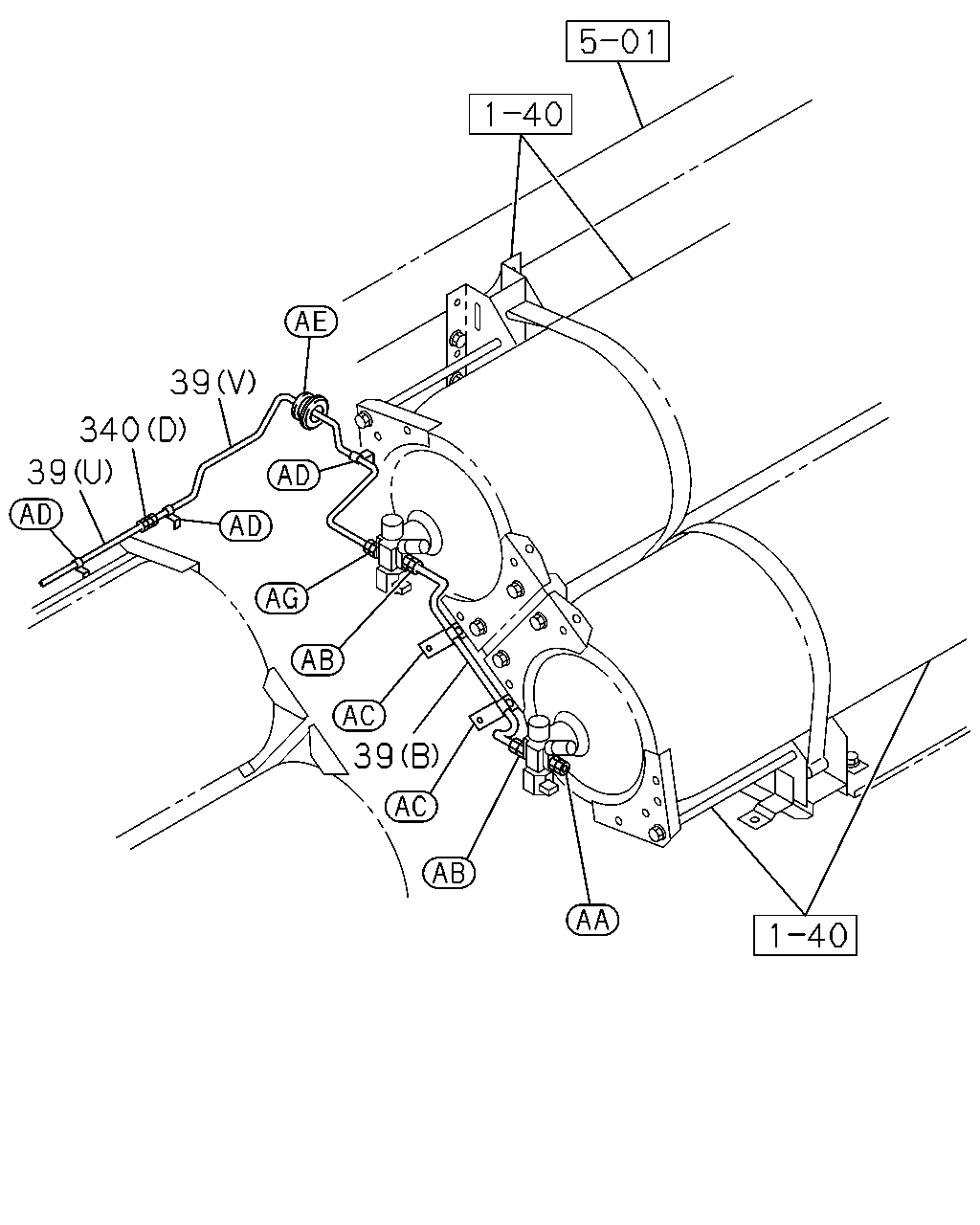

çizim 355591
39 39 340 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1304-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1304-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1304-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1304-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1304-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1304-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1304-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1304-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1304-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1304-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1304-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1304-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1304-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1304-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1304-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1304-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1304-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1304-
39 PIPE; FUEL
(A) 		8-98157-804-0 02 1 1304-1308
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1304-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1304-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1304-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1304-
39 PIPE; FUEL
(X) THA 		8-98239-012-0 01 1 1304-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-

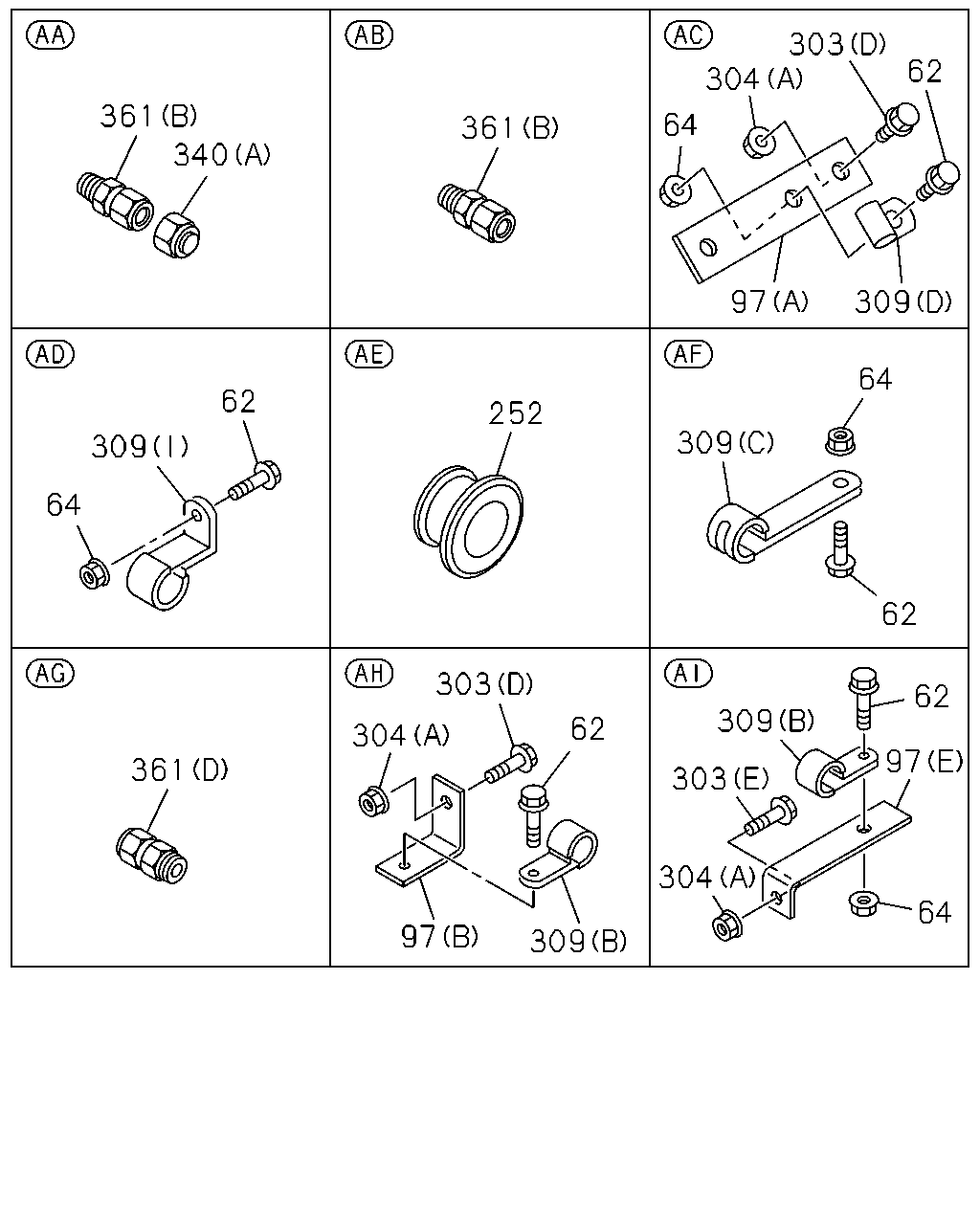

çizim 355648
309 97 304 303 62 361 304 64 97 62 309 303 252 309 64 62 309 62 64 361 361 340 64 304 303 309 97 62
BalonParca AdiParca NoAdetTipApplied Date
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1304-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1304-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 20 1 1304-
97 BRACKET; CLIP
(E) L=115 B=25 		1-47476-758-0 02 1 1304-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1304-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1304-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1304-
97 BRACKET; CLIP
(A) 		8-98174-069-0 06 1 1304-
252 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-
252 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 03 1 1304-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
303 BOLT; BRKT
(E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1304-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1304-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1304-
303 BOLT; BRKT
(A) M12X40 FLANGE 		0-28661-240-0 04 1 1304-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1304-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1304-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1304-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1304-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1304-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1304-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1304-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1304-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1304-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1304-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 08 1 1304-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1304-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 03 1 1304-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1304-

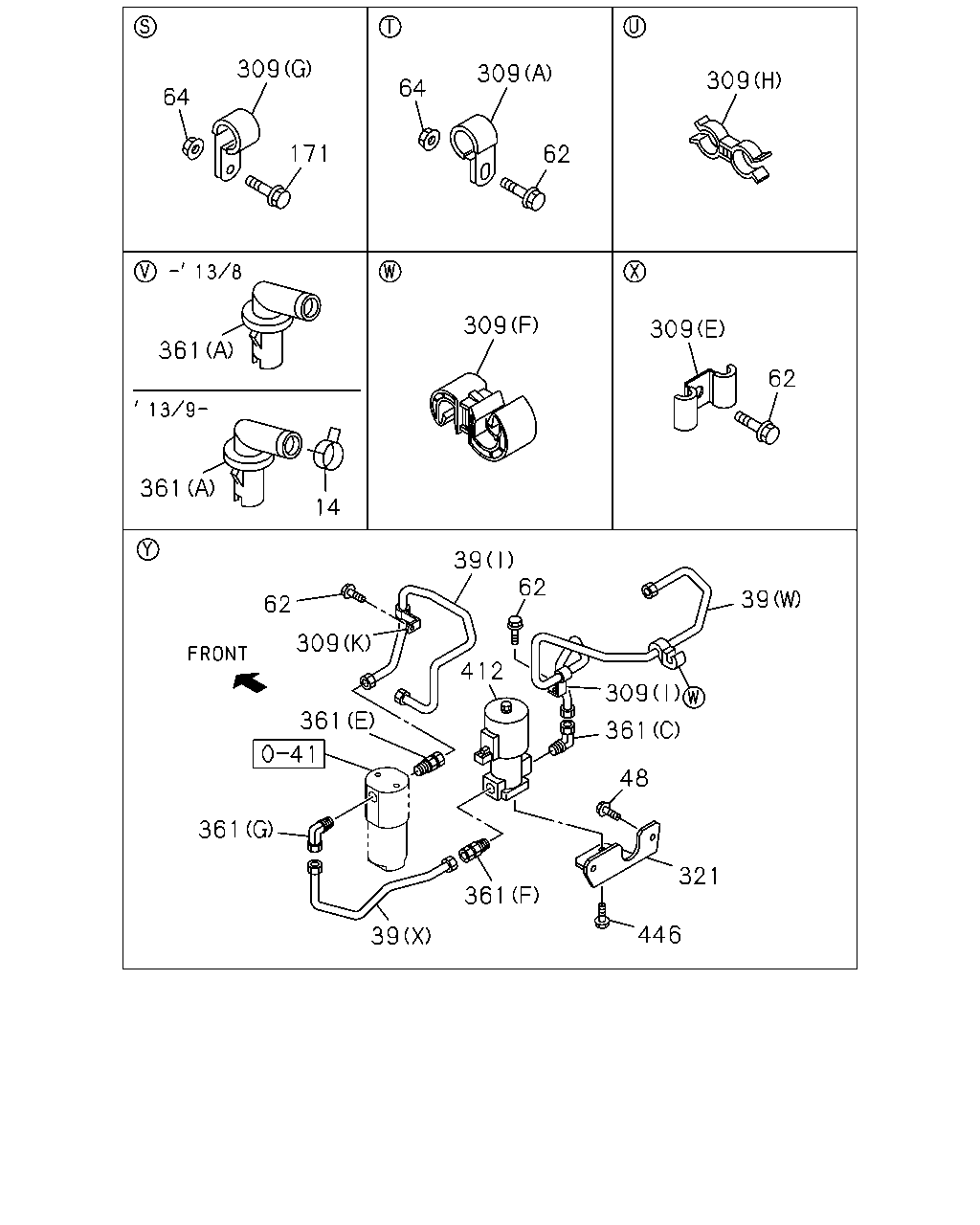

çizim 355745
309 64 171 64 309 62 309 361 361 14 309 309 62 39 62 309 361 361 39 361 412 62 309 361 48 321 446 39
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=13.8 		8-97306-552-0 04 1 1309-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1304-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1304-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1304-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1304-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1304-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1304-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1304-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1304-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1304-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1304-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1304-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1304-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1304-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1304-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1304-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1304-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1304-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1304-
39 PIPE; FUEL
(A) 		8-98157-804-0 02 1 1304-1308
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1304-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1304-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1304-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1304-
39 PIPE; FUEL
(X) THA 		8-98239-012-0 01 1 1304-
48 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1304-
48 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1304-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1304-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 20 1 1304-
171 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1304-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1304-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1304-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1304-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1304-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1304-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1304-
321 BRACKET; VLV
THA 		8-98239-023-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1304-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 08 1 1304-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1304-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 03 1 1304-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1304-
412 VALVE; MAG 8-98237-584-0 01 1 1304-
446 BOLT; CUT VALVE
M8X16 THA 		8-94139-492-0 02 1 1304-1304
446 BOLT; CUT VALVE
M8X16 THA 		8-98056-122-0 02 1 1305-

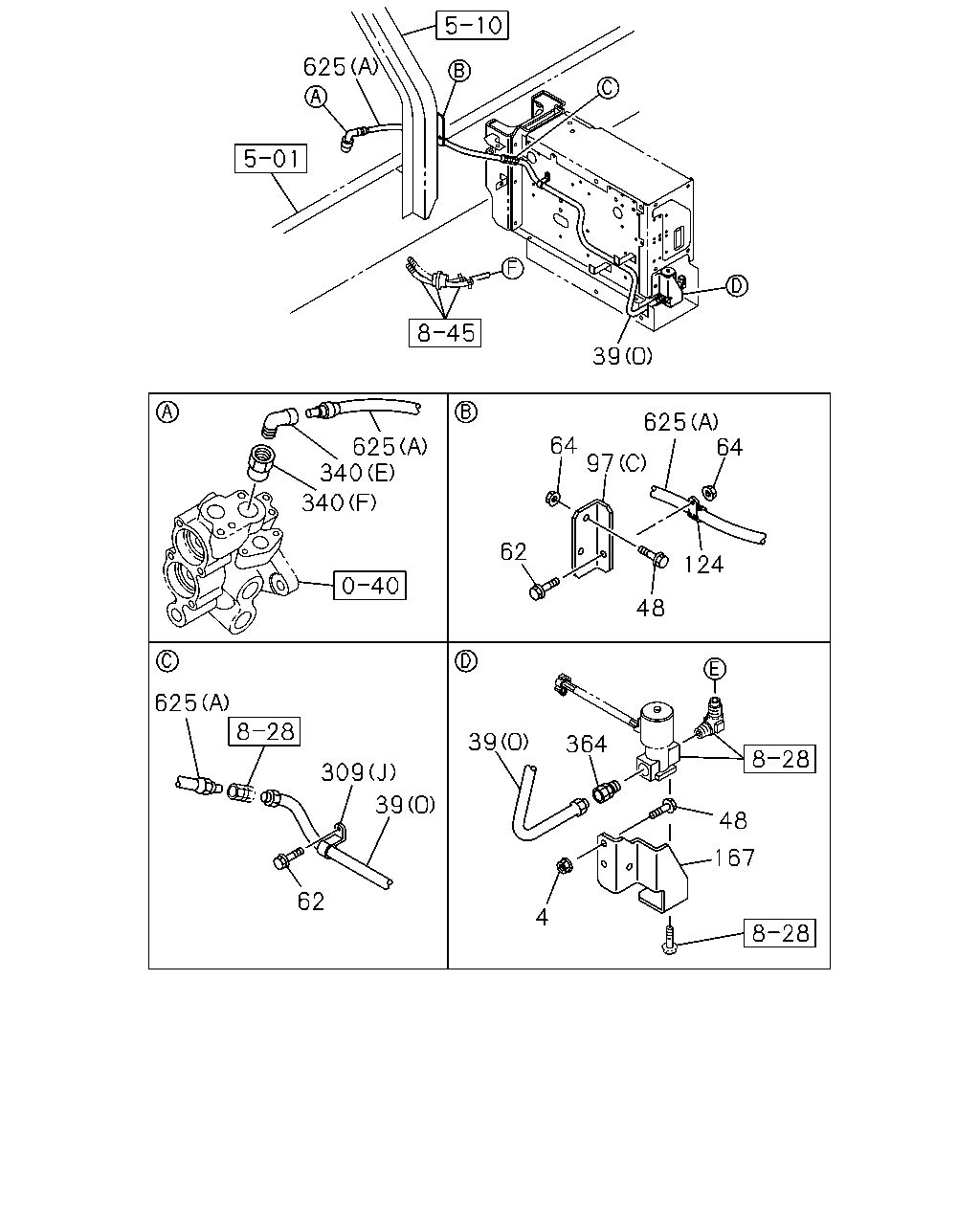

çizim 355790
625 39 625 340 340 625 64 62 48 97 124 64 39 364 48 167 4 625 309 62 39
BalonParca AdiParca NoAdetTipApplied Date
4 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1304-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1304-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1304-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1304-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1304-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1304-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1304-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1304-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1304-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1304-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1304-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1304-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1304-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1304-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1304-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1304-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1304-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1304-
39 PIPE; FUEL
(A) 		8-98157-804-0 02 1 1304-1308
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1304-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1304-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1304-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1304-
39 PIPE; FUEL
(X) THA 		8-98239-012-0 01 1 1304-
48 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1304-
48 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1304-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1304-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 20 1 1304-
97 BRACKET; CLIP
(E) L=115 B=25 		1-47476-758-0 02 1 1304-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1304-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1304-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1304-
97 BRACKET; CLIP
(A) 		8-98174-069-0 06 1 1304-
124 CLIP; HOSE
ID=18 L=28 		1-09701-067-0 01 1 1304-
167 BRACKET
THA 		8-98163-159-0 01 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1304-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1304-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1304-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1304-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1304-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1304-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1304-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-
364 CONNECTOR; MANIFOLD TO FILTER 8-98152-137-0 01 1 1304-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1309-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1304-

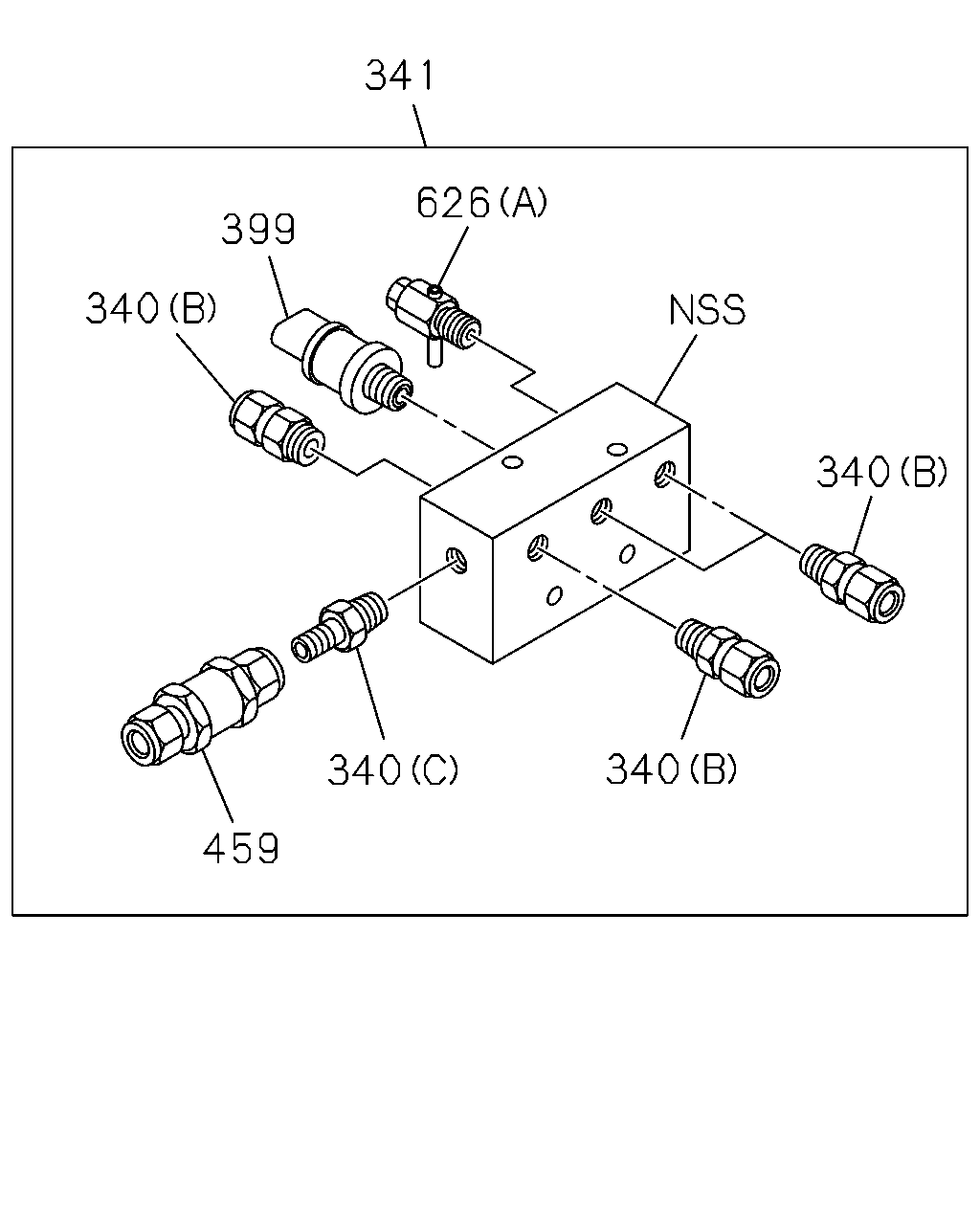

çizim 355821
340 340 459 340 626 399 340 341
BalonParca AdiParca NoAdetTipApplied Date
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-
341 MANIFOLD; CNG 8-98176-529-0 01 1 1304-
399 SENSOR; VENT PRESS 8-98108-286-0 01 1 1304-
459 VALVE; CHECK 8-98120-763-0 01 1 1304-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1304-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1304-

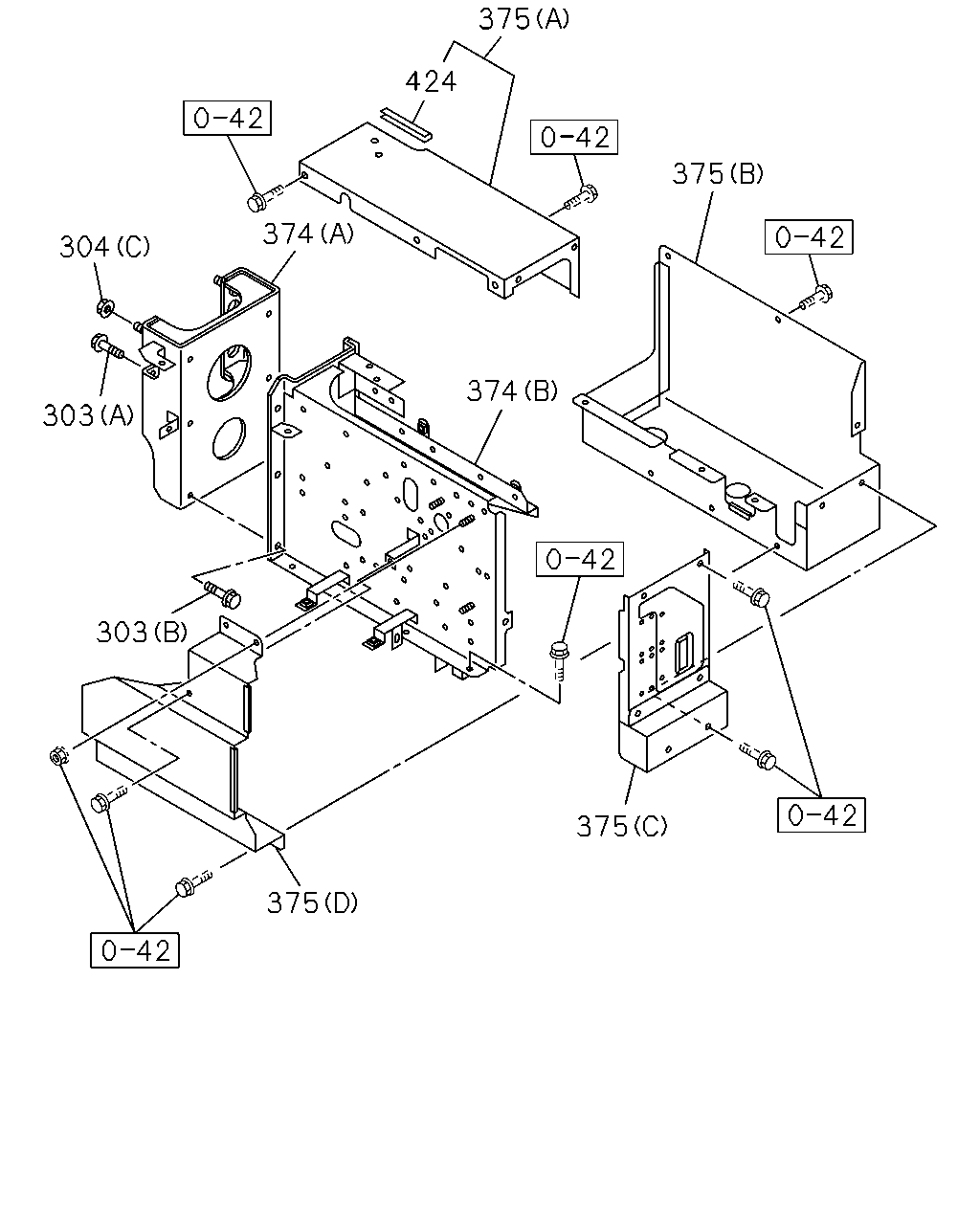

çizim 355880
375 424 374 304 303 303 374 375 375 375
BalonParca AdiParca NoAdetTipApplied Date
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
303 BOLT; BRKT
(E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1304-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1304-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1304-
303 BOLT; BRKT
(A) M12X40 FLANGE 		0-28661-240-0 04 1 1304-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1304-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1304-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1304-
374 BRACKET; REGULATOR
(A) 		8-98127-788-0 01 1 1304-
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1304-
374 BRACKET; REGULATOR
(B) THA 		8-98239-083-1 01 1 1304-
375 COVER; REGULATOR
(A) THA 		8-98127-791-1 01 1 1304-
375 COVER; REGULATOR
(C) THA 		8-98163-407-1 01 1 1304-
375 COVER; REGULATOR
(D) THA 		8-98239-085-0 01 1 1304-
375 COVER; REGULATOR
(B) THA 		8-98239-107-0 01 1 1304-
424 FINISHER
L=120 THA 		1-73948-004-0 02 1 1304-

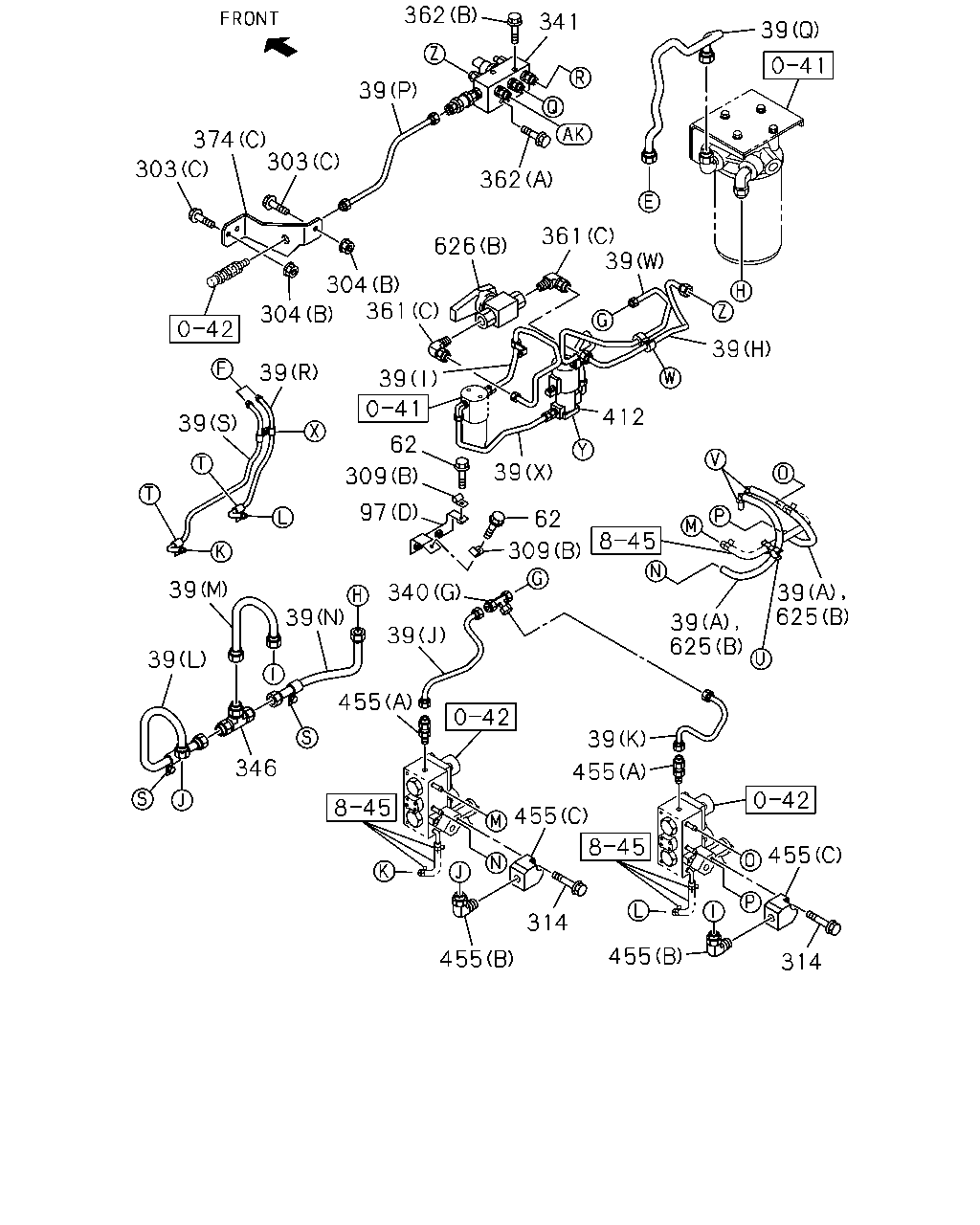

çizim 358463
341 362 39 303 374 303 304 304 39 39 39 39 346 39 455 39 340 97 309 62 39 361 626 362 361 412 39 39 62 309 455 455 314 455 314 455 625 39 455 39 625 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1304-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1304-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1304-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1304-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1304-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1304-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1304-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1304-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1304-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1304-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1304-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1304-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1304-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1304-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1304-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1304-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1304-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1304-
39 PIPE; FUEL
(A) 		8-98157-804-0 02 1 1304-1308
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1304-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1304-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1304-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1304-
39 PIPE; FUEL
(X) THA 		8-98239-012-0 01 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1304-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1304-
97 BRACKET; CLIP
(E) L=115 B=25 		1-47476-758-0 02 1 1304-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1304-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1304-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1304-
97 BRACKET; CLIP
(A) 		8-98174-069-0 06 1 1304-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1304-
303 BOLT; BRKT
(E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1304-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1304-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1304-
303 BOLT; BRKT
(A) M12X40 FLANGE 		0-28661-240-0 04 1 1304-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1304-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1304-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1304-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1304-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1304-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1304-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1304-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1304-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1304-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1304-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1304-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1304-
314 BOLT; FLANGE
M6X60 FLANGE 		0-28050-660-0 02 1 1304-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-
341 MANIFOLD; CNG 8-98176-529-0 01 1 1304-
346 CONNECTOR; 3WAY,CNG 8-97630-849-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1304-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 08 1 1304-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1304-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 03 1 1304-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1304-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1304-
362 BOLT; MANIFOLD
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1304-
362 BOLT; MANIFOLD
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1304-
374 BRACKET; REGULATOR
(A) 		8-98127-788-0 01 1 1304-
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1304-
374 BRACKET; REGULATOR
(B) THA 		8-98239-083-1 01 1 1304-
412 VALVE; MAG 8-98237-584-0 01 1 1304-
455 CONNECTOR; REGULATOR
(A) 		8-97630-843-0 02 1 1304-
455 CONNECTOR; REGULATOR
(B) M16 ELBOW 		8-97630-844-0 02 1 1304-
455 CONNECTOR; REGULATOR
(C) 		8-98127-020-1 02 1 1304-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1309-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1304-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1304-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1304-

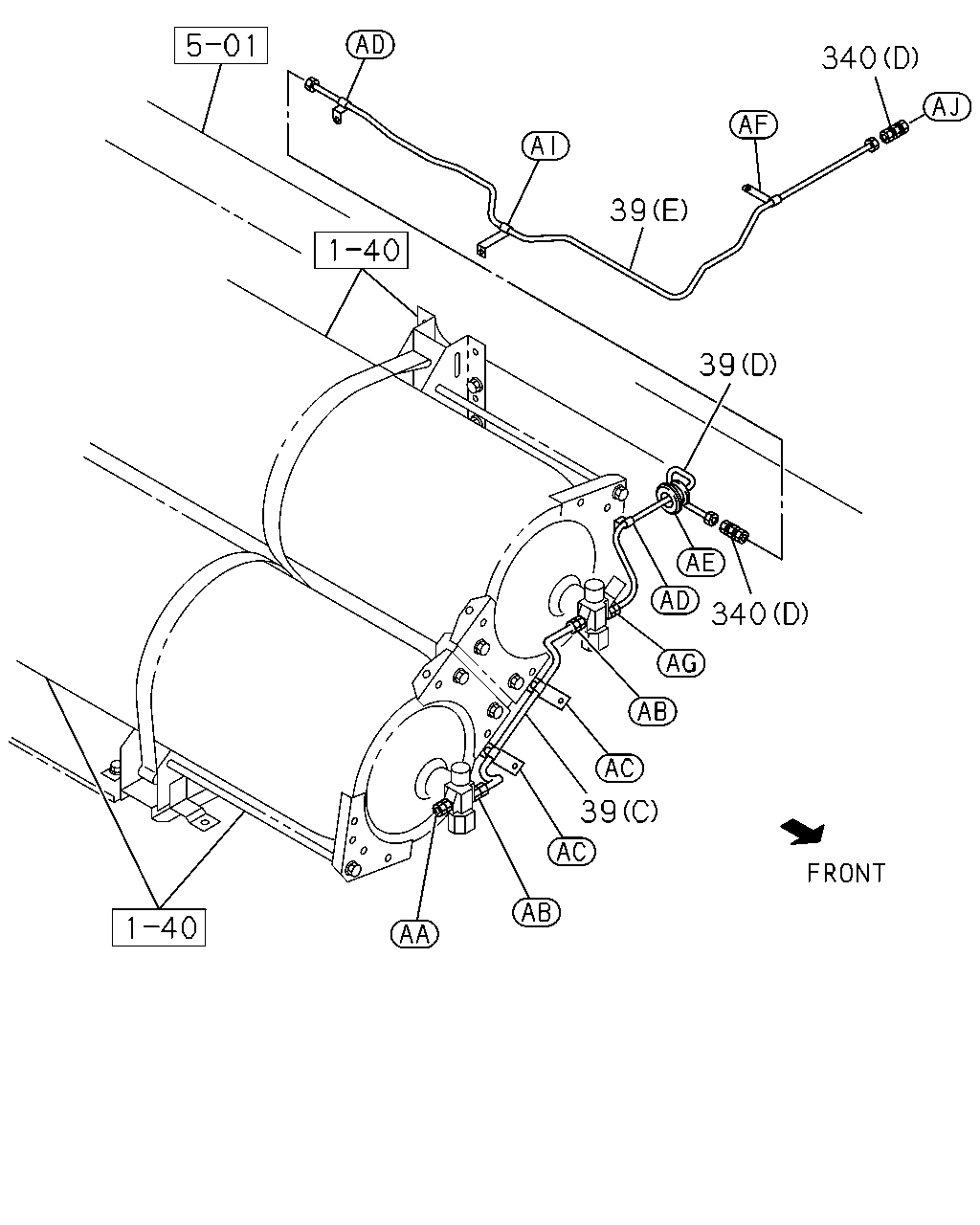

çizim 358698
39 340 39 340 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1304-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1304-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1304-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1304-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1304-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1304-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1304-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1304-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1304-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1304-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1304-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1304-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1304-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1304-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1304-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1304-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1304-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1304-
39 PIPE; FUEL
(A) 		8-98157-804-0 02 1 1304-1308
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1304-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1304-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1304-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1304-
39 PIPE; FUEL
(X) THA 		8-98239-012-0 01 1 1304-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1304-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1304-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1304-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1304-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1304-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1304-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
