Isuzu WW
▶
TRUCKS
▶
FVM
▶
11541 - FVM CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#121541) — 83 parça
◀
[032A] NO.2 (29 parça)
[032A] NO.3 (19 parça)
[032A] NO.1 (35 parça)
▶

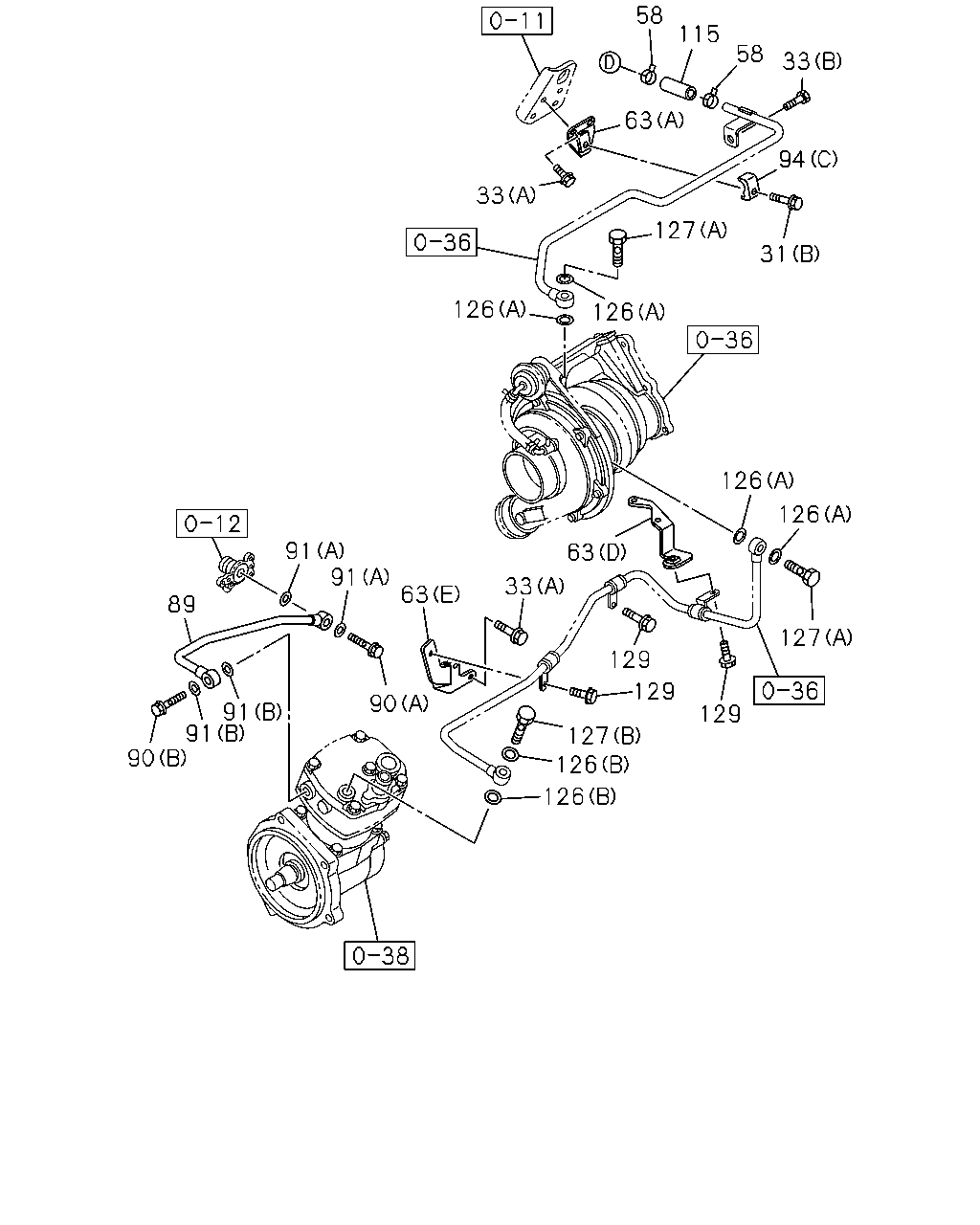

33
63
58
115
58
33
94
31
127
126
126
63
126
126
127
129
129
127
126
126
90
33
63
91
91
89
91
91
90
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
BOLT; CLIP
(B) M6X35 FLANGE THA
0-28650-635-0
04
1
1304-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1304-
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
33
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28050-820-0
04
1
1304-
33
BOLT; BRKT
(B) M12X20 FLANGE
0-28151-220-0
01
1
1304-
58
CLIP; RUBBER HOSE
ID=16
8-94392-924-0
02
1
1304-
63
BRACKET; WATER PIPE
(A)
8-94392-951-0
01
1
1304-
63
BRACKET; WATER PIPE
(D)
8-98074-252-0
01
1
1304-
63
BRACKET; WATER PIPE
(E)
8-98074-253-0
01
1
1304-
63
BRACKET; WATER PIPE
(C)
8-98094-159-0
02
1
1304-
63
BRACKET; WATER PIPE
(B)
8-98094-160-1
01
1
1304-
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
1304-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
1304-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
1304-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
1304-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
1304-
94
CLIP; WATER PIPE
(A)
1-09701-172-3
03
1
1304-
94
CLIP; WATER PIPE
(B)
1-09701-173-2
03
1
1304-
94
CLIP; WATER PIPE
(C)
8-94396-860-0
01
1
1304-
94
CLIP; WATER PIPE
(D)
8-97605-129-1
02
1
1304-
115
HOSE; RUBBER
L=60 SERVICED BY L=3000
0-03561-300-0
01
1
1304-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
04
1
1304-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
1304-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1304-
127
BOLT; EYE
(C) M16X25
5-09675-028-2
01
1
1304-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
1304-
129
BOLT; WATER PIPE TO BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1304-

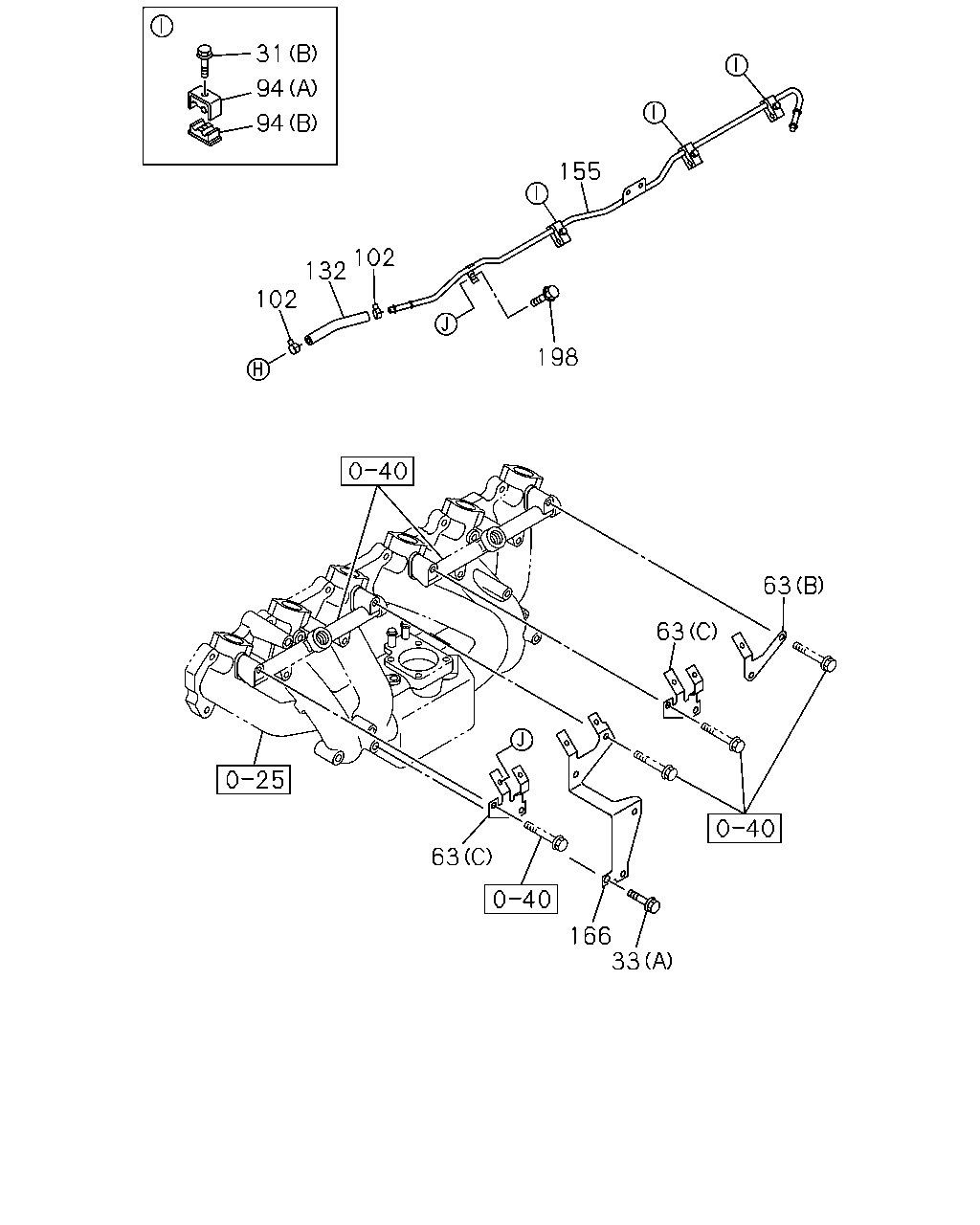

31
94
94
102
132
102
155
198
63
166
33
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
BOLT; CLIP
(B) M6X35 FLANGE THA
0-28650-635-0
04
1
1304-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1304-
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
33
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28050-820-0
04
1
1304-
33
BOLT; BRKT
(B) M12X20 FLANGE
0-28151-220-0
01
1
1304-
63
BRACKET; WATER PIPE
(A)
8-94392-951-0
01
1
1304-
63
BRACKET; WATER PIPE
(D)
8-98074-252-0
01
1
1304-
63
BRACKET; WATER PIPE
(E)
8-98074-253-0
01
1
1304-
63
BRACKET; WATER PIPE
(C)
8-98094-159-0
02
1
1304-
63
BRACKET; WATER PIPE
(B)
8-98094-160-1
01
1
1304-
94
CLIP; WATER PIPE
(A)
1-09701-172-3
03
1
1304-
94
CLIP; WATER PIPE
(B)
1-09701-173-2
03
1
1304-
94
CLIP; WATER PIPE
(C)
8-94396-860-0
01
1
1304-
94
CLIP; WATER PIPE
(D)
8-97605-129-1
02
1
1304-
102
CLIP; WATER HOSE
ID=12
8-94238-610-0
02
1
1304-
132
HOSE; WATER PIPE
L=110 SERVICED BY L=3000
0-03557-300-0
01
1
1304-
155
PIPE ASM; WATER
8-98131-267-0
01
1
1304-
166
BRACKET; CLIP
8-98141-076-0
01
1
1304-
198
BOLT; PIPE
M6X16 FLANGE THA
0-28050-616-0
01
1
1304-

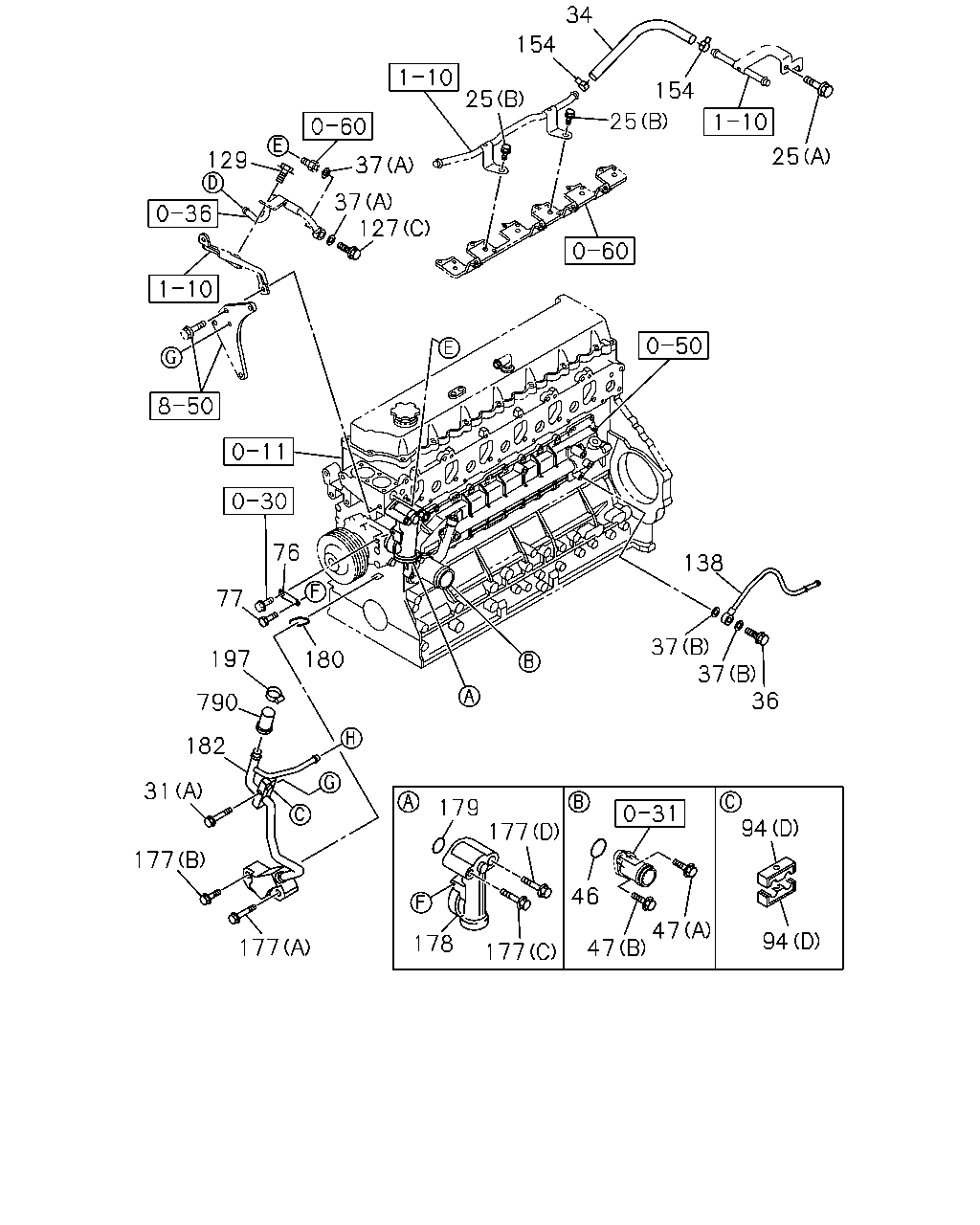

37
37
127
129
25
154
34
25
154
25
76
77
197
790
182
31
177
180
138
37
37
36
179
177
178
177
46
47
47
94
94
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
(A) M6X20 FLANGE
0-28050-620-0
01
1
1304-
25
BOLT; WATER PIPE
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
31
BOLT; CLIP
(B) M6X35 FLANGE THA
0-28650-635-0
04
1
1304-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1304-
34
HOSE; RUBBER,WATER PIPE
L=290 SERVICED BY L=3000
0-03557-300-0
01
1
1304-
36
BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT
1-09675-193-0
01
1
1304-
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2
1-09630-085-0
02
1
1304-1312
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16.2
1-09630-086-0
02
1
1304-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
1304-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE THA
0-28050-845-0
01
1
1304-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
1304-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA
0-28050-850-0
01
1
1304-
94
CLIP; WATER PIPE
(A)
1-09701-172-3
03
1
1304-
94
CLIP; WATER PIPE
(B)
1-09701-173-2
03
1
1304-
94
CLIP; WATER PIPE
(C)
8-94396-860-0
01
1
1304-
94
CLIP; WATER PIPE
(D)
8-97605-129-1
02
1
1304-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1304-
127
BOLT; EYE
(C) M16X25
5-09675-028-2
01
1
1304-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
1304-
129
BOLT; WATER PIPE TO BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
138
PIPE; WATER
8-98131-266-0
01
1
1304-
154
CLIP; WATER HOSE
ID=12
8-94238-610-0
02
1
1304-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE THA
0-28050-880-0
01
1
1304-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
1304-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
1304-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
1304-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
1304-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
1304-
182
DUCT; WATER,HTR
8-98112-246-1
01
1
1304-
197
CLIP; CAP
ID=25
8-97177-581-0
01
1
1304-
790
CAP
8-94107-793-0
01
1
1304-
