2-85 — POWER TAKE OFF CONTROL (#12152) — 58 parça

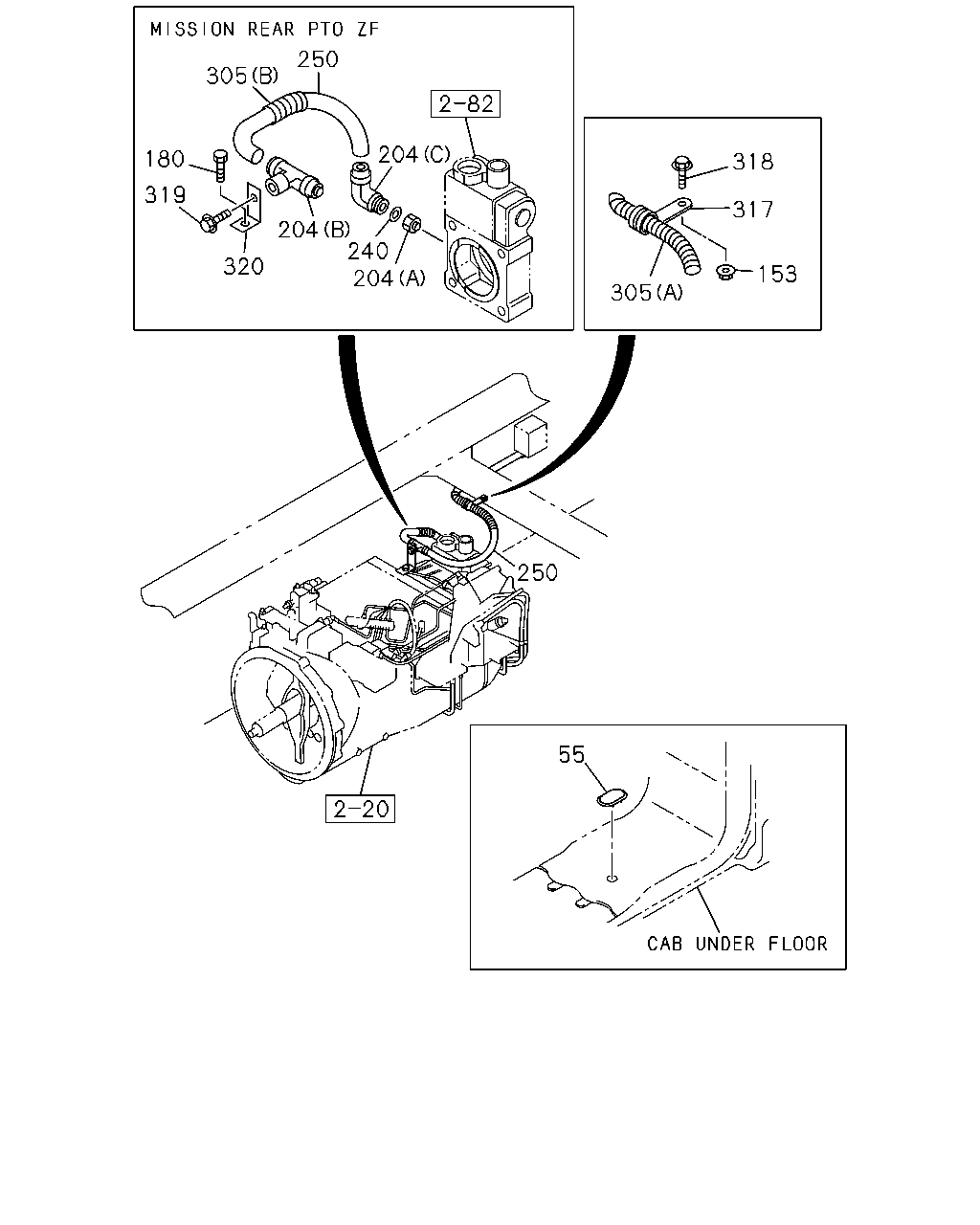

çizim 138705
250 305 204 180 318 319 317 204 240 204 320 153 305 250 55
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE 1-09983-068-0 01 1 0105-
153 NUT; CLIP
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91150-108-0 01 1 0105-0307
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91150-108-0 01 1 0308-0602
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0603-
180 BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 0105-0512
180 BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28851-625-0 01 1 0601-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) PT1/4 		1-09654-396-0 01 1 0105-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 0105-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0105-1312
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0312-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0307
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0308-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0312-
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0308-
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) (B) L=800 ID=7.4 		1-83129-031-1 01 1 0105-
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0106
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0308-
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=18 L=28 		1-09701-067-0 01 1 0308-
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ID=14.5 L=40 		1-09701-014-0 01 1 0105-
318 BOLT; CLIP
PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0307
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
319 BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
319 BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
320 BRACKET; UNION
PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 0105-

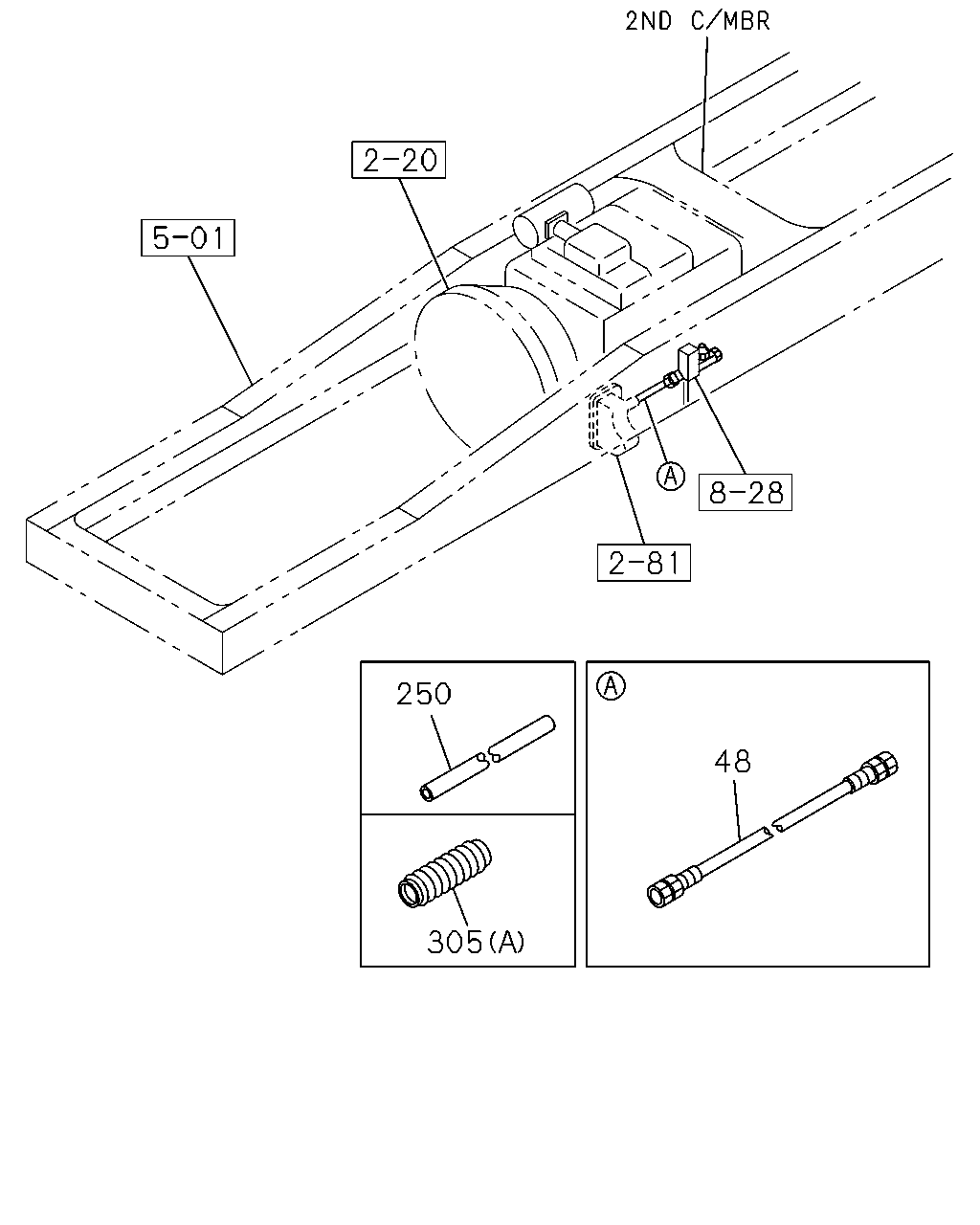

çizim 138960
250 48 305
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 0312-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0312-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0307
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0308-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0312-
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0308-
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) (B) L=800 ID=7.4 		1-83129-031-1 01 1 0105-
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0106
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0308-
