8-52 — PIPING; AIR CONDITIONING
(#121517) — 29 parça
◀

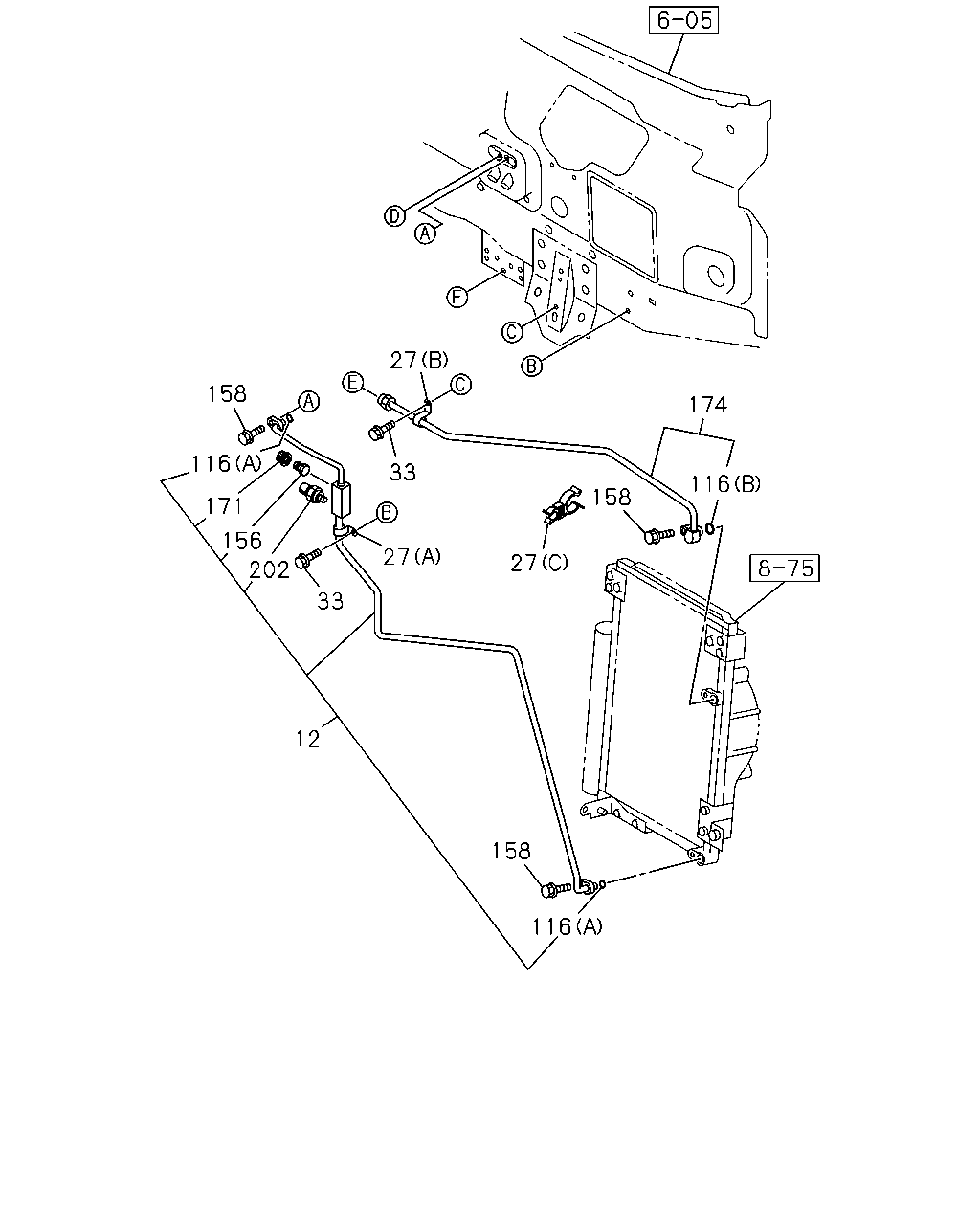

[852A] CAB SIDE (12 parça)

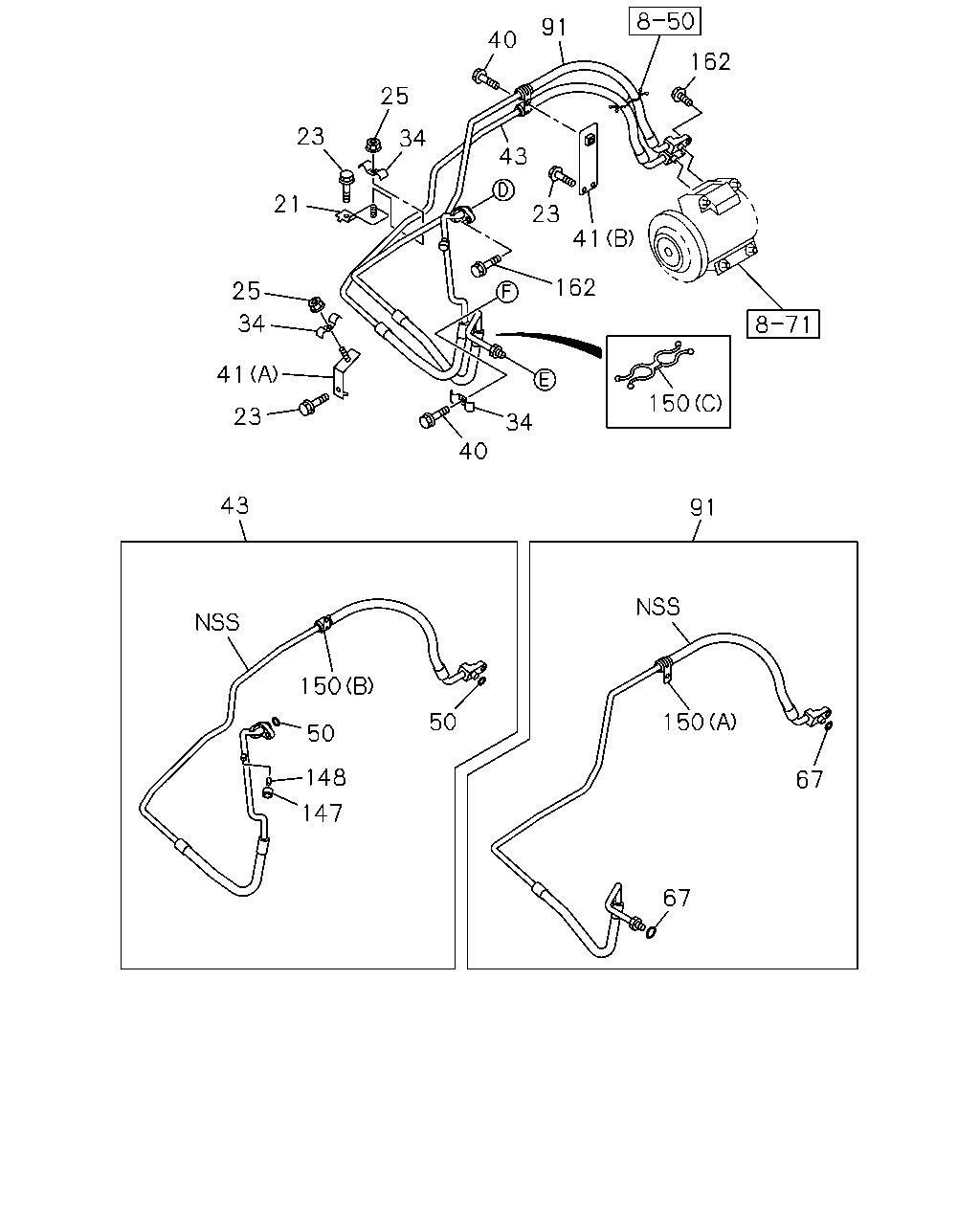

[852A] FRAME SIDE (17 parça)
▶
27
33
27
158
116
156
171
202
33
12
27
158
116
174
116
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98041-329-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1304-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA
8-97095-906-0
02
1
1304-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA
8-97095-907-0
01
1
1304-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98151-702-0
01
1
1304-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE
0-28050-625-0
03
1
1304-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA
8-97095-911-0
01
1
1304-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98041-331-0
01
1
1304-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
1-83564-391-0
01
1
1304-
91
150
67
67
50
147
50
148
150
43
23
41
34
25
21
23
25
34
40
91
43
23
162
41
34
40
162
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98010-187-0
01
1
1304-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
02
1
1304-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98043-673-0
03
1
1304-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-98010-188-1
01
1
1304-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98032-049-0
01
1
1304-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98052-989-2
01
1
1304-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA
8-97095-908-0
02
1
1304-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA
8-97095-907-0
02
1
1304-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98052-990-2
01
1
1304-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA
1-83539-331-0
01
1
1304-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97095-909-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
1-83574-249-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
1-83574-264-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C)
8-94423-042-0
01
1
1304-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE
0-28050-625-0
03
1
1304-
