8-28 — CHASSIS ELECTRICAL
(#121513) — 29 parça
◀

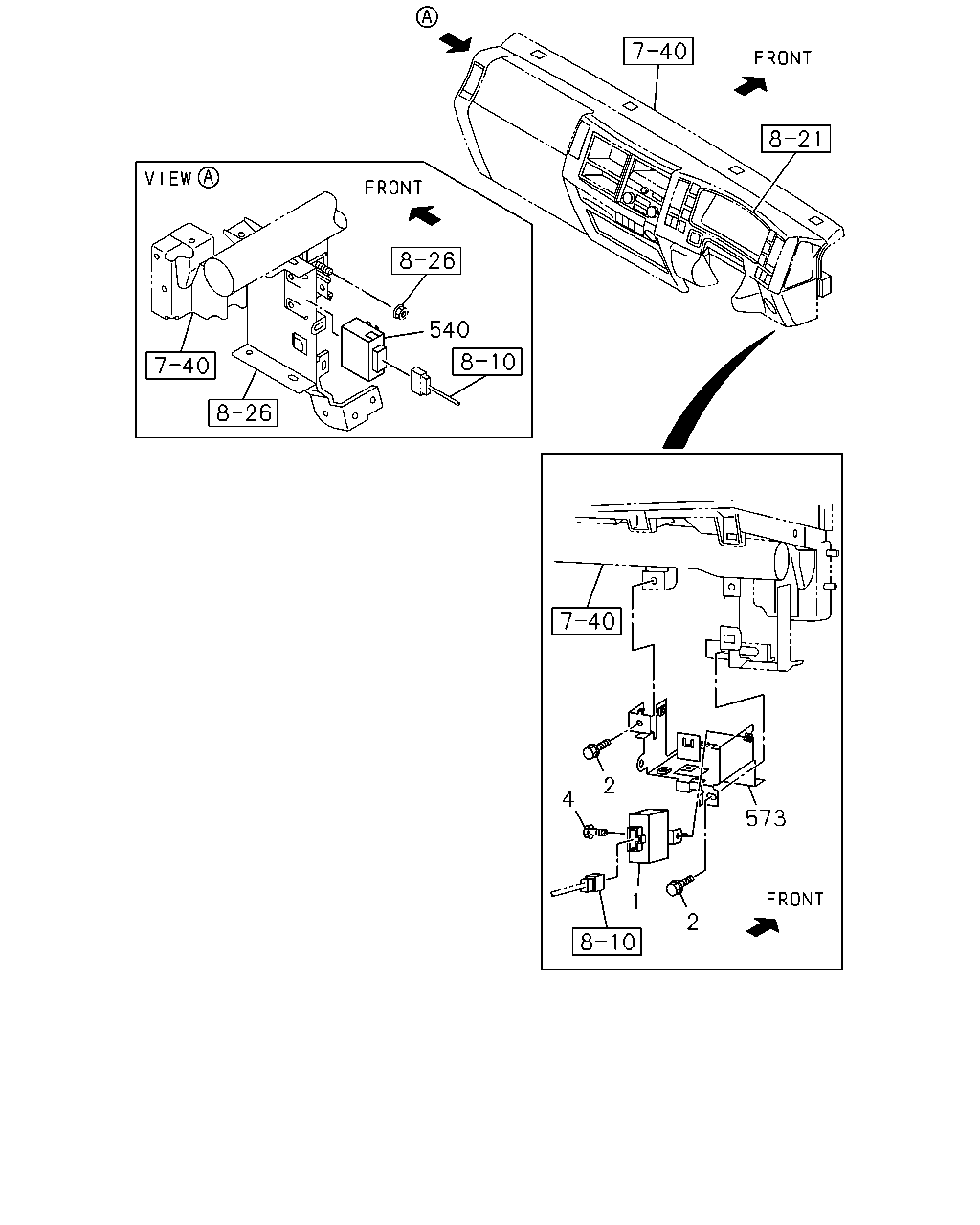

[828A] FRONT SIDE (6 parça)

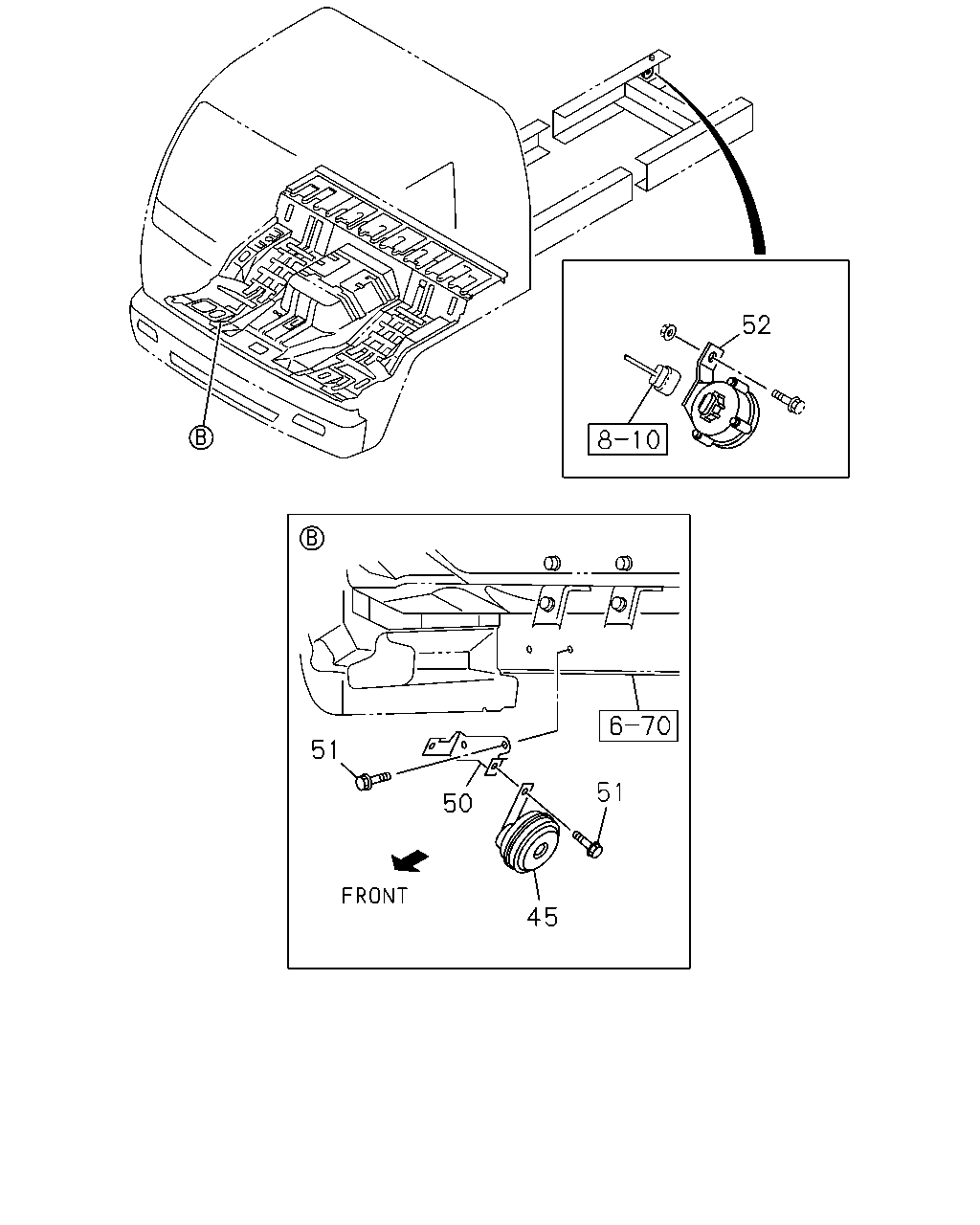

[828A] FRAME SIDE NO.1 (4 parça)

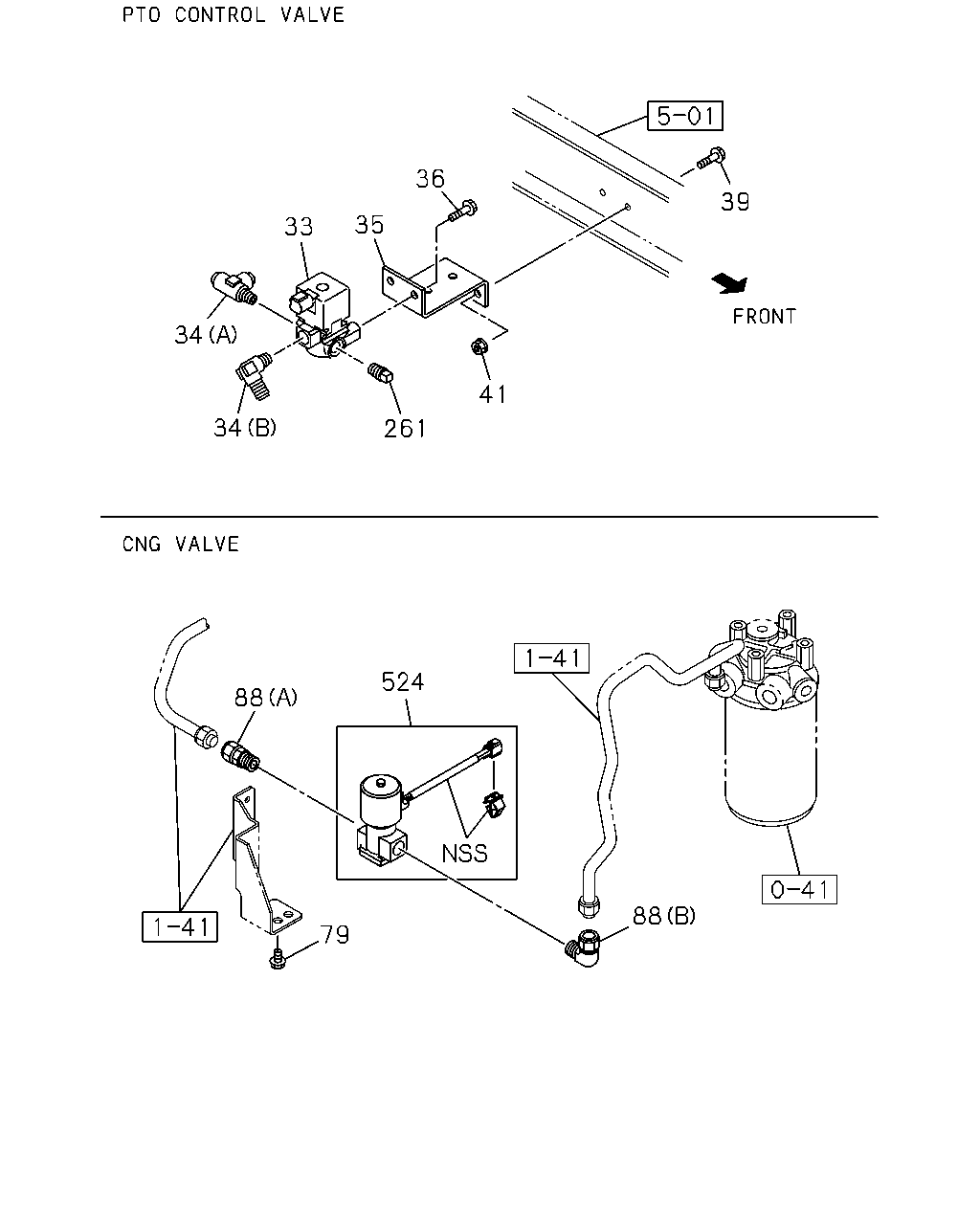

[828A] FRAME SIDE NO.2 (14 parça)

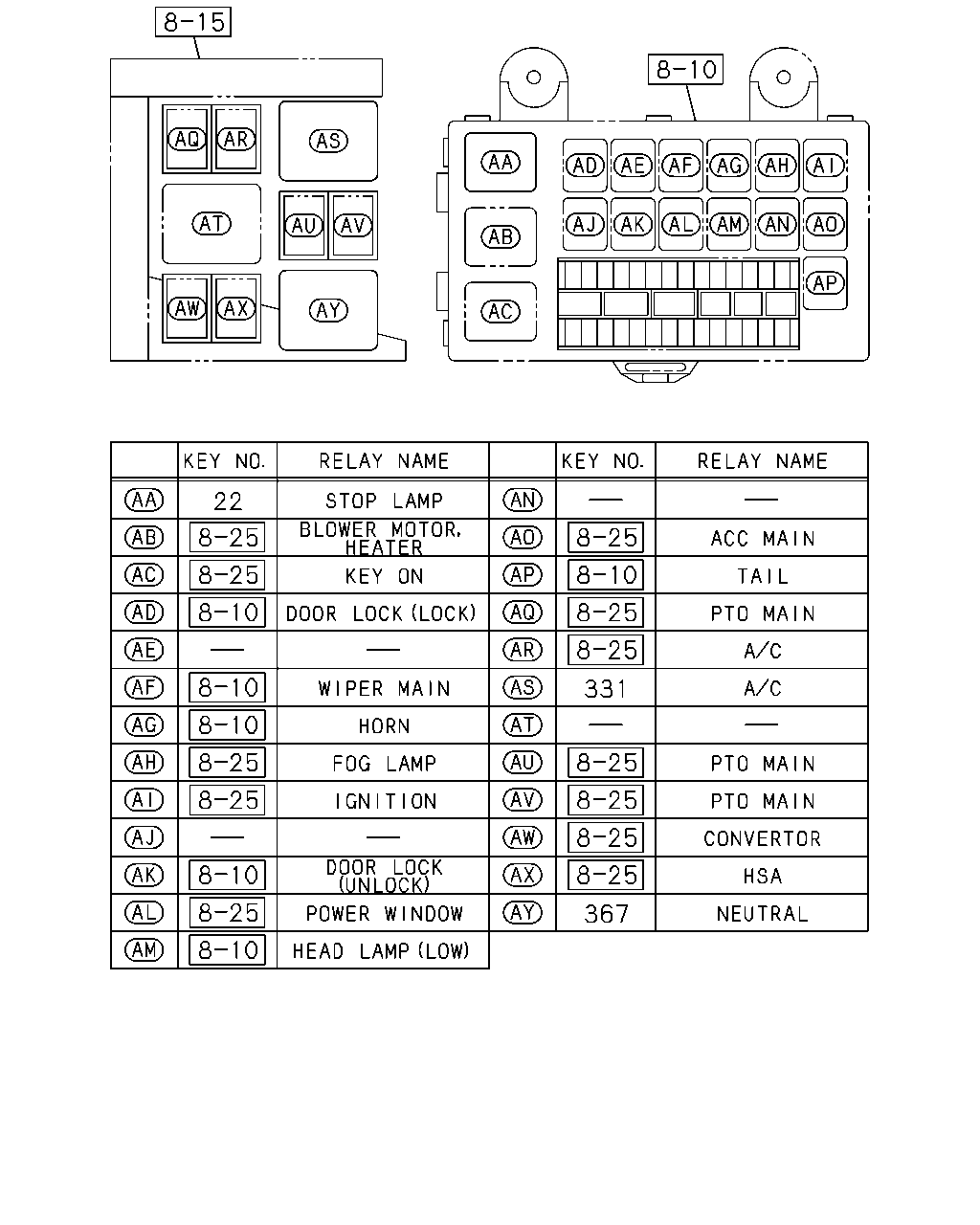

[828A] RELAY;CAB HARNESS (3 parça)
[828A] RELAY;FRAME HARNESS (2 parça)
▶
540
4
2
2
1
573
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1304-
2
BOLT; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
4
SCREW; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
540
RELAY; WIPER INTERVAL
8-98060-388-0
01
1
1304-1308
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1309-
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1304-
52
51
50
45
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
HORN; LOW NOTE
THA
8-97925-172-0
01
1
1304-
50
BRACKET; HORN
8-97613-300-2
01
1
1304-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
03
1
1304-
52
BUZZER; BACK
8-97617-027-0
01
1
1304-
39
36
35
33
34
34
261
41
524
88
79
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6>
1-82563-871-2
01
1
1304-1306
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6> THA
8-97948-152-0
01
1
1307-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
1304-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1304-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98154-633-0
01
1
1304-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE THA
0-28650-835-0
02
1
1304-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE THA
0-91180-108-0
02
1
1304-
79
BOLT; MAG VLV
M8X16 THA
8-94139-492-0
02
1
1304-1304
79
BOLT; MAG VLV
M8X16 THA
8-98056-122-0
02
1
1305-
88
CONNECTOR; MAG VLV
(B) M16 ELBOW
8-97630-844-0
01
1
1304-
88
CONNECTOR; MAG VLV
(A) STRAIGHT
8-98163-158-0
01
1
1304-
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1304-
524
VALVE; MAG,CNG
THA
8-98237-585-0
01
1
1304-
22
331
367
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
331
RELAY; A/C
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
367
RELAY; NEUTRAL
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A JIDECO
8-97238-540-0
01
1
1304-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
