◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11540 - FTR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#121512) — 23 parça

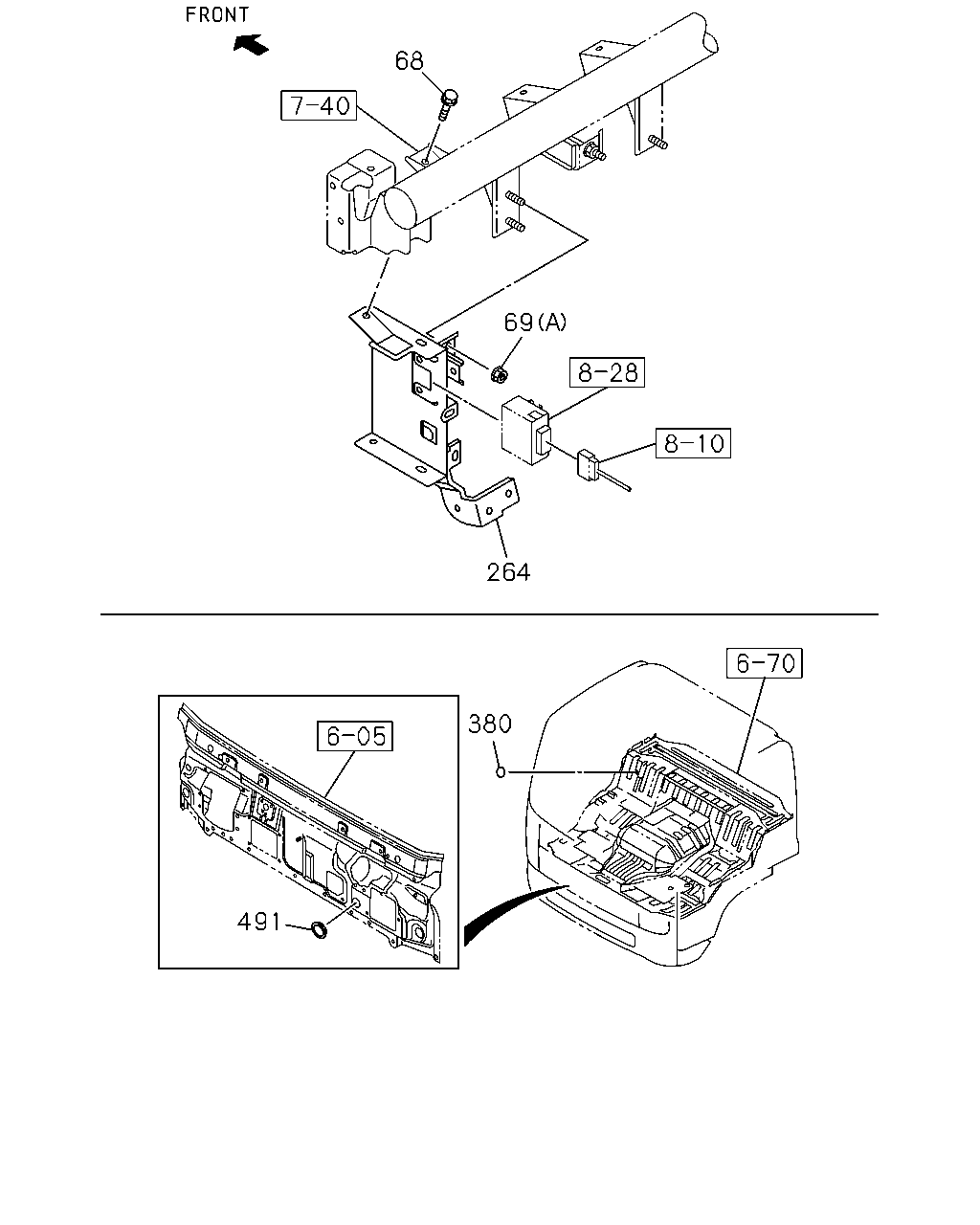

çizim 357439
68 69 264 380 491
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1304-
69 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1304-
69 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1304-
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1304-
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 1304-

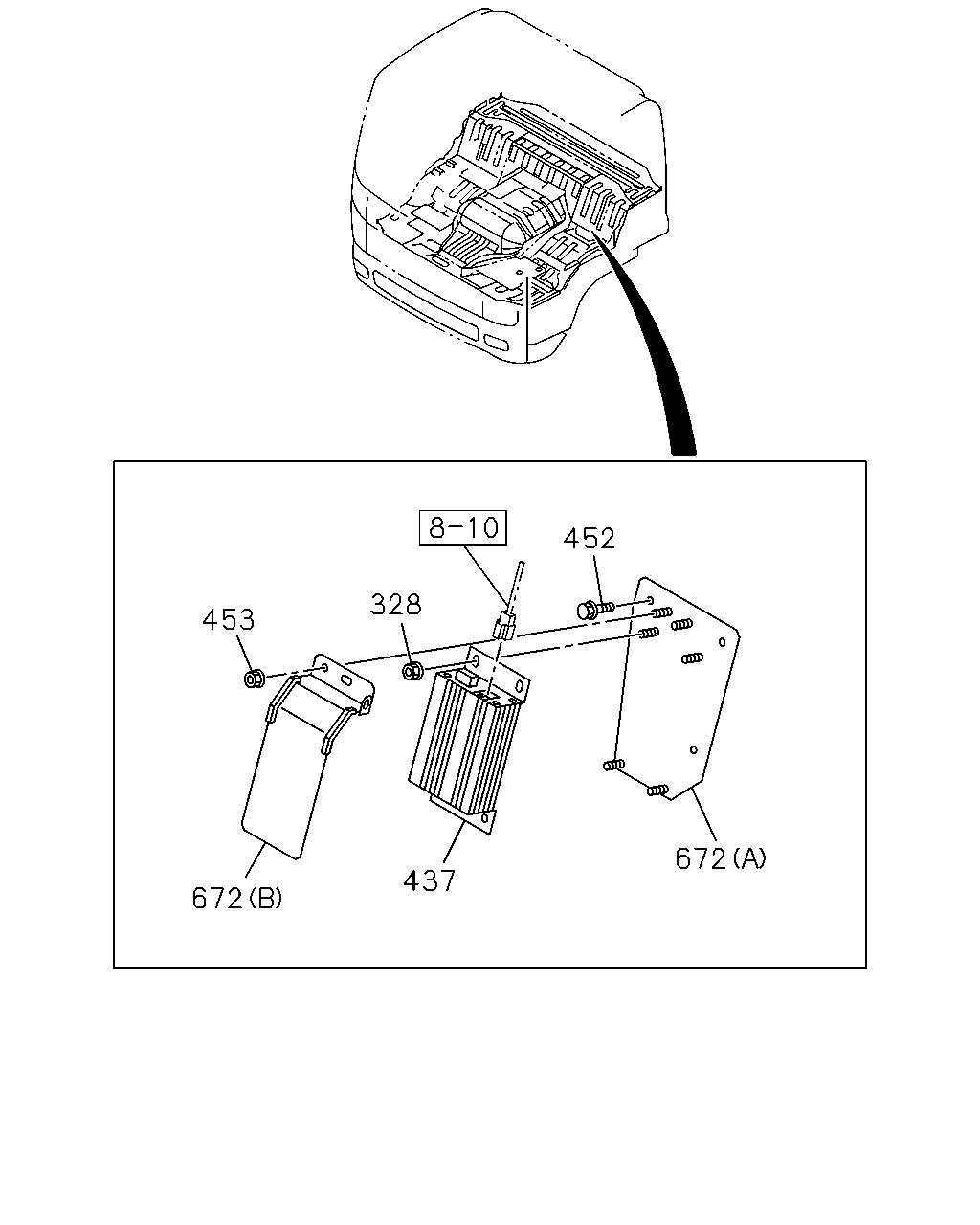

çizim 357507
453 328 452 672 437 672
BalonParca AdiParca NoAdetTipApplied Date
328 NUT
M6 FLANGE THA 		0-91180-106-0 06 1 1304-
437 CONVERTER; DC 8-97254-654-0 01 1 1304-
452 BOLT; BRKT
M6X25 FLANGE THA 		0-28650-625-0 03 1 1304-
453 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1304-
672 BRACKET; CONV
(A) 		8-97617-472-3 01 1 1304-
672 BRACKET; CONV
(B) 		8-98092-601-0 01 1 1304-

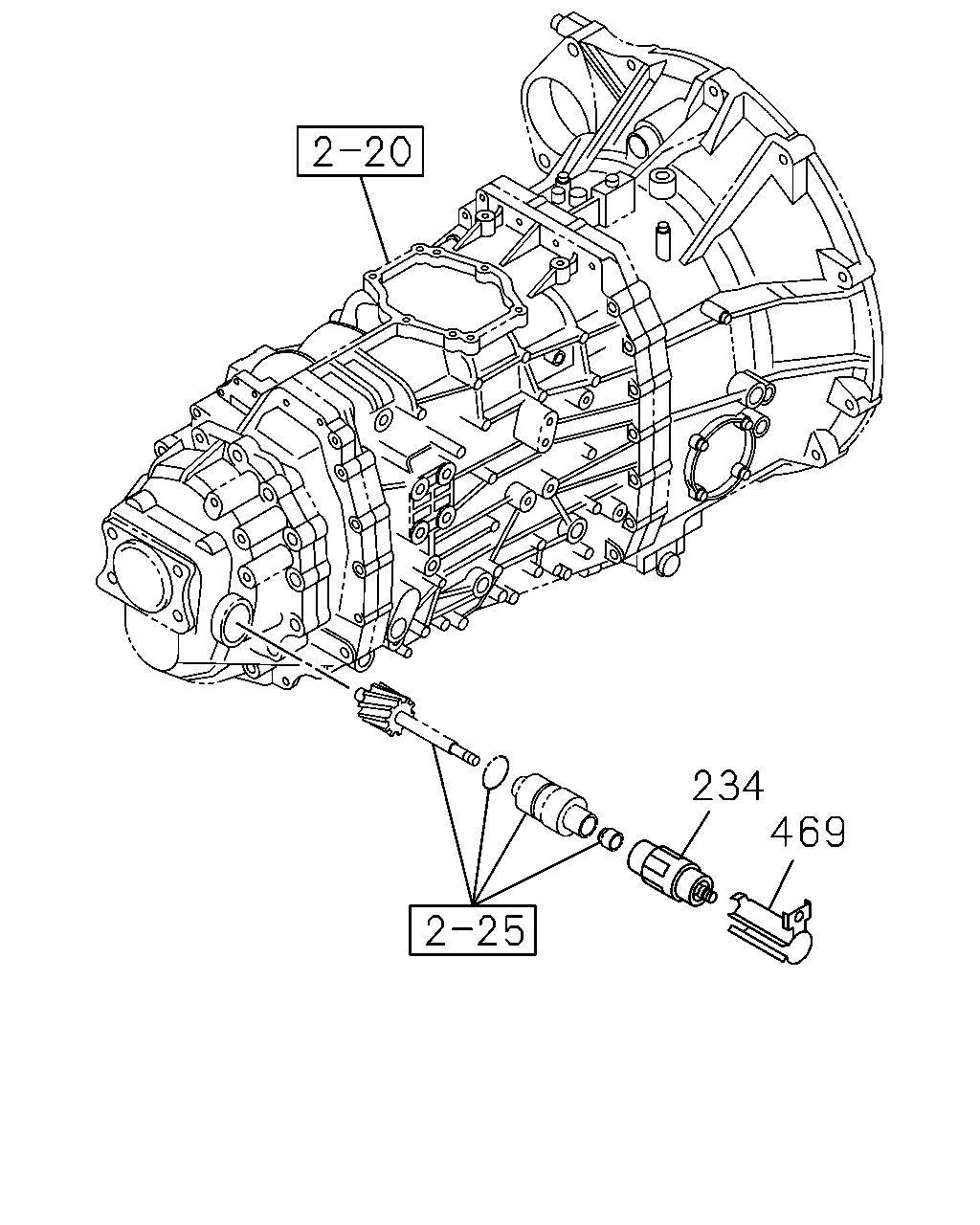

çizim 357544
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1304-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1304-

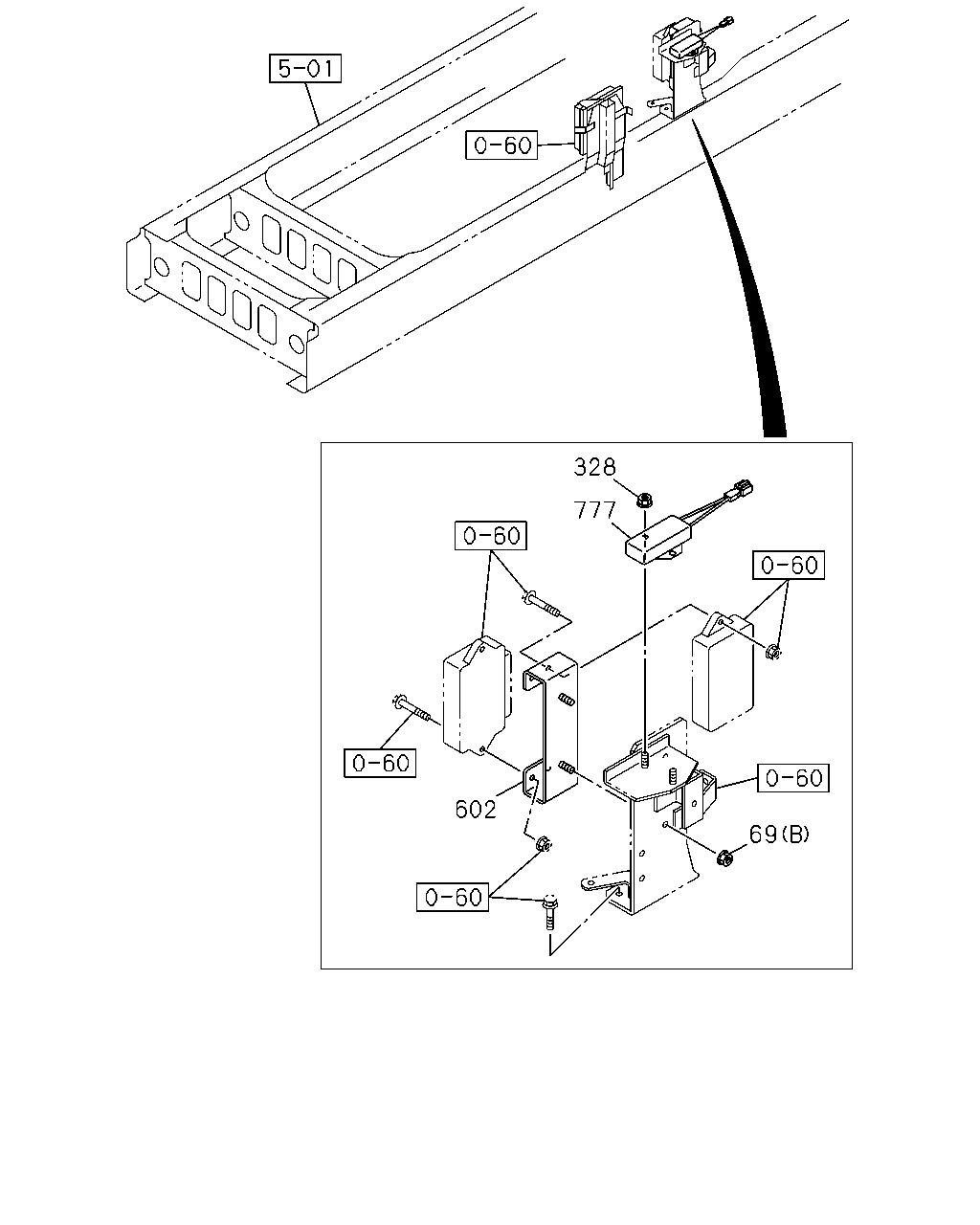

çizim 358207
328 777 69 602
BalonParca AdiParca NoAdetTipApplied Date
69 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1304-
69 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
328 NUT
M6 FLANGE THA 		0-91180-106-0 06 1 1304-
602 BRACKET ASM; ELEC UNIT,CNG 8-97630-746-0 01 1 1304-
777 RESISTOR; EDU 8-98095-341-0 01 1 1304-

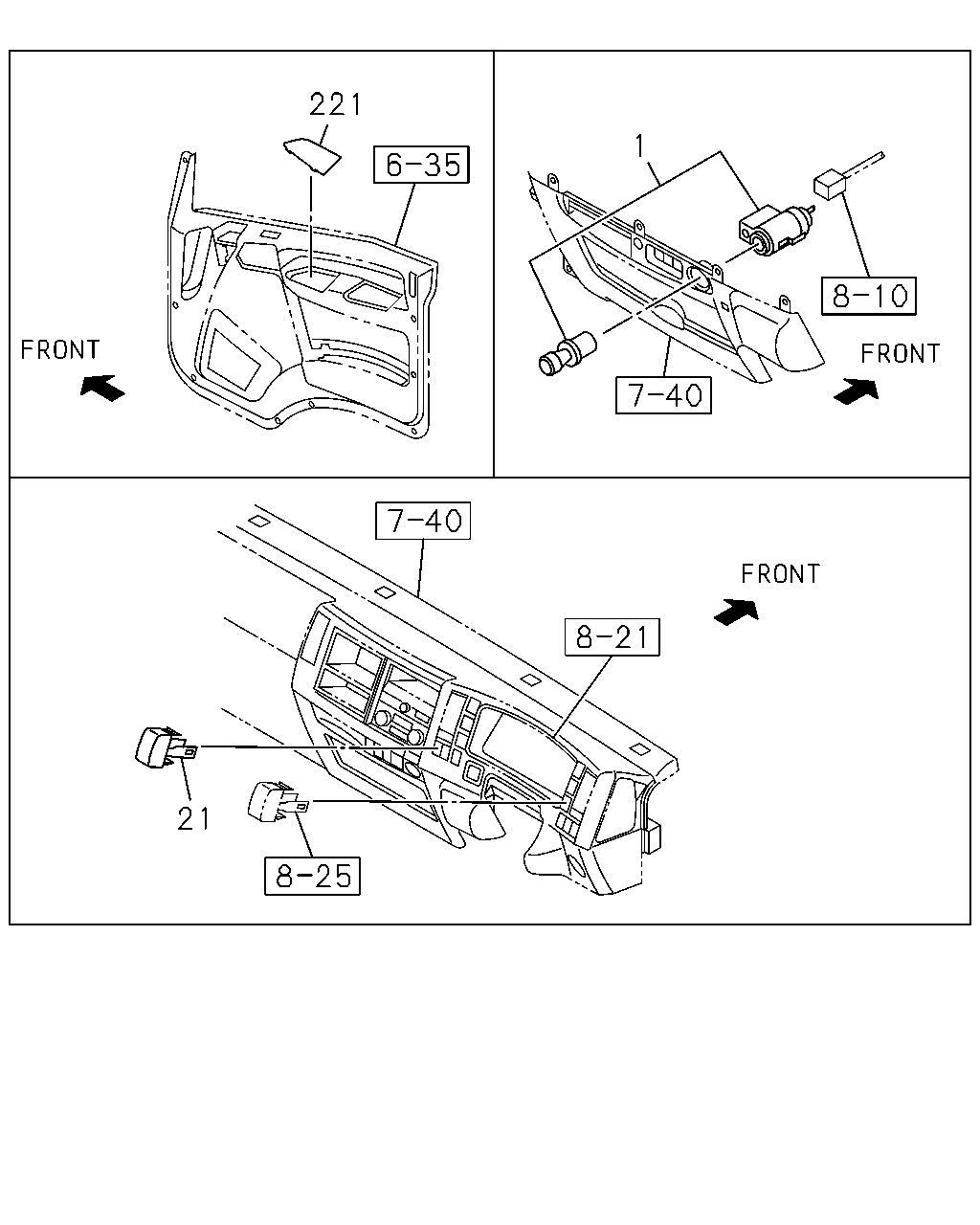

çizim 358298
221 1 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1304-
21 COVER; HOLE 8-98025-954-1 01 1 1304-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1304-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1304-
