2-53A — TRANSMISSION OIL COOLER SYSTEM (#12148) — 176 parça

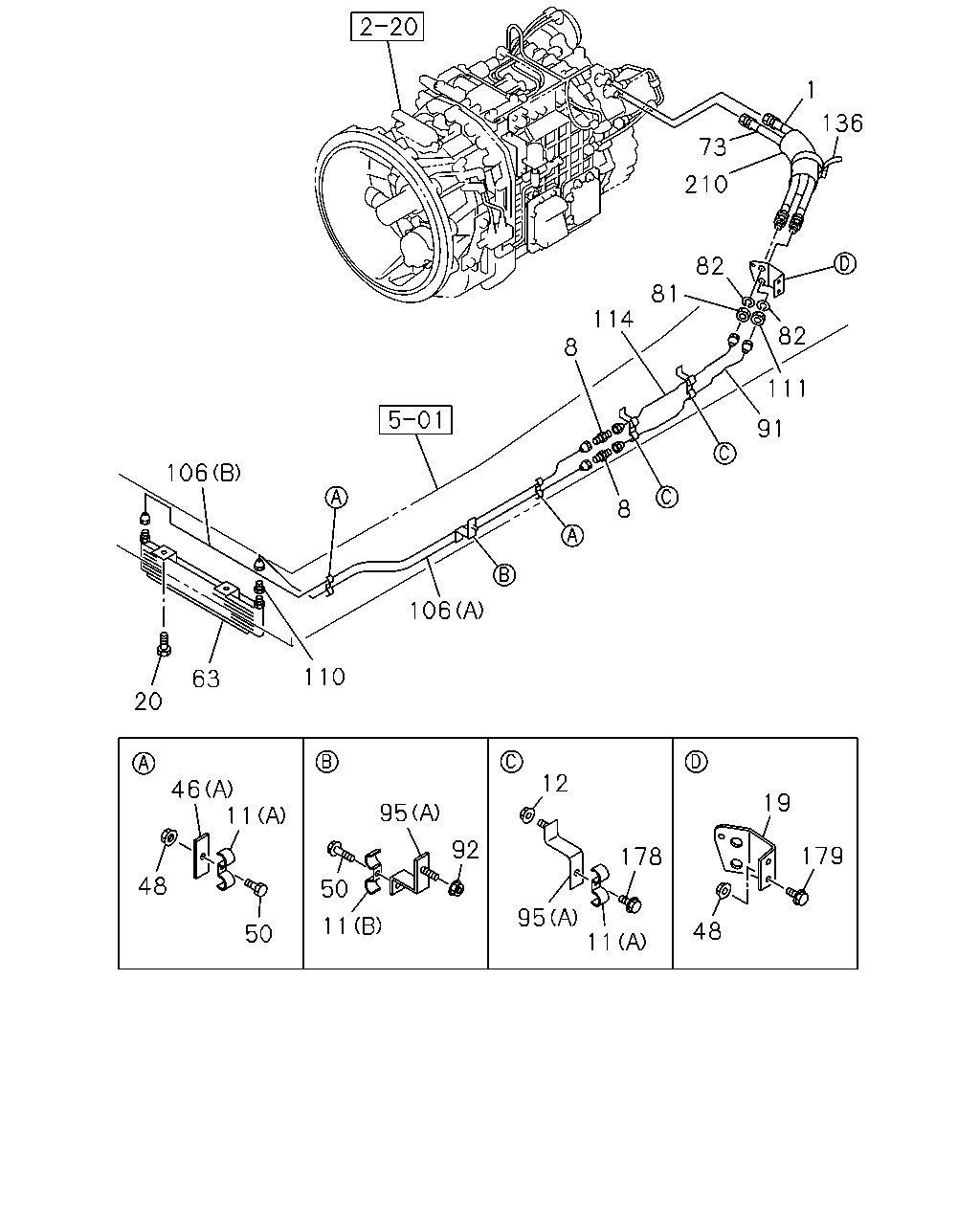

çizim 138735
1 136 73 210 82 81 114 82 8 111 91 106 8 106 110 63 20 12 46 11 19 95 92 179 178 48 50 95 11 48 50 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=450 		1-09364-625-0 01 1 0312- ●
1 HOSE; ATF
L=570 		1-09365-197-0 01 1 0107-0112 ●
1 HOSE; ATF
L=550 		1-09365-223-0 01 1 0201- ●
8 UNION
M16 L=42 		9-09233-010-1 02 1 0312-0607 ●
8 UNION
M16 L=42 		0-92123-010-0 02 1 0608- ●
8 UNION
M22 		9-09233-015-1 02 1 0107-0607 ●
8 UNION
M22 L=51 		0-92123-015-0 02 1 0608- ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 0312- ●
11 CLIP; PIPE
(A) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0312- ●
11 CLIP; PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0312-0505 ●
11 CLIP; PIPE
(C) ID=11 L=20 		9-09525-035-0 03 1 0312-0606 ●
11 CLIP; PIPE
(C) ID=11 L=20 		0-95235-035-0 03 1 0607- ●
11 CLIP; PIPE
(B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0107- ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0107- ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0107- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0505 ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0506-0602 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
19 BRACKET; FLEX HOSE
SILENCER SINGLE VERTICAL<N28> 		1-47479-212-0 01 1 0312- ●
19 BRACKET; FLEX HOSE
EXC. SILENCER SINGLE VERTICAL<N28> 		1-47478-344-0 01 1 0312- ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0107- ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 04 1 0312- ●
46 BRACKET; OIL PIPE
(B) 		1-47475-519-0 01 1 0312-0505 ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 02 1 0107- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0312-0505 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0506-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0311 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0311 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
48 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
48 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0312-0505 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0506-0512 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512 ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
63 COOLER; OIL 1-21700-290-0 01 1 0105-0609 ● ●
73 HOSE; FLEX,TRANS
L=450 		1-09364-625-0 01 1 0312- ●
73 HOSE; FLEX,TRANS 1-09365-220-0 01 1 0107- ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512 ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0107-0603 ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=902 SERVICED BY L=900 		1-47428-873-0 01 1 0312- ●
91 PIPE; OIL,FLEX HOSE TO UNION 1-49166-215-0 01 1 0107- ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0311 ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
95 BRACKET; CLIP
(A) 		1-47479-172-0 01 1 0312-0402 ●
95 BRACKET; CLIP
(A) 		1-47479-994-0 01 1 0403- ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107-0311 ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107-0311 ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0312- ● ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0312- ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0312- ●
106 PIPE ASM; OIL,COOLER TO UNION
(C) L=677 		1-49163-119-0 01 1 0312- ●
106 PIPE ASM; OIL,COOLER TO UNION
(D) L=774 		1-49166-229-0 01 1 0312- ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2324 		1-49166-216-0 01 1 0107-0206 ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2305 		1-49166-669-0 01 1 0207- ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1695 		1-49166-217-0 01 1 0107- ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0107- ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512 ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=733 SERVICED BY L=800 		1-47428-872-0 01 1 0312- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1073 		1-49166-218-0 01 1 0107- ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0105-0108 ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0109- ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0105-0108 ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0109- ●

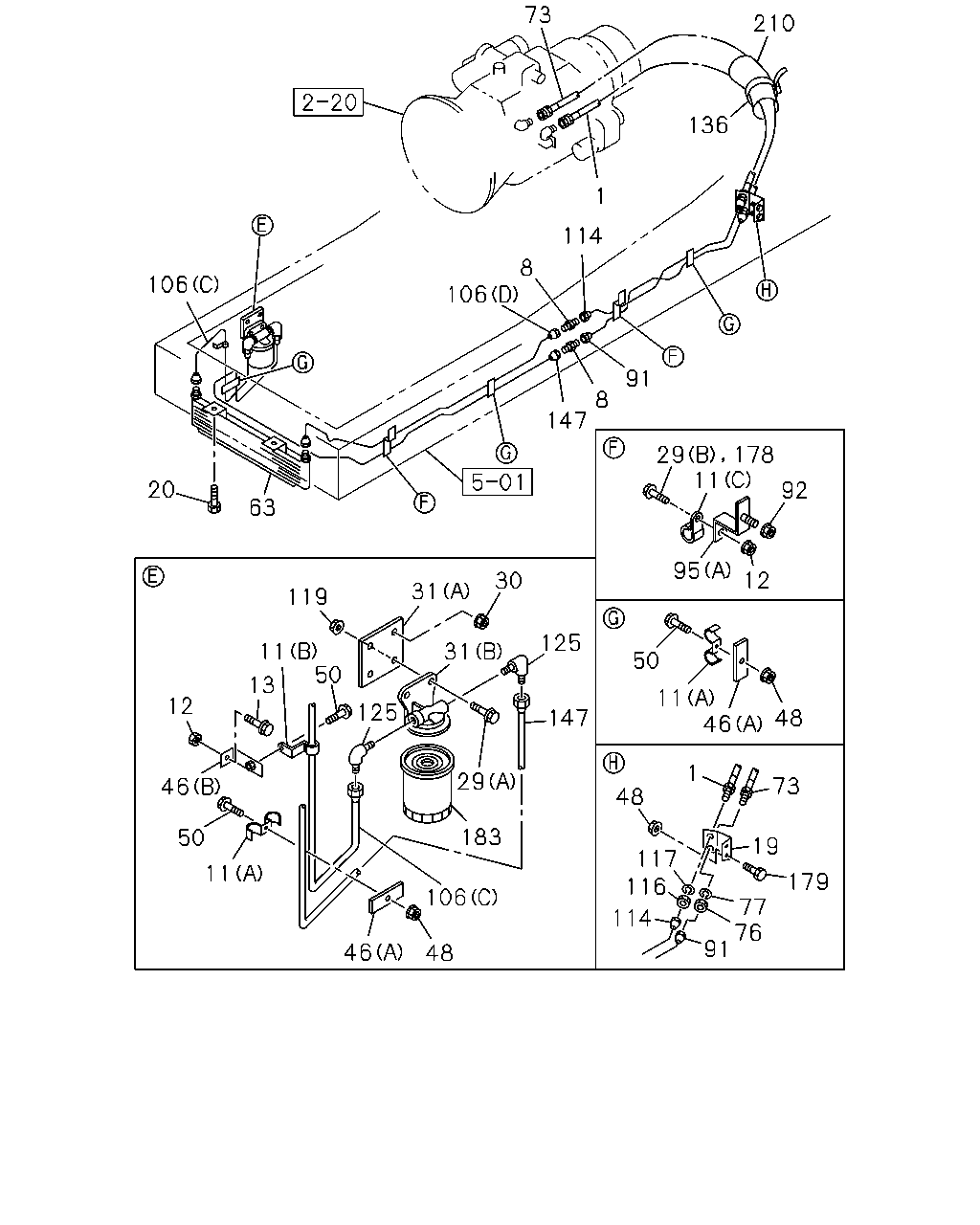

çizim 138987
73 210 136 1 114 8 106 106 91 8 147 29 178 11 20 92 63 95 12 30 31 119 125 11 50 31 50 13 11 46 125 12 147 48 1 29 73 46 48 183 50 19 117 116 11 179 106 77 76 91 114 46 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=450 		1-09364-625-0 01 1 0312- ●
1 HOSE; ATF
L=570 		1-09365-197-0 01 1 0107-0112 ●
1 HOSE; ATF
L=550 		1-09365-223-0 01 1 0201- ●
8 UNION
M16 L=42 		9-09233-010-1 02 1 0312-0607 ●
8 UNION
M16 L=42 		0-92123-010-0 02 1 0608- ●
8 UNION
M22 		9-09233-015-1 02 1 0107-0607 ●
8 UNION
M22 L=51 		0-92123-015-0 02 1 0608- ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 0312- ●
11 CLIP; PIPE
(A) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0312- ●
11 CLIP; PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0312-0505 ●
11 CLIP; PIPE
(C) ID=11 L=20 		9-09525-035-0 03 1 0312-0606 ●
11 CLIP; PIPE
(C) ID=11 L=20 		0-95235-035-0 03 1 0607- ●
11 CLIP; PIPE
(B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0107- ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0107- ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0107- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0505 ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0506-0602 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
13 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0312-0505 ●
19 BRACKET; FLEX HOSE
SILENCER SINGLE VERTICAL<N28> 		1-47479-212-0 01 1 0312- ●
19 BRACKET; FLEX HOSE
EXC. SILENCER SINGLE VERTICAL<N28> 		1-47478-344-0 01 1 0312- ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0107- ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ●
29 BOLT; FILTER TO BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ●
29 BOLT; FILTER TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
29 BOLT; FILTER TO BRKT
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0312-0512 ●
29 BOLT; FILTER TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
30 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0312-0602 ●
30 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
31 BRACKET; OIL FILTER
(B) 		1-33119-222-0 01 1 0312- ●
31 BRACKET; OIL FILTER
(A) 		1-47478-329-0 01 1 0312- ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 04 1 0312- ●
46 BRACKET; OIL PIPE
(B) 		1-47475-519-0 01 1 0312-0505 ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 02 1 0107- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0312-0505 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0506-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0311 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0311 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
48 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
48 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0312-0505 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0506-0512 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512 ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
63 COOLER; OIL 1-21700-290-0 01 1 0105-0609 ● ●
73 HOSE; FLEX,TRANS
L=450 		1-09364-625-0 01 1 0312- ●
73 HOSE; FLEX,TRANS 1-09365-220-0 01 1 0107- ●
76 NUT; FLEX HOSE
M16 		9-99111-416-0 01 1 0312-0512 ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ●
77 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0312-0603 ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=902 SERVICED BY L=900 		1-47428-873-0 01 1 0312- ●
91 PIPE; OIL,FLEX HOSE TO UNION 1-49166-215-0 01 1 0107- ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0311 ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
95 BRACKET; CLIP
(A) 		1-47479-172-0 01 1 0312-0402 ●
95 BRACKET; CLIP
(A) 		1-47479-994-0 01 1 0403- ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107-0311 ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107-0311 ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0312- ● ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0312- ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0312- ●
106 PIPE ASM; OIL,COOLER TO UNION
(C) L=677 		1-49163-119-0 01 1 0312- ●
106 PIPE ASM; OIL,COOLER TO UNION
(D) L=774 		1-49166-229-0 01 1 0312- ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2324 		1-49166-216-0 01 1 0107-0206 ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2305 		1-49166-669-0 01 1 0207- ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1695 		1-49166-217-0 01 1 0107- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=733 SERVICED BY L=800 		1-47428-872-0 01 1 0312- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1073 		1-49166-218-0 01 1 0107- ●
116 NUT; BRKT,FLEX HOSE
M16 		9-99111-416-0 01 1 0312-0512 ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 01 1 0312-0603 ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 0604- ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0312-0602 ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0312-0607 ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608- ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0105-0108 ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0109- ●
147 PIPE; OIL,UNION TO FILTER 1-49166-228-0 01 1 0312- ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0312- ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0105-0108 ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
