4-65 — REAR LEAF SPRING (#121466) — 21 parça

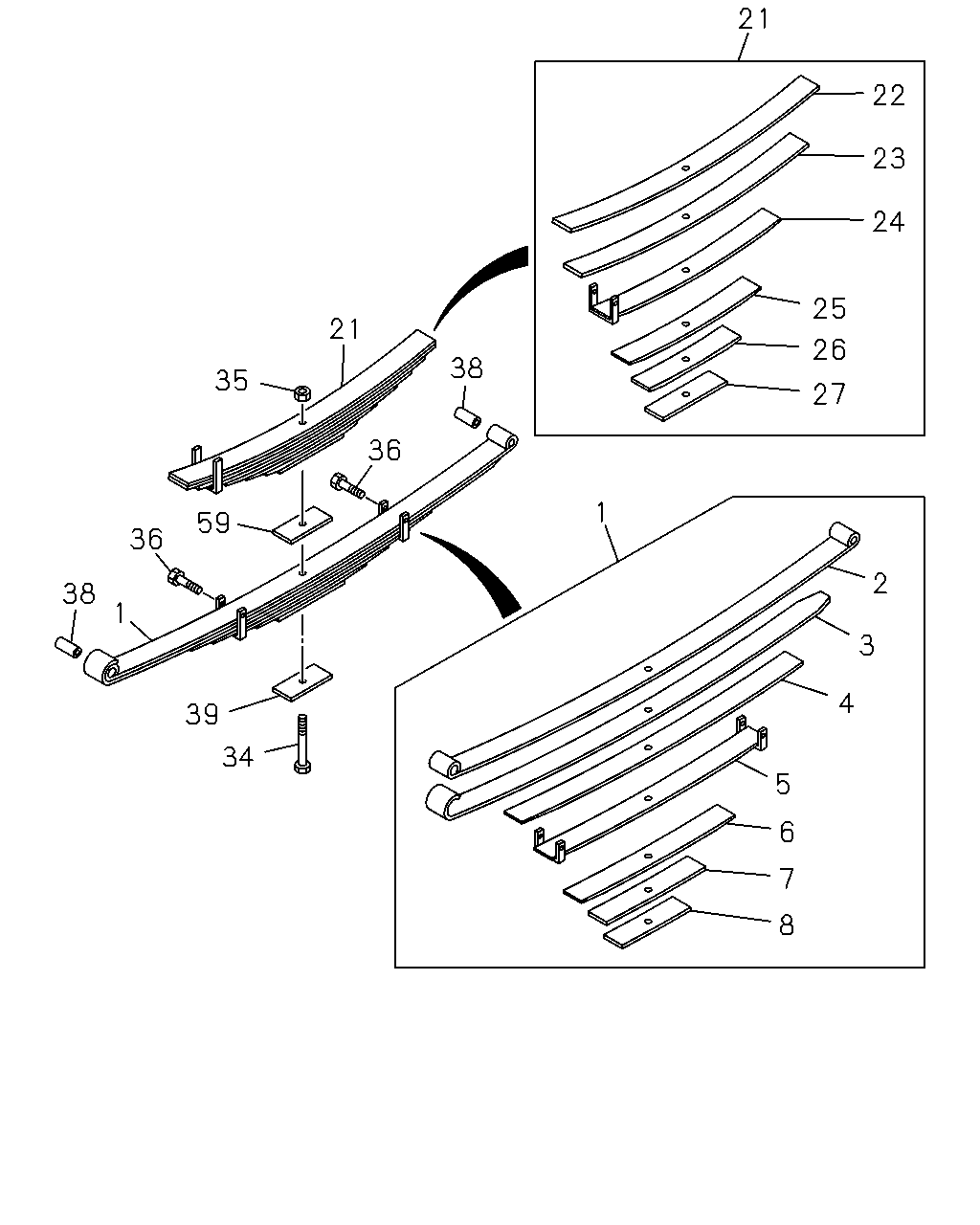

çizim 356674
1 2 3 4 5 6 7 8 38 36 34 39 1 38 36 59 35 21 27 26 25 24 23 22 21
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98051-995-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98051-996-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98051-997-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98051-998-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98051-999-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-000-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-001-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-002-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-003-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-004-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-005-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-006-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-007-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-008-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		8-98052-009-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210, THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		1-51356-233-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99, THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		1-09000-328-0 02 1 -
38 BUSHING; LEAF SPR,RR
THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12, THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		1-51377-175-0 01 1 -
59 SEAT; RR SPRING,SUB
T=12, THA ASM PART: A = 8-97948-198-0, B = 8-98017-564-0 		1-51377-171-0 01 1 -
